TAAAC — Thermal-Resistant All Aluminum Alloy Conductor
TAAAC - The full name: Thermal Resistant Aluminum-alloy Conductors. Urban network capacity transformation, substation, power plant construction and general lines
- (Compared with conventional ACSR)
- 1.Long-term working temperature of 150℃, short-term temperature up to 180℃, so that the continuous allowable carrying capacity of…
- 2.Under normal temperature, with ordinary aluminum wire has the same strength, high temperature operation mechanical strength…
- Standards: JEC 3406-95
Product Description
Application
TAAAC – The full name: Thermal Resistant Aluminum-alloy Conductors. Urban network capacity transformation, substation, power plant construction and general lines
Standard
Construction

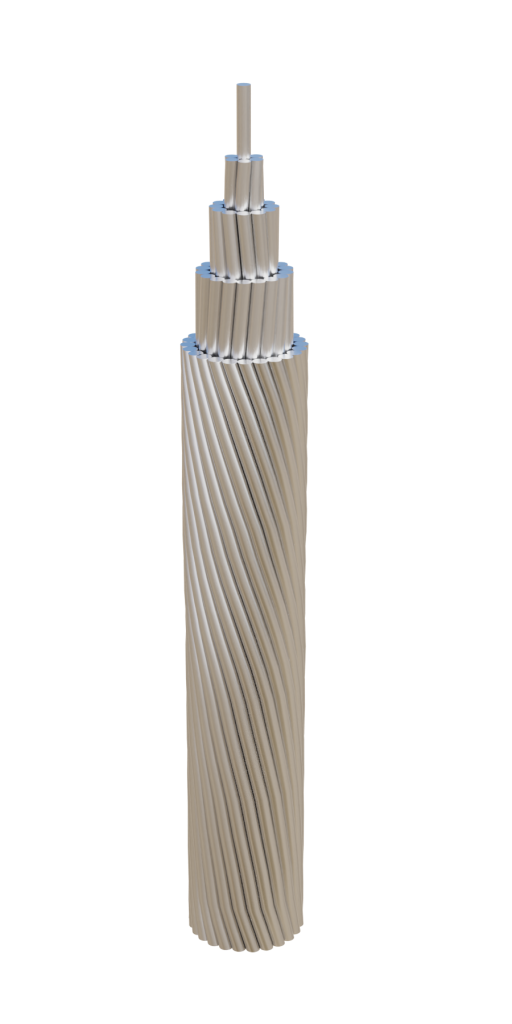

Thermal resistant aluminum alloy wires (TAL), concentric stranded
Characteristics
(Compared with conventional ACSR)
1.Long-term working temperature of 150℃, short-term temperature up to 180℃, so that the continuous allowable carrying capacity of the same specification of ordinary wire 1.5~1.6 times.
2.Under normal temperature, with ordinary aluminum wire has the same strength, high temperature operation mechanical strength retention rate can be maintained at more than 90%.
3.Compared with ordinary aluminum wire, it has the same creep properties at room temperature or high temperature.
4.There is no significant difference between the salt spray test in laboratory and the outdoor air exposure test.
5.Installation and maintenance are the same as ordinary wire installation procedures, without any special tools, tooling, installation and maintenance are convenient, and the cost is low.
Construction Parameters
|
Nominal Cross section area |
Structure [number x diameter of wire] |
Calculation area cross cestion |
Approx. Diameter of conductor |
Min.breaking strength |
DC Resistance of conductor at 20℃ |
Approx Mass of conductor |
Current Carrying capacity |
|
| mm² | n | mm | mm² | mm | kN | Ω/km | Kg/km | A |
| 120 | 19 | 2.80 | 117.0 | 14.00 | 17.5 | 0.2493 | 320.1 | 566 |
| 150 | 19 | 3.15 | 148.1 | 15.75 | 22.2 | 0.1970 | 405.1 | 659 |
| 200 | 19 | 3.65 | 198.8 | 18.25 | 29.2 | 0.1467 | 543.9 | 798 |
| 240 | 19 | 4.00 | 238.8 | 20.00 | 34.2 | 0.1220 | 654.5 | 897 |
| 300 | 37 | 3.20 | 297.6 | 22.40 | 44.5 | 0.0986 | 816.0 | 1036 |
| 400 | 37 | 3.70 | 397.8 | 25.90 | 58.0 | 0.0737 | 1097.0 | 1258 |
| 510 | 37 | 4.20 | 512.6 | 29.40 | 73.3 | 0.0571 | 1413.0 | 1491 |
| 660 | 61 | 3.70 | 655.9 | 33.30 | 95.6 | 0.0448 | 1812.0 | 1753 |
| 850 | 61 | 4.20 | 845.1 | 37.80 | 120.9 | 0.0342 | 2334.0 | 2073 |
| 980 | 61 | 3.70 | 978.4 | 40.70 | 142.7 | 0.0302 | 2714.0 | 2272 |
| 1030 | 91 | 3.80 | 1032.1 | 41.80 | 150.5 | 0.0286 | 2864.0 | 2353 |
| 1260 | 91 | 4.20 | 1260.8 | 46.20 | 180.3 | 0.0234 | 3499.0 | 2672 |
| 1600 | 127 | 4.00 | 1595.9 | 52.00 | 228.5 | 0.0186 | 4440.0 | 3083 |
| 2020 | 127 | 4.50 | 2019.5 | 58.50 | 289.0 | 0.0147 | 5616.0 | 3540 |
| 2500 | 127 | 5.00 | 2493.7 | 65.00 | 357.0 | 0.0118 | 6937.0 | 3988 |
TAAAC Conductor-Thermal Resistant Aluminum-alloy Conductors JEC 197
|
Cross Sectional area |
Na/Dia of wire | Approximately |
DC conduvtor Resistance at 20℃，max |
Calcuated breaking load min |
Current Carrying capacity |
Standard Delivery lenght |
||
|
Overall diameter |
Net weight | |||||||
| mm² | Pcs/mm | mm | Kg/km | Ω/km | kgf | n | A | m |
| 150 | 19/3.20 | 16 | 419 | 0.1910 | 2270 | 22268 | 700 | 5000 |
| 200 | 19/3.70 | 18.5 | 560 | 0.1430 | 3030 | 29724 | 850 | 5000 |
| 240 | 19/4.00 | 20 | 655 | 0.1220 | 3490 | 34236 | 945 | 3000 |
| 300 | 37/3.20 | 22.4 | 821 | 0.0958 | 4430 | 43458 | 1090 | 3000 |
| 400 | 37/3.70 | 25.9 | 1097 | 0.0737 | 5890 | 57780 | 1325 | 2000 |
| 510 | 37/4.20 | 29.4 | 1414 | 0.0571 | 7460 | 73182 | 1565 | 2000 |
| 660 | 61/3.70 | 33.3 | 1812 | 0.0448 | 9720 | 95353 | 1840 | 1500 |
| 850 | 61/4.20 | 37.8 | 2335 | 0.0347 | 12300 | 120663 | 2175 | 1000 |
| 980 | 91/3.70 | 40.7 | 2716 | 0.0302 | 14500 | 142245 | 2380 | 1000 |
| 1030 | 91/3.80 | 41.8 | 2865 | 0.0286 | 15320 | 150289 | 2465 | 1000 |
| 1260 | 91/4.20 | 46.2 | 3501 | 0.0234 | 18350 | 180013 | 2800 | 500 |
Certificate Display
Type and routine tests are issued from our own testing centre under the ISO 9001 quality system — test reports and certificates accompany every shipment.
Factory Tour
Why Choose Us
Packing & Shipping
- Wooden, steel or steel-wood drums; drum length to customer requirement
- Drum marking per customer / utility specification
- Both drum ends sealed and protected for sea freight
Ready for Your Next Cable Project?
Send us your specifications, cable schedule or RFQ — our engineering team replies with a technical proposal and price within one working day.
- Emailinfo@qzcablegroup.com
- WhatsApp / WeChat+86 173 3570 4553
- Contact personChloe · Export Department
- Factory addressWest Industrial Park, Zhulin Town, Gongyi City, Henan Province, China
