Control and instrumentation cable carries signal rather than power — the tripping, indication, metering and 4-20 mA loops that let a substation or process plant be operated and protected.
Because the signals are small, screening matters: individual screens keep pairs from talking to each other, and an overall screen keeps the outside world out. Armouring is added where the route is buried or exposed.
BS 5308 is the usual reference on EPC substation work; IEC and EN 50288 constructions are supplied where the project is specified to those.

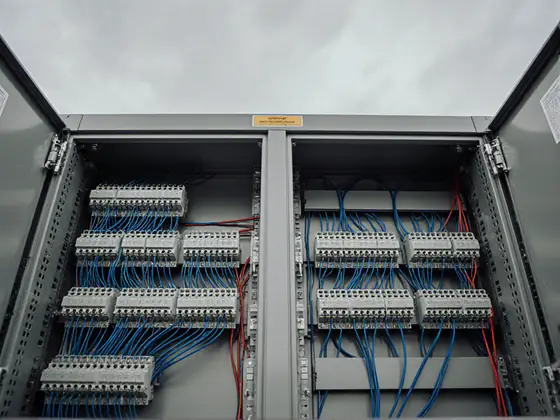

Instrumentation Cables
Screened and armoured control and instrumentation cable for power plants and process industries.
BS7629-1 — Fire Resistant Instrumention Cable
Fire Resistant Instrumentation Cable
PAS — instrumentation cables
Type PLTC and ITC 300V Instrumentation Cable
Bare Conductors
AAC · AAAC · ACSR · ACSS · TACSR
LV & MV Aerial Cables
ABC · service drop · covered line wire
LV & MV Power Cables
XLPE · PVC · armoured (SWA/STA)
Building Wire
THHN/THWN-2 · XHHW-2 · SEU/SER
Solar Cables
H1Z2Z2-K · PV1-F · UL 4703
OPGW & ADSS
OPGW · ADSS · line fittings
Special Cables
Concentric · rubber · custom design
Which construction fits your project?
Send the standard, the size and the quantity — our engineering team confirms the construction and quotes within one working day.
