XHHW

Product Description

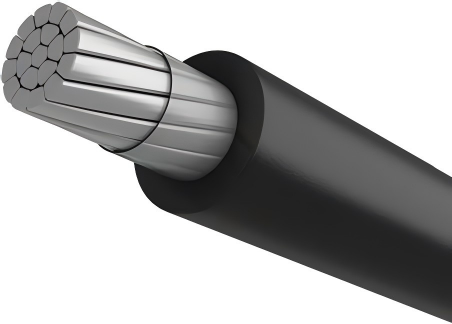

XHHW/XHHW-2, Aluminum AA-8000

Features

May be used in wet or dry

Voltage rating for XHHW-2

locations, installed in conduit, duct, or open air in accordance with requirements of the NEC® .

Standards

UL 44

Thermoset-Insulated Wire and Cable.

ICEA S-95-658/ NEMA WC70

Nonshielded 0 – 2 kV Cables.

Specifications

Maximum operating voltage:

• 600/1000 volts

Maximum conductor operation temperatures:

• 90 °C wet and dry

Engineering Information

1. Conductor: Aluminum AA-8000

alloy compacted conductor, Class

B stranding, per ASTM B801.

Sizes: 6 AWG – 1000 kcmil

On request, larger sizes available.

2. Separator: A suitable opaque tape, as required.

3. Insulation: Black Thermoset flame retardant cross-linked polyethylene (XLPE).

On request, colored insulation.

conductors is 600 volts and 1000 volts for sizes 6 AWG and larger Sunlight Resistant in all colors. Use of lubrication is not

mandatory to install XHHW/ XHHW-2 conductors in the

raceways.

Complete cable is Lead Free and RoHS compliant.

Complete cable is Silicon Free

Application

These cables are used for

general purpose wiring in

circuits not exceeding 600/1000 volts as indicated for the sizes.

XHHW/XHHW-2 600/1000 V

The above data are approximate and subject to normal manufacturing tolerances. Other sizes available upon request.

Ampacities: Refer to beginning of section.
