Aerial SNE CNE Airdac Cable
Aerial SNE CNE Cable is used for house connections, Used as a house service cable. Split concentric cable suitable for power distribution as an underground or overhead cable.
- Standards: SANS 1507/6 · SANS 1507-6
Product Description
Aerial SNE CNE Cable
Aerial SNE CNE Cable is used for house connections, Used as a house service cable. Split concentric cable suitable for power distribution as an underground or overhead cable.
CONCENTRIC & SPLIT NEUTRAL WITH PILOT CORES & EARTH
Construction

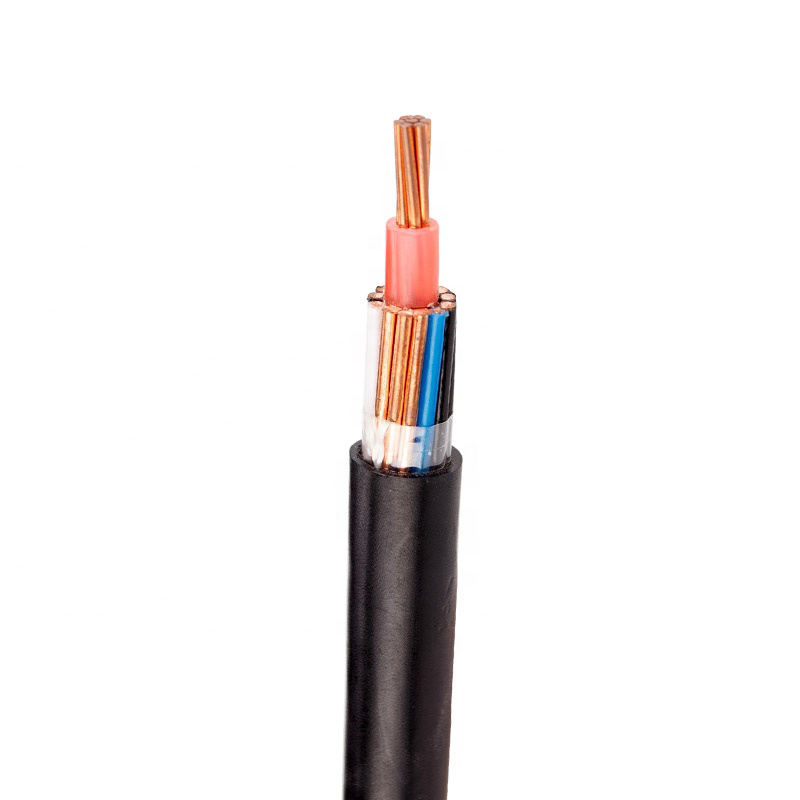

The phase core comprises of a highly conductive hard drawn copper conductor, insulated with a red crosslinked polyethylene which is ultraviolet stabilised. The phase core is surrounded by highly conductive annealed copper earth conductors as well as insulated neutral cores that form a single concentric layer around the phase core. The cable also includes two communication cores. The overall sheath consists of black polyethylene which is ultraviolet stabilised to complete the product.
| Specification | (SABS 1507 – 6) |
| Voltage Rating | 600 Volts |
| Test Voltage | 3000 Volts |
| Temperature Range | -10° to +80°C |
| Flexibility Class | 1 & 2 |
| Conductor Type | High conductivity annealed copper |
| Insulation Material | UV stabilised Cross-Linked Polyethylene |
| Sheath Material | Polyethylene |
| Sheath Colour | Black |
| Core Colours |
CN – Red phase, Bare copper neutral and earth SNE – Red phase with black neutrals and bare copper earth |
| Communication Cores | Blue and White |
Application
Aerial SNE(Seperate Neutral & Earth) CNE(Combined Negative & Earth) Cable is used for house connections. This cable can only be used for single phase supply. Cable is made to be suspended in the air. Aerial SNE Cable is also suitable for underground general use, sub main distribution boxes, street lighting systems and high rise buildings. Split concentric cable suitable for power distribution as an underground or overhead cable.
Standard
SANS 1507/6
Construction
Type I: Bare neutral and earth conductors
| Parameter | Specification |
|---|---|
| 1,Phase Conductor | Stranded Copper Conductor |
| 2,Insulation | XLPE |
| 3,Earth Conductor | Solid Copper Wire |
| 4,Ripcord | Nylon |
| 5,Binder Tape | Polyester Tape |
| 6,Outer Sheath | PE (Polyethylene) |
Bare neutral and earth conductors SANS 1507-6
| Size | Phase Conductor | XLPE Insulation | Earth Conductor | PE Sheath | Approx. Weight | ||||
|---|---|---|---|---|---|---|---|---|---|
| Structure | O.D | Thickness | O.D | Structure | O.D | Thickness | O.D | ||
| mm2 | No./mm | mm | mm | mm | No./mm | mm | mm | mm | kg/km |
| 4 | 7/0.92 | 2.76 | 1.0 | 5.97 | 8/0.85 | 6.46 | 1.4 | 9.41 | 131 |
| 10 | 7/1.35 | 4.05 | 1.0 | 5.22 | 18/0.85 | 7.75 | 1.4 | 10.70 | 240 |
Type II: Insulated neutral and bare earth conductors
Construction
| Parameter | Specification |
|---|---|
| 1,Insulation | black PE (Polyethylene) |
| 2,Phase Conductor | Stranded Copper Conductor |
| 3,Insulation | red XLPE |
4,Neutral Conductor:PE insulated Solid Copper Wire
5,Ripcord: Nylon
6,Binder Tape:Polyester Tape
| Parameter | Specification |
|---|---|
| 7,Outer Sheath | Black PE (Polyethylene) |
| 8,Pilot Core | PE Insulated Copper Wire |
| 9,Earth Conductor | 3 bare Solid Copper Wire |
Insulated neutral and bare earth conductors SANS 1507-6
| Size | Phase Conductor | XLPE Insulation | Earth Conductor | Neutral Conductor | Pilot Core | PE Sheath | Approx. Weight | |||
|---|---|---|---|---|---|---|---|---|---|---|
| Structure | O.D | Thickness | O.D | Structure | Structure | Structure | Thickness | O.D | ||
| mm2 | No./mm | mm | mm | mm | No./mm | No./mm | No./mm | mm | mm | kg/km |
| 4 | 7/0.92 | 2.76 | 1.0 | 5.97 | 3/1.05 | 7/0.86 | 2/1.13 | 1.4 | 10.0 | 168 |
| 10 | 7/1.35 | 4.05 | 1.0 | 5.22 | 3/1.78 | 7/1.33 | 2/1.13 | 1.6 | 12.7 | 334 |
| 16 | 7/1.70 | 5.10 | 1.0 | 7.10 | 3/2.20 | 7/1.67 | 2/1.13 | 1.6 | 14.5 | 502 |
