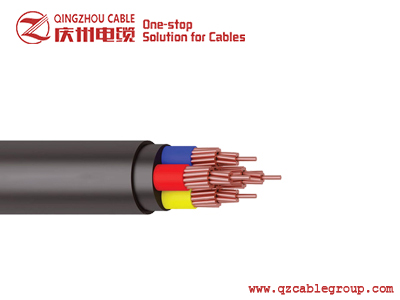

LV cable: cable voltage level up to 1.8/3kV

  • Standards: GB/T12706- · IEC60502-2004 · GB/T3956-2008 · IEC60228 · IEC60502-2005
Get a quote Request datasheet (PDF)

Product Description

LV cable: cable voltage level up to 1.8/3kV

PVC Insulated power Cable

This product is used for power transmission and distribution lines with AC rated voltage of 1.8/3V and below.

Its mechanical and physical properties and electrical performance meet the requirements of national standard GB/T12706- 2008 and international standard IEC60502-2004 “Extruded Insulated Power Cable with Rate Voltage of 1-30KV and Accessories”.

Operating characteristics and electrical performance

Cable laying temperature: ≥0°C

Long-term allowable operating temperature of cable conductor: ≤70°C

Higest working temperature of cable in case of short circuit (the longest lasting time is not over 5s): 160°C

Minimum permissible bending radius: Single core cable: 20D; multi-core cable: 15D (Note: D is actual outer diameter of cable).

AC withstand voltage test of finished cable product

Rated voltage (KV) 0.6/1 1.8/3
Rated voltage (KV) 3.5 6.5
Duration (min) 5 5

Conductor DC resistance meets the requirements of national standard GB/T3956-2008 “Cable Conductor” and international standard IEC60228.

Models, Names and Laying Occasions of XLPE Insulated power Cable

Model

Name

Laying Occasion
Copper core Aluminum core
VV VLV PVC insulated and sheathed power cable Laid indoors, and in tunnels, pipelines, cable trenches, and flammable and severe corrosion places, and can not bear external mechanical forces.
VY VLY PVC insulated PE sheathed power cable Laid indoors, and in pipelines, cable trenches and severe corrosion places, and cannot bear external mechanical forces
VV22 VLV22 PVC insulated steel tape armored PVC sheathed power cable Laid indoors, and in cable trenches, underground severe corrosion places, and cannot bear tension.
VV23 VLV23 PVC insulated steel tape armored PE Laid indoors, and in cable trenches and underground severe corrosion place, and cannot bear tension.
VV32 VLV32 PVC insulated thin steel wire armored PVC sheathed power cable Laid under ground and in shafts, water and severe corrosion places, and cannot bear high tension.
VV33 VLV33 PVC insulated thin steel wire armored PVC sheathed power cable Laid under ground and in shafts, water and severe corrosion places, and can bear high tension.
VV42 VLV42 PVC insulated thick steel wire armored PVC sheathed power cable Laid under ground and in shafts and severe corrosion places, and can bear high tension.
VV43 VLV43 PVC insulated thick steel wire armored PE sheathed power cable Laid under ground and in shafts and severe corrosion places, and can bear high tension.

Range of production

Number of cores

0.6/1Kv Cross sectional area (mm2)

1.8/3
Single core 1 1.5-100 10-1000
Twin  core 2 1.5-240 10-240
Triple core 3 1.5-300 10-300
Three big cores and one small core 3+1 2.5-300 10-300
Fourth core 4 2.5-300 10-300
Fifth core 5 2.5-300 10-300
Three big cores and two small cores 3+2 2.5-300 10-300
Four big cores and one small core 4+1 2.5-300 10-300

0.6/1KV PVC/PVC Power cable (non-armored) VV, VLV

Conductor dimensions (mm2)

Insulation thickness (mm)

 Nonmetallic sheath, unarmored cable
Sheath thickness Outer diameter (approximate) Cable weight (Kg/km)
mm mm Copper core Aluminum core
1C 2C 3C 4C 5C 1C 2C 3C 4C 5C 1C 2C 3C 4C 5C 1C 2C 3C 4C 5C
1.5 0.8 1.4 1.8 1.8 1.8 1.8 5.8 10.4 10.8 11.6 12.4 49 131 152 184 215 40 113 124 147 168
2.5 0.8 1.4 1.8 1.8 1.8 1.8 6.2 11.2 11.7 12.6 13.5 62 159 191 234 277 47 128 144 172 199
4 1.0 1.4 1.8 1.8 1.8 1.8 7.1 12.9 13.6 14.7 15.9 86 211 264 330 391 62 161 189 231 266
6 1.0 1.4 1.8 1.8 1.8 1.8 7.6 13.9 14.7 15.9 17.3 110 268 334 423 505 73 193 221 273 318
10 1.0 1.4 1.8 1.8 1.8 1.8 8.7 16.2 17.1 18.6 20.3 158 380 492 627 754 96 254 303 375 439
16 1.0 1.4 1.8 1.8 1.8 1.8 9.8 18.4 19.5 21.3 23.3 224 533 714 905 1094 124 331 412 502 590
25 1.2 1.4 1.8 1.8 1.8 1.8 11.2 21.2 22.5 24.7 27.1 325 759 1019 1307 1592 169 445 547 678 806
35 1.2 1.4 1.8 1.8 1.8 1.9 12.4 23.6 21.4 27.6 30.5 429 974 1313 1699 2098 211 533 652 818 997
50 1.4 1.4 1.8 1.8 1.9 2.1 14.0 26.8 28.0 31.6 35.2 590 1265 1781 2354 2929 278 636 837 1096 1355
70 1.4 1.4 1.9 2.0 2.1 2.2 15.6 23.4 27.2 31.5 37.9 791 1650 2393 3155 3942 353 770 1071 1394 1740
95 1.6 1.5 2.0 2.1 2.2 2.4 17.9 27.2 31.4 36.6 43.0 1062 2206 3205 4239 5295 467 1011 1412 1849 2307
120 1.6 1.5 2.1 2.2 2.4 2.5 19.3 29.8 34.3 39.2 46.9 1306 2727 3966 5244 6549 555 1217 1701 2224 2774
150 1.8 1.6 2.2 2.3 2.5 2.7 21.4 32.6 37.9 43.1 52.4 1625 3374 4924 6508 8155 686 1486 2093 2733 3437
185 2.0 1.7 2.4 2.5 2.7 2.9 23.7 38.6 42.3 48.2 60.7 1998 4185 6062 8022 10074 840 1857 2571 3366 4254
240 2.2 1.8 2.6 2.7 2.9 3.1 26.5 43.8 49.7 55.7 65.8 2565 5371 7825 10335 12911 1062 2351 3296 4295 5361
300 2.4 1.9 2.7 2.9 3.1 3.3 29.3 48.8 52.8 62.3 71.4 3186 6641 9696 12859 16023 1306 2854 4016 5285 6557
400 2.6 2.0   3.1 3.4 3.7 33.0   59.8 71.2 83.1 4191   12739 16940 21124 1684   5165 6842 8501
500 2.8 2.1   3.4 3.4   36.4   74.2 82.2 86.5 5198   15898 20937   2064   6431 8314
630 2.8 2.2         40.1   77.0 85.3   6464         2515
800 2.8 2.3         45.2         8126         3112
1000 3.0 2.5         50.5         10120         3853

0.6/1KV PVC/PVC Power cable (non-armored) VV, VLV

Conductor dimensions (mm2)

Insulation thickness (mm)

 Nonmetallic sheath, unarmored cable
Sheath thickness Outer diameter (approximate) Cable weight (Kg/km)
mm mm Copper core Aluminum core
Phase line Null line Phase line Null line 3+1C 3+2C 4+1C 3+1C 3+2C 4+1C 3+1C 3+2C 4+1C 3+1C 3+2C 4+1C
2.5 1.5 0.8 0.8 1.8 1.8 1.8 12.3 13.1 13.3 236 271 276 — — —
4 2.5 1.0 0.8 1.8 1.8 1.8 14.2 14.9 15.4 307 354 305 217 248 253
6 4.0 1.0 1.0 1.8 1.8 1.8 15.6 16.7 17.0 400 467 335 263 305 308
10 6.0 1.0 1.0 1.8 1.8 1.8 18.0 19.1 19.7 574 659 701 348 395 412
16 10.0 1.0 1.0 1.8 1.8 1.8 20.7 22.1 22.7 829 946 1018 464 518 552
25 16.0 1.2 1.0 1.8 1.8 1.8 23.9 25.6 26.3 1195 1379 1480 622 705 751
35 16.0 1.2 1.0 1.8 1.8 1.8 26.1 27.5 28.9 1484 1667 1869 728 818 894
50 25.0 1.4 1.2 1.9 1.9 2.0 30.0 31.8 33.5 2079 2359 2638 978 1100 1222
70 35.0 1.4 1.2 2.0 2.1 2.1 31.0 34.9 35.8 2789 3200 3565 1245 1436 1579
95 50.0 1.6 1.4 2.2 2.2 2.3 35.7 40.2 41.3 3778 4350 4821 1667 1924 2111
120 70.0 1.6 1.4 2.3 2.4 2.5 38.3 43.8 45.7 4725 5529 6050 2014 2377 2582
150 70.0 1.8 1.4 2.4 2.5 2.6 41.7 48.1 50.0 5680 6500 7318 2402 2780 3094
185 95.0 2.0 1.6 2.6 2.7 2.8 47.4 53.6 55.4 7098 8178 9095 2999 3481 3830
240 120.0 2.2 1.6 2.8 2.9 3.0 55.5 61.3 62.7 9108 10435 11651 3812 4382 4841
300 150.0 2.4 1.8 3.0 3.1 3.2 61.2 68.5 66.0 11320 12981 14434 4695 5410 5915
400 185.0 2.6 2.0 3.2 3.3 3.5 70.4 77.1 70.9 14757 16803 18818 6017 6897 7554

0.6/1KV PVC/PVC Power cable (steel wire armored) VV32, VLV32

Conductor dimensions (mm2)

nsulation thickness (mm)

 Armored wire cable
PVC bedding thickness Armored wire Outer diameter

Sheath thickness

 Outer diameter (approximate) Cable weight (approximate) (Kg/km) Cable weight (approximate) (Kg/km)
mm mm mm mm Copper core Aluminum core
2C 3C 4C 5C 2C 3C 4C 5C 2C 3C 4C 5C 2C 3C 4C 5C 2C 3C 4C 5C 2C 3C 4C 5C
1.5 0.8 1.0 1.0 1.0 1.0 0.8 0.8 0.8 0.8 1.8 1.8 1.8 1.8 14.6 15.0 15.8 16.6 351 390 449 477 332 362 412 431
2.5 0.8 1.0 1.0 1.0 1.0 0.8 0.8 0.8 0.8 1.8 1.8 1.8 1.8 15.4 15.9 16.8 17.7 396 447 523 562 365 400 461 484
4 1.0 1.0 1.0 1.0 1.0 0.8 1.25 1.25 1.25 1.8 1.8 1.8 1.8 17.1 18.7 19.8 21.0 492 681 785 887 442 607 685 762
6 1.0 1.0 1.0 1.0 1.0 1.25 1.25 1.25 1.25 1.8 1.8 1.8 1.8 19.0 19.8 21.0 22.4 698 788 915 1041 623 677 766 854
10 1.0 1.0 1.0 1.0 1.0 1.25 1.25 1.25 1.6 1.8 1.8 1.8 1.8 21.3 22.2 23.7 26.1 874 1012 1197 1519 748 823 945 1204
16 1.0 1.0 1.0 1.0 1.0 1.25 1.25 1.6 1.6 1.8 1.8 1.8 1.8 23.5 24.6 27.1 29.1 1091 1309 1701 1976 890 1007 1298 1473
25 1.2 1.0 1.0 1.0 1.0 1.6 1.6 1.6 1.6 1.8 1.8 1.8 1.9 27.0 28.3 30.5 33.1 1555 1856 2223 2639 1240 1384 1594 1852
35 1.2 1.0 1.0 1.0 1.0 1.6 1.6 1.6 2.0 1.8 1.8 1.9 2.0 29.4 30.9 33.6 37.3 1850 2279 2747 3531 1409 1619 1866 2430
50 1.4 1.0 1.0 1.2 1.2 1.6 1.6 2.0 2.0 1.9 2.0 2.1 2.2 32.8 34.7 39.0 42.4 2275 2872 3846 4624 1646 1928 2588 3051
70 1.4 1.0 1.2 1.2 1.2 2.0 2.0 2.0 2.0 2.0 2.1 2.2 2.3 37.0 34.4 38.7 45.1 3073 3681 4632 5702 2190 2357 2867 3495
95 1.6 1.2 1.2 1.2 1.4 2.0 2.0 2.5 2.5 2.2 2.2 2.4 2.6 42.0 38.6 45.4 52.2 3866 4656 6456 7940 2668 2859 4060 4945
120 1.6 1.2 1.2 1.4 1.4 2.0 2.0 2.5 2.5 2.3 2.3 2.6 2.7 45.0 41.5 48.4 56.1 4519 5543 7653 9415 3006 3273 4627 5632
150 1.8 1.2 1.4 1.4 1.6 2.5 2.5 2.5 2.5 2.5 2.6 2.7 2.9 50.6 47.3 52.3 62.0 5919 7257 9126 11427 4027 4420 5343 6698
185 2.0 1.4 1.4 1.6 1.6 2.5 2.5 2.5 2.5 2.6 2.7 2.9 3.1 55.4 51.5 57.8 70.3 7028 8630 10993 13819 4695 5131 6327 7987
240 2.2 1.4 1.6 1.6 1.6 2.5 2.5 2.5 3.15 2.8 2.9 3.1 3.4 61.0 59.3 65.3 77.0 8521 10856 13726 17857 5495 6316 7673 10291
300 2.4 1.6 1.6 1.6 1.8 2.5 2.5 2.5 3.15 3.0 3.1 3.3 3.6 67.0 62.4 71.9 82.9 10178 12930 16619 21385 6392 7250 9045 11918
400 2.6   1.6 1.8     3.15 3.15     3.4 3.7     70.9 82.7 97.8   17174 22239     9601 12141
500 2.8   1.8       3.15       3.6       88.3       21557       12090

0.6/1KV PVC/PVC Power cable (steel tape armored) VV22,VLV22

Conductor dimensions (mm2)

nsulation thickness (mm)

 Steel tape armoured cable
PVC bedding thickness Armored wire Outer diameter

Sheath thickness

 Outer diameter (approximate) Cable weight (approximate) (Kg/km) Cable weight (approximate) (Kg/km)
mm mm mm mm Copper core Aluminum core
2C 3C 4C 5C 2C 3C 4C 5C 2C 3C 4C 5C 2C 3C 4C 5C 2C 3C 4C 5C 2C 3C 4C 5C
1.5 0.8 0.9 0.9 0.9 0.9 0.2 0.2 0.2 0.2 1.8 1.8 1.8 1.8 12.2 12.6 13.4 14.2 229 254 294 334 210 226 257 287
2.5 0.8 0.9 0.9 0.9 0.9 0.2 0.2 0.2 0.2 1.8 1.8 1.8 1.8 13.0 13.5 14.4 15.3 265 302 355 407 234 255 293 329
4 1.0 0.9 0.9 0.9 0.9 0.2 0.2 0.2 0.2 1.8 1.8 1.8 1.8 14.7 15.4 16.5 17.7 335 395 473 546 285 320 373 422
6 1.0 0.9 0.9 0.9 0.9 0.2 0.2 0.2 0.2 1.8 1.8 1.8 1.8 15.7 16.5 17.7 19.1 403 476 578 676 328 364 429 489
10 1.0 0.9 0.9 0.9 0.9 0.2 0.2 0.2 0.2 1.8 1.8 1.8 1.8 18.0 18.9 20.4 22.1 538 660 811 956 413 471 559 641
16 1.0 0.9 0.9 0.9 0.9 0.2 0.2 0.2 0.2 1.8 1.8 1.8 1.8 20.2 21.3 23.1 25.1 715 908 1118 1328 513 606 715 824
25 1.2 0.9 0.9 0.9 0.9 0.2 0.2 0.2 0.2 1.8 1.8 1.8 1.8 23.0 24.3 26.5 28.9 971 1245 1556 1867 656 773 927 1080
35 1.2 0.9 0.9 0.9 0.9 0.2 0.2 0.2 0.2 1.8 1.8 1.9 2.0 25.4 26.9 29.6 32.5 1211 1598 1993 2422 770 937 1112 1321
50 1.4 0.9 0.9 0.9 1.2 0.2 0.2 0.2 0.5 1.8 1.9 2.0 2.2 28.6 30.5 33.6 39.0 1536 2089 2690 3720 907 1145 1432 2147
70 1.4 0.9 0.9 1.2 1.2 0.2 0.2 0.5 0.5 1.9 2.0 2.2 2.3 25.2 29.0 35.3 41.7 1884 2666 3862 4792 1002 1342 2097 2585
95 1.6 1.2 1.2 1.2 1.2 0.5 0.5 0.5 0.5 2.1 2.2 2.4 2.5 31.0 35.2 40.6 46.8 2818 3910 5078 6256 1620 2114 2682 3261
120 1.6 1.2 1.2 1.2 1.4 0.5 0.5 0.5 0.5 2.2 2.3 2.5 2.6 33.6 38.1 43.0 51.1 3395 4734 6118 7647 1882 2464 3092 3864
150 1.8 1.2 1.2 1.4 1.4 0.5 0.5 0.5 0.5 2.4 2.5 2.6 2.8 36.6 41.9 47.3 56.6 4120 5790 7516 9378 2228 2953 3733 4649
185 2.0 1.2 1.4 1.4 1.4 0.5 0.5 0.5 0.5 2.5 2.6 2.8 3.0 42.4 46.5 52.4 64.9 5045 7052 9145 11487 2713 3552 4480 5655
240 2.2 1.4 1.4 1.4 1.4 0.5 0.5 0.5 0.5 2.7 2.8 3.0 3.2 48.0 53.9 59.9 70.0 6393 8984 11630 14440 3367 4445 5577 6874
300 2.4 1.4 1.4 1.4 1.4 0.5 0.5 0.5 0.5 2.9 3.0 3.2 3.5 53.2 57.0 66.5 75.8 7802 10923 14305 17714 4016 5243 6731 8247
400 2.6   1.4 1.4 1.4   0.5 0.8 0.8   3.3 3.6 3.8   64.2 76.8 91.9   14155 19356     6581 9258
500     1.4       0.5       3.4       81.2       17684       8217

0.6/1KV  PVC/PVC  Power  cable  (steel wire armored) VV32, VLV32

Conductor dimensions (mm2)

Insulation thickness (mm)

 Armored wire cable
PVC bedding thickness Armored wire Outer diameter

Sheath thickness

 Outer diameter (approximate) Cable weight (approximate) (Kg/km) Cable weight (approximate) (Kg/km)
mm mm mm mm Copper core Aluminum core
Phase line Null line Phase line Null line 3+1C 3+2C 4+1C 3+1C 3+2C 4+1C 3+1C 3+2C 4+1C 3+1C 3+2C 4+1C 3+1C 3+2C 4+1C 3+1C 3+2C 4+1C
2.5 1.5 0.8 0.8 1.0 1.0 1.0 0.8 0.8 0.8 1.8 1.8 1.8 16.5 17.3 17.5 504 557 567 — — —
4 2.5 1.0 0.8 1.0 1.0 1.0 1.25 1.25 1.25 1.8 1.8 1.8 19.3 20.0 20.5 749 809 847 658 704 732
6 4.0 1.0 1.0 1.0 1.0 1.0 1.25 1.25 1.25 1.8 1.8 1.8 20.7 21.8 22.1 880 985 1002 743 823 827
10 6.0 1.0 1.0 1.0 1.0 1.0 1.25 1.6 1.6 1.8 1.8 1.8 23.1 24.9 25.5 1130 1375 1438 904 1112 1149
16 10.0 1.0 1.0 1.0 1.0 1.0 1.6 1.6 1.6 1.8 1.8 1.8 26.5 27.9 28.5 1605 1780 1872 1240 1352 1406
25 16.0 1.2 1.0 1.0 1.0 1.0 1.6 1.6 1.6 1.8 1.8 1.9 29.7 31.4 32.3 2090 2333 2471 1517 1660 1741
35 16.0 1.2 1.0 1.0 1.0 1.0 1.6 1.6 1.6 1.9 1.9 2.0 32.1 33.5 35.1 2472 2698 2975 1717 1849 2000
50 25.0 1.4 1.2 1.0 1.2 1.2 2.0 2.0 2.0 2.0 2.1 2.1 36.8 39.2 40.7 3434 3878 4205 2333 2620 2790
70 35.0 1.4 1.2 1.2 1.2 1.2 2.0 2.0 2.0 2.1 2.2 2.3 38.2 42.1 43.0 4235 4806 5248 2690 3041 3262
95 50.0 1.6 1.4 1.2 1.2 1.4 2.0 2.5 2.5 2.3 2.5 2.5 42.9 49.2 50.5 5417 6789 7334 3306 4363 4623
120 70.0 1.6 1.4 1.4 1.4 1.4 2.5 2.5 2.5 2.5 2.6 2.7 47.5 53.0 54.9 7082 8193 8818 4371 5041 5351
150 70.0 1.8 1.4 1.4 1.4 1.4 2.5 2.5 2.5 2.6 2.7 2.8 50.9 57.3 59.2 8200 9418 10340 4921 5698 6116
185 95.0 2.0 1.6 1.4 1.4 1.6 2.5 2.5 2.5 2.8 2.9 3.0 56.6 62.8 65.0 9968 11365 12481 5870 6668 7216
240 120.0 2.2 1.6 1.6 1.6 1.6 2.5 2.5 2.5 3.0 3.1 3.2 65.1 70.9 72.3 12495 14139 15454 7199 8086 8645
300 150.0 2.4 1.8 1.6 1.6 1.8 2.5 2.5 3.15 3.2 3.3 3.5 70.8 78.1 77.5 15024 17101 19338 8399 9530 10818
400 185.0 2.6 2.0 1.8 1.8 1.8 3.15 3.15 3.15 3.5 3.6 3.8 81.9 88.6 82.4 19977 22502 24053 11237 12595 12788

0.6/1KV  PVC/PVC  Power  cable  (steel tape armored) VV22, VLV22

Conductor dimensions (mm2)

Insulation thickness (mm)

 Steel tape armoured cable
PVC bedding thickness Armored wire Outer diameter

Sheath thickness

 Outer diameter (approximate) Cable weight (approximate) (Kg/km) Cable weight (approximate) (Kg/km)
mm mm mm mm Copper core Aluminum core
Phase line Null line Phase line Null line 3+1C 3+2C 4+1C 3+1C 3+2C 4+1C 3+1C 3+2C 4+1C 3+1C 3+2C 4+1C 3+1C 3+2C 4+1C 3+1C 3+2C 4+1C
2.5 1.5 0.8 0.8 0.9 0.9 0.9 0.2 0.2 0.2 1.8 1.8 1.8 14.1 14.4 15.4 358 317 330 — — —
4 2.5 1.0 0.8 0.9 0.9 0.9 0.2 0.2 0.2 1.8 1.8 1.8 16.0 17.1 17.7 451 414 431 360 308 316
6 4.0 1.0 1.0 0.9 0.9 0.9 0.2 0.2 0.2 1.8 1.8 1.8 17.4 18.9 19.1 558 534 550 421 372 376
10 6.0 1.0 1.0 0.9 0.9 0.9 0.2 0.2 0.2 1.8 1.8 1.8 19.8 21.3 22.0 755 735 780 529 471 491
16 10.0 1.0 1.0 0.9 0.9 0.9 0.2 0.2 0.2 1.8 1.8 1.8 22.5 24.2 24.7 1034 1032 1106 669 604 640
25 16.0 1.2 1.0 0.9 0.9 0.9 0.2 0.2 0.2 1.8 1.8 1.8 25.7 28.3 28.9 1440 1483 1587 867 810 857
35 16.0 1.2 1.0 0.9 0.9 0.9 0.2 0.2 0.2 1.8 1.9 1.9 28.1 29.2 29.3 1713 1782 1979 958 933 1004
50 25.0 1.4 1.2 0.9 0.9 0.9 0.2 0.2 0.2 1.9 2.0 2.1 32.0 33.2 34.5 2349 2489 2771 1248 1230 1355
70 35.0 1.4 1.2 0.9 1.2 1.2 0.2 0.5 0.5 2.1 2.2 2.2 33.0 38.8 39.7 3124 3412 3781 1579 1647 1795
95 50.0 1.6 1.4 1.2 1.2 1.2 0.5 0.5 0.5 2.3 2.4 2.4 39.5 44.3 45.2 4581 4611 5070 2469 2185 2359
120 70.0 1.6 1.4 1.2 1.2 1.4 0.5 0.5 0.5 2.4 2.5 2.6 42.2 47.7 50.1 5585 5791 6368 2873 2639 2900
150 70.0 1.8 1.4 1.2 1.4 1.4 0.5 0.5 0.5 2.5 2.6 2.7 46.1 52.3 54.4 6629 6832 7665 3350 3112 3441
185 95.0 2.0 1.6 1.4 1.4 1.4 0.5 0.5 0.5 2.7 2.8 2.9 51.8 57.8 59.8 8211 8546 9478 4112 3849 4213
240 120.0 2.2 1.6 1.4 1.4 1.4 0.5 0.5 0.5 2.9 3.0 3.1 59.9 67.5 69.1 10408 10881 12110 5112 4828 5301
300 150.0 2.4 1.8 1.4 1.4 1.4 0.5 0.5 0.5 3.1 3.2 3.3 65.6 76.7 79.0 12750 13506 15018 6124 5935 6499
400 185.0 2.6 2.0 1.4 1.4 1.4 0.5 0.5 0.8 3.3 3.5 3.7 74.8 83.3 79.3 16399 17393 19405 7659 7486 8140

1.8/3 (3.6) KV PVC/PVC single core (non-armored) VV, VLV

Conductor

Insulation thickness (mm)

 Copper tape screen (approximate) (mm)

Sheath thickness (mm)

 Outer diameter (approximate) (mm) Copper core cable weight (kg/km) Aluminum core cable weight (kg/km)

Insulation resistance 20°C (Min)

(MΩ/km)
Cross sectional area (mm2)

Structure

 Oute diameter (mm)
10 Compact round 3.9 2.2 0.12 1.4 13.3 280 217 100
16 Compact round 5.0 2.2 0.12 1.4 14.4 358 258 100
25 Compact round 6.0 2.2 0.12 1.4 15.4 461 305 100
35 Compact round 7.2 2.2 0.12 1.5 16.8 585 366 100
50 Compact round 8.4 2.2 0.12 1.5 18.0 746 434 100
70 Compact round 10.0 2.2 0.12 1.6 19.8 972 534 100
95 Compact round 11.7 2.2 0.12 1.6 21.5 1236 641 100
120 Compact round 13.1 2.2 0.12 1.7 23.1 1504 752 100
150 Compact round 14.6 2.2 0.12 1.7 24.6 1809 869 100
185 Compact round 16.3 2.2 0.12 1.8 26.5 2175 1017 100
240 Compact round 18.5 2.2 0.12 1.8 28.7 2723 1220 100
300 Compact round 20.7 2.4 0.12 1.9 31.5 3360 1480 100
400 Compact round 23.8 2.6 0.12 2.1 35.4 4403 1896 100
500 Compact round 26.6 2.8 0.12 2.2 38.8 5431 2298 100
630 Compact round 30.1 2.8 0.12 2.3 42.5 6721 2772 100
800 Compact round 35.0 2.8 0.12 2.4 47.6 8415 3401 100
1000 Milliken conductor 39.5 3.0 0.12 2.6 52.9 10443 4175 100

1.8/3 (3.6) KV PVC/PVC 3 cores (non-armored) VV, VLV

Conductor

Insulation thickness (mm)

 Copper tape screen (approximate) (mm)

Sheath thickness (mm)

 Outer diameter (approximate) (mm) Copper core cable weight (kg/km) Aluminum core cable weight (kg/km)

Insulation resistance 20°C (Min)

(MΩ/km)
Cross sectional area (mm2)

Structure

 Oute diameter (mm)
10 Compact round 3.9 2.2 0.1 1.8 23.7 781 592 100
16 Compact round 5.0 2.2 0.1 1.8 26.0 1055 753 100
25 Compact round 6.0 2.2 0.1 1.8 28.2 1359 887 100
35 Compact round 7.2 2.2 0.1 1.9 31.0 1739 1079 100
50 Compact round 8.4 2.2 0.1 2.0 33.8 2146 1202 100
70 Compact round 10.0 2.2 0.1 2.1 37.4 2805 1481 100
95 Compact round 11.7 2.2 0.1 2.2 41.3 3609 1812 100
120 Compact round 13.1 2.2 0.1 2.3 44.5 4397 2127 100
150 Compact round 14.6 2.2 0.1 2.4 47.9 5337 2500 100
185 Compact round 16.3 2.2 0.1 2.6 52.0 6446 2947 100
240 Compact round 18.5 2.2 0.1 2.7 56.9 8113 3573 100
300 Compact round 20.7 2.4 0.1 2.9 62.9 10041 4361 100
400 Compact round 23.8 2.6 0.1 3.2 71.1 13178 5604 100
500 Compact round 26.6 2.8 0.1 3.4 78.4 16291 6824 100

1.8/3 (3.6) KV PVC/PVC 3 cores (steel wire armored) VV32, VLV32

Conductor

Insulation thickness (mm)

 Copper tape  screen (approximate) (mm)

PVC

bedding thickness (mm)

Armored wire outer diameter (mm)

Sheath thickness (mm)

Outer diameter (approximate) (mm)

Copper core cable weight (kg/km)

Aluminum core cable weight (kg/km)

Insulation resistance 20°C (Min)

(MΩ/km)
Cross sectional area (mm2)

Structure

 Oute diameter (mm)
10 Compact round 3.9 2.2 0.1 1.2 1.6 1.9 30.1 1712 1523 100
16 Compact round 5.0 2.2 0.1 1.2 1.6 2.0 32.6 2084 1782 100
25 Compact round 6.0 2.2 0.1 1.2 2.0 2.1 35.8 2735 2263 100

MORE

1.8/3 (3.6) KV PVC/PVC 3 cores (steel tape armored) VV22, VLV22

Conductor

Insulation thickness (mm)

 Copper tape  screen (approximate) (mm)

PVC

bedding thickness (mm)

Armored tape outer diameter (mm)

Sheath thickness (mm)

Outer diameter (approximate) (mm)

Copper core cable weight (kg/km)

Aluminum core cable weight (kg/km)

Insulation resistance 20°C (Min)

(MΩ/km)
Cross sectional area (mm2)

Structure

 Oute diameter (mm)
10 Compact round 3.9 2.2 0.1 1.2 0.2 1.8 26.9 1080 891 100
16 Compact round 5.0 2.2 0.1 1.2 0.2 1.8 29.2 1383 1081 100
25 Compact round 6.0 2.2 0.1 1.2 0.2 1.9 31.6 1728 1256 100
35 Compact round 7.2 2.2 0.1 1.2 0.2 2.0 34.4 2143 1482 100
50 Compact round 8.4 2.2 0.1 1.2 0.2 2.1 37.2 2584 1640 100
70 Compact round 10.0 2.2 0.1 1.2 0.5 2.2 42.0 3684 2360 100
95 Compact round 11.7 2.2 0.1 1.3 0.5 2.4 46.3 4620 2823 100
120 Compact round 13.1 2.2 0.1 1.4 0.5 2.5 49.7 5507 3237 100
150 Compact round 14.6 2.2 0.1 1.4 0.5 2.6 53.1 6528 3690 100
185 Compact round 16.3 2.2 0.1 1.5 0.5 2.7 57.2 7735 4235 100
240 Compact round 18.5 2.2 0.1 1.6 0.5 2.9 62.5 9578 5039 100
300 Compact round 20.7 2.4 0.1 1.7 0.5 3.1 68.7 11687 6007 100
400 Compact round 23.8 2.6 0.1 1.8 0.5 3.4 77.1 15066 7492 100
500 Compact round 26.6 2.8 0.1 2.0 0.8 3.6 86.0 19277 9810 100

XLPE insulated power cable for 1.8/3KV and below

The product is applicable for AC 50Hz transmission and distribution lines with rated voltage of 1.8/3KV or below.

The mechanical properties and electrical performance of cables meet the requirements of national standard GB/T12706- 2008 and international standards IEC60502-2005.

Operating characteristics

Cable laying temperature: ≥0°C

Cable conductor long-term allowable working temperature:≤90°C

Higest working temperature of cable in case of short circuit (the longest lasting time is not over 5s): 250°C

Minimum allowable bending radius: Single core cable: 20D mm; multi-core cable: 15D mm Note: D is actual outer diameter of the cable

Cable models, names, and laying occasions

Model

Name

Laying Occasion
Copper core Aluminum core
YJV YJLV XLPE insulated PVC sheathed power cable

Laid indoors, and in tunnels and pipelines
YJY YJLY XLPE insulated PE sheathed power cable
YJV22 YJLV22 XLPE insulated steel tape armored PVC sheathed power cable Adapt for buried laying, not suitable for in-pipe laying
YJV23 YJLV23 XLPE insulated steel tape armored PE sheathed power cable
YJV32 YJLV32 XLPE insulated thin steel wire armored PVC sheathed power cable

Laid on riverbeds of rivers or shallow water as connecting  lines  across  rivers  or  petroleum/natural gas platforms, also used in land high drop areas.
YJV33 YJLV33 XLPE insulated thin steel wire armored PVC sheathed power cable
YJV42 YJLV42 XLPE insulated thick steel wire armored PVC sheathed power cable
YJV43 YJLV43 XLPE insulated thick steel wire armored PE sheathed power cable

Range of production

Number of cores

0.6/1kv Cross sectionalarea (mm2)

1.8/3
Single core 1 1.5-1000 10-1000
Twin  core 2 1.5-240 10-240
Triple core 3 1.5-300 10-300
Three big cores and two small cores 3+2 2.5-300 10-300

Notes:

Number of cores produced and cross section depend on cable models and voltages:

Warm water crosslinking and radiation crosslinking methods shall be adopted for 0.6/1KV and1.8/3KV.

0.6/1KV XLPE/PVC Power cable (non-armored) YJV, YJLV

 Conductor dimensions (mm2)  Insulation thickness (mm) Nonmetallic sheath, unarmored cable
Sheath thickness Outer diameter (approximate) Cable weight (Kg/km)
mm mm Copper core Aluminum core
1C 2C 3C 4C 5C 1C 2C 3C 4C 5C 1C 2C 3C 4C 5C 1C 2C 3C 4C 5C
1.5 0.7 1.4 1.8 1.8 1.8 1.8 5.6 10.0 10.4 11.1 11.9 45 122 139 167 195 35 103 111 506 148
2.5 0.7 1.4 1.8 1.8 1.8 1.8 6.0 10.8 11.2 12.1 13.0 57 148 175 215 253 42 117 129 641 175
4 0.7 1.4 1.8 1.8 1.8 1.8 6.5 11.7 12.3 13.2 14.3 75 185 228 285 337 50 135 153 833 212
6 0.7 1.4 1.8 1.8 1.8 1.8 7.0 12.7 13.4 14.4 15.6 97 239 295 373 445 60 165 183 1086 258
10 0.7 1.4 1.8 1.8 1.8 1.8 8.1 15.0 15.8 17.2 18.7 143 346 445 568 681 80 220 256 1629 366
16 0.7 1.4 1.8 1.8 1.8 1.8 9.2 17.2 18.2 19.8 21.7 206 494 660 835 1008 106 292 358 2377 505
25 0.9 1.4 1.8 1.8 1.8 1.8 10.6 20.0 21.2 23.2 25.5 303 711 951 1217 1483 146 396 479 3457 696
35 0.9 1.4 1.8 1.8 1.8 1.8 11.8 22.4 23.8 26.1 28.7 403 919 1267 1598 1959 185 478 606 4528 858
50 1.0 1.4 1.8 1.8 1.9 2.0 13.2 25.2 26.8 29.7 32.9 554 1188 1675 2209 2733 241 558 731 6190 1160
70 1.1 1.4 1.9 1.9 2.0 2.1 15.0 22.2 25.7 30.0 36.2 755 1564 2260 2987 3735 317 683 939 8348 1533
95 1.1 1.5 2.0 2.0 2.1 2.3 16.9 25.2 29.1 34.2 40.3 1004 2069 3003 3977 4975 409 874 1210 11091 1987
120 1.2 1.5 2.1 2.1 2.3 2.4 18.5 28.2 32.4 37.2 44.7 1250 2592 3763 4983 6228 498 1082 1498 13880 2453
150 1.4 1.6 2.2 2.3 2.4 2.6 20.6 31.0 36.2 41.2 50.3 1558 3214 4700 6202 7777 619 1327 1869 17280 3059
185 1.6 1.6 2.3 2.4 2.6 2.8 22.7 36.8 40.4 46.2 58.6 1908 3978 5779 7655 9623 750 1650 2287 21355 3803
240 1.7 1.7 2.5 2.6 2.8 3.0 25.3 41.6 47.4 53.3 63.1 2450 5104 7456 9859 12326 947 2084 2926 27399 4776
300 1.8 1.8 2.7 2.8 3.0 3.2 27.9 46.4 50.1 59.4 68.2 3043 6328 9234 12260 15291 1163 2541 3554 33997 5824
400 2.0 1.9   3.1 3.3 3.6 31.6   57.2 68.4 83.1 4021   12224 16240 20305 1514   4651 36685 7683
500 2.2 2.0   3.3 3.3   35.0   74.2 82.2   5002   15136 20176   1869   5849 7554
630 2.4 2.2         39.3         6290         2342
800 2.6 2.3         44.8         7957         2943
1000 2.8 2.4         49.9         9897         3629

0.6/1KV XLPE/PVC Power cable (non-armored) YJV, YJLV

Conductor dimensions (mm2)

Insulation thickness (mm)

Nonmetallic sheath, unarmored cable

Sheath thickness

Outer diameter (approximate)

Cable weight (Kg/km)

mm

mm

Copper core

Aluminum core

Phase line

Null line

Phase line

Null line

3+1C

3+2C

4+1C

3+1C

3+2C

4+1C

3+1C

3+2C

4+1C

3+1C

3+2C

4+1C

2.5

1.5

0.7

0.7

1.8

1.8

1.8

11.9

12.6

12.8

206

229

253

—

—

—

4

2.5

0.7

0.7

1.8

1.8

1.8

12.9

13.7

14.0

268

302

323

178

196

197

6

4.0

0.7

0.7

1.8

1.8

1.8

14.2

15.1

15.4

352

402

428

215

240

237

10

6.0

0.7

0.7

1.8

1.8

1.8

16.5

17.5

18.1

517

584

645

290

321

328

16

10.0

0.7

0.7

1.8

1.8

1.8

19.2

20.5

21.1

761

865

955

396

437

444

25

16.0

0.9

0.7

1.8

1.8

1.8

22.4

23.9

24.7

1110

1278

1406

538

605

606

35

16.0

0.9

0.7

1.8

1.8

1.8

24.6

25.9

27.3

1402

1558

1805

647

709

731

50

25.0

1.0

0.9

1.8

1.9

1.9

28.0

29.9

31.3

1943

2243

2531

842

984

975

70

35.0

1.1

0.9

1.9

2.0

2.1

29.5

33.2

34.4

2645

3038

3412

1101

1273

1234

95

50.0

1.1

1.0

2.1

2.2

2.2

33.2

37.8

38.7

3554

4105

4551

1443

1679

1579

120

70.0

1.2

1.1

2.2

2.3

2.4

36.3

41.6

43.6

4504

5265

5791

1793

2112

1993

150

70.0

1.4

1.1

2.3

2.4

2.5

39.7

45.9

47.9

5425

6200

7018

2147

2480

2380

185

95.0

1.6

1.1

2.5

2.6

2.7

45.4

51.4

53.3

6781

7792

8720

2683

3095

2946

240

120.0

1.7

1.2

2.7

2.8

2.9

53.0

58.6

60.1

8708

9960

11172

3412

3907

3701

300

150.0

1.8

1.4

2.9

3.0

3.1

58.3

65.4

62.9

10818

12394

13827

4192

4823

4480

400

185.0

2.0

1.6

3.1

3.3

3.4

67.5

74.2

67.8

14163

16132

18093

5423

6225

5725

0.6/1KV  XLPE/PVC  Power  cable  (steel wire armored) YJV32, YJLV32

Conductor dimensions (mm2)

nsulation thickness (mm)

Armored wire cable

PVC bedding thickness

Armored wire Outer diameter

Sheath thickness

Outer diameter (approximate)

Cable weight (approximate) (Kg/km)

Cable weight (approximate) (Kg/km)

mm

mm

mm

mm

Copper core

Aluminum core

2C

3C

4C

5C

2C

3C

4C

5C

2C

3C

4C

5C

2C

3C

4C

5C

2C

3C

4C

5C

2C

3C

4C

5C

1.5

0.7

1.0

1.0

1.0

1.0

0.8

0.8

0.8

0.8

1.8

1.8

1.8

1.8

14.2

14.6

15.3

16.1

343

367

414

445

324

339

377

399

2.5

0.7

1.0

1.0

1.0

1.0

0.8

0.8

0.8

0.8

1.8

1.8

1.8

1.8

15.0

15.4

16.3

17.2

317

421

485

528

286

374

423

450

4

0.7

1.0

1.0

1.0

1.0

0.8

0.8

0.8

1.25

1.8

1.8

1.8

1.8

15.9

16.5

17.4

19.4

369

497

576

782

319

422

476

658

6

0.7

1.0

1.0

1.0

1.0

0.8

0.8

1.25

1.25

1.8

1.8

1.8

1.8

16.9

17.6

19.5

20.7

443

587

816

929

368

475

666

742

10

0.7

1.0

1.0

1.0

1.0

1.25

1.25

1.25

1.25

1.8

1.8

1.8

1.8

20.1

20.9

22.3

23.8

720

927

1098

1284

595

738

847

969

16

0.7

1.0

1.0

1.0

1.0

1.25

1.25

1.6

1.6

1.8

1.8

1.8

1.8

22.3

23.3

25.6

27.5

925

1217

1588

1831

723

915

1186

1328

25

0.9

1.0

1.0

1.0

1.0

1.6

1.6

1.6

1.6

1.8

1.8

1.8

1.8

25.8

27.0

29.0

31.3

1350

1746

2091

2455

1035

1274

1462

1669

35

0.9

1.0

1.0

1.0

1.0

1.6

1.6

1.6

1.6

1.8

1.8

1.9

1.9

28.2

29.6

32.1

34.7

1642

2161

2586

3096

1202

1500

1705

1995

50

1.0

1.0

1.0

1.0

1.2

1.6

1.6

1.6

2.0

1.8

1.9

2.0

2.1

31.0

32.8

35.7

40.1

2053

2685

3322

4332

1424

1741

2064

2759

70

1.1

1.0

1.2

1.2

1.2

1.6

2.0

2.0

2.0

2.0

2.0

2.2

2.3

28.2

32.9

37.4

43.6

2272

3484

4417

5448

1389

2160

2651

3242

95

1.1

1.2

1.2

1.2

1.4

2.0

2.0

2.0

2.5

2.1

2.2

2.3

2.5

32.4

36.5

41.6

49.5

3126

4374

5571

7465

1929

2577

3175

4471

120

1.2

1.2

1.2

1.4

1.4

2.0

2.0

2.5

2.5

2.2

2.3

2.5

2.6

35.4

39.8

46.4

53.9

3755

5291

7287

8986

2241

3021

4260

5203

150

1.4

1.2

1.4

1.4

1.4

2.0

2.5

2.5

2.5

2.3

2.5

2.7

2.8

38.2

45.4

50.6

59.5

4485

6912

8738

10850

2594

4075

4955

6121

185

1.6

1.4

1.4

1.4

1.6

2.5

2.5

2.5

2.5

2.5

2.6

2.8

3.0

46.0

49.6

55.4

68.2

5999

8243

10431

13220

3666

4743

5766

7388

240

1.7

1.4

1.6

1.6

1.6

2.5

2.5

2.5

3.15

2.7

2.8

3.0

3.3

50.8

57.0

62.9

74.2

7325

10375

13098

17103

4298

5835

7045

9537

300

1.8

1.6

1.6

1.6

1.8

2.5

2.5

2.5

3.15

2.9

3.0

3.2

3.5

56.0

59.7

69.0

79.7

8805

12311

15861

20414

5018

6631

8287

10947

400

2.0

1.6

1.8

2.5

3.15

3.3

3.6

66.8

79.9

15679

21307

8105

11209

500

2.2

1.8

3.15

3.5

85.5

20806

11339

0.6/1KV  XLPE/PVC  Power  cable  (steel tape armored) YJV22, YJLV22

Conductor dimensions (mm2)

nsulation thickness (mm)

Steel tape armoured cable

PVC bedding thickness

Armored wire Outer diameter

Sheath thickness

Outer diameter (approximate)

Cable weight (approximate) (Kg/km)

Cable weight (approximate) (Kg/km)

mm

mm

mm

mm

Copper core

Aluminum core

2C

3C

4C

5C

2C

3C

4C

5C

2C

3C

4C

5C

2C

3C

4C

5C

2C

3C

4C

5C

2C

3C

4C

5C

1.5

0.7

0.9

0.9

0.9

0.9

0.2

0.2

0.2

0.2

1.8

1.8

1.8

1.8

11.8

12.2

12.9

13.7

215

236

274

308

196

208

237

261

2.5

0.7

0.9

0.9

0.9

0.9

0.2

0.2

0.2

0.2

1.8

1.8

1.8

1.8

12.6

13.0

13.9

14.8

250

281

333

378

218

234

271

300

4

0.7

0.9

0.9

0.9

0.9

0.2

0.2

0.2

0.2

1.8

1.8

1.8

1.8

13.5

14.1

15.0

16.1

296

346

412

475

246

271

312

351

6

0.7

0.9

0.9

0.9

0.9

0.2

0.2

0.2

0.2

1.8

1.8

1.8

1.8

14.5

15.2

16.2

17.4

361

424

513

597

286

312

363

410

10

0.7

0.9

0.9

0.9

0.9

0.2

0.2

0.2

0.2

1.8

1.8

1.8

1.8

16.8

17.6

19.0

20.5

492

600

737

866

366

411

485

552

16

0.7

0.9

0.9

0.9

0.9

0.2

0.2

0.2

0.2

1.8

1.8

1.8

1.8

19.0

20.0

21.6

23.5

663

840

1032

1225

462

538

629

722

25

0.9

0.9

0.9

0.9

0.9

0.2

0.2

0.2

0.2

1.8

1.8

1.8

1.8

21.8

23.0

25.0

27.3

910

1162

1450

1740

595

690

821

954

35

0.9

0.9

0.9

0.9

0.9

0.2

0.2

0.2

0.2

1.8

1.8

1.8

1.9

24.2

25.6

27.9

30.7

1155

1506

1861

2265

715

845

980

1164

50

1.0

0.9

0.9

0.9

0.9

0.2

0.2

0.2

0.2

1.8

1.8

1.9

2.0

27.0

28.6

31.5

34.7

1507

1947

2510

3067

877

1003

1252

1494

70

1.1

0.9

0.9

0.9

1.2

0.2

0.2

0.2

0.5

1.9

2.0

2.1

2.2

24.0

27.7

32.0

40.0

1809

2531

3304

4549

927

1207

1539

2342

95

1.1

0.9

1.2

1.2

1.2

0.2

0.5

0.5

0.5

2.0

2.2

2.3

2.4

27.0

33.1

38.2

44.1

2347

3673

4764

5877

1149

1876

2368

2882

120

1.2

1.2

1.2

1.2

1.2

0.5

0.5

0.5

0.5

2.2

2.3

2.4

2.6

32.0

36.4

41.0

48.7

3256

4507

5815

7249

1743

2238

2789

3466

150

1.4

1.2

1.2

1.4

1.4

0.5

0.5

0.5

0.5

2.3

2.4

2.6

2.7

34.8

40.0

45.6

54.5

3951

5509

7189

8953

2060

2672

3406

4225

185

1.6

1.2

1.2

1.4

1.4

0.5

0.5

0.5

0.5

2.4

2.6

2.7

2.9

40.6

44.4

50.4

62.8

4844

6701

8734

10990

2511

3202

4068

5158

240

1.7

1.4

1.4

1.4

1.4

0.5

0.5

0.5

0.5

2.6

2.7

2.9

3.1

45.8

51.6

57.5

67.3

6127

8563

11100

13794

3100

4023

5047

6228

300

1.8

1.4

1.4

1.4

1.4

0.5

0.5

0.5

0.5

2.8

2.9

3.1

3.4

50.6

54.3

63.6

72.6

7408

10400

13640

16907

3622

4719

6067

7440

400

2.0

1.4

1.4

0.5

0.5

3.2

3.4

61.4

72.6

13550

17825

5976

7727

500

1.4

0.5

3.4

78.4

17038

7571

0.6/1KV  XLPE/PVC  Power  cable  (steel wire armored) YJV32, YJLV22

Conductor dimensions (mm2)

Insulation thickness (mm)

Armored wire cable

PVC bedding thickness

Armored wire outer diameter

Sheath thickness

Outer diameter (approximate)

Cable weight (approximate) (Kg/km)

Cable weight (approximate) (Kg/km)

mm

mm

mm

mm

Copper core

Aluminum core

Phase line

Null line

Phase line

Null line

3+1C

3+2C

4+1C

3+1C

3+2C

4+1C

3+1C

3+2C

4+1C

3+1C

3+2C

4+1C

3+1C

3+2C

4+1C

3+1C

3+2C

4+1C

2.5

1.5

0.7

0.7

1.0

1.0

1.0

0.8

0.8

0.8

1.8

1.8

1.8

16.1

16.8

17.0

468

504

533

—

—

—

4

2.5

0.7

0.7

1.0

1.0

1.0

0.8

1.25

1.25

1.8

1.8

1.8

17.1

18.8

19.1

549

730

753

458

624

638

6

4.0

0.7

0.7

1.0

1.0

1.0

1.25

1.25

1.25

1.8

1.8

1.8

19.3

20.2

20.5

794

869

907

657

707

733

10

6.0

0.7

0.7

1.0

1.0

1.0

1.25

1.25

1.25

1.8

1.8

1.8

21.6

22.6

23.2

1023

1117

1201

797

853

912

16

10.0

0.7

0.7

1.0

1.0

1.0

1.25

1.6

1.6

1.8

1.8

1.8

24.3

26.3

26.9

1345

1640

1749

980

1212

1284

25

16.0

0.9

0.7

1.0

1.0

1.0

1.6

1.6

1.6

1.8

1.8

1.8

28.2

29.7

30.5

1946

2172

2322

1374

1499

1592

35

16.0

0.9

0.7

1.0

1.0

1.0

1.6

1.6

1.6

1.8

1.8

1.9

30.4

31.7

33.3

2317

2515

2835

1562

1665

1859

50

25.0

1.0

0.9

1.0

1.0

1.2

1.6

1.6

2.0

1.9

2.0

2.1

34.0

35.9

38.7

2994

3357

4021

1893

2098

2605

70

35.0

1.1

0.9

1.2

1.2

1.2

2.0

2.0

2.0

2.1

2.1

2.2

36.9

40.4

41.6

4044

4577

5014

2499

2813

3029

95

50.0

1.1

1.0

1.2

1.2

1.2

2.0

2.0

2.0

2.2

2.3

2.4

40.4

45.0

46.1

5095

5837

6362

2984

3411

3651

120

70.0

1.2

1.1

1.2

1.4

1.4

2.0

2.5

2.5

2.4

2.5

2.6

43.7

50.8

52.8

6193

7821

8453

3482

4668

4985

150

70.0

1.4

1.1

1.4

1.4

1.4

2.5

2.5

2.5

2.5

2.6

2.7

48.9

55.1

57.1

7839

8969

9893

4560

5249

5669

185

95.0

1.6

1.1

1.4

1.4

1.6

2.5

2.5

2.5

2.7

2.8

2.9

54.6

60.6

62.9

9506

10871

11997

5408

6174

6732

240

120.0

1.7

1.2

1.6

1.6

1.6

2.5

2.5

2.5

2.9

3.0

3.1

62.6

68.2

69.7

11941

13507

14820

6645

7454

8010

300

150.0

1.8

1.4

1.6

1.6

1.6

2.5

2.5

3.15

3.1

3.2

3.4

67.9

75.0

74.0

14363

16353

18430

7737

8781

9911

400

185.0

2.0

1.6

1.6

1.8

1.8

3.15

3.15

3.15

3.4

3.5

3.7

78.6

85.5

79.3

19145

21623

23153

10405

11716

11889

0.6/1KV  XLPE/PVC  Power  cable  (steel tape armored) YJV22, YJLV22

Conductor dimensions (mm2)

Insulation thickness (mm)

Steel tape armoured cable

PVC bedding thickness

Armored wire outer diameter

Sheath thickness

Outer diameter (approximate)

Cable weight (approximate) (Kg/km)

Cable weight (approximate) (Kg/km)

mm

mm

mm

mm

Copper core

Aluminum core

Phase line

Null line

Phase line

Null line

3+1C

3+2C

4+1C

3+1C

3+2C

4+1C

3+1C

3+2C

4+1C

3+1C

3+2C

4+1C

3+1C

3+2C

4+1C

3+1C

3+2C

4+1C

2.5

1.5

0.7

0.7

0.9

0.9

0.9

0.2

0.2

0.2

1.8

1.8

1.8

13.9

14.6

15.1

254

280

307

—

—

—

4

2.5

0.7

0.7

0.9

0.9

0.9

0.2

0.2

0.2

1.8

1.8

1.8

15.2

15.8

16.3

322

357

381

232

251

266

6

4.0

0.7

0.7

0.9

0.9

0.9

0.2

0.2

0.2

1.8

1.8

1.8

16.4

17.1

17.6

410

461

491

273

299

316

10

6.0

0.7

0.7

0.9

0.9

0.9

0.2

0.2

0.2

1.8

1.8

1.8

18.6

19.8

20.4

582

655

718

356

392

429

16

10.0

0.7

0.7

0.9

0.9

0.9

0.2

0.2

0.2

1.8

1.8

1.8

21.0

22.3

23.0

834

943

1036

469

516

570

25

16.0

0.9

0.7

0.9

0.9

0.9

0.2

0.2

0.2

1.8

1.8

1.8

24.5

26.3

27.3

1198

1374

1506

625

700

776

35

16.0

0.9

0.7

0.9

0.9

0.9

0.2

0.2

0.2

1.8

1.8

1.8

24.2

27.5

27.6

1477

1655

1896

722

805

921

50

25.0

1.0

0.9

0.9

0.9

0.9

0.2

0.2

0.2

1.9

1.9

2.0

28.7

31.1

32.4

2052

2351

2657

950

1092

1241

70

35.0

1.1

0.9

0.9

0.9

1.2

0.2

0.2

0.5

2.0

2.1

2.2

31.9

35.9

38.3

2775

3186

3621

1231

1421

1635

95

50.0

1.1

1.0

1.2

1.2

1.2

0.5

0.5

0.5

2.2

2.3

2.3

37.1

41.7

42.6

3756

4333

4784

1645

1907

2073

120

70.0

1.2

1.1

1.2

1.2

1.2

0.5

0.5

0.5

2.3

2.4

2.5

40.2

45.5

47.5

4724

5514

6053

2013

2362

2585

150

70.0

1.4

1.1

1.2

1.2

1.4

0.5

0.5

0.5

2.5

2.5

2.6

43.8

50.2

52.3

5684

6479

7351

2406

2759

3126

185

95.0

1.6

1.1

1.4

1.4

1.4

0.5

0.5

0.5

2.6

2.7

2.8

49.8

55.7

57.7

7098

8147

9089

3000

3450

3824

240

120.0

1.7

1.2

1.4

1.4

1.4

0.5

0.5

0.5

2.8

2.9

3.0

57.4

62.8

64.5

9075

10362

11586

3779

4309

4776

300

150.0

1.8

1.4

1.4

1.4

1.4

0.5

0.5

0.5

3.0

3.1

3.2

62.3

73.5

75.6

11216

12895

14381

4590

5324

5862

400

185.0

2.0

1.6

1.4

1.4

1.4

0.5

0.5

0.8

3.3

3.4

3.6

74.0

81.2

76.2

14688

16680

18656

5948

6774

7391

1.8/3 (3.6) KV XLPE/PVC single core (non-armored) YJV, YJLV

Conductor

Insulation thickness (mm)

Copper tape screen (approximate) (mm)

Sheath thickness (mm)

Outer diameter (approximate) (mm)

Copper core cable weight (kg/km)

Aluminum core cable weight (kg/km)

Insulation resistance 20°C (Min)

(MΩ/km)

Cross sectional area (mm2)

Structure

Oute diameter (mm)

10

Compact round

3.9

2.0

0.12

1.4

12.9

252

189

500

16

Compact round

5.0

2.0

0.12

1.4

14.0

326

226

500

25

Compact round

6.0

2.0

0.12

1.4

15.0

426

269

500

35

Compact round

7.2

2.0

0.12

1.4

16.2

538

319

500

50

Compact round

8.4

2.0

0.12

1.5

17.6

702

390

500

70

Compact round

10.0

2.0

0.12

1.5

19.2

914

475

500

95

Compact round

11.7

2.0

0.12

1.6

21.1

1181

586

500

120

Compact round

13.1

2.0

0.12

1.6

22.5

1433

681

500

150

Compact round

14.6

2.0

0.12

1.7

24.2

1743

803

500

185

Compact round

16.3

2.0

0.12

1.7

25.9

2091

933

500

240

Compact round

18.5

2.0

0.12

1.8

28.3

2643

1140

500

300

Compact round

20.7

2.0

0.12

1.9

30.7

3244

1364

500

400

Compact round

23.8

2.0

0.12

2.0

34.0

4225

1718

500

500

Compact round

26.6

2.2

0.12

2.1

37.4

5227

2093

500

630

Compact round

30.1

2.4

0.12

2.2

41.5

6523

2574

500

800

Compact round

35.0

2.6

0.12

2.3

47.0

8221

3207

500

1000

Milliken conductor

39.5

2.8

0.12

2.5

52.3

10371

4104

500

1.8/3 (3.6) KV XLPE/PVC 3 cores (non-armored) YJV, YJLV

Conductor

Insulation thickness (mm)

Copper tape screen (approximate) (mm)

Sheath thickness (mm)

Outer diameter (approximate) (mm)

Copper core cable weight (kg/km)

Aluminum core cable weight (kg/km)

Insulation resistance 20°C (Min)

(MΩ/km)

Cross sectional area (mm2)

Structure

Oute diameter (mm)

10

Compact round

3.9

2.0

0.1

1.8

22.8

700

511

500

16

Compact round

5.0

2.0

0.1

1.8

25.2

964

662

500

25

Compact round

6.0

2.0

0.1

1.8

27.3

1255

783

500

35

Compact round

7.2

2.0

0.1

1.9

30.1

1623

962

500

50

Compact round

8.4

2.0

0.1

2.0

32.9

2016

1072

500

70

Compact round

10.0

2.0

0.1

2.1

36.6

2660

1336

500

95

Compact round

11.7

2.0

0.1

2.2

40.4

3444

1647

500

120

Compact round

13.1

2.0

0.1

2.3

43.6

4216

1946

500

150

Compact round

14.6

2.0

0.1

2.4

47.1

5141

2304

500

185

Compact round

16.3

2.0

0.1

2.5

50.9

6207

2707

500

240

Compact round

18.5

2.0

0.1

2.7

56.1

7874

3335

500

300

Compact round

20.7

2.0

0.1

2.8

61.0

9666

3986

500

400

Compact round

23.8

2.0

0.1

3.1

68.3

12659

5086

500

500

Compact round

26.6

2.2

0.1

3.3

75.6

15695

6228

500

1.8/3 (3.6)KV XLPE/PVC 3 cores (steel wire armored) YJV32, YJLV32

Conductor

Insulation thickness (mm)

Copper tape  screen (approximate) (mm)

PVC

bedding thickness (mm)

Armored wire outer diameter (mm)

Sheath thickness (mm)

Outer diameter (approximate) (mm)

Copper core cable weight (kg/km)

Aluminum core cable weight (kg/km)

Insulation resistance 20°C (Min)

(MΩ/km)

Cross sectional area (mm2)

Structure

Oute diameter (mm)

10

Compact round

3.9

2.0

0.1

1.2

1.6

1.8

29.0

1640

1451

500

16

Compact round

5.0

2.0

0.1

1.2

1.6

1.9

31.6

2010

1708

500

25

Compact round

6.0

2.0

0.1

1.2

1.6

2.0

33.9

2407

1935

500

35

Compact round

7.2

2.0

0.1

1.2

2.0

2.1

37.5

3123

2462

500

50

Compact round

8.4

2.0

0.1

1.2

2.0

2.2

40.3

3652

2709

500

70

Compact round

10.0

2.0

0.1

1.2

2.0

2.3

44.0

4469

3145

500

95

Compact round

11.7

2.0

0.1

1.3

2.5

2.5

49.6

6012

4215

500

120

Compact round

13.1

2.0

0.1

1.3

2.5

2.6

52.8

6995

4725

500

150

Compact round

14.6

2.0

0.1

1.4

2.5

2.7

56.5

8160

5323

500

185

Compact round

16.3

2.0

0.1

1.5

2.5

2.8

60.5

9474

5974

500

240

Compact round

18.5

2.0

0.1

1.6

2.5

3.0

65.9

11498

6958

500

300

Compact round

20.7

2.0

0.1

1.7

2.5

3.2

71.2

13636

7956

500

400

Compact round

23.8

2.0

0.1

1.8

3.15

3.5

80.0

18022

10448

500

500

Compact round

26.6

2.2

0.1

1.9

3.15

3.7

87.5

21634

12167

500

1.8/3 (3.6)KV XLPE/PVC 3 cores (steel tape armored) YJV22, YJLV22

Conductor  Insulation thickness (mm) Copper tape  screen (approximate) (mm)  PVC bedding thickness (mm)  Armored tape outer diameter (mm) Sheath thickness (mm) Outer diameter (approximate) (mm)  Copper core cable weight (kg/km)  Aluminum core cable weight (kg/km)  Insulation resistance 20°C (Min)(MΩ/km)
Cross sectional area (mm2)  Structure Outer diameter (mm)
10 Compact round 3.9 2.0 0.1 1.2 0.2 1.8 26.0 988 799 500
16 Compact round 5.0 2.0 0.1 1.2 0.2 1.8 28.4 1281 979 500
25 Compact round 6.0 2.0 0.1 1.2 0.2 1.9 30.7 1613 1141 500
35 Compact round 7.2 2.0 0.1 1.2 0.2 2.0 33.5 2015 1354 500
50 Compact round 8.4 2.0 0.1 1.2 0.2 2.1 36.3 2443 1499 500
70 Compact round 10.0 2.0 0.1 1.2 0.5 2.2 41.2 3520 2196 500
95 Compact round 11.7 2.0 0.1 1.3 0.5 2.3 45.2 4412 2615 500
120 Compact round 13.1 2.0 0.1 1.3 0.5 2.4 48.4 5257 2987 500
150 Compact round 14.6 2.0 0.1 1.4 0.5 2.6 52.3 6312 3475 500
185 Compact round 16.3 2.0 0.1 1.5 0.5 2.7 56.3 7496 3997 500
240 Compact round 18.5 2.0 0.1 1.6 0.5 2.9 61.7 9319 4780 500
300 Compact round 20.7 2.0 0.1 1.7 0.5 3.0 66.8 11265 5585 500
400 Compact round 23.8 2.0 0.1 1.8 0.5 3.3 74.3 14476 6903 500
500 Compact round 26.6 2.2 0.1 1.9 0.5 3.5 81.8 17738 8271 500

Applicable Standards

GB/T12706-IEC60502-2004GB/T3956-2008IEC60228IEC60502-2005

Certificate Display

ISO 9001 Quality Management System
ISO 9001 Certificate (2025–2028)
ISO 9001 Certificate (NOA)
CE — Verification of Conformity
RoHS Compliance Attestation (EU)
Low Voltage Directive Attestation (EU)

Type and routine tests are issued from our own testing centre under the ISO 9001 quality system — test reports and certificates accompany every shipment.

Factory Tour

Why Choose Us

50+ years of experience Trusted manufacturing expertise since 1969
International standards IEC, ASTM, BS, CSA and other global standards
Strict quality control Comprehensive testing throughout production
Large production capacity Reliable supply for utility and EPC projects
Fast global delivery Efficient manufacturing and worldwide shipping
Technical support Expert assistance from inquiry to project completion

Packing & Shipping

  • Wooden, steel or steel-wood drums; drum length to customer requirement
  • Drum marking per customer / utility specification
  • Both drum ends sealed and protected for sea freight
Get in touch

Ready for Your Next Cable Project?

Send us your specifications, cable schedule or RFQ — our engineering team replies with a technical proposal and price within one working day.

  • Emailinfo@qzcablegroup.com
  • WhatsApp / WeChat+86 173 3570 4553
  • Contact personChloe · Export Department
  • Factory addressWest Industrial Park, Zhulin Town, Gongyi City, Henan Province, China

    The more specific the standard and size, the faster we can quote.

    Related products

    LT & HT POWER CABLE DIN VDE 0276 LT & HT POWER CABLE DIN VDE 0276 Primary UD † Ampacities are based on the following: Copper: Three shielded single insulated Copper conductors in buried ducts,single circuit,25 °C ambient earth temperature,75% load factor,90 RHO and 90 °C conductor temperature (IEEE Std. 835). Aluminum: Three shielded single insulated Aluminum conductors in… Medium Voltage Cables to BS 6622BS 7835 Medium Voltage Cables to BS 6622/BS 7835 PVC — Insulated Power Cables PVC Insulated Power Cables are suitable for installation in indoors and outdoors, in cable ducts, under ground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage.

    Related solutions

    Power Distribution Cable Solutions

    Qingzhou Cable provides low- and medium-voltage cable solutions for electrical distribution networks, supporting power delivery from substations to commercial, industrial and residential users.

    Power Substation Cable Solutions

    Solar & Renewable Energy Cable Solutions

    Building & Infrastructure Cable Solutions

    Mining Cable Solutions

    Industrial Manufacturing Cable Solutions
    Inquiry WhatsApp Email
