0.61k V LV ABC Cable Aerial Bundle Conductor

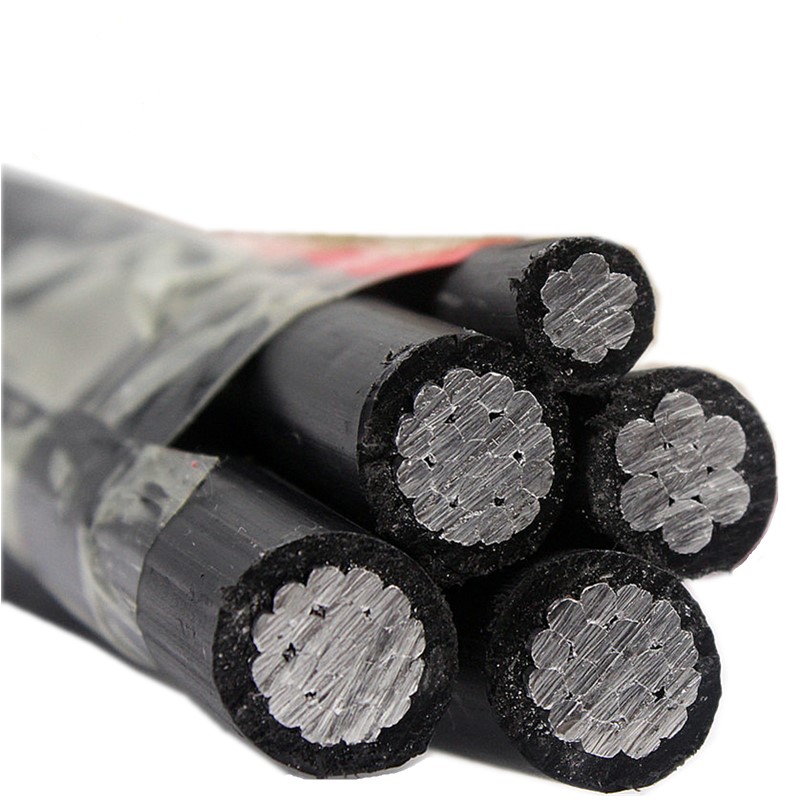

The aerial bundled cables designed for overhead distribution lines have all conductors made of aluminium 1350 and insulated with XLPE. Can be used for fixed installation as overhead power lines up to 1000 V incl.
- Conductor (for either phase, neutral or street lighting) The conductors shall be of aluminium 1350 wires and are compacted…
- Basic design to AS/NZS 3560.1
Product Description
Application
The aerial bundled cables designed for overhead distribution lines have all conductors made of aluminium 1350 and insulated with XLPE. Can be used for fixed installation as overhead power lines up to 1000 V incl.
Standard
Basic design to AS/NZS 3560.1
Construction
| Conductor (for either phase, neutral or street lighting) | The conductors shall be of aluminium 1350 wires and are compacted circular stranded (RM). |
| Insulation | XLPE. |
| Assembly | The cores shall be laid up with a left-hand lay. |
Parameters
Technical Data
AS/NZS 3560
| Number of cores x nominal cross section | min. breaking load of conductor strand | Current rating in the air | Outer diameter | Total weight |
| mm^2 | kN | A | mm | kg/km |
| 2×16 RM | 4.4 | 78 | 15.0 | 140 |
| 2×25 RM | 7.0 | 105 | 17.6 | 210 |
| 2×35 RM | 9.8 | 125 | 19.6 | 270 |
| 2×50 RM | 11.4 | 150 | 22.8 | 370 |
| 2×95 RM | 15.3 | 230 | 30.6 | 680 |
| 3×25 RM | 8.8 | 97 | 19.0 | 310 |
| 3×35 RM | 9.8 | 120 | 21.1 | 410 |
| 3×50 RM | 11.4 | 140 | 24.6 | 550 |
| 4×16 RM | 8.8 | 74 | 18.1 | 290 |
| 4×25 RM | 14.0 | 97 | 21.2 | 410 |
| 4×35 RM | 19.6 | 120 | 23.7 | 550 |
| 4×50 RM | 28.0 | 140 | 27.5 | 740 |
| 4×70 RM | 39.2 | 175 | 31.9 | 1000 |
| 4×95 RM | 53.2 | 215 | 36.9 | 1370 |
| 4×120 RM | 67.2 | 250 | 40.6 | 1690 |
| 4×150 RM | 84.0 | 280 | 43.9 | 2020 |
IEC 60502
| Number of cores x nominal cross section | min. breaking load of conductor strand | Current rating in the air | Outer diameter | Total weight |
| mm^2 | kN | A | mm | kg/km |
| 4×25 RM | 3.5 | 84 | 21.5 | 420 |
| 4×35 RM | 4.9 | 104 | 23.9 | 550 |
| 4×120+1×25 RM | 16.8 | 246 | 43.8 | 1800 |
| 4×185+1×25 RM | 25.9 | 332 | 50.7 | 2700 |
BS 7870
| number of cores x nominal cross section | max. conductor- resistance | min. breaking load of conductor strand | Current rating in the air | Outer diameter | Total weight |
| mm^2 | Ohm/km | kN | A | mm | kg/km |
| 1x 16 RM | 1,910 | 2,5 | 72 | 8.0 | 74 |
| 1x 25 RM | 1,200 | 4,0 | 107 | 9.0 | 106 |
| 1x 35 RM | 0,868 | 5,5 | 132 | 10.5 | 138 |
| 1x 50 RM | 0,641 | 8,0 | 165 | 11.8 | 182 |
| 1x 70 RM | 0,443 | 10,7 | 205 | 13.0 | 252 |
| 1x 95 RM | 0,320 | 13,7 | 240 | 15.4 | 333 |
| 1x 120 RM | 0,253 | 18,6 | 290 | 17.0 | 408 |
| 1x 150 RM | 0,206 | 23,2 | 334 | 19.0 | 502 |
| 1x 185 RM | 0,164 | 28,7 | 389 | 21.0 | 611 |
| 1x 240 RM | 0,125 | 37,2 | 467 | 24.0 | 801 |
| 2x 16 RM | 1,910 | 2,5 | 72 | 15.6 | 147 |
| 2x 25 RM | 1,200 | 4,0 | 107 | 18.0 | 208 |
| 2x 35 RM | 0,868 | 5,5 | 132 | 20.0 | 277 |
| 2x 50 RM | 0,641 | 8,0 | 165 | 23.5 | 361 |
| 2x 70 RM | 0,443 | 10,7 | 205 | 25.4 | 505 |
| 2x 95 RM | 0,320 | 13,7 | 240 | 30.3 | 666 |
| 2x 150 RM | 0,206 | 23,2 | 334 | 38.0 | 1004 |
| 4x 16 RM | 1,910 | 2,5 | 72 | 18.8 | 286 |
| 4x 25 RM | 1,200 | 4,0 | 107 | 21.2 | 430 |
| 4x 35 RM | 0,868 | 5,5 | 132 | 24.1 | 553 |
| 4x 50 RM | 0,641 | 8,0 | 165 | 27.8 | 746 |
| 4x 70 RM | 0,443 | 10,7 | 205 | 31.8 | 1009 |
| 4x 95 RM | 0,320 | 13,7 | 240 | 37.8 | 1332 |
| 4x 120 RM | 0,253 | 18,6 | 290 | 54.4 | 1632 |
| 4x 50 + 1x 25 RM | 0,641/1,200 | 8,0/4,0 | 165/107 | 31.9 | 814 |
| 4x 50 + 1x 35 RM | 0,641/0,868 | 8,5/5,5 | 165/132 | 31.9 | 845 |
| 4x 70 + 1x 25 RM | 0,443/1,200 | 10,7/4,0 | 205/107 | 36.0 | 1105 |
| 4x 70 + 2x 25 RM | 0,443/1,200 | 10,7/4,0 | 205/107 | 40.0 | 1217 |
| 4x 95 + 1x 25 RM | 0,320/1,200 | 13,7/4,0 | 240/107 | 41.8 | 1438 |
| 4x 95 + 2x 25 RM | 0,320/1,200 | 13,7/4,0 | 240/107 | 42.0 | 1544 |
| 4×120 + 1x 25 RM | 0,253/1,200 | 18,6/4,0 | 290/107 | 59.0 | 2050 |
