AER — cable

Standards: SFS 2200, HD 626 S1

Application

It ispreferred to use AER cables instead of uninsulated

Technical Data

conductors at low voltage networks. AER cables are

Max. operating temperature

: 90 °C

especially used in areas where the cost of underground

Max. short circuit temperature

: 250 °C (max. 5 sec.)

networks are expensive and also for electrification of rural

Rated voltage

: 0.6/1 kV

areas like villages.

Construction

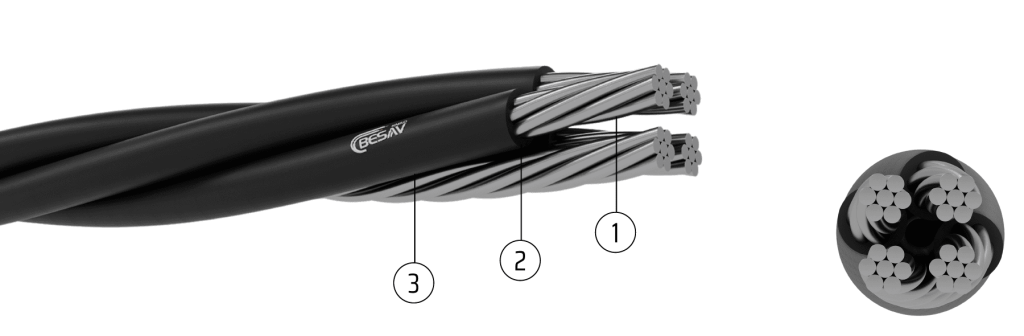

1 Solid or stranded aluminium conductor PE or XLPE insulation 3 Messenger wire

Number Of

Conductor

Cross Section

INSULATED WIRES

MESSENGER WIRE

FINISHED CABLE

Conductor

size

Number

of

wires

Diameter

of

conductors

Resistance

of

20 °C

Current

Carrying

Capacity

Resistance

of

20 °C

Current

Carrying

Capacity

Diameter

of

Messenger

Wire

Minimum

Tensile

Strength

Maximum

Resistance of

20 °C

App. Max.

Bundle

Diameter

App. Net

Weight

mm²

mm²

Adet

mm

ohm/km

A

mm²

A

mm

kN

ohm/km

mm

kg/km

1×16+25

1×16

1

4.4

1.91

70

1×16

60

5.9

7.4

1.38

15

225

3×16+25

3×16

1

4.4

1.91

60

1×16

60

5.9

7.1

1.38

22

350

3×25+35

3×25

7

5.9

1.2

80

1×16

60

6.9

10.3

0.986

26

475

3×35+50

3×35

7

6.9

0.868

95

1×16

60

8.1

14.2

0.72

30

625

3×50+70

3×50

7

8.1

0.641

120

1×16

60

9.6

20.6

0.493

35

800

3×70+95

3×70

7

9.6

0.443

150

1×16

60

11.4

27.9

0.363

41

1100

4×16+25

4×16

1

4.4

1.91

60

1×16

60

5.9

7.4

1.38

25

410

4×25+35

4×25

7

5.9

1.2

80

1×16

60

6.9

10.3

0.986

30

610

4×35+50

4×35

7

6.9

0.868

95

1×16

60

8.1

14.2

0.72

34

810

4×50+70

4×50

7

8.1

0.641

120

1×16

60

9.6

20.6

0.493

40

1060

4×70+95

4×70

7

9.6

0.443

150

1×16

60

11.4

27.9

0.363

47

1420

Standards: SFS 2200, HD 626 S1

Application

It ispreferred to use AER cables instead of uninsulated

Technical Data

conductors at low voltage networks. AER cables are

Max. operating temperature

: 90°C

especially used in areas where the cost of underground

Max. short circuit temperature

: 250°C (max. 5 sec.)

networks are expensive and also for electrification of rural

Rated voltage

: 0.6/1 kV

areas like villages.

Number Of

Conductor

Cross

Section

INSULATED WIRES

MESSENGER WIRE

FINISHED CABLE

Conductor

size

Number

of

wires

Diameter

of

conductors

Resistance

of 20 °C

Current

Carrying

Capacity

Number

of

wires

Current

Carrying

Capacity

Diameter of

Messenger

Wire

Minimum

Tensile

Strenght

Maximum

Resistance

of 20 °C

App. Max.

Bundle

Diameter

App. Net

Weight

mm²

mm²

Adet

mm

ohm/km

A

mm²

A

mm

kN

ohm/km

mm

kg/km

1×16 + 25

1×16

1

4.4

1.91

75

–

–

5.9

7.4

1.38

15

140

1×25+35

1×25

7

5.9

1.2

10

–

–

6.9

10.3

0.986

17

200

1×35+50

1×35

7

6.9

0.868

125

–

–

8.1

14.2

0.72

20

275

3×16+25

3×16

1

4.4

1.91

70

–

–

5.9

7.4

1.38

22

275

3×25+35

3×25

7

5.9

1.2

90

–

–

6.9

10.3

0.986

26

400

3×35+50

3×35

7

6.9

0.868

115

–

–

8.1

14.2

0.72

30

575

3×50+70

3×50

7

8.1

0.641

140

–

–

9.6

20.6

0.493

35

750

3×70+95

3×70

7

9.6

0.443

180

–

–

11.4

27.9

0.363

41

1050

3×120+95

3×120

19

12.8

0.253

250

–

–

11.4

27.9

0.363

47

1550

4×16+25

4×16

1

4.4

1.91

70

–

–

5.9

7.4

1.38

24

375

4×25+35

4×25

7

5.9

1.2

90

–

–

6.9

10.3

0.986

28

500

4×35+50

4×35

7

6.9

0.868

115

–

–

8.1

14.2

0.72

32

680

4×50+70

4×50

7

8.1

0.641

140

–

–

9.6

20.6

0.493

38

900

4×70+95

4×70

7

9.6

0.443

180

–

–

11.4

27.9

0.363

45

1350
