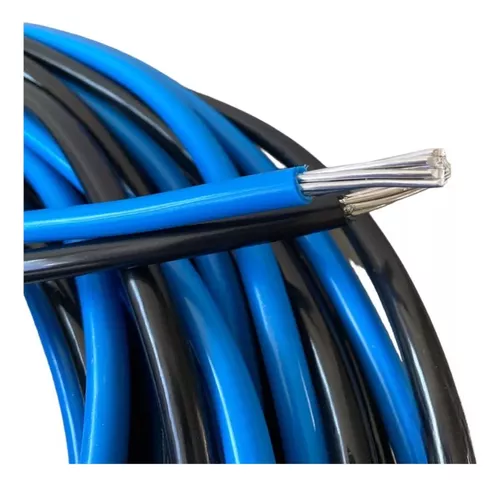

ABNT — 0.61k V Preassembled Cabos De Alumínio Multiplexado
ABNT NBR 8182 0.6/1kV Preassembled Cabos De Alumínio Multiplexado
- Standards: IEC 60228
Product Description
ABNT NBR 8182 0.6/1kV Preassembled Cabos De Alumínio Multiplexado
Pre-assembled Cable Insulated AluminumMultiplex Wire Application
Pre-assembled Cable is also called cabo multiplex , it is used in distribution circuits and household connections. t has advantage over bare cables, because they can be installed in wooded areas and in places where there is little physical space.
Due to the fact of being isolated, Pre assembled Cable provides greater reliability to the electrical system, avoiding disconnections due to short circuits caused by contact with trees.
Pre-assembled Cable Insulated AluminumMultiplex Wire Construction
Phase conductor: Aluminum wires 1350, stringing class 2, compact, acc. to NM 280.
Insulation: thermosetting compound of XLPE/PE polyethylene, weather resistant.
Pre-assembled Cable Insulated AluminumMultiplex Wire Identification
1 phase: black
2 phases: black and gray
3 phases: black, grey and red
Pre-assembled Cable Insulated AluminumMultiplex Wire Neutral conductor
Aluminum CA: aluminum wires 1350, hardness H19, normal round stringing.
Alloy aluminum CAL: aluminum wires with alloy 6201, hardness T81, normal round stringing, acc. to 10298.
Neutral conductor insulation: if requested, in XLPE in light blue.
Pre-assembled Cable Insulated AluminumMultiplex Wire Maximum Operating Temperatures
In continuous regime: 90°C
In overload: 130°C
In short circuit: 250°C
Pre-assembled Cable Insulated AluminumMultiplex Wire Reference Standards
ABNT NBR 8182 – Self-sustained multiplex power cables with extruded insulation of PE or XLPE, for voltages up to
0,6/1 kV – Performance requirements.
ABNT NBR NM 280 – Conductors of insulated cables (IEC 60228, MOD).
ABNT NBR 10298 – Bare cables with alloy aluminum-magnesium-silicon, for overhead lines – Specification
Pre-assembled Cable Insulated AluminumMultiplex Wire Specification
Cabo Multiplexado AL XLPE 0,6/1kV – Neutro Isolado
| Tipo | Seção Nominal (mm²) | Condutor Fase | Condutor Neutro | Diâmetro externo aprox (mm) | Peso Líquido (kg/km) | |||||
| Diâmetro do Condutor (mm) | Espessura de Isolação (mm) | Resistência Elétrica Máxima (Ω/km) | Formação (nº fios x mm) | Espessura de Isolação (mm) | Carga de Ruptura mín (kgf) | |||||
| CA | CAL | |||||||||
| Duplex | 1×10 + 10 | 4,0 | 1,2 | 3,08 | 7×1,36 | 1,2 | 199 | – | 12,9 | 96,4 |
| 1×16 + 16 | 4,7 | 1,2 | 1,91 | 7×1,70 | 1,2 | 306 | – | 14,6 | 135 | |
| 1×25 + 25 | 5,9 | 1,4 | 1,20 | 7×2,11 | 1,4 | 455 | – | 17,8 | 207 | |
| 1×35 + 35 | 6,9 | 1,6 | 0,87 | 7×2,50 | 1,6 | 626 | 1113 | 20,8 | 284 | |
| 1×50 + 50 | 8,1 | 1,6 | 0,64 | 7×3,00 | 1,6 | 852 | 1602 | 23,5 | 377 | |
| Triplex | 2×10 + 10 | 4,0 | 1,2 | 3,08 | 7×1,36 | 1,2 | 199 | – | 13,8 | 142 |
| 2×16 + 16 | 4,7 | 1,2 | 1,91 | 7×1,70 | 1,2 | 306 | – | 15,6 | 199 | |
| 2×25 + 25 | 5,9 | 1,4 | 1,20 | 7×2,11 | 1,4 | 455 | – | 19,2 | 304 | |
| 2×35 + 35 | 6,9 | 1,6 | 0,87 | 7×2,50 | 1,6 | 626 | 1113 | 22,4 | 420 | |
| 2×50 + 50 | 8,1 | 1,6 | 0,64 | 7×3,00 | 1,6 | 852 | 1602 | 25,3 | 551 | |
| Quadruplex | 3×10 + 10 | 4,0 | 1,2 | 3,08 | 7×1,36 | 1,2 | 199 | – | 15,4 | 188 |
| 3×16 + 16 | 4,7 | 1,2 | 1,91 | 7×1,70 | 1,2 | 306 | – | 17,3 | 264 | |
| 3×25 + 25 | 5,9 | 1,4 | 1,20 | 7×2,11 | 1,4 | 455 | – | 21,3 | 403 | |
| 3×35 + 35 | 6,9 | 1,6 | 0,87 | 7×2,50 | 1,6 | 626 | 1113 | 24,8 | 555 | |
| 3×50 + 50 | 8,1 | 1,6 | 0,64 | 7×3,00 | 1,6 | 852 | 1602 | 28,0 | 726 | |
| 3×70 + 70 | 9,7 | 1,8 | 0,44 | 7×3,45 | 1,8 | 1102 | 2030 | 32,6 | 1004 | |
| 3×95 + 70 | 11,5 | 2,0 | 0,32 | 7×3,45 | 2,0 | 1102 | 2030 | 37,9 | 1270 | |
| 3×120 + 70 | 12,9 | 2,0 | 0,25 | 7×3,45 | 2,0 | 1102 | 2030 | 41,3 | 1500 | |
Cabo Multiplexado AL XLPE 0,6/1kV – Neutro Nu
| Tipo | Seção Nominal (mm²) | Condutor Fase | Condutor Neutro | Diâmetro externo aprox (mm) | Peso Líquido (kg/km) | ||||
| Diâmetro do Condutor (mm) | Espessura de Isolação (mm) | Resistência Elétrica Máxima (Ω/km) | Formação (nº fios x mm) | Carga de Ruptura mín (kgf) | |||||
| CA | CAL | ||||||||
| Duplex | 1×10 + 10 | 4,0 | 1,2 | 3,08 | 7×1,36 | 199 | – | 10,5 | 74 |
| 1×16 + 16 | 4,7 | 1,2 | 1,91 | 7×1,70 | 306 | – | 12,2 | 109 | |
| 1×25 + 25 | 5,9 | 1,4 | 1,20 | 7×2,11 | 455 | – | 15,0 | 167 | |
| 1×35 + 35 | 6,9 | 1,6 | 0,87 | 7×2,50 | 626 | 1113 | 17,6 | 231 | |
| 1×50 + 50 | 8,1 | 1,6 | 0,64 | 7×3,00 | 852 | 1602 | 20,3 | 311 | |
| Triplex | 2×10 + 10 | 4,0 | 1,2 | 3,08 | 7×1,36 | 199 | – | 13,8 | 119 |
| 2×16 + 16 | 4,7 | 1,2 | 1,91 | 7×1,70 | 306 | – | 15,3 | 173 | |
| 2×25 + 25 | 5,9 | 1,4 | 1,20 | 7×2,11 | 455 | – | 18,8 | 266 | |
| 2×35 + 35 | 6,9 | 1,6 | 0,87 | 7×2,50 | 626 | 1113 | 21,8 | 367 | |
| 2×50 + 50 | 8,1 | 1,6 | 0,64 | 7×3,00 | 852 | 1602 | 24,4 | 485 | |
| Quadruplex | 3×10 + 10 | 4,0 | 1,2 | 3,08 | 7×1,36 | 199 | – | 15,4 | 165 |
| 3×16 + 16 | 4,7 | 1,2 | 1,91 | 7×1,70 | 306 | – | 17,0 | 238 | |
| 3×25 + 25 | 5,9 | 1,4 | 1,20 | 7×2,11 | 455 | – | 20,9 | 365 | |
| 3×35 + 35 | 6,9 | 1,6 | 0,87 | 7×2,50 | 626 | 1113 | 24,2 | 502 | |
| 3×50 + 50 | 8,1 | 1,6 | 0,64 | 7×3,00 | 852 | 1602 | 27,1 | 660 | |
| 3×70 + 70 | 9,7 | 1,8 | 0,44 | 7×3,45 | 1102 | 2030 | 31,9 | 920 | |
| 3×95 + 70 | 11,5 | 2,0 | 0,32 | 7×3,45 | 1102 | 2030 | 37,2 | 1185 | |
| 3×120 + 70 | 12,9 | 2,0 | 0,25 | 7×3,45 | 1102 | 2030 | 40,6 | 1415 | |
|
DADOS CONSTRUTIVOS Formação do cabo(mm²) |
Condutor Fase | Condutor Neutro | Diâmetro externo aproximado (mm) |
Resistência elétrica nominal C.C. a 20°C (Ω/km) |
Massa líquida aproximada (kg/km) |
|||||
|---|---|---|---|---|---|---|---|---|---|---|
| Diâmetro nominal do condutor (mm) |
Material da isolação |
Espessura nominal da isolação(mm) |
Nº de fios |
Diâmetro nominal do condutor (mm) |
Tipo(4) | |||||
| DUPLEX | 1x1x10+10 | 4,08 | XLPE 90°C | 1,2 | 7 | 4,08 | CA | 10,60 | 3,08 | 77 |
| 1x1x16+16 | 4,60 | XLPE 90°C | 1,2 | 7 | 5,12 | CA | 12,20 | 1,91 | 107 | |
| 1x1x25+25 | 5,60 | XLPE 90°C | 1,4 | 7 | 6,33 | CA | 14,70 | 1,20 | 163 | |
| 1x1x35+35 | 6,70 | XLPE 90°C | 1,6 | 7 | 7,50 | CA | 17,40 | 0,868 | 238 | |
| 1x1x50+50 | 7,80 | XLPE 90°C | 1,6 | 7 | 9,00 | CA | 20,00 | 0,641 | 331 | |
| 1x1x70+70 | 9,95 | XLPE 90°C | 1,8 | 7 | 10,40 | CA | 24,00 | 0,443 | 424 | |
| TRIPLEX | 2x1x10+10 | 4,08 | XLPE 90°C | 1,2 | 7 | 4,08 | CA | 14,00 | 3,08 | 125 |
| 2x1x16+16 | 4,60 | XLPE 90°C | 1,2 | 7 | 5,12 | CA | 15,10 | 1,91 | 169 | |
| 2x1x25+25 | 5,60 | XLPE 90°C | 1,4 | 7 | 6,33 | CA | 18,10 | 1,20 | 260 | |
| 2x1x35+35 | 6,70 | XLPE 90°C | 1,6 | 7 | 7,50 | CA | 21,40 | 0,868 | 377 | |
| 2x1x50+50 | 7,80 | XLPE 90°C | 1,6 | 7 | 9,00 | CA | 23,80 | 0,641 | 527 | |
| 2x1x70+70 | 9,95 | XLPE 90°C | 1,8 | 7 | 10,40 | CA | 29,30 | 0,443 | 679 | |
| QUADRUPLEX | 3x1x10+10 | 4,08 | XLPE 90°C | 1,2 | 7 | 4,08 | CA | 15,70 | 3,08 | 165 |
| 3x1x16+16 | 4,60 | XLPE 90°C | 1,2 | 7 | 5,12 | CA | 16,90 | 1,91 | 236 | |
| 3x1x25+25 | 5,60 | XLPE 90°C | 1,4 | 7 | 6,33 | CA | 20,30 | 1,20 | 349 | |
| 3x1x35+35 | 6,70 | XLPE 90°C | 1,6 | 7 | 7,50 | CA | 23,90 | 0,868 | 518 | |
| 3x1x50+50 | 7,80 | XLPE 90°C | 1,6 | 7 | 9,00 | CA | 26,50 | 0,641 | 724 | |
| 3x1x70+70 | 9,95 | XLPE 90°C | 1,8 | 7 | 10,40 | CA | 32,70 | 0,443 | 924 | |
| 3x1x95+70 | 11,80 | XLPE 90°C | 2,0 | 7 | 10,40 | CA | 37,60 | 0,320 | 1,148 | |
| 3x1x95+95 | 11,80 | XLPE 90°C | 2,0 | 7 | 12,33 | CA | 38,10 | 0,320 | 1,335 | |
| 3x1x120+70 | 13,40 | XLPE 90°C | 2,0 | 7 | 10,40 | CA | 40,60 | 0,253 | 1,420 | |
| 3x1x120+120 | 13,40 | XLPE 90°C | 2,0 | 19 | 14,50 | CA | 41,90 | 0,253 | 1,574 | |
(4) Condutor neutro tipo CAA (alumínio com alma de aço zincado) e CAL (alumínio liga) sob consulta.
| Parameter | Specification |
|---|---|
| (5) Duplex | composto por um condutor fase e um condutor neutro. |
| (6) Triplex | composto por dois condutores fase e um condutor neutro. |
| (7) Quadruplex | composto por três condutores fase e um condutor neutro. |
Applicable Standards
Certificate Display
Type and routine tests are issued from our own testing centre under the ISO 9001 quality system — test reports and certificates accompany every shipment.
Factory Tour
Why Choose Us
Packing & Shipping
- Wooden, steel or steel-wood drums; drum length to customer requirement
- Drum marking per customer / utility specification
- Both drum ends sealed and protected for sea freight
