Description

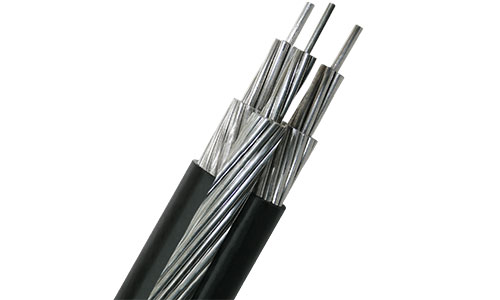

PSD Cable Distribución Aérea consisting of one, two or three copper or aluminum conductors, with individual black high-density polyethylene (HDPE) thermoplastic insulation, arranged helically around a bare copper or aluminum messenger neutral-conductor.
Application
These PSD Cable Distribución Aérea are used in low voltage overhead electrical power distributio on systems.
As an aerial connection of secondary services.
In permanent or temporary electrical lighting installations in general.
Performance
Maximum operating voltage:600 V.
Maximum operating temperature in the conductor:75°C.
Manufacturing range:
– 8 AWG to 3/0 AWG in copper
– 6 AWG to 3/0 AWG in aluminum
Construction
1.The insulated copper conductors are manufactured in soft temper and the bare conductor in hard or semi-hard temper (CFE).
The insulated conductors and the bare aluminum are manufactured with hard-tempered alloy 1350 (H19).
2.Black insulation that makes it resistant to sunlight
3.ACSR bare conductors are manufactured with hard tempered aluminum alloy 1350 (H19) and steel core.
Duplex – AAC Conductor and ACSR Messenger Neutral
| Code | AAC conductor phase | Neutral ACSR Messenger | Approx. weight | Current-carrying capacity** | ||||
| Cal. AWG or kcmil | Number of Threads | Isolation Sp. | Cal. AWG or | Number of threads | Breaking stress | PE | Amperes | |
| kcmil | ||||||||
| / | / | / | mm | / | / | kg | kg/km | 75℃ |
| Setter | 6 | 1 | 1.14 | 6 | 6/1 | 540 | 111 | 59 |
| Shepherd | 6 | 7 | 1.14 | 6 | 6/1 | 540 | 116 | 59 |
| Retriever | 6 | 7 | 1.52 | 6 | 6/1 | 540 | 126 | 59 |
| Eskimo | 4 | 1 | 1.14 | 4 | 6/1 | 844 | 169 | 78 |
| Terrier | 4 | 7 | 1.14 | 4 | 6/1 | 844 | 176 | 78 |
| Yorkshire | 4 | 7 | 1.52 | 4 | 6/1 | 844 | 187 | 78 |
| Chow | 2 | 7 | 1.14 | 2 | 6/1 | 1294 | 270 | 106 |
| Bull | 1/0 | 19 | 1.52 | 1/0 | 6/1 | 1989 | 431 | 143 |
| Triplex – Phase and Neutral Messenger AAC | ||||||||
| Code | Phase conductor AAC | Neutral Messenger AAC | Approx. Weight | Current carrying capacity** | ||||
| Cal. AWG o kcmil |
Number of threads | Isolation Sp. | Cal. AWG o kcmil |
Number of threads | Effort to breaking off |
PE | Amperes | |
| / | / | / | mm | / | / | kg | kg/km | 75℃ |
| Haiotis | 6 | 1 | 1.14 | 6 | 7 | 256 | 150 | 59 |
| Patella | 6 | 7 | 1.14 | 6 | 7 | 256 | 161 | 59 |
| Fusus | 4 | 1 | 1.14 | 4 | 7 | 400 | 223 | 78 |
| Oyster | 4 | 7 | 1.14 | 4 | 7 | 400 | 237 | 78 |
| Clam | 2 | 7 | 1.14 | 2 | 7 | 613 | 357 | 106 |
| Snail | 1/0 | 7 | 1.52 | 1/0 | 7 | 613 | 576 | 143 |
| Murex | 1/0 | 7 | 1.52 | 1/0 | 7 | 903 | 576 | 143 |
| Purpura | 1/0 | 19 | 1.52 | 1/0 | 7 | 903 | 570 | 143 |
| Nassa | 2/0 | 7 | 1.52 | 2/0 | 7 | 1140 | 710 | 165 |
| Trophon | 2/0 | 19 | 1.52 | 2/0 | 7 | 1140 | 701 | 165 |
| Melita | 3/0 | 19 | 1.52 | 3/0 | 19 | 1503 | 866 | 192 |
| Portunus | 4/0 | 19 | 1.52 | 4/0 | 19 | 1825 | 1072 | 224 |
| Nannynose | 336.4 | 19 | 2.03 | 336.4 | 19 | 2790 | 1730 | *295 |
| Triplex – AAC Phase and ACSR Messenger Neutral | ||||||||
| Code | Phase conductor AAC | Neutral Messenger AAC | Approx. Weight | Current carrying capacity** | ||||
| Cal. AWG o kcmil |
Number of threads | Isolation Sp. | Cal. AWG o kcmil |
Number of threads | Effort to breaking off |
PE | Amperes | |
| / | / | / | mm | / | / | kg | kg/km | 75℃ |
| Paludina | 6 | 1 | 1.14 | 6 | 6/1 | 540 | 111 | 59 |
| Voluta | 6 | 7 | 1.14 | 6 | 6/1 | 540 | 178 | 59 |
| Bolma | 6 | 7 | 1.52 | 6 | 6/1 | 540 | 196 | 59 |
| Scallop | 4 | 1 | 1.14 | 6 | 6/1 | 540 | 218 | 78 |
| Strombus | 4 | 7 | 1.14 | 6 | 6/1 | 540 | 233 | 78 |
| Whelk | 4 | 1 | 1.14 | 4 | 6/1 | 844 | 251 | 78 |
| Periwinkle | 4 | 7 | 1.14 | 4 | 6/1 | 844 | 265 | 78 |
| Calma | 4 | 7 | 1.52 | 4 | 6/1 | 844 | 286 | 78 |
| Cockle | 2 | 7 | 1.14 | 4 | 6/1 | 844 | 351 | 106 |
| Conch | 2 | 7 | 1.14 | 2 | 6/1 | 1294 | 402 | 106 |
| Gebia | 2 | 7 | 1.52 | 4 | 6/1 | 844 | 376 | 106 |
| Janthina | 1/0 | 7 | 1.52 | 2 | 6/1 | 1294 | 566 | 143 |
| Ranella | 1/0 | 19 | 1.52 | 2 | 6/1 | 1294 | 559 | 143 |
| Neritina | 1/0 | 7 | 1.52 | 1/0 | 6/1 | 1989 | 648 | 143 |
| Cenia | 1/0 | 19 | 1.52 | 1/0 | 6/1 | 1989 | 641 | 143 |
| Cavolinia | 2/0 | 7 | 1.52 | 1 | 6/1 | 1612 | 697 | 165 |
| Clio | 2/0 | 19 | 1.52 | 1 | 6/1 | 1612 | 688 | 165 |
| Runcina | 2/0 | 7 | 1.52 | 2/0 | 6/1 | 2406 | 800 | 165 |
| Triton | 2/0 | 19 | 1.52 | 2/0 | 6/1 | 2406 | 792 | 165 |
| Aega | 3/0 | 19 | 1.52 | 1/0 | 6/1 | 1989 | 849 | 192 |
| Mursia | 3/0 | 19 | 1.52 | 3/0 | 6/1 | 3005 | 979 | 192 |
| Cerapus | 4/0 | 19 | 1.52 | 2/0 | 6/1 | 2406 | 1051 | 224 |
| Zuzara | 4/0 | 19 | 1.52 | 4/0 | 6/1 | 3791 | 1215 | 224 |
| Dosinia | 266.8 | 19 | 2.03 | 266.8 | 18/1 | 3133 | 1463 | *255 |
| Cowry | 336.4 | 19 | 2.03 | 4/0 | 6/1 | 3791 | 1693 | *295 |
| Limpet | 336.4 | 19 | 2.03 | 336.4 | 18/1 | 3950 | 1806 | *295 |
| Quadruplex – AAC Conductor and ACSR Messenger Neutral | ||||||||
| Code | Phase conductor AAC | Neutral Messenger AAC | Approx. Weight | Current carrying capacity** | ||||
| Cal. AWG o kcmil |
Number of threads | Isolation Sp. | Cal. AWG o kcmil |
Number of threads | Effort to breaking off |
PE | Amperes | |
| / | / | / | mm | / | / | kg | kg/km | 75℃ |
| Morochuca | 6 | 1 | 1.14 | 6 | 6/1 | 540 | 223 | 59 |
| Chola | 6 | 7 | 1.14 | 6 | 6/1 | 540 | 239 | 59 |
| Morgan | 4 | 1 | 1.14 | 4 | 6/1 | 844 | 333 | 78 |
| Hackney | 4 | 7 | 1.14 | 4 | 6/1 | 844 | 354 | 78 |
| Yearling | 2 | 7 | 1.14 | 4 | 6/1 | 844 | 482 | 106 |
| Palomino | 2 | 7 | 1.14 | 2 | 6/1 | 1294 | 533 | 106 |
| Colt | 1/0 | 19 | 1.52 | 2 | 6/1 | 1294 | 769 | 143 |
| Costena | 1/0 | 19 | 1.52 | 1/0 | 6/1 | 1989 | 851 | 143 |
| Haflinger | 2/0 | 19 | 1.52 | 1/0 | 6/1 | 1989 | 991 | 165 |
| Grullo | 2/0 | 19 | 1.52 | 2/0 | 6/1 | 2406 | 1048 | 165 |
| Claiming | 3/0 | 19 | 1.52 | 1/0 | 6/1 | 1989 | 1164 | 192 |
| Suffolk | 3/0 | 19 | 1.52 | 3/0 | 6/1 | 3005 | 1294 | 192 |
| Toric | 4/0 | 19 | 1.52 | 1/0 | 6/1 | 1989 | 1379 | 224 |
| Stallion | 4/0 | 7 | 1.52 | 4/0 | 6/1 | 3791 | 1620 | 224 |
| Filly | 4/0 | 19 | 1.52 | 2/0 | 6/1 | 2406 | 1437 | 224 |
| Appaloosa | 4/0 | 19 | 1.52 | 4/0 | 6/1 | 3791 | 1601 | 224 |
| Gelding | 336.4 | 19 | 2.03 | 4/0 | 6/1 | 3791 | 2319 | *295 |
| Bronco | 336.4 | 19 | 2.03 | 336.4 | 18/1 | 3950 | 2432 | *295 |
Estimated values
**Based on NEC table (NFPA 70) 310.20. -No more than 3 conductors supported in a messenger neutral and at an ambient temperature of 40°C.
NOTE: Dimensions and weights are subject to manufacturing tolerances.
