Product Description

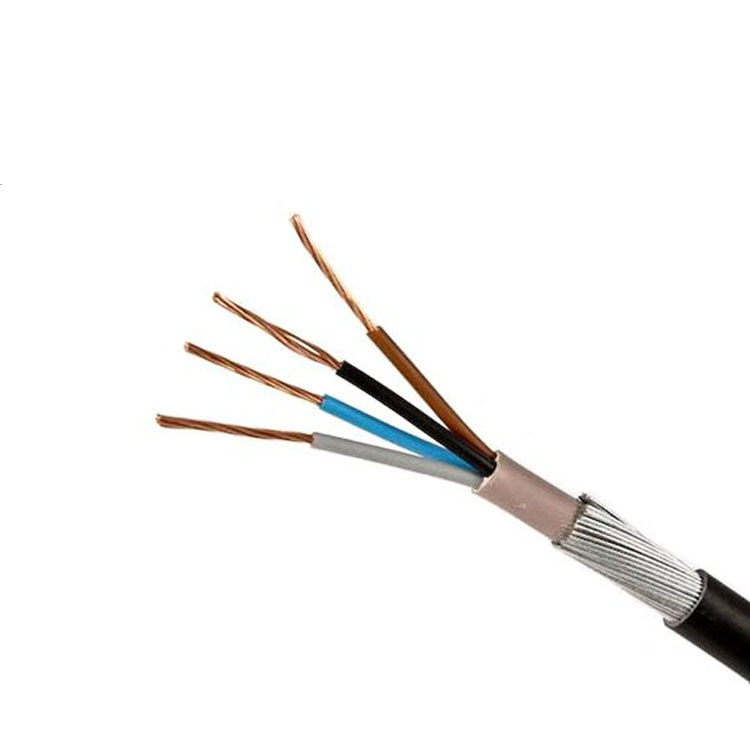

Armoured Power Cables
Applications :
Armoured cable is available with a Copper (Cu) or Aluminium (Al) conductor and with a Polyvinyl Chloride (PVC) or Low Smoke Zero Halogen (LSZH) sheathing, LSZH sheathings are recommended for use in high density enclosed areas, and are mandatory in some public places.
These cables include low voltage and medium voltage SWA steel wire armour 3 core cable, and all sizes of these widely used armoured power cables with current ratings up to 33kV. For single core cables, aluminium wire armour – AWA – is used to prevent induced current in the armour. Armoured power cables are available with both copper and aluminium conductors as required. The cables are used for power and control circuits, they can offer excellent protection through the use of a heavy galvanized steel wire armour. The GSWA makes them suitable for use inside and outside buildings or for direct burial in the ground.
Construction :
Conductor: plain stranded copper or aluminium
Insulation: materials such as cross-linked polyethylene (XLPE) provide high temperature resistance and excellent dielectric strength-providing enhanced electrical properties.
Bedding: a layer to create a protective barrier between the insulation and the armour.
Armour: a steel or aluminium armour provides mechanical protection to allow the cable to withstand the mechanical stresses to which it is exposed.
Sheath: the constituent parts of the cable are held together by a sheath offering a further level of protection. Black sheaths can be carbon-loaded for UV stability.
Voltage: voltage ratings of 600/1000V, 6.35/11kV and 19/33kV.
| Conductor |
Solid Aluminum or Copper conductor, round stranded or shaped, Class 2 to BS 6460, IEC 60228. |
| Insulation |
XLPE (Cross-Linked Polyethylene) Type GP 8 or ethylene propylene rubber (GP 6) |
| Colour Code |
1 Core : Brown |
| 2 Cores: Brown or Blue |
| 3 Cores: Brown, Black, Grey |
| 4 Cores: Blue, Brown, Black, Grey |
| 5 Cores: Green/Yellow, Blue, Brown, Black, Grey |
| Above 5 Cores: White Cores with black numbers |
| Bedding |
PVC (Polyvinyl Chloride) |
| Armour |
Single Core: AWA (Aluminum Wire Armour) |
| Multi Core: SWA (Steel Wire Armour) |
| Outer Sheath |
PVC(Polyvinyl Chloride) |
Technical Information :
| Voltage rating |
600/1000V, 1900/3300V, 3.6/6(7.2)kV, 3.8/6.6(7.2)kV, 6/10(12)kV,6.35/11(12)kV, 8.7/10(15)kV,8.7/15(17.5)kV, 12/20(22)kV,12.7/22(24)kV, 12.7/22(24)kV,18/30(36)kV, 19/33(36)kV |
| Temperature rating |
0°C to +90°C |
| Bending radius |
1.5mm² to 16mm² : 6 x overall diameter |
| 25mm² and above : 8 x overall diameter |
| Flame retardant |
IEC60332 part 1, BS4066 part 1 |
XLPE INSULATION BS 5467 Armoured Power Cables 600/1000V 1900/3300V
Cable Parameter :
Single-core 600/1000V cables with circular stranded copper conductor
| Nominal Cross-sectional Area |
Strand Type |
Nominal Insulation thickness |
Nominal Bedding thickness |
Nominal Alum Wire dia. |
Nominal Sheath thickness |
Approx.Overall Diameter |
Aprrox
Weight |
| mm² |
No./mm |
mm |
mm |
mm |
mm |
mm |
kg/km |
| 1×50 |
19/1.78 |
1.0 |
0.8 |
0.9 |
1.5 |
17.5 |
800 |
| 1×70 |
19/2.14 |
1.1 |
0.8 |
1.25 |
1.5 |
20.2 |
990 |
| 1×95 |
19/2.52 |
1.1 |
0.8 |
1.25 |
1.6 |
22.3 |
1280 |
| 1×120 |
37/2.03 |
1.2 |
0.8 |
1.25 |
1.6 |
24.2 |
1550 |
| 1×150 |
37/2.25 |
1.4 |
1 |
1.6 |
1.7 |
27.4 |
1900 |
| 1×185 |
37/2.52 |
1.6 |
1 |
1.6 |
1.8 |
30.0 |
2320 |
| 1×240 |
61/2.25 |
1.7 |
1 |
1.6 |
1.8 |
32.8 |
2930 |
| 1×300 |
61/2.52 |
1.8 |
1 |
1.6 |
1.9 |
35.6 |
3580 |
| 1×400 |
61/2.85 |
2.0 |
1.2 |
2.0 |
2.0 |
40.5 |
4600 |
| 1×500 |
61/3.20 |
2.2 |
1.2 |
2.0 |
2.1 |
44.2 |
5680 |
| 1×630 |
127/2.52 |
2.4 |
1.2 |
2.0 |
2.2 |
48.8 |
7160 |
| 1×800 |
127/2.85 |
2.6 |
1.4 |
2.5 |
2.4 |
55.4 |
9315 |
| 1×1000 |
127/3.20 |
2.8 |
1.4 |
2.5 |
2.5 |
60.6 |
11490 |
Single-core 600/1000V cables with solid aluminum conductor
| Nominal Cross-sectional Area |
Nominal Insulation thickness |
Nominal Bedding thickness |
Nominal Alum Wire Armor dia. |
Armour strip |
Nominal Sheath thickness |
Approx.Overall Diameter |
Aprrox Weight |
| thickness |
width |
wire armor |
strip armor |
| mm² |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
kg/km |
| 1×50 |
1.0 |
0.8 |
0.9 |
0.6 |
2.4 |
1.5 |
16.3 |
15.7 |
460 |
| 1×70 |
1.1 |
0.8 |
1.25 |
0.6 |
2.4 |
1.5 |
18.7 |
17.4 |
560 |
| 1×95 |
1.1 |
0.8 |
1.25 |
0.6 |
2.4 |
1.6 |
20.6 |
19.3 |
690 |
| 1×120 |
1.2 |
0.8 |
1.25 |
0.6 |
2.4 |
1.6 |
22.1 |
20.8 |
800 |
| 1×150 |
1.4 |
1 |
1.6 |
0.6 |
2.4 |
1.7 |
25.2 |
23.2 |
970 |
| 1×185 |
1.6 |
1 |
1.6 |
0.6 |
2.4 |
1.8 |
27.4 |
25.4 |
1150 |
| 1×240 |
1.7 |
1 |
1.6 |
1 |
3.6 |
1.8 |
29.9 |
28.7 |
1380 |
| 1×300 |
1.8 |
1 |
1.6 |
1 |
3.6 |
1.9 |
32.4 |
31.2 |
1640 |
Two-core 600/1000V cables with stranded copper conductors
| Nominal Cross-sectional Area |
Strand Type |
Nominal Insulation thick-ness |
Nominal Bedding thickness |
Nominal Steel Wire Armor dia. |
Nominal Sheath thickness |
Approx. Overall Diameter |
Aprrox Weight |
| Extruded bedding |
Taped bedding |
| mm² |
No./mm |
mm |
mm |
mm |
mm |
mm |
mm |
kg/km |
| 2×1.5 |
7/0.53 |
0.6 |
0.8 |
0.9 |
1.4 |
12.1 |
– |
320 |
| 2×2.5 |
7/0.67 |
0.7 |
0.8 |
0.9 |
1.4 |
13.6 |
– |
365 |
| 2×4 |
7/0.85 |
0.7 |
0.8 |
0.9 |
1.4 |
14.7 |
– |
440 |
| 2×6 |
7/1.04 |
0.7 |
0.8 |
0.9 |
1.4 |
15.9 |
– |
470 |
| 2×10 |
7/1.35 |
0.7 |
0.8 |
0.9 |
1.5 |
18.0 |
– |
800 |
| 2×16 |
7/1.70 |
0.7 |
0.8 |
1.25 |
1.5 |
20.4 |
20.4 |
900 |
| 2×25 |
7/2.14 |
0.9 |
0.8 |
1.25 |
1.6 |
24.1 |
24.1 |
1240 |
| 2×25* |
7/2.14 |
0.9 |
0.8 |
1.25 |
1.6 |
20.4 |
20.4 |
1240 |
| 2×35 |
7/2.52 |
0.9 |
1 |
1.6 |
1.7 |
27.7 |
27.3 |
1710 |
| 2×35* |
7/2.52 |
0.9 |
1 |
1.6 |
1.7 |
23.3 |
22.9 |
1710 |
| 2×50* |
19/1.78 |
1.0 |
1 |
1.6 |
1.8 |
25.8 |
25.4 |
1800 |
| 2×70* |
19/2.14 |
1.1 |
1 |
1.6 |
1.9 |
29.0 |
28.6 |
2320 |
| 2×95* |
19/2.52 |
1.1 |
1.2 |
2.0 |
2.0 |
33.1 |
32.3 |
3150 |
| 2×120* |
37/2.03 |
1.2 |
1.2 |
2.0 |
2.1 |
36.1 |
35.3 |
3880 |
| 2×150* |
37/2.25 |
1.4 |
1.2 |
2.0 |
2.2 |
39.3 |
38.5 |
4820 |
| 2×185* |
37/2.52 |
1.6 |
1.4 |
2.5 |
2.4 |
44.7 |
43.5 |
5920 |
| 2×240* |
61/2.25 |
1.7 |
1.4 |
2.5 |
2.5 |
49.0 |
47.8 |
7300 |
| 2×300* |
61/2.52 |
1.8 |
1.6 |
2.5 |
2.6 |
53.5 |
51.9 |
8770 |
| 2×400* |
61/2.85 |
2 |
1.6 |
2.5 |
2.8 |
59.0 |
57.4 |
10905 |
* D-Shaped stranded conductor (class 2)
Two-core 600/1000V cables with solid aluminum conductors
| Nominal Cross-sectional Area |
Nominal Insulation thickness |
Nominal Bedding thickness |
Nominal Steel Wire Armor dia. |
Armour strip |
Nominal Sheath thickness |
Approx. Overall Diameter |
Aprrox Weight |
| thick-ness |
width |
wire armor |
strip armor |
| Extruded bedding |
Taped bedding |
| mm² |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
kg/km |
| 2×16 |
0.7 |
0.8 |
1.25 |
0.6 |
2.4 |
1.5 |
19.1 |
19.1 |
17.8 |
650 |
| 2×25 |
0.9 |
0.8 |
1.25 |
0.6 |
2.4 |
1.5 |
22.4 |
22.4 |
21.1 |
915 |
| 2×25* |
0.9 |
0.8 |
1.25 |
0.6 |
2.4 |
1.6 |
18.7 |
18.7 |
17.4 |
1255 |
| 2×35 |
0.9 |
1 |
1.6 |
0.6 |
2.4 |
1.6 |
25.7 |
25.3 |
23.3 |
1255 |
| 2×35* |
0.9 |
1 |
1.6 |
0.6 |
2.4 |
1.7 |
21.4 |
21.0 |
19 |
1430 |
| 2×50* |
1.0 |
1 |
1.6 |
0.6 |
2.4 |
1.8 |
23.5 |
23.1 |
21.1 |
1430 |
| 2×70* |
1.1 |
1 |
1.6 |
1 |
3.6 |
1.9 |
26.3 |
25.9 |
24.7 |
1780 |
| 2×95* |
1.1 |
1.2 |
2.0 |
1 |
3.6 |
2 |
30 |
29.2 |
27.2 |
1950 |
*Solid shaped conductor (class 1)
Three-core 600/1000V cables with stranded copper conductors
| Nominal Cross-sectional Area |
Strand Type |
Nominal Insulation thickness |
Nominal Bedding
thickness
|
Nominal Steel Wire Armor dia. |
Nominal Sheath thickness |
Approx. Overall Diameter |
Aprrox
Weight |
| Extruded bedding |
Taped bedding |
| mm² |
No./mm |
mm |
mm |
mm |
mm |
mm |
mm |
kg/km |
| 3×1.5 |
7/0.53 |
0.6 |
0.8 |
0.9 |
1.3 |
12.6 |
– |
340 |
| 3×2.5 |
7/0.67 |
0.7 |
0.8 |
0.9 |
1.4 |
14.1 |
– |
408 |
| 3×4 |
7/0.85 |
0.7 |
0.8 |
0.9 |
1.4 |
15.3 |
– |
498 |
| 3×6 |
7/1.04 |
0.7 |
0.8 |
0.9 |
1.4 |
16.6 |
– |
600 |
| 3×10 |
7/1.35 |
0.7 |
0.8 |
1.25 |
1.5 |
19.5 |
– |
915 |
| 3×16 |
7/1.70 |
0.7 |
0.8 |
1.25 |
1.6 |
21.6 |
21.6 |
1130 |
| 3×25 |
7/2.14 |
0.9 |
1 |
1.6 |
1.7 |
26.7 |
26.3 |
1710 |
| 3×25* |
7/2.14 |
0.9 |
1 |
1.6 |
1.7 |
23.6 |
23.2 |
1710 |
| 3×35 |
7/2.52 |
0.9 |
1 |
1.6 |
1.8 |
29.4 |
29.0 |
2100 |
| 3×35* |
7/2.52 |
0.9 |
1 |
1.6 |
1.8 |
25.7 |
25.3 |
2100 |
| 3×50* |
19/1.78 |
1.0 |
1 |
1.6 |
1.8 |
28.5 |
28.1 |
2450 |
| 3×70* |
19/2.14 |
1.1 |
1 |
1.6 |
1.9 |
32.2 |
31.8 |
3120 |
| 3×95* |
19/2.52 |
1.1 |
1.2 |
2.0 |
2.1 |
37.0 |
36.2 |
4310 |
| 3×120* |
37/2.03 |
1.2 |
1.2 |
2.0 |
2.2 |
40.4 |
39.6 |
5160 |
| 3×150* |
37/2.25 |
1.4 |
1.4 |
2.5 |
2.3 |
45.5 |
44.3 |
7160 |
| 3×185* |
37/2.52 |
1.6 |
1.4 |
2.5 |
2.4 |
49.8 |
48.6 |
8600 |
| 3×240* |
61/2.25 |
1.7 |
1.4 |
2.5 |
2.6 |
55.1 |
53.9 |
10755 |
| 3×300* |
61/2.52 |
1.8 |
1.6 |
2.5 |
2.7 |
60.2 |
58.6 |
13080 |
| 3×400* |
61/2.85 |
2 |
1.6 |
2.5 |
2.9 |
66.6 |
65.0 |
15810 |
*Shaped stranded conductor (class 2)
Three-core 600/1000V cables with solid aluminum conductors
| Nominal Cross-sectional Area |
Nominal Insulation thickness |
Nominal Bedding thickness |
Nominal Steel Wire Armor dia. |
Armour strip |
Nominal Sheath thickness |
Approx. Overall Diameter |
Aprrox Weight |
| thick-ness |
width |
wire armor |
strip armor |
| Extruded bedding |
Taped bedding |
| mm² |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
kg/km |
| 3×16 |
0.7 |
0.8 |
1.25 |
0.6 |
2.4 |
1.6 |
20.3 |
20.3 |
19 |
760 |
| 3×25 |
0.9 |
1 |
1.6 |
0.6 |
2.4 |
1.7 |
22.5 |
22.1 |
20.1 |
1020 |
| 3×25* |
0.9 |
1 |
1.6 |
0.6 |
2.4 |
1.7 |
24.9 |
24.5 |
22.5 |
1020 |
| 3×35 |
0.9 |
1 |
1.6 |
0.6 |
2.4 |
1.8 |
24.4 |
24.9 |
22 |
1200 |
| 3×35* |
0.9 |
1 |
1.6 |
0.6 |
2.4 |
1.8 |
27.3 |
26.9 |
24.9 |
1200 |
| 3×50* |
1.0 |
1 |
1.6 |
0.6 |
2.4 |
1.8 |
26.8 |
26.4 |
24.9 |
1380 |
| 3×70* |
1.1 |
1 |
1.6 |
1 |
3.6 |
1.9 |
30.2 |
29.8 |
28.6 |
1750 |
| 3×95* |
1.1 |
1.2 |
2.0 |
1 |
3.6 |
2.1 |
34.8 |
34.0 |
32 |
2420 |
| 3×120* |
1.2 |
1.2 |
2.0 |
1.4 |
4.8 |
2.2 |
37.8 |
37.0 |
35.8 |
2820 |
| 3×150* |
1.4 |
1.4 |
2.5 |
1.4 |
4.8 |
2.3 |
42.7 |
41.5 |
39.3 |
3660 |
| 3×185* |
1.6 |
1.4 |
2.5 |
1.4 |
4.8 |
2.4 |
46.7 |
45.5 |
43.3 |
4350 |
| 3×240* |
1.7 |
1.4 |
2.5 |
1.4 |
4.8 |
2.6 |
51.5 |
50.3 |
48.1 |
5220 |
| 3×300* |
1.8 |
1.6 |
2.5 |
1.8 |
6.4 |
2.7 |
56.2 |
54.6 |
53.2 |
6200 |
*Solid shaped conductor (class 1)
Four-core 600/1000V cables with stranded copper conductors
| Nominal Cross-sectional Area |
Strand Type |
Nominal Insulation thickness |
Nominal Bedding thickness |
Nominal Steel Wire Armor dia. |
Nominal Sheath thickness |
Approx. Overall Diameter |
Aprrox
Weight |
| Extruded bedding |
Taped bedding |
| mm² |
No./mm |
mm |
mm |
mm |
mm |
mm |
mm |
kg/km |
| 4×1.5 |
7/0.53 |
0.7 |
0.8 |
0.9 |
1.4 |
13.3 |
– |
390 |
| 4×2.5 |
7/0.67 |
0.7 |
0.8 |
0.9 |
1.4 |
15.0 |
– |
470 |
| 4×4 |
7/0.85 |
0.7 |
0.8 |
0.9 |
1.4 |
16.4 |
– |
580 |
| 4×6 |
7/1.04 |
0.7 |
0.8 |
1.25 |
1.5 |
18.7 |
– |
805 |
| 4×10 |
7/1.35 |
0.7 |
0.8 |
1.25 |
1.5 |
21.1 |
– |
1090 |
| 4×16 |
7/1.70 |
0.7 |
0.8 |
1.25 |
1.6 |
23.4 |
23.4 |
1320 |
| 4×25 |
7/2.14 |
0.9 |
1 |
1.6 |
1.7 |
28.9 |
28.5 |
1840 |
| 4×25* |
7/2.14 |
0.9 |
1 |
1.6 |
1.7 |
26.1 |
25.7 |
1840 |
| 4×35 |
7/2.52 |
0.9 |
1 |
1.6 |
1.8 |
31.9 |
31.5 |
2310 |
| 4×35* |
7/2.52 |
0.9 |
1 |
1.6 |
1.8 |
28.6 |
28.2 |
2310 |
| 4×50* |
19/1.78 |
1.0 |
1 |
1.6 |
1.9 |
32.0 |
31.6 |
2970 |
| 4×70* |
19/2.14 |
1.1 |
1.2 |
2.0 |
2.1 |
37.7 |
36.9 |
4240 |
| 4×95* |
19/2.52 |
1.1 |
1.2 |
2.0 |
2.2 |
41.7 |
40.9 |
5400 |
| 4×120* |
37/2.03 |
1.2 |
1.4 |
2.5 |
2.3 |
47.1 |
45.9 |
7000 |
| 4×150* |
37/2.25 |
1.4 |
1.4 |
2.5 |
2.4 |
51.4 |
50.2 |
8350 |
| 4×185* |
37/2.52 |
1.6 |
1.4 |
2.5 |
2.6 |
56.6 |
55.4 |
10130 |
| 4×240* |
61/2.25 |
1.7 |
1.6 |
2.5 |
2.7 |
63.0 |
61.4 |
12840 |
| 4×300* |
61/2.52 |
1.8 |
1.6 |
2.5 |
2.9 |
68.8 |
67.2 |
15530 |
| 4×400* |
61/2.85 |
2 |
1.8 |
3.15 |
3.2 |
78.1 |
76.1 |
19950 |
* Shaped stranded conductor (class 2)
Four-core 600/1000 V cables with solid aluminum conductors
| Nominal Cross-sectional Area |
Nominal Insulation thickness |
Nominal Bedding thickness |
Nominal Steel Wire Armor dia. |
Armour strip |
Nominal Sheath thickness |
Approx. Overall Diameter |
Aprrox
Weight |
| thick-ness |
width |
wire armor |
strip armor |
| Extruded bedding |
Taped bedding |
| mm² |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
kg/km |
| 4×16 |
0.7 |
0.8 |
1.25 |
0.6 |
2.4 |
1.6 |
21.8 |
21.8 |
20.5 |
980 |
| 4×25 |
0.9 |
1 |
1.6 |
0.6 |
2.4 |
1.7 |
26.9 |
26.5 |
24.5 |
1220 |
| 4×25* |
0.9 |
1 |
1.6 |
0.6 |
2.4 |
1.7 |
24.6 |
24.2 |
22.2 |
1220 |
| 4×35 |
0.9 |
1 |
1.6 |
0.6 |
2.4 |
1.8 |
29.5 |
29.2 |
27.1 |
1420 |
| 4×35* |
0.9 |
1 |
1.6 |
0.6 |
2.4 |
1.8 |
27 |
26.6 |
24.6 |
1420 |
| 4×50* |
1.0 |
1 |
1.6 |
1 |
2.4 |
1.9 |
30 |
29.6 |
28.4 |
1770 |
| 4×70* |
1.1 |
1.2 |
2.0 |
1 |
3.6 |
2.1 |
35.3 |
34.5 |
32.5 |
2500 |
| 4×95* |
1.1 |
1.2 |
2.0 |
1.4 |
3.6 |
2.2 |
39 |
38.2 |
37 |
2980 |
| 4×120* |
1.2 |
1.4 |
2.5 |
1.4 |
4.8 |
2.3 |
44 |
42.8 |
40.6 |
3950 |
| 4×150* |
1.4 |
1.4 |
2.5 |
1.4 |
4.8 |
2.4 |
47.9 |
46.7 |
44.5 |
4600 |
| 4×185* |
1.6 |
1.4 |
2.5 |
1.4 |
4.8 |
2.6 |
52.7 |
51.5 |
49.3 |
5430 |
| 4×240* |
1.7 |
1.6 |
2.5 |
1.8 |
4.8 |
2.7 |
58.5 |
56.9 |
55.5 |
6660 |
| 4×300* |
1.8 |
1.6 |
2.5 |
1.8 |
6.4 |
2.9 |
63.8 |
62.2 |
60.8 |
7770 |
*Solid shaped conductor (class 1)
Five-core 600/1000 V cables with stranded copper conductors
| Nominal Cross-sectional Area |
Strand Type |
Nominal Insulation thickness |
Nominal Bedding thickness |
Nominal Steel Wire Armor dia. |
Nominal Sheath thickness |
Approx. Overall Diameter |
Aprrox
Weight |
| Extruded bedding |
Taped bedding |
| mm² |
No./mm |
mm |
mm |
mm |
mm |
mm |
mm |
kg/km |
| 5×1.5 |
7/0.53 |
0.6 |
0.8 |
0.9 |
1.4 |
14.3 |
– |
430 |
| 5×2.5 |
7/0.67 |
0.7 |
0.8 |
0.9 |
1.4 |
16.1 |
– |
545 |
| 5×4 |
7/0.85 |
0.7 |
0.8 |
0.9 |
1.5 |
17.8 |
– |
680 |
| 5×6 |
7/1.04 |
0.7 |
0.8 |
1.25 |
1.5 |
20 |
– |
840 |
| 5×10 |
7/1.35 |
0.7 |
0.8 |
1.25 |
1.6 |
22.9 |
– |
1105 |
| 5×16 |
7/1.70 |
0.7 |
1 |
1.6 |
1.7 |
26.6 |
26.2 |
1450 |
| 5×25 |
7/2.14 |
0.9 |
1 |
1.6 |
1.8 |
31.5 |
31.1 |
2245 |
| 5×35 |
7/2.52 |
0.9 |
1 |
1.6 |
1.9 |
34.8 |
34.4 |
2840 |
| 5×50 |
19/1.78 |
1.0 |
1.2 |
2 |
2 |
40.4 |
39.6 |
3895 |
| 5×70 |
19/2.14 |
1.1 |
1.2 |
2 |
2.2 |
46.3 |
45.5 |
5145 |
Multi-core 600/1000 V cables with stranded copper conductors
| Nominal Cross-sectional Area |
Strand Type |
Nominal Insulation thickness |
Nominal Bedding thickness |
Nominal Steel Wire Armor dia. |
Nominal Sheath thickness |
Approx.Overall Diameter |
Aprrox Weight |
| mm² |
No./mm |
mm |
mm |
mm |
mm |
mm |
kg/km |
| 7×1.5 |
7/0.53 |
0.6 |
0.8 |
0.9 |
1.4 |
15.2 |
500 |
| 12×1.5 |
7/0.53 |
0.6 |
0.8 |
1.25 |
1.5 |
19.4 |
820 |
| 19×1.5 |
7/0.53 |
0.6 |
0.8 |
1.25 |
1.6 |
22.2 |
1080 |
| 27×1.5 |
7/0.53 |
0.6 |
1 |
1.6 |
1.7 |
26.7 |
1550 |
| 37×1.5 |
7/0.53 |
0.6 |
1 |
1.6 |
1.7 |
29 |
1850 |
| 48×1.5 |
7/0.53 |
0.6 |
1 |
1.6 |
1.8 |
32.7 |
2250 |
| 7×2.5 |
7/0.67 |
0.7 |
0.8 |
0.9 |
1.4 |
17.1 |
730 |
| 12×2.5 |
7/0.67 |
0.7 |
0.8 |
1.25 |
1.6 |
22.4 |
1020 |
| 19×2.5 |
7/0.67 |
0.7 |
1 |
1.6 |
1.7 |
26.6 |
1530 |
| 27×2.5 |
7/0.67 |
0.7 |
1 |
1.6 |
1.8 |
30.7 |
1960 |
| 37×2.5 |
7/0.67 |
0.7 |
1 |
1.6 |
1.8 |
33.8 |
2450 |
| 48×2.5 |
7/0.67 |
0.7 |
1.2 |
2 |
2 |
39.3 |
3260 |
| 7×4 |
7/0.85 |
0.7 |
0.8 |
1.25 |
1.5 |
19.7 |
840 |
| 12×4 |
7/0.85 |
0.7 |
1 |
1.6 |
1.6 |
25.7 |
1390 |
| 19×4 |
7/0.85 |
0.7 |
1 |
1.6 |
1.7 |
29.3 |
1850 |
| 27×4 |
7/0.85 |
0.7 |
1 |
1.6 |
1.9 |
34.4 |
2350 |
| 37×4 |
7/0.85 |
0.7 |
1.2 |
2 |
2 |
39.2 |
2800 |
| 48×4 |
7/0.85 |
0.7 |
1.2 |
2 |
2.1 |
44.1 |
3250 |
Single-core 1900/3300 V cables with circular stranded copper conductor
|
|
| Nominal Cross-sectional Area |
Strand Type |
Nominal Insulation thickness |
Nominal Bedding thickness |
Nominal Alum Wire Armor dia. |
Nominal Sheath thickness |
Approx. Overall Diameter |
Aprrox Weight |
| mm^2 |
No./mm |
mm |
mm |
mm |
mm |
mm |
kg/km |
| 1×50 |
19/1.78 |
2 |
0.8 |
1.25 |
1.6 |
20.6 |
790 |
| 1×70 |
19/2.14 |
2 |
0.8 |
1.25 |
1.6 |
22.4 |
1040 |
| 1×95 |
19/2.52 |
2 |
0.8 |
1.25 |
1.6 |
24.3 |
1330 |
| 1×120 |
37/2.03 |
2 |
1 |
1.6 |
1.7 |
27.2 |
1680 |
| 1×150 |
37/2.25 |
2 |
1 |
1.6 |
1.7 |
28.8 |
1970 |
| 1×185 |
37/2.52 |
2 |
1 |
1.6 |
1.8 |
30.8 |
2370 |
| 1×240 |
61/2.25 |
2 |
1 |
1.6 |
1.8 |
33.5 |
2960 |
| 1×300 |
61/2.52 |
2 |
1 |
1.6 |
1.9 |
36.1 |
3610 |
| 1×400 |
61/2.85 |
2 |
1.2 |
2 |
2 |
40.5 |
4600 |
| 1×500 |
61/3.20 |
2.2 |
1.2 |
2 |
2.1 |
44.2 |
5680 |
| 1×630 |
127/2.52 |
2.4 |
1.2 |
2 |
2.2 |
48.8 |
7160 |
| 1×800 |
127/2.85 |
2.6 |
1.4 |
2.5 |
2.4 |
55.4 |
9150 |
| 1×1000 |
127/3.20 |
2.8 |
1.4 |
2.5 |
2.5 |
60.6 |
11270 |
Single-core 1900/3300 V cables with solid aluminum conductor
|
|
| Nominal Cross-sectional Area |
Nominal Insulation thickness |
Nominal bedding thickness |
Nominal Alum Wire Armor dia. |
Nominal Sheath thickness |
Approx. Overall Diameter |
Aprrox Weight |
| mm² |
mm |
mm |
mm |
mm |
mm |
kg/km |
| 1×50 |
2 |
0.8 |
1.25 |
1.6 |
19.4 |
600 |
| 1×70 |
2 |
0.8 |
1.25 |
1.6 |
20.9 |
710 |
| 1×95 |
2 |
0.8 |
1.25 |
1.6 |
22.5 |
810 |
| 1×120 |
2 |
1 |
1.6 |
1.7 |
25.2 |
1065 |
| 1×150 |
2 |
1 |
1.6 |
1.7 |
26.5 |
1210 |
| 1×185 |
2 |
1 |
1.6 |
1.8 |
28.3 |
1390 |
| 1×240 |
2 |
1 |
1.6 |
1.8 |
30.5 |
1630 |
| 1×300 |
2 |
1 |
1.6 |
1.9 |
32.8 |
1900 |
Three-core 1900/3300 V cables with stranded copper conductors
|
|
| Nominal Cross-sectional Area |
Strand Type |
Nominal Insulation thickness |
Nominal Bedding thickness |
Nominal Steel Wire Armor dia. |
Nominal Sheath thickness |
Approx. Overall Diameter |
Aprrox Weight |
| mm² |
No./mm |
mm |
mm |
mm |
mm |
mm |
kg/km |
| 3×16 |
7/1.70 |
2 |
1 |
1.6 |
1.8 |
29.3 |
1600 |
| 3×25 |
7/2.14 |
2 |
1 |
1.6 |
1.8 |
32.2 |
2060 |
| 3×35 |
7/2.52 |
2 |
1 |
1.6 |
1.9 |
34.8 |
2400 |
| 3×35* |
7/2.52 |
2 |
1 |
1.6 |
1.9 |
31.1 |
2400 |
| 3×50* |
19/1.78 |
2 |
1.2 |
2 |
2 |
34.7 |
3200 |
| 3×70* |
19/2.14 |
2 |
1.2 |
2 |
2.1 |
38 |
3800 |
| 3×95* |
19/2.52 |
2 |
1.2 |
2 |
2.2 |
41.4 |
4730 |
| 3×120* |
37/2.03 |
2 |
1.4 |
2.5 |
2.3 |
45.7 |
6070 |
| 3×150* |
37/2.25 |
2 |
1.4 |
2.5 |
2.4 |
48.5 |
7010 |
| 3×185* |
37/2.52 |
2 |
1.4 |
2.5 |
2.5 |
51.9 |
8270 |
| 3×240* |
61/2.25 |
2 |
1.6 |
2.5 |
2.6 |
56.9 |
10310 |
| 3×300* |
61/2.52 |
2 |
1.6 |
2.5 |
2.7 |
61.2 |
12300 |
| 3×400* |
61/2.85 |
2 |
1.6 |
2.5 |
2.9 |
66.6 |
14500 |
* Shaped stranded conductor (class 2)
Three-core 1900/3300 V cables with solid aluminum conductors
|
|
| Nominal Cross-sectional Area |
Nominal Insulation thickness |
Nominal Bedding thickness |
Nominal Steel Wire Armor dia. |
Nominal Sheath thickness |
Approx. Overall Diameter |
Aprrox Weight |
| mm² |
mm |
mm |
mm |
mm |
mm |
kg/km |
| 3×16 |
2 |
1 |
1.6 |
1.8 |
27.9 |
1540 |
| 3×25 |
2 |
1 |
1.6 |
1.8 |
30.4 |
1780 |
| 3×35 |
2 |
1 |
1.6 |
1.9 |
32.7 |
2040 |
| 3×35* |
2 |
1 |
1.6 |
1.9 |
29.7 |
2040 |
| 3×50* |
2 |
1.2 |
2 |
2 |
33 |
2760 |
| 3×70* |
2 |
1.2 |
2 |
2.1 |
36 |
3210 |
| 3×95* |
2 |
1.2 |
2 |
2.2 |
39.1 |
3625 |
| 3×120* |
2 |
1.4 |
2.5 |
2.3 |
43.1 |
4820 |
| 3×150* |
2 |
1.4 |
2.5 |
2.4 |
45.6 |
5410 |
| 3×185* |
2 |
1.4 |
2.5 |
2.5 |
48.7 |
6070 |
| 3×240* |
2 |
1.6 |
2.5 |
2.6 |
53.2 |
7150 |
| 3×300* |
2 |
1.6 |
2.5 |
2.7 |
57.2 |
8120 |
* Solid shaped conductor (class 1)
BS 6346 PVC Insulated Cables Armoured cable, 600/1000V 1900/3300V
Single-core 600/1000V cables with circular stranded copper conductor
|
|
| Nominal cross-sectional area |
Number/ wire |
Nominal insulation thickness |
Nominal Bedding thickness |
Nominal alum wire armor dia. |
Nominal sheath thickness |
Approx. overall diameter |
Approx. cable weight |
| mm² |
No./mm |
mm |
mm |
mm |
mm |
mm |
kg/km |
| 1×50 |
19/1.78 |
1.4 |
0.8 |
1.25 |
1.5 |
19.1 |
820 |
| 1×70 |
19/2.14 |
1.4 |
0.8 |
1.25 |
1.6 |
21.1 |
1070 |
| 1×95 |
19/2.52 |
1.6 |
0.8 |
1.25 |
1.6 |
23.4 |
1390 |
| 1×120 |
37/2.03 |
1.6 |
1.0 |
1.6 |
1.7 |
26.3 |
1600 |
| 1×150 |
37/2.25 |
1.8 |
1.0 |
1.6 |
1.7 |
28.3 |
1900 |
| 1×185 |
37/2.52 |
2.0 |
1.0 |
1.6 |
1.8 |
30.8 |
2450 |
| 1×240 |
61/2.25 |
2.2 |
1.0 |
1.6 |
1.9 |
34.1 |
3100 |
| 1×300 |
61/2.52 |
2.4 |
1.0 |
1.6 |
1.9 |
37.0 |
3760 |
| 1×400 |
61/2.85 |
2.6 |
1.2 |
2.0 |
2.1 |
42.0 |
4850 |
| 1×500 |
61/3.20 |
2.8 |
1.2 |
2.0 |
2.1 |
45.6 |
5930 |
| 1×630 |
61/3.65 |
2.8 |
1.2 |
2.0 |
2.2 |
49.7 |
7390 |
| 1×800 |
127/2.85 |
2.8 |
1.4 |
2.5 |
2.4 |
55.8 |
9400 |
| 1×1000 |
127/3.20 |
3.0 |
1.4 |
2.5 |
2.5 |
61.0 |
11430 |
Single-core 600/1000V cables with solid aluminum conductor
|
|
| Nominal cross-sectional area |
Nominal insulation thickness |
Nominal bedding thickness |
Nominal alum wire armor dia. |
Armour strip |
Nominal sheath thickness |
Approx.overall diameter |
Approx. cable weight |
| thick-ness |
width |
wire armor |
strip armor |
| mm² |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
kg/km |
| 1×50 |
1.4 |
0.8 |
1.25 |
0.6 |
2.4 |
1.5 |
17.8 |
16.5 |
530 |
| 1×70 |
1.4 |
0.8 |
1.25 |
0.6 |
2.4 |
1.6 |
19.6 |
18.3 |
650 |
| 1×95 |
1.6 |
0.8 |
1.25 |
0.6 |
2.4 |
1.6 |
21.7 |
20.4 |
810 |
| 1×120 |
1.6 |
1 |
1.6 |
0.6 |
2.4 |
1.7 |
24.3 |
22.3 |
960 |
| 1×150 |
1.8 |
1 |
1.6 |
0.6 |
2.4 |
1.7 |
26.1 |
24.1 |
1115 |
| 1×185 |
2 |
1 |
1.6 |
1 |
3.6 |
1.8 |
28.3 |
27.1 |
1315 |
| 1×240 |
2.2 |
1 |
1.6 |
1 |
3.6 |
1.9 |
31.2 |
30 |
1610 |
| 1×300 |
2.4 |
1 |
1.6 |
1 |
3.6 |
1.9 |
33.7 |
32.5 |
1890 |
Two-core 600/1000V cables with stranded copper conductors
|
|
| Nominal cross-sectional area |
Number/ wire |
Nominal insulation thickness |
Nominal bedding thickness |
Nominal wire armor dia. |
Nominal sheath thickness |
Approx. overalldiameter |
Approx. cable weight |
| extruded bedding |
taped bedding |
| mm² |
No./mm |
mm |
mm |
mm |
mm |
mm |
mm |
kg/mm |
| 2×1.5 |
7/0.53 |
0.6 |
0.8 |
0.9 |
1.4 |
12.3 |
– |
270 |
| 2×2.5 |
7/0.67 |
0.7 |
0.8 |
0.9 |
1.4 |
13.6 |
– |
350 |
| 2×4 |
7/0.85 |
0.8 |
0.8 |
0.9 |
1.4 |
15.1 |
– |
470 |
| 2×6 |
7/1.04 |
0.8 |
0.8 |
0.9 |
1.5 |
16.5 |
– |
580 |
| 2×10 |
7/1.35 |
1.0 |
0.8 |
1.25 |
1.6 |
20.1 |
– |
840 |
| 2×16 |
7/1.70 |
1.0 |
0.8 |
1.25 |
1.6 |
21.9 |
21.9 |
990 |
| 2×25 |
7/2.14 |
1.2 |
1.0 |
1.6 |
1.7 |
26.7 |
26.3 |
1480 |
| 2×25* |
7/2.14 |
1.2 |
1.0 |
1.6 |
1.7 |
23.0 |
22.6 |
1480 |
| 2×35 |
19/1.53 |
1.2 |
1.0 |
1.6 |
1.8 |
29.2 |
28.8 |
1770 |
| 2×35* |
19/1.53 |
1.2 |
1.0 |
1.6 |
1.8 |
24.8 |
24.4 |
1770 |
| 2×50* |
19/1.78 |
1.4 |
1.0 |
1.6 |
1.9 |
27.8 |
27.4 |
1900 |
| 2×70* |
19/2.14 |
1.4 |
1.0 |
1.6 |
1.9 |
30.4 |
30.0 |
2430 |
| 2×95* |
19/2.52 |
1.6 |
1.2 |
2.0 |
2.1 |
35.5 |
34.7 |
2970 |
| 2×120* |
37/2.03 |
1.6 |
1.2 |
2.0 |
2.2 |
38.0 |
37.2 |
3970 |
| 2×150* |
37/2.25 |
1.8 |
1.2 |
2.0 |
2.3 |
41.3 |
40.5 |
4700 |
| 2×185* |
37/2.52 |
2.0 |
1.4 |
2.5 |
2.4 |
46.4 |
45.2 |
5990 |
| 2×240* |
61/2.25 |
2.2 |
1.4 |
2.5 |
2.5 |
51.2 |
50.0 |
7420 |
| 2×300* |
61/2.52 |
2.4 |
1.6 |
2.5 |
2.7 |
56.4 |
54.8 |
8950 |
| 2×400* |
61/2.85 |
2.6 |
1.6 |
2.5 |
2.9 |
61.9 |
60.3 |
11030 |
*Shaped stranded conductor (class 2)
Two-core 600/1000V cables with solid aluminum conductors
|
|
| Nominal cross-sectional area |
Nominal insulation thickness |
Nominal bedding thickness |
Nominal wire armor dia. |
Armour strip |
Nominal sheath thickness |
Approx. overall diameter |
Approx. cable weight |
| thickness |
width |
wire armor |
strip armor |
| extruded bedding |
taped bedding |
| mm² |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
kg/km |
| 2×16 |
1 |
0.8 |
1.25 |
0.6 |
2.4 |
1.6 |
20.6 |
20.6 |
19.3 |
795 |
| 2×25 |
1.2 |
1 |
1.6 |
0.6 |
2.4 |
1.7 |
25 |
24.6 |
22.6 |
1170 |
| 2×25* |
1.2 |
1 |
1.6 |
0.6 |
2.4 |
1.7 |
21.3 |
20.9 |
18.9 |
1170 |
| 2×35 |
1.2 |
1 |
1.6 |
0.6 |
2.4 |
1.8 |
27.2 |
26.8 |
24.8 |
1340 |
| 2×35* |
1.2 |
1 |
1.6 |
0.6 |
2.4 |
1.8 |
22.9 |
22.5 |
20.5 |
1340 |
| 2×50* |
1.4 |
1 |
1.6 |
0.6 |
2.4 |
1.9 |
25.5 |
25.1 |
23.1 |
1450 |
| 2×70* |
1.4 |
1 |
1.6 |
1 |
3.6 |
1.9 |
27.7 |
27.3 |
26.1 |
1560 |
| 2×95* |
1.6 |
1.2 |
2.0 |
1 |
3.6 |
2.1 |
32.4 |
31.6 |
29.6 |
2200 |
*Solid shaped conductor (class 1)
Three-core 600/1000V cables with stranded copper conductors
|
|
| Nominal cross-sectional area |
Number/ wire |
Nominal insulation thickness |
Nominal bedding thickness |
Nominal wire armor dia. |
Nominal sheath thickness |
Approx. overalldiameter |
Approx. cable weight |
| extruded bedding |
taped bedding |
| mm² |
No./mm |
mm |
mm |
mm |
mm |
mm |
mm |
kg/mm |
| 3×1.5 |
7/0.53 |
0.6 |
0.8 |
0.9 |
1.4 |
12.8 |
– |
307 |
| 3×2.5 |
7/0.67 |
0.7 |
0.8 |
0.9 |
1.4 |
14.1 |
– |
387 |
| 3×4 |
7/0.85 |
0.8 |
0.8 |
0.9 |
1.4 |
15.8 |
– |
493 |
| 3×6 |
7/1.04 |
0.8 |
0.8 |
1.25 |
1.5 |
18.0 |
– |
701 |
| 3×10 |
7/1.35 |
1.0 |
0.8 |
1.25 |
1.6 |
21.2 |
– |
967 |
| 3×16 |
7/1.70 |
1.0 |
0.8 |
1.25 |
1.6 |
23.1 |
23.1 |
1219 |
| 3×25 |
7/2.14 |
1.2 |
1.0 |
1.6 |
1.7 |
28.2 |
27.8 |
1612 |
| 3×25* |
7/2.14 |
1.2 |
1.0 |
1.6 |
1.7 |
25.0 |
24.6 |
1612 |
| 3×35 |
19/1.53 |
1.2 |
1.0 |
1.6 |
1.8 |
30.8 |
30.4 |
1992 |
| 3×35* |
19/1.53 |
1.2 |
1.0 |
1.6 |
1.8 |
27.1 |
26.7 |
1992 |
| 3×50* |
19/1.78 |
1.4 |
1.0 |
1.6 |
1.9 |
30.5 |
30.1 |
2534 |
| 3×70* |
19/2.14 |
1.4 |
1.2 |
2.0 |
2.0 |
35.0 |
34.2 |
3518 |
| 3×95* |
19/2.52 |
1.6 |
1.2 |
2.0 |
2.1 |
39.3 |
38.5 |
4510 |
| 3×120* |
37/2.03 |
1.6 |
1.2 |
2.0 |
2.2 |
42.2 |
41.4 |
5375 |
| 3×150* |
37/2.25 |
1.8 |
1.4 |
2.5 |
2.4 |
47.5 |
46.3 |
6810 |
| 3×185* |
37/2.52 |
2.0 |
1.4 |
2.5 |
2.5 |
51.9 |
50.7 |
8190 |
| 3×240* |
61/2.25 |
2.2 |
1.6 |
2.5 |
2.6 |
57.8 |
56.2 |
10280 |
| 3×300* |
61/2.52 |
2.4 |
1.6 |
2.5 |
2.8 |
63.2 |
61.6 |
12430 |
| 3×400* |
61/2.85 |
2.6 |
1.6 |
2.5 |
3.0 |
69.6 |
68.0 |
15400 |
*Shaped stranded conductor (class 2)
Three-core 600/1000V cables with solid aluminum conductors
|
|
| Nominal cross-sectional area |
Nominal insulation thickness |
Nominal bedding thickness |
Nominal wire armor dia. |
Armour strip |
Nominal sheath thickness |
Approx. overall diameter |
Approx. cable weight |
| thickness |
width |
wire armor |
strip armor |
| extruded bedding |
taped bedding |
| mm² |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
kg/km |
| 3×16 |
1 |
0.8 |
1.25 |
0.6 |
2.4 |
1.6 |
21.7 |
21.7 |
20.4 |
925 |
| 3×25 |
1.2 |
1 |
1.6 |
0.6 |
2.4 |
1.7 |
23.9 |
23.5 |
21.5 |
1150 |
| 3×25* |
1.2 |
1 |
1.6 |
0.6 |
2.4 |
1.7 |
25.8 |
25.4 |
23.4 |
1150 |
| 3×35 |
1.2 |
1 |
1.6 |
0.6 |
2.4 |
1.8 |
26.4 |
26.0 |
24.1 |
1345 |
| 3×35* |
1.2 |
1 |
1.6 |
0.6 |
2.4 |
1.8 |
28.7 |
28.3 |
27.3 |
1345 |
| 3×50* |
1.4 |
1 |
1.6 |
1 |
3.6 |
1.9 |
28.9 |
28.5 |
26.4 |
1610 |
| 3×70* |
1.4 |
1.2 |
2 |
1 |
3.6 |
2 |
33 |
32.2 |
30.2 |
2220 |
| 3×95* |
1.6 |
1.2 |
2 |
1.4 |
4.8 |
2.1 |
37.1 |
36.3 |
35.1 |
2745 |
| 3×120* |
1.6 |
1.2 |
2 |
1.4 |
4.8 |
2.2 |
39.7 |
38.9 |
37.7 |
3145 |
| 3×150* |
1.8 |
1.4 |
2.5 |
1.4 |
4.8 |
2.4 |
44.7 |
43.5 |
41.3 |
4020 |
| 3×185* |
2 |
1.4 |
2.5 |
1.4 |
4.8 |
2.5 |
48.7 |
47.5 |
45.3 |
4730 |
| 3×240* |
2.2 |
1.6 |
2.5 |
1.8 |
6.4 |
2.6 |
54.2 |
52.6 |
51.2 |
5820 |
| 3×300* |
2.4 |
1.6 |
2.5 |
1.8 |
6.4 |
2.8 |
59.2 |
57.6 |
56.2 |
6850 |
*Solid shaped conductor (class 1)
Four-core 600/1000V cables with stranded copper conductors
|
|
| Nominal cross-sectional area |
Number/ wire |
Nominal insulation thickness |
Nominal bedding thickness |
Nominal wire armor dia. |
Nominal sheath thickness |
Approx. overalldiameter |
Approx. cable weight |
| extruded bedding |
taped bedding |
| mm² |
No./mm |
mm |
mm |
mm |
mm |
mm |
mm |
kg/mm |
| 4×1.5 |
7/0.53 |
0.6 |
0.8 |
0.9 |
1.4 |
13.5 |
– |
330 |
| 4×2.5 |
7/0.67 |
0.7 |
0.8 |
0.9 |
1.4 |
15.0 |
– |
430 |
| 4×4 |
7/0.85 |
0.8 |
0.8 |
1.25 |
1.5 |
17.8 |
– |
640 |
| 4×6 |
7/1.04 |
0.8 |
0.8 |
1.25 |
1.5 |
19.2 |
– |
770 |
| 4×10 |
7/1.35 |
1.0 |
0.8 |
1.25 |
1.6 |
22.8 |
– |
1070 |
| 4×16 |
7/1.70 |
1.0 |
1.0 |
1.6 |
1.7 |
26.3 |
25.9 |
1550 |
| 4×25 |
7/2.14 |
1.2 |
1.0 |
1.6 |
1.8 |
30.7 |
30.3 |
2005 |
| 4×25* |
7/2.14 |
1.2 |
1.0 |
1.6 |
1.8 |
27.8 |
27.4 |
2005 |
| 4×35 |
19/1.53 |
1.2 |
1.0 |
1.6 |
1.9 |
33.7 |
33.3 |
2490 |
| 4×35* |
19/1.53 |
1.2 |
1.0 |
1.6 |
1.9 |
30.3 |
29.9 |
2490 |
| 4×50* |
19/1.78 |
1.4 |
1.2 |
2.0 |
2.0 |
35.4 |
34.6 |
3475 |
| 4×70* |
19/2.14 |
1.4 |
1.2 |
2.0 |
2.1 |
39.2 |
38.4 |
4480 |
| 4×95* |
19/2.52 |
1.6 |
1.2 |
2.0 |
2.2 |
43.3 |
43.5 |
5710 |
| 4×120* |
37/2.03 |
1.6 |
1.4 |
2.5 |
2.4 |
49.3 |
48.1 |
7350 |
| 4×150* |
37/2.25 |
1.8 |
1.4 |
2.5 |
2.5 |
53.6 |
52.4 |
8720 |
| 4×185* |
37/2.52 |
2.0 |
1.6 |
2.5 |
2.6 |
59.0 |
57.4 |
10540 |
| 4×240* |
61/2.25 |
2.2 |
1.6 |
2.5 |
2.8 |
65.7 |
64.1 |
13290 |
| 4×300* |
61/2.52 |
2.4 |
1.6 |
2.5 |
3.0 |
72.0 |
70.4 |
16050 |
| 4×400* |
61/2.85 |
2.6 |
1.8 |
3.15 |
3.3 |
81.3 |
79.3 |
20950 |
*Shaped stranded conductor (class 2)
Four-core 600/1000V cables with solid aluminum conductors
|
|
| Nominal cross-sectional area |
Nominal insulation thickness |
Nominal bedding thickness |
Nominal alum wire armor dia. |
Armour strip |
Nominal sheath thickness |
Approx. overall diameter |
Approx. cable weight |
| thickness |
width |
wire armor |
strip armor |
| extruded bedding |
taped bedding |
| mm² |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
kg/km |
| 4×16 |
1 |
1 |
1.6 |
0.6 |
2.4 |
1.7 |
24.7 |
24.3 |
22.3 |
1125 |
| 4×25 |
1.2 |
1 |
1.6 |
0.6 |
2.4 |
1.8 |
28.7 |
28.3 |
26.3 |
1390 |
| 4×25* |
1.2 |
1 |
1.6 |
0.6 |
2.4 |
1.8 |
26.3 |
25.9 |
23.9 |
1390 |
| 4×35 |
1.2 |
1 |
1.6 |
0.6 |
2.4 |
1.9 |
31.3 |
30.9 |
28.9 |
1625 |
| 4×35* |
1.2 |
1 |
1.6 |
0.6 |
2.4 |
1.9 |
28.6 |
28.2 |
26.2 |
1625 |
| 4×50* |
1.4 |
1.2 |
2 |
1 |
3.6 |
2 |
33.3 |
32..5 |
30.5 |
2240 |
| 4×70* |
1.4 |
1.2 |
2 |
1 |
3.6 |
2.1 |
36.8 |
36.0 |
34 |
2750 |
| 4×95* |
1.6 |
1.2 |
2 |
1.4 |
4.8 |
2.2 |
41.5 |
40.7 |
39.5 |
3360 |
| 4×120* |
1.6 |
1.4 |
2.5 |
1.4 |
4.8 |
2.4 |
46.1 |
44.9 |
42.7 |
4380 |
| 4×150* |
1.8 |
1.4 |
2.5 |
1.4 |
4.8 |
2.5 |
50.1 |
48.9 |
46.7 |
5000 |
| 4×185* |
2 |
1.6 |
2.5 |
1.8 |
6.4 |
2.6 |
55.1 |
53.5 |
52.1 |
5960 |
| 4×240* |
2.2 |
1.6 |
2.5 |
1.8 |
6.4 |
2.8 |
61.2 |
59.6 |
58.2 |
7340 |
| 4×300* |
2.4 |
1.6 |
2.5 |
1.8 |
6.4 |
3 |
67 |
65.4 |
64 |
8610 |
*Solid shaped conductor (class 1)
3+1 Core (4 Core with reduced neutral) 600/1000V cables with stranded copper conductors
|
|
| Nominal cross-sectional area |
Nominal insulation thickness |
Nominal bedding thickness |
Nominal wire armor dia. |
Nominal sheath thickness |
Approx. Overall Diameter |
Approx. cable weight |
| Phase |
Neutral |
Phase |
Neutral |
| mm² |
mm² |
mm |
mm |
mm |
mm |
mm |
mm |
kg/mm |
| 3×10 |
1×6 |
1.0 |
0.8 |
1.0 |
1.25 |
1.8 |
23.4 |
1370 |
| 3×16 |
1×10 |
1.0 |
1.0 |
1.0 |
1.25 |
1.8 |
25.0 |
1620 |
| 3×25* |
1×16 |
1.2 |
1.0 |
1.0 |
1.6 |
1.8 |
27.8 |
1900 |
| 3×35* |
1×16 |
1.2 |
1.0 |
1.0 |
1.6 |
1.8 |
29.5 |
2300 |
| 3×50* |
1×25 |
1.4 |
1.2 |
1.0 |
1.6 |
1.9 |
33.1 |
3050 |
| 3×70* |
1×35 |
1.4 |
1.2 |
1.2 |
2.0 |
2.0 |
38.0 |
4130 |
| 3×95* |
1×50 |
1.6 |
1.4 |
1.2 |
2.0 |
2.2 |
43.7 |
5370 |
| 3×120* |
1×70 |
1.6 |
1.4 |
1.4 |
2.5 |
2.3 |
49.0 |
6840 |
| 3×150* |
1×70 |
1.8 |
1.4 |
1.4 |
2.5 |
2.4 |
52.0 |
8040 |
| 3×185* |
1×95 |
2.0 |
1.6 |
1.4 |
2.5 |
2.5 |
57.2 |
9760 |
| 3×240* |
1×120 |
2.2 |
1.6 |
1.6 |
2.5 |
2.7 |
63.7 |
12210 |
| 3×300* |
1×150 |
2.4 |
1.8 |
1.6 |
2.5 |
2.9 |
69.8 |
14840 |
| 3×300* |
1×185 |
2.4 |
2.0 |
1.6 |
2.5 |
2.9 |
71.8 |
17730 |
| 3×400* |
1×185 |
2.6 |
2.0 |
1.8 |
3.15 |
3.1 |
78.6 |
19090 |
*Shaped stranded conductor (class 2)
Five-core 600/1000V cables with stranded copper conductors
|
|
| Nominal cross-sectional area |
Number/ wire |
Nominal insulation thickness |
Nominal bedding thickness |
Nominal wire armor dia. |
Nominal sheath thickness |
Approx. overall diameter |
Approx. cable weight |
| extruded bedding |
taped bedding |
| mm² |
No./mm |
mm |
mm |
mm |
mm |
mm |
mm |
kg/mm |
| 5×1.5 |
7/0.53 |
0.6 |
0.8 |
0.9 |
1.4 |
14.3 |
– |
430 |
| 5×2.5 |
7/0.67 |
0.7 |
0.8 |
0.9 |
1.5 |
16.3 |
– |
545 |
| 5×4 |
7/0.85 |
0.8 |
0.8 |
1.25 |
1.5 |
19.0 |
– |
790 |
| 5×6 |
7/1.04 |
0.8 |
0.8 |
1.25 |
1.6 |
20.9 |
– |
880 |
| 5×10 |
7/1.35 |
1.0 |
1.0 |
1.6 |
1.7 |
25.8 |
– |
1150 |
| 5×16 |
7/1.70 |
1.0 |
1.0 |
1.6 |
1.7 |
28.4 |
28.0 |
1670 |
| 5×25 |
7/2.14 |
1.2 |
1.0 |
1.6 |
1.9 |
33.5 |
33.1 |
2250 |
| 5×35 |
19/1.53 |
1.2 |
1.0 |
1.6 |
1.9 |
36.6 |
36.2 |
2670 |
| 5×50 |
19/1.78 |
1.4 |
1.2 |
2.0 |
2.1 |
43.0 |
42.2 |
3590 |
| 5×70 |
19/2.14 |
1.4 |
1.2 |
2.0 |
2.2 |
48.1 |
47.3 |
4610 |
Multi-core 600/1000V cables with stranded copper conductors
|
|
| No. of Cores |
Nominal cross-sectional area |
Number/ wire |
Nominal insulation thickness |
Nominal bedding thickness |
Nominal alum wire armor dia. |
Nominal sheath thickness |
Approx. overall diameter |
Approx. cable weight |
| mm² |
No./mm |
mm |
mm |
mm |
mm |
mm |
kg/mm |
| 7 |
1.5 |
7/0.53 |
0.6 |
0.8 |
0.9 |
1.4 |
15.2 |
500 |
| 10 |
1.5 |
7/0.53 |
0.6 |
0.8 |
1.25 |
1.5 |
18.6 |
780 |
| 12 |
1.5 |
7/0.53 |
0.6 |
0.8 |
1.25 |
1.5 |
19.4 |
830 |
| 19 |
1.5 |
7/0.53 |
0.6 |
0.8 |
1.25 |
1.6 |
22.2 |
1090 |
| 27 |
1.5 |
7/0.53 |
0.6 |
1.0 |
1.6 |
1.7 |
26.7 |
1600 |
| 37 |
1.5 |
7/0.53 |
0.6 |
1.0 |
1.6 |
1.8 |
29.2 |
1940 |
| 48 |
1.5 |
7/0.53 |
0.6 |
1.0 |
1.6 |
1.9 |
32.9 |
2360 |
| 7 |
2.5 |
7/0.67 |
0.7 |
0.8 |
1.25 |
1.5 |
18.0 |
750 |
| 10 |
2.5 |
7/0.67 |
0.7 |
0.8 |
1.25 |
1.6 |
21.8 |
1000 |
| 12 |
2.5 |
7/0.67 |
0.7 |
0.8 |
1.25 |
1.6 |
22.4 |
1080 |
| 19 |
2.5 |
7/0.67 |
0.7 |
1.0 |
1.6 |
1.7 |
26.6 |
1640 |
| 27 |
2.5 |
7/0.67 |
0.7 |
1.0 |
1.6 |
1.8 |
30.7 |
2110 |
| 37 |
2.5 |
7/0.67 |
0.7 |
1.0 |
1.6 |
1.9 |
34.0 |
2600 |
| 48 |
2.5 |
7/0.67 |
0.7 |
1.2 |
2.0 |
2.1 |
39.5 |
3520 |
| 7 |
4 |
7/0.85 |
0.8 |
0.8 |
1.25 |
1.6 |
20.5 |
970 |
| 10 |
4 |
7/0.85 |
0.8 |
1.0 |
1.6 |
1.7 |
26.1 |
1500 |
| 12 |
4 |
7/0.85 |
0.8 |
1.0 |
1.6 |
1.7 |
26.8 |
1630 |
| 19 |
4 |
7/0.85 |
0.8 |
1.0 |
1.6 |
1.8 |
30.5 |
2170 |
| 27 |
4 |
7/0.85 |
0.8 |
1.2 |
2.0 |
2.0 |
37.1 |
3170 |
| 37 |
4 |
7/0.85 |
0.8 |
1.2 |
2.0 |
2.1 |
40.8 |
3910 |
| 48 |
4 |
7/0.85 |
0.8 |
1.2 |
2.0 |
2.2 |
46.0 |
4790 |
Single-core 1900/3300 V cables with circular stranded copper conductor
|
|
| Nominal cross-sectional area |
Number/ wire |
Nominal insulation thickness |
Nominal bedding thickness |
Nominal alum wire armor dia. |
Nominal sheath thickness |
Approx. overall diameter |
Approx. cable weight |
| mm² |
No./mm |
mm |
mm |
mm |
mm |
mm |
kg/mm |
| 1×50 |
19/1.78 |
2.2 |
0.8 |
1.25 |
1.6 |
21.0 |
840 |
| 1×70 |
19/2.14 |
2.2 |
0.8 |
1.25 |
1.6 |
22.8 |
1070 |
| 1×95 |
19/2.52 |
2.2 |
1.0 |
1.6 |
1.7 |
26.0 |
1445 |
| 1×120 |
37/2.03 |
2.2 |
1.0 |
1.6 |
1.7 |
27.7 |
1715 |
| 1×150 |
37/2.25 |
2.2 |
1.0 |
1.6 |
1.8 |
29.4 |
2010 |
| 1×185 |
37/2.52 |
2.2 |
1.0 |
1.6 |
1.8 |
31.3 |
2380 |
| 1×240 |
61/2.25 |
2.2 |
1.0 |
1.6 |
1.9 |
34.1 |
2975 |
| 1×300 |
61/2.52 |
2.4 |
1.0 |
1.6 |
1.9 |
37.0 |
3615 |
| 1×400 |
61/2.85 |
2.6 |
1.2 |
2.0 |
2.1 |
42.0 |
4655 |
| 1×500 |
61/3.20 |
2.8 |
1.2 |
2.0 |
2.1 |
45.6 |
5725 |
| 1×630 |
61/3.65 |
2.8 |
1.2 |
2.0 |
2.2 |
49.7 |
7150 |
| 1×800 |
127/2.85 |
2.8 |
1.4 |
2.5 |
2.4 |
55.8 |
9160 |
| 1×1000 |
127/3.20 |
3.0 |
1.4 |
2.5 |
2.5 |
61.0 |
11400 |
Single-core 1900/3300 V cables with solid aluminum conductor
|
|
| Nominal cross-sectional area |
Nominal insulation thickness |
Nominal bedding thickness |
Nominal alum wire armor dia. |
Nominal sheath thickness |
Approx. overall diameter |
Approx. cable weight |
| mm² |
mm |
mm |
mm |
mm |
mm |
kg/mm |
| 1×50 |
2.2 |
0.8 |
1.25 |
1.6 |
19.8 |
625 |
| 1×70 |
2.2 |
0.8 |
1.25 |
1.6 |
21.3 |
735 |
| 1×95 |
2.2 |
1.0 |
1.6 |
1.7 |
24.3 |
965 |
| 1×120 |
2.2 |
1.0 |
1.6 |
1.7 |
25.6 |
1090 |
| 1×150 |
2.2 |
1.0 |
1.6 |
1.8 |
27.1 |
1250 |
| 1×185 |
2.2 |
1.0 |
1.6 |
1.8 |
28.8 |
1415 |
| 1×240 |
2.2 |
1.0 |
1.6 |
1.9 |
31.2 |
1680 |
| 1×300 |
2.4 |
1.0 |
1.6 |
1.9 |
33.7 |
1935 |
Three-core 1900/3300 V cables with stranded copper conductors
|
|
| Nominal cross-sectional area |
Number/ wire |
Nominal insulation thickness |
Nominal bedding thickness |
Nominal wire armor dia. |
Nominal sheath thickness |
Approx. overall diameter |
Approx. cable weight |
| mm² |
No./mm |
mm |
mm |
mm |
mm |
mm |
kg/mm |
| 3×16 |
7/1.70 |
2.2 |
1.0 |
1.6 |
1.8 |
30.3 |
1700 |
| 3×25 |
7/2.14 |
2.2 |
1.0 |
1.6 |
1.8 |
33.1 |
2085 |
| 3×35 |
19/1.53 |
2.2 |
1.0 |
1.6 |
1.9 |
35.8 |
2405 |
| 3×35* |
19/1.53 |
2.2 |
1.0 |
1.6 |
1.9 |
32.1 |
2405 |
| 3×50* |
19/1.78 |
2.2 |
1.2 |
2.0 |
2.0 |
35.6 |
3160 |
| 3×70* |
19/2.14 |
2.2 |
1.2 |
2.0 |
2.1 |
38.9 |
3925 |
| 3×95* |
19/2.52 |
2.2 |
1.2 |
2.0 |
2.2 |
42.3 |
4860 |
| 3×120* |
37/2.03 |
2.2 |
1.4 |
2.5 |
2.3 |
46.6 |
6205 |
| 3×150* |
37/2.25 |
2.2 |
1.4 |
2.5 |
2.4 |
49.4 |
7175 |
| 3×185* |
37/2.52 |
2.2 |
1.4 |
2.5 |
2.5 |
52.8 |
8320 |
| 3×240* |
61/2.25 |
2.2 |
1.6 |
2.5 |
2.6 |
57.8 |
10395 |
| 3×300* |
61/2.52 |
2.4 |
1.6 |
2.5 |
2.8 |
63.2 |
12575 |
| 3×400* |
61/2.85 |
2.6 |
1.6 |
2.5 |
3.0 |
69.6 |
15325 |
*Shaped stranded conductor (class 2)
Three-core 1900/3300 V cables with solid aluminum conductors
|
|
| Nominal cross-sectional area |
Nominal insulation thickness |
Nominal bedding thickness |
Nominal Armor dia. |
Nominal sheath thickness |
Approx. overall diameter |
Approx. cable weight |
| mm² |
mm |
mm |
mm |
mm |
mm |
kg/mm |
| 3×16 |
2.2 |
1.0 |
1.6 |
1.8 |
28.9 |
1630 |
| 3×25 |
2.2 |
1.0 |
1.6 |
1.8 |
31.3 |
1880 |
| 3×35 |
2.2 |
1.0 |
1.6 |
1.9 |
33.7 |
2145 |
| 3×35* |
2.2 |
1.0 |
1.6 |
1.9 |
30.6 |
2145 |
| 3×50* |
2.2 |
1.2 |
2.0 |
2.0 |
33.9 |
2880 |
| 3×70* |
2.2 |
1.2 |
2.0 |
2.1 |
36.9 |
3340 |
| 3×95* |
2.2 |
1.2 |
2.0 |
2.2 |
40.0 |
3870 |
| 3×120* |
2.2 |
1.4 |
2.5 |
2.3 |
44.0 |
4980 |
| 3×150* |
2.2 |
1.4 |
2.5 |
2.4 |
46.5 |
5585 |
| 3×185* |
2.2 |
1.4 |
2.5 |
2.5 |
49.6 |
6250 |
| 3×240* |
2.2 |
1.6 |
2.5 |
2.6 |
54.2 |
7315 |
| 3×300* |
2.4 |
1.6 |
2.5 |
2.8 |
59.2 |
8365 |
*Shaped conductor (class 1)
600/1000V, PVC XLPE Insulated Cables according to IEC 60502-1
Single core( aluminum wire armoured)
|
|
| Nominal Cross Section |
Diameter of Conductor (Approx.) |
Nominal Insulation thickness |
Nominal Inner Covering thickness |
Nominal Steel Wire dia. |
Nominal Sheath thickness |
Overall Diameter (Approx.) |
| mm^2 |
mm |
mm |
mm |
mm |
mm |
mm |
| 1×4 |
2.3 |
1 |
1.0 |
0.8 |
1.8 |
11.5 |
| 1×6 |
2.8 |
1 |
1.0 |
0.8 |
1.8 |
12.0 |
| 1×10 |
3.6 |
1 |
1.0 |
0.8 |
1.8 |
12.8 |
| 1×16 |
4.5 |
1 |
1.0 |
0.8 |
1.8 |
13.7 |
| 1×25 |
5.6 |
1.2 |
1.0 |
0.8 |
1.8 |
15.2 |
| 1×35 |
6.7 |
1.2 |
1.0 |
1.25 |
1.8 |
17.2 |
| 1×50 |
8.0 |
1.4 |
1.0 |
1.25 |
1.8 |
18.9 |
| 1×70 |
9.4 |
1.4 |
1.0 |
1.25 |
1.8 |
20.3 |
| 1×95 |
11.0 |
1.6 |
1.0 |
1.6 |
1.8 |
23.0 |
| 1×120 |
12.4 |
1.6 |
1.0 |
1.6 |
1.8 |
24.4 |
| 1×150 |
13.8 |
1.8 |
1.0 |
1.6 |
1.8 |
26.2 |
| 1×185 |
15.3 |
2 |
1.0 |
1.6 |
1.9 |
28.2 |
| 1×240 |
17.5 |
2.2 |
1.0 |
1.6 |
1.9 |
31.0 |
| 1×300 |
19.5 |
2.4 |
1.0 |
2.0 |
2.1 |
34.4 |
| 1×400 |
22.6 |
2.6 |
1.2 |
2.0 |
2.2 |
38.6 |
| 1×500 |
25.2 |
2.8 |
1.2 |
2.0 |
2.3 |
41.8 |
| 1×630 |
28.3 |
2.8 |
1.2 |
2.5 |
2.4 |
46.2 |
Two cores(Galvanized steel wire armoured)
|
|
| Nominal Cross Section |
Diameter of Conductor (Approx.) |
Nominal Insulation thickness |
Nominal Inner Covering thickness |
Nominal Steel Wire dia. |
Nominal Sheath thickness |
Overall Diameter (Approx.) |
| mm^2 |
mm |
mm |
mm |
mm |
mm |
mm |
| 2×2.5 |
1.8 |
0.8 |
1.0 |
0.8 |
1.8 |
14.0 |
| 2×4 |
2.3 |
1 |
1.0 |
1.25 |
1.8 |
16.7 |
| 2×6 |
2.8 |
1 |
1.0 |
1.25 |
1.8 |
17.7 |
| 2×10 |
3.6 |
1 |
1.0 |
1.25 |
1.8 |
19.3 |
| 2×16 |
4.5 |
1 |
1.0 |
1.25 |
1.8 |
21.1 |
| 2×25 |
5.6 |
1.2 |
1.0 |
1.6 |
1.8 |
24.8 |
| 2×35 |
6.7 |
1.2 |
1.0 |
1.6 |
1.8 |
27.0 |
| 2×50 |
8 |
1.4 |
1.0 |
1.6 |
1.9 |
30.7 |
| 2×70 |
9.4 |
1.4 |
1.0 |
2.0 |
2.1 |
34.5 |
| 2×95 |
11 |
1.6 |
1.2 |
2.0 |
2.2 |
39.2 |
| 2×120 |
12.4 |
1.6 |
1.2 |
2.0 |
2.3 |
42.2 |
| 2×150 |
13.8 |
1.8 |
1.2 |
2.5 |
2.5 |
47.2 |
| 2×185 |
15.3 |
2 |
1.4 |
2.5 |
2.6 |
51.6 |
| 2×240 |
17.5 |
2.2 |
1.4 |
2.5 |
2.8 |
57.2 |
| 2×300 |
19.5 |
2.4 |
1.6 |
2.5 |
3.0 |
62.8 |
| 2×400 |
22.6 |
2.6 |
1.6 |
2.5 |
3.2 |
70.3 |
Three cores(Galvanized steel wire armoured)
|
|
| Nominal Cross Section |
Diameter of Conductor (Approx.) |
Nominal Insulation thickness |
Nominal Inner Covering thickness |
Nominal Steel Wire dia. |
Nominal Sheath thickness |
Overall Diameter (Approx.) |
| mm^2 |
mm |
mm |
mm |
mm |
mm |
mm |
| 3×2.5 |
1.8 |
0.8 |
1.0 |
0.8 |
1.8 |
14.5 |
| 3×4 |
2.3 |
1 |
1.0 |
1.25 |
1.8 |
17.4 |
| 3×6 |
2.8 |
1 |
1.0 |
1.25 |
1.8 |
18.4 |
| 3×10 |
3.6 |
1 |
1.0 |
1.25 |
1.8 |
20.2 |
| 3×16 |
4.5 |
1 |
1.0 |
1.6 |
1.8 |
22.8 |
| 3×25 |
5.6 |
1.2 |
1.0 |
1.6 |
1.8 |
26.0 |
| 3×35 |
6.7 |
1.2 |
1.0 |
1.6 |
1.9 |
28.5 |
| 3×50 |
8.0 |
1.4 |
1.0 |
2 |
2.0 |
33.3 |
| 3×70 |
9.4 |
1.4 |
1.2 |
2 |
2.1 |
37.0 |
| 3×95 |
11.0 |
1.6 |
1.2 |
2 |
2.3 |
41.6 |
| 3×120 |
12.4 |
1.6 |
1.2 |
2.5 |
2.4 |
45.9 |
| 3×150 |
13.8 |
1.8 |
1.4 |
2.5 |
2.6 |
50.4 |
| 3×185 |
15.3 |
2 |
1.4 |
2.5 |
2.7 |
54.8 |
| 3×240 |
17.5 |
2.2 |
1.5 |
2.5 |
2.9 |
61.2 |
| 3×300 |
19.5 |
2.4 |
1.6 |
2.5 |
3.1 |
66.8 |
| 3×400 |
22.6 |
2.8 |
1.6 |
3.15 |
3.4 |
76.7 |
| 3×500 |
25.2 |
2.8 |
1.8 |
3.15 |
3.7 |
83.6 |
Three cores+1(Galvanized steel wire armoured)
|
|
| Nominal Cross Section |
Diameter of Conductor (Approx.) |
Nominal Insulation thickness |
Nominal Inner Covering thickness |
Nominal Steel Wire dia. |
Nominal Sheath thickness |
Overall Diameter (Approx.) |
| mm^2 |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
| 3×10/6 |
3.6 |
2.8 |
1 |
1 |
1 |
1.25 |
1.8 |
21.9 |
| 3×16/10 |
4.5 |
3.6 |
1 |
1 |
1 |
1.6 |
1.8 |
24.2 |
| 3×25/16 |
5.6 |
4.5 |
1.2 |
1 |
1 |
1.6 |
1.8 |
27.9 |
| 3×35/16 |
6.7 |
4.5 |
1.2 |
1 |
1 |
1.6 |
1.9 |
30.8 |
| 3×50/25 |
8.0 |
5.6 |
1.4 |
1.2 |
1 |
2.0 |
2.0 |
36.4 |
| 3×70/35 |
9.4 |
6.7 |
1.4 |
1.2 |
1.2 |
2.0 |
2.1 |
40.1 |
| 3×95/50 |
11.0 |
8.0 |
1.6 |
1.4 |
1.2 |
2.5 |
2.3 |
46.3 |
| 3×120/70 |
12.4 |
9.4 |
1.6 |
1.4 |
1.4 |
2.5 |
2.4 |
50.3 |
| 3×150/70 |
13.8 |
9.4 |
1.8 |
1.4 |
1.4 |
2.5 |
2.6 |
55.0 |
| 3×185/95 |
15.3 |
11.0 |
2 |
1.6 |
1.4 |
2.5 |
2.7 |
60.3 |
| 3×240/120 |
17.5 |
12.4 |
2.2 |
1.6 |
1.6 |
2.5 |
2.9 |
67.0 |
| 3×300/150 |
19.5 |
13.8 |
2.4 |
1.8 |
1.6 |
3.15 |
3.1 |
74.6 |
| 3×400/185 |
22.6 |
15.3 |
2.6 |
2 |
1.8 |
3.15 |
3.4 |
84.1 |
| 3×500/240 |
25.2 |
17.5 |
2.8 |
2.2 |
2 |
3.15 |
3.7 |
91.8 |
Four cores(Galvanized steel wire armoured)
|
|
| Nominal Cross Section |
Diameter of Conductor (Approx.) |
Nominal Insulation thickness |
Nominal Inner Covering thickness |
Nominal Steel Wire dia. |
Nominal Sheath thickness |
Overall Diameter (Approx.) |
| mm^2 |
mm |
mm |
mm |
mm |
mm |
mm |
| 4×4 |
2.3 |
1 |
1 |
1.25 |
1.8 |
18.5 |
| 4×6 |
2.8 |
1 |
1 |
1.25 |
1.8 |
19.7 |
| 4×10 |
3.6 |
1 |
1 |
1.25 |
1.8 |
22.3 |
| 4×16 |
4.5 |
1 |
1 |
1.6 |
1.8 |
24.5 |
| 4×25 |
5.6 |
1.2 |
1 |
1.6 |
1.9 |
28.2 |
| 4×35 |
6.7 |
1.2 |
1 |
1.6 |
2.0 |
31.1 |
| 4×50 |
8.0 |
1.4 |
1 |
2.0 |
2.1 |
36.7 |
| 4×70 |
9.4 |
1.4 |
1.2 |
2.0 |
2.3 |
40.4 |
| 4×95 |
11.0 |
1.6 |
1.2 |
2.5 |
2.5 |
46.6 |
| 4×120 |
12.4 |
1.6 |
1.4 |
2.5 |
2.6 |
50.6 |
| 4×150 |
13.8 |
1.8 |
1.4 |
2.5 |
2.7 |
55.3 |
| 4×185 |
15.3 |
2 |
1.4 |
2.5 |
2.9 |
60.6 |
| 4×240 |
17.5 |
2.2 |
1.6 |
2.5 |
3.1 |
67.3 |
| 4×300 |
19.5 |
2.4 |
1.6 |
3.15 |
3.4 |
74.9 |
| 4×400 |
22.6 |
2.6 |
1.8 |
3.15 |
3.7 |
84.4 |
| 4×500 |
25.2 |
2.8 |
2 |
3.15 |
3.9 |
92.1 |
Single core( aluminum wire armoured)
|
|
| Nominal Cross Section |
Diameter of Conductor (Approx.) |
Nominal Insulation thickness |
Nominal Inner Covering thickness |
Nominal Alum Wire dia. |
Nominal Sheath thickness |
Overall Diameter (Approx.) |
| mm^2 |
mm |
mm |
mm |
mm |
mm |
mm |
| 1×4 |
2.3 |
0.7 |
1.0 |
0.8 |
1.8 |
10.9 |
| 1×6 |
2.8 |
0.7 |
1.0 |
0.8 |
1.8 |
11.4 |
| 1×10 |
3.6 |
0.7 |
1.0 |
0.8 |
1.8 |
12.2 |
| 1×16 |
4.5 |
0.7 |
1.0 |
0.8 |
1.8 |
13.1 |
| 1×25 |
5.6 |
0.9 |
1.0 |
0.8 |
1.8 |
14.6 |
| 1×35 |
6.7 |
0.9 |
1.0 |
1.25 |
1.8 |
16.6 |
| 1×50 |
8.0 |
1 |
1.0 |
1.25 |
1.8 |
18.1 |
| 1×70 |
9.4 |
1.1 |
1.0 |
1.25 |
1.8 |
19.7 |
| 1×95 |
11.0 |
1.1 |
1.0 |
1.6 |
1.8 |
22.0 |
| 1×120 |
12.4 |
1.2 |
1.0 |
1.6 |
1.8 |
23.6 |
| 1×150 |
13.8 |
1.4 |
1.0 |
1.6 |
1.8 |
25.4 |
| 1×185 |
15.3 |
1.6 |
1.0 |
1.6 |
1.8 |
27.4 |
| 1×240 |
17.5 |
1.7 |
1.0 |
1.6 |
1.9 |
29.9 |
| 1×300 |
19.5 |
1.8 |
1.0 |
2.0 |
2.0 |
33.1 |
| 1×400 |
22.6 |
2 |
1.2 |
2.0 |
2.2 |
37.3 |
| 1×500 |
25.2 |
2.2 |
1.2 |
2.0 |
2.3 |
40.5 |
Two cores(Galvanized steel wire armoured)
|
|
| Nominal Cross Section |
Diameter of Conductor (Approx.) |
Nominal Insulation thickness |
Nominal Inner Covering thickness |
Nominal Steel Wire dia. |
Nominal Sheath thickness |
Overall Diameter (Approx.) |
| mm^2 |
mm |
mm |
mm |
mm |
mm |
mm |
| 2×1.5 |
1.4 |
0.7 |
1.0 |
0.8 |
1.8 |
12.8 |
| 2×2.5 |
1.8 |
0.7 |
1.0 |
0.8 |
1.8 |
13.6 |
| 2×4 |
2.3 |
0.7 |
1.0 |
0.8 |
1.8 |
14.6 |
| 2×6 |
2.8 |
0.7 |
1.0 |
1.25 |
1.8 |
16.5 |
| 2×10 |
3.6 |
0.7 |
1.0 |
1.25 |
1.8 |
18.1 |
| 2×16 |
4.5 |
0.7 |
1.0 |
1.25 |
1.8 |
19.9 |
| 2×25 |
5.6 |
0.9 |
1.0 |
1.6 |
1.8 |
23.6 |
| 2×35 |
6.7 |
0.9 |
1.0 |
1.6 |
1.8 |
25.8 |
| 2×50 |
8.0 |
1 |
1.0 |
1.6 |
1.9 |
29.0 |
| 2×70 |
9.4 |
1.1 |
1.0 |
2.0 |
2.0 |
33.2 |
| 2×95 |
11.0 |
1.1 |
1.2 |
2.0 |
2.1 |
37.1 |
| 2×120 |
12.4 |
1.2 |
1.2 |
2.0 |
2.3 |
40.5 |
| 2×150 |
13.8 |
1.4 |
1.2 |
2.5 |
2.4 |
45.4 |
| 2×185 |
15.3 |
1.6 |
1.4 |
2.5 |
2.6 |
49.9 |
| 2×240 |
17.5 |
1.7 |
1.4 |
2.5 |
2.7 |
55.1 |
| 2×300 |
19.5 |
1.8 |
1.6 |
2.5 |
2.9 |
60.2 |
| 2×400 |
22.6 |
2 |
1.6 |
2.5 |
3.1 |
67.7 |
Three cores(Galvanized steel wire armoured)
|
|
| Nominal Cross Section |
Diameter of Conductor (Approx.) |
Nominal Insulation thickness |
Nominal Inner Covering thickness |
Nominal Steel Wire dia. |
Nominal Sheath thickness |
Overall Diameter (Approx.) |
| mm^2 |
mm |
mm |
mm |
mm |
mm |
mm |
| 3×1.5 |
1.4 |
0.7 |
1.0 |
0.8 |
1.8 |
13.2 |
| 3×2.5 |
1.8 |
0.7 |
1.0 |
0.8 |
1.8 |
14.1 |
| 3×4 |
2.3 |
0.7 |
1.0 |
0.8 |
1.8 |
15.2 |
| 3×6 |
2.8 |
0.7 |
1.0 |
1.25 |
1.8 |
17.1 |
| 3×10 |
3.6 |
0.7 |
1.0 |
1.25 |
1.8 |
18.9 |
| 3×16 |
4.5 |
0.7 |
1.0 |
1.25 |
1.8 |
20.8 |
| 3×25 |
5.6 |
0.9 |
1.0 |
1.6 |
1.8 |
24.7 |
| 3×35 |
6.7 |
0.9 |
1.0 |
1.6 |
1.8 |
27.2 |
| 3×50 |
8.0 |
1 |
1.0 |
1.6 |
1.9 |
30.6 |
| 3×70 |
9.4 |
1.1 |
1.0 |
2.0 |
2.1 |
35.2 |
| 3×95 |
11.0 |
1.1 |
1.2 |
2.0 |
2.2 |
39.3 |
| 3×120 |
12.4 |
1.2 |
1.2 |
2.0 |
2.3 |
43.0 |
| 3×150 |
13.8 |
1.4 |
1.4 |
2.5 |
2.5 |
48.6 |
| 3×185 |
15.3 |
1.6 |
1.4 |
2.5 |
2.7 |
53.0 |
| 3×240 |
17.5 |
1.7 |
1.4 |
2.5 |
2.8 |
58.5 |
| 3×300 |
19.5 |
1.8 |
1.6 |
2.5 |
3.0 |
64.0 |
| 3×400 |
22.6 |
2 |
1.6 |
3.15 |
3.3 |
73.5 |
Three cores+1(Galvanized steel wire armoured)
|
|
| Nominal Cross Section |
Diameter of Conductor (Approx.) |
Nominal Insulation thickness |
Nominal Inner Covering thickness |
Nominal Steel Wire dia. |
Nominal Sheath thickness |
Overall Diameter (Approx.) |
| mm^2 |
(3) mm |
(1) mm |
(3) mm |
(1) mm |
mm |
mm |
mm |
mm |
| 3x 16/10 |
4.5 |
3.6 |
0.7 |
0.7 |
1 |
1.6 |
1.8 |
22.7 |
| 3x 25/16 |
5.6 |
4.5 |
0.9 |
0.7 |
1 |
1.6 |
1.8 |
26.5 |
| 3x 35/16 |
6.7 |
4.5 |
0.9 |
0.7 |
1 |
1.6 |
1.9 |
29 |
| 3x 50/25 |
8.0 |
5.6 |
1 |
0.9 |
1 |
1.6 |
2.1 |
33 |
| 3x 70/35 |
9.4 |
6.7 |
1.1 |
0.9 |
1.2 |
2 |
2.2 |
38 |
| 3x 95/50 |
11.0 |
8.0 |
1.1 |
1 |
1.2 |
2 |
2.3 |
42.4 |
| 3×120/70 |
12.4 |
9.4 |
1.2 |
1.1 |
1.2 |
2 |
2.5 |
48.0 |
| 3×150/70 |
13.8 |
9.4 |
1.4 |
1.1 |
1.4 |
2.5 |
2.7 |
52 |
| 3×185/95 |
15.3 |
11.0 |
1.6 |
1.1 |
1.4 |
2.5 |
2.8 |
57.2 |
| 3×240/120 |
17.5 |
12.4 |
1.7 |
1.2 |
1.6 |
2.5 |
3.1 |
64 |
| 3×300/150 |
19.5 |
13.8 |
1.8 |
1.4 |
1.6 |
2.5 |
3.2 |
69.8 |
| 3×400/185 |
22.6 |
15.3 |
2 |
1.6 |
1.6 |
3.15 |
3.6 |
78.6 |
Four cores(Galvanized steel wire armoured)
|
|
| Nominal Cross Section |
Diameter of Conductor (Approx.) |
Nominal Insulation thickness |
Nominal Inner Covering thickness |
Nominal Steel Wire dia. |
Nominal Sheath thickness |
Overall Diameter (Approx.) |
| mm^2 |
mm |
mm |
mm |
mm |
mm |
mm |
| 4×1.5 |
1.4 |
0.7 |
1.0 |
0.8 |
1.8 |
14.0 |
| 4×2.5 |
1.8 |
0.7 |
1.0 |
0.8 |
1.8 |
14.9 |
| 4×4 |
2.3 |
0.7 |
1.0 |
1.25 |
1.8 |
17.0 |
| 4×6 |
2.8 |
0.7 |
1.0 |
1.25 |
1.8 |
18.2 |
| 4×10 |
3.6 |
0.7 |
1.0 |
1.25 |
1.8 |
20.2 |
| 4×16 |
4.5 |
0.7 |
1.0 |
1.6 |
1.8 |
23.0 |
| 4×25 |
5.6 |
0.9 |
1.0 |
1.6 |
1.8 |
26.7 |
| 4×35 |
6.7 |
0.9 |
1.0 |
1.6 |
1.9 |
29.5 |
| 4×50 |
8.0 |
1 |
1.0 |
2.0 |
2.1 |
34.2 |
| 4×70 |
9.4 |
1.1 |
1.2 |
2.0 |
2.2 |
38.8 |
| 4×95 |
11.0 |
1.1 |
1.2 |
2.0 |
2.3 |
42.9 |
| 4×120 |
12.4 |
1.2 |
1.4 |
2.5 |
2.5 |
48.6 |
| 4×150 |
13.8 |
1.4 |
1.4 |
2.5 |
2.7 |
53.2 |
| 4×185 |
15.3 |
1.6 |
1.4 |
2.5 |
2.8 |
58.1 |
| 4×240 |
17.5 |
1.7 |
1.6 |
2.5 |
3.1 |
64.8 |
| 4×300 |
19.5 |
1.8 |
1.6 |
2.5 |
3.2 |
70.4 |
| 4×400 |
22.6 |
2 |
1.8 |
3.15 |
3.6 |
81.3 |
MV — cable 3.6k V – 35k V power cable
MV cable: 3.6kV – 35kV power cable
Medium Voltage Cables to BS 6622BS 7835
Medium Voltage Cables to BS 6622/BS 7835
Low Voltage Power Cables
Low Voltage(450/750v 0.6/1KV) Single-Multi-Core PVC/XLPE Insulated Power and Control Cables
LSZH — Sheathed Cables
LSZH Sheathed Cables
