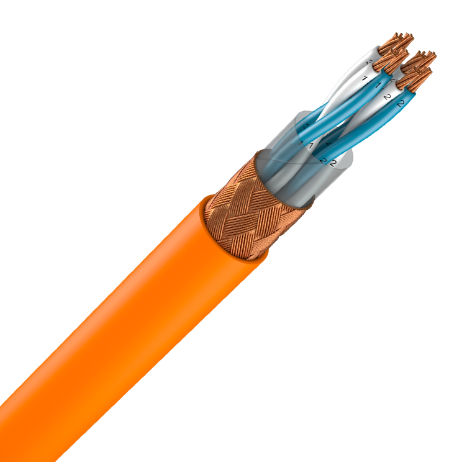

LSZH — Sheathed Cables

Product Description

LSZH Sheathed Cables

We supply a comprehensive range of Low Smoke Zero Halogen (LSZH) cables for use in applications where smoke emission and toxic fumes could pose a risk to human health and essential equipment in the event of a fire.

LSZH Power and auxiliary control cables for use in power networks, underground, outdoor and indoor applications and for use in cable ducting. For installation where fire, smoke emission and toxic fumes create a potential threat to life and equipment.

Construction:

Conductor	Class 1 solid or class 2 stranded copper conductor according to BS EN 60228
Separator	Mica/glass fire barrier tape
Insulation	LSZH (Low Smoke Zero Halogen) or XLPE
Protective Conductor	Tinned copper, full size CPC
Bedding	LSZH (Low Smoke Zero Halogen)
Screen	AL/PET (Aluminum/Polyester Tape)
Armour	SWA (Steel Wire Armor), STA (Steel Tape Armor)
Sheath	LSZH (Low Smoke Zero Halogen) or HOFR (Heat and Oil Resistant and Flame Retardant) to BS7655 or Heat resistant XLPE
Sheath Color	Red, white, black
Operating Temperature	-25°C to +90°C

Product Range

300/500V PVC Insulated, PVC Sheathed Power Cables to BS 6004 (Single Core)

300/500V PVC Insulated, PVC Sheathed Power Cables to BS EN 50525 (2-5 Cores)

300/500V PVC Insulated, PVC Sheathed, Twin & Earth Cables (2-3 Cores)

300/500V PVC Insulated, Non-sheathed Power Cables (Single Core)

300/500V PVC Insulated, Non-sheathed Power Cables (Single Core 90°C)

450/750V PVC Insulated, Non-sheathed Power Cables (Single Core)

450/750V PVC Insulated, Non-sheathed Power Cables (Single Core 90°C)

600/1000V PVC Insulated, Non-sheathed Flexible Cables (Single Core)

600/1000V XLPE Insulated, PVC Sheathed, Unarmoured Power Cables to BS 7889 (Single Core)

600/1000V XLPE Insulated, PVC Sheathed, Unarmoured Power Cables to IEC 60502 (Single Core)

600/1000V PVC Insulated, PVC Sheathed, Unarmoured Power Cables to IEC 60502 (Single Core)

600/1000V XLPE Insulated, PVC Sheathed, Armoured Power Cables to BS 5467 (Single Core)

600/1000V XLPE Insulated, PVC Sheathed, Armoured Power Cables to IEC 60502 (Single Core)

600/1000V PVC Insulated, PVC Sheathed, Armoured Power Cables to BS 6346 (Single Core)

600/1000V PVC Insulated, PVC Sheathed, Armoured Power Cables to IEC 60502 (Single Core)

600/1000V XLPE Insulated, PVC Sheathed, Unarmoured Power Cables to BS 7889 (2-5 Cores)

600/1000V XLPE Insulated, PVC Sheathed, Unarmoured Power Cables to IEC 60502 (2-5 Cores & Multicore)

600/1000V PVC Insulated, PVC Sheathed, Unarmoured Power Cables (2-5 Cores & Multicore)

600/1000V XLPE Insulated, PVC Sheathed, Armoured Power Cables to BS 5467 (2-5 Cores)

600/1000V XLPE Insulated, PVC Sheathed, Armoured Power Cables to IEC 60502 (2-4 Cores)

600/1000V PVC Insulated, PVC Sheathed, Armoured Power Cables to BS 6346 (2-5 Cores)

600/1000V PVC Insulated, PVC Sheathed, Armoured Power Cables to IEC 60502 (2-4 Cores)

300/500V XLPE Insulated, LSZH Sheathed Power Cables (2-4 Cores)

CONSTRUCTION PARAMETERS

Conductor			FTX200 05RZ1-R
No. of Core X Cross Section	No./Nominal Diameter of Strands	Nominal Insulation Thickness	Nominal Overall Diameter	Approx. Weight
Noxmm2	No./mm	mm	mm	kg/km
2×1.5	7/0.53	0.50	6.5	65
2×2.5	7/0.67	0.50	7.3	91
2×4.0	7/0.85	0.50	8.4	131
3×1.5	7/0.53	0.50	6.9	81
3×2.5	7/0.67	0.50	7.8	116
3×4.0	7/0.85	0.50	9.0	169
4×1.5	7/0.53	0.50	7.6	101
4×2.5	7/0.67	0.50	8.6	144
4×4.0	7/0.85	0.50	9.9	213

450/750V XLPE Insulated, LSZH Sheathed Power Cables (2-4 Cores and Multicore)

CONSTRUCTION PARAMETERS

Conductor			FTX200 07RZ1-R
No. of Core X Cross Section	No./Nominal Diameter of Strands	Nominal Overall Diameter Conductor	Nominal Insulation Thickness	Nominal Sheath Thickness	Nominal Overall Diameter	Max.DC resistance of conductor @20°C	Approx. Weight
Noxmm2	No./mm	mm	mm	mm	mm	Ω/km	kg/km
2×1.0	7/0.44	1.32	0.7	1.2	8.5	18.1	101
2×1.5	7/0.53	1.59	0.7	1.2	9.1	12.1	120
2×2.5	7/0.67	2.01	0.7	1.2	10.0	7.41	154
2×4.0	7/0.85	2.55	0.7	1.3	11.1	4.61	205
3×1.0	7/0.44	1.32	0.7	1.2	9.0	18.1	118
3×1.5	7/0.53	1.59	0.7	1.2	9.6	12.1	142
3×2.5	7/0,67	2.01	0.7	1.2	10.6	7.41	185
3×4.0	7/0.85	2.55	0.7	1.3	11.8	4.61	251
4×1.0	7/0.44	1.32	0.7	1.2	9.8	18.1	141
4×1.5	7/0.53	1.59	0.7	1.2	10.5	12.1	171
4×2.5	7/0.67	2.01	0.7	1.3	11.6	7.41	226
4×4.0	7/0.85	2.55	0.7	1.3	13.0	4.61	309
7×1.0	7/0.44	1.32	0.7	1.3	11.6	18.1	210
7×1.5	7/0.53	1.59	0.7	1.3	12.5	12.1	258
7×2.5	7/0.67	2.01	0.7	1.3	13.8	7.41	347
12×1.5	7/0.53	1.59	0.7	1.4	16.5	12.1	413
12×2.5	7/0.67	2.01	0.7	1.5	18.3	7.41	561
19×1.5	7/0.53	1.59	0.7	1.5	19.3	12.1	609
19×2.5	7/0.67	2.01	0.7	1.6	21.6	7.41	836

600/1000V XLPE Insulated, LSZH Sheathed, Unarmoured Power Cables to IEC60502-1 (Single Core)

CONSTRUCTION PARAMETERS

Conductor		FTX300 1RZ1-R
No. of Core X Cross Section	No./Nominal Diameter of Strands	Nominal Insulation Thickness	Nominal Overall Diameter	Approx. Weight
mm2	No./mm	mm	mm	kg/km
1×1.5	7/0.53	0.7	6	48
1×2.5	7/0.67	0.7	6.4	63
1×4.0	7/0.85	0.7	7.0	78
1×6.0	7/1.04	0.7	7.5	105
1×10	7/1.35	0.7	8.5	151
1×16	7/1.70	0.7	9.5	211
1×25	7/2.14	0.9	11.2	315
1×35	7/2.52	0.9	12.4	416
1×50	19/1.78	1.0	14	569
1×70	19/2.14	1.1	16	792
1×95	19/2.52	1.1	18	1068
1×120	37/2.03	1.2	20	1325
1×150	37/2.25	1.4	22	1627
1×185	37/2.52	1.6	24.4	2021
1×240	61/2.25	1.7	27.5	2617
1×300	61/2.52	1.8	30.3	3252
1×400	61/2.85	2.0	33.9	4131
1×500	61/3.20	2.2	37.6	5175
1×630	127/2.52	2.4	42.4	6631
1×800	127/2.85	2.6	47.3	8412
1×1000	127/3.20	2.8	52.4	10530

600/1000V XLPE Insulated, LSZH Sheathed, Armoured Power Cables to IEC60502-1 (Single Core)

CONSTRUCTION PARAMETERS

Conductor		FTX300 1RZ1MAZ1-R
No. of Core X Cross Section	No./Nominal Diameter of Strands	Nominal Insulation Thickness	Diameter Under Armour	Armour Wire Diameter	Nominal Overall Diameter	Approx. Weight
mm2	No./mm	mm	mm	mm	mm	kg/km
1×70	19/2.14	1.1	15.4	1.25	21.5	960
1×95	19/2.52	1.1	17.3	1.25	23.4	1240
1×120	37/2.03	1.2	19.1	1.6	25.9	1650
1×150	37/2.25	1.4	21.1	1.6	27.9	1970
1×185	37/2.52	1.6	23.2	1.6	30.1	2390
1×240	61/2.25	1.7	26.2	1.6	33.2	3040
1×300	61/2.52	1.8	28.8	1.6	35.8	3790
1×400	61/2.85	2.0	32.7	2.0	40.9	4790
1×500	61/3.20	2.2	36.2	2.0	44.6	5880
1×630	127/2.52	2.4	40.6	2.0	49.2	7400
1×800	127/2.85	2.6	45.7	2.5	55.7	9500
1×1000	127/3.20	2.8	50.6	2.5	61.0	11750

600/1000V XLPE Insulated, LSZH Sheathed, Armoured Power Cables IEC60502-1 (2-5 Cores and Multicore)

CONSTRUCTION PARAMETERS

Conductor			FTX400 1RZ1MZ1-R
No. of Core X Cross Section	No./Nominal Diameter of Strands	Nominal Insulation Thickness	Diameter Under Armour	Armour Wire Diameter	Nominal Overall Diameter	Approx. Weight
mm2	No./mm	mm	mm	mm	mm	kg/km
2 Cores
2×1.5	7/0.53	0.7	8.5	0.9	13.9	350
2×2.5	7/0.67	0.7	9.3	0.9	14.7	400
2×4	7/0.85	0.7	10.4	0.9	15.8	475
2×6	7/1.04	0.7	11.5	0.9	16.9	560
2×10	7/1.35	0.7	13.4	1.25	19.5	810
2×16	7/1.70	0.7	15.5	1.25	21.6	980
2×25	7/2.14	0.9	18.9	1.6	25.7	1410
2×35	7/2.52	0.9	21.2	1.6	28.0	1930
3 Cores
3×1.5	7/0.53	0.7	9.0	0.9	14.4	390
3×2.5	7/0.67	0.7	9.9	0.9	15.3	450
3×4	7/0.85	0.7	11.0	0.9	16.4	540
3×6	7/1.04	0.7	11.6	1.25	17.7	745
3×10	7/1.35	0.7	14.3	1.25	20.4	950
3×16	7/1.70	0.7	16.5	1.25	23.0	1250
3×25	7/2.14	0.9	20.2	1.6	27.0	1840
3×35	7/2.52	0.9	22.4	1.6	29.2	2050
3×50	19/1.78	1.0	24.2	1.6	31.2	2590
3×70	19/2.14	1.1	28.2	2.0	36.2	3560
3×95	19/2.52	1.1	31.7	2.0	40.1	4590
3×120	37/2.03	1.2	36.0	2.0	44.6	5810
3×150	37/2.25	1.4	39.5	2.5	49.5	6920
3×185	37/2.52	1.6	43.3	2.5	53.5	8340
3×240	61/2.25	1.7	48.4	2.5	59.0	10450
3×300	61/2.52	1.8	54.4	2.5	65.4	12700
3×400	61/2.85	2.0	57.8	2.5	70.0	15326
3 Cores + 1 Core Earth Conductor
3×10/6	7/1.35	0.7	17.6	1.25	20.1	1042
3×16/10	7/1.70	0.7	20.6	1.25	22.5	1567
3×25/10	7/2.14	0.9	26.3	1.25	23.6	2091
3×25/16	7/2.14	0.9	26.6	1.25	25.8	2150
3×35/16	19/1.53	0.9	26.8	1.6	27.7	2390
3×35/25	19/1.53	0.9	27.2	1.6	28.6	2505
3×50/16	19/1.78	1	28.5	1.6	29.8	2916
3×50/25	19/1.78	1	29.2	1.6	31.3	3107
3×50/35	19/1.78	1	30.0	1.6	32.0	3175
3×70/25	19/2.14	1.1	34.0	2.0	35.0	3203
3×70/35	19/2.14	1.1	34.5	2.0	35.9	4067
3×70/50	19/2.14	1.1	35	2.0	36.8	4310
3×95/16	19/2.52	1.1	36.3	2.0	38.0	4856
3×95/25	19/2.52	1.1	36.7	2.0	39.3	5047
3×95/35	19/2.52	1.1	37.2	2.0	40.2	5115
3×95/50	19/2.52	1.1	37.6	2.0	41.4	5289
3×120/35	37/2.03	1.2	39.4	2.5	44.0	6160
3×120/50	37/2.03	1.2	39.9	2.5	44.9	6473
3×120/70	37/2.03	1.2	40.3	2.5	45.6	6793
3×120/95	37/2.03	1.2	41.2	2.5	46.8	7120
3×150/50	37/2.25	1.4	45.0	2.5	49.7	7549
3×150/50	37/2.25	1.4	45.2	2.5	49.8	7565
3×150/95	37/2.25	1.4	45.5	2.5	50.8	8196
3×150/120	37/2.25	1.4	46.0	2.5	51.8	8590
3×185/70	37/2.52	1.6	50.4	2.5	54.0	8950
3×185/95	37/2.52	1.6	50.6	2.5	54.7	9573
3×185/120	37/2.52	1.6	51.0	2.5	55.8	9968
3×185/150	37/2.52	1.6	51.6	2.5	56.6	1023
3×240/70	61/2.25	1.7	57.0	2.5	56.0	11294
3×240/95	61/2.25	1.7	58.0	2.5	57.9	11620
3×240/120	61/2.25	1.7	59.0	2.5	61.0	12015
3×240/150	61/2.25	1.7	60.0	2.5	62.2	12373
3×300/95	61/2.52	1.8	63	2.5	64.7	13803
3×300/120	61/2.52	1.8	64.2	2.5	65.9	14197
3×300/150	61/2.52	1.8	65.7	2.5	66.8	14556
3×300/185	61/2.52	1.8	66.4	2.5	68.1	15015
3×300/240	61/2.52	1.8	67	2.5	69.4	15697
4 Cores
4×1.5	7/0.53	0.7	10.0	0.9	15.4	430
4×2.5	7/0.67	0.7	10.8	0.9	16.2	505
4×4	7/0.85	0.7	12.1	0.9	17.5	710
4×6	7/1.04	0.7	13.5	1.25	19.6	855
4×10	7/1.35	0.7	15.7	1.25	21.8	1120
4×16	7/1.70	0.7	18.2	1.6	25.0	1600
4×25	7/2.14	0.9	22.4	1.6	29.2	2160
4×35(S)	7/2.52	0.9	24.4	1.6	31.4	2560
4×50(S)	19/1.78	1.0	28.0	1.6	35.2	3180
4×70(S)	19/2.14	1.1	32.2	2.0	40.6	4490
4×95(S)	19/2.52	1.1	36.0	2.0	44.6	5725
4×120(S)	37/2.03	1.2	38.0	2.5	50.0	7550
4×150(S)	37/2.25	1.4	42.8	2.5	53.0	8555
4×185(S)	37/2.52	1.6	48.4	2.5	59.0	10560
4×240(S)	61/2.25	1.7	55.0	2.5	66.0	13180
4×300(S)	61/2.52	1.8	59.6	2.5	71.0	16100
4×400(S)	61/2.85	2.0	66.1	3.15	79.4	20715
4×500(S)	61/3.20	2.2	74.6	3.15	88.5	25347
4 Cores + 1 Core Earth Conductor
4×10/6	7/1.35	0.7	17.6	1.25	26.1	1362
4×16/10	7/1.70	0.7	20.6	1.25	27.3	1473
4×25/10	7/2.14	0.7	26.3	1.25	32.6	1680
4×25/16	7/2.14	0.7	26.6	1.25	33.4	2012
4×35/16	19/1.53	0.9	25.6	1.6	44.5	2940
4×35/25	19/1.53	0.9	26.2	1.6	46.2	3050
4×50/16	19/1.78	1	28.5	1.6	48.2	3560
4×50/25	19/1.78	1	29.2	1.6	49.9	3670
4×50/35	19/1.78	1	30.0	1.6	42.5	3759
4×70/25	19/2.14	1.1	34	2.0	55.1	4980
4×70/35	19/2.14	1.1	34.5	2.0	44.9	5036
4×70/50	19/2.14	1.1	35	2.0	45.9	5468
4×95/16	19/2.52	1.1	36.3	2.0	47.3	6105
4×95/25	19/2.52	1.1	36.7	2.0	49.0	6215
4×95/35	19/2.52	1.1	37.2	2.0	50.1	6325
4×95/50	19/2.52	1.1	37.6	2.0	51.7	6455
4×120/35	37/2.03	1.2	39.4	2.5	54.2	7968
4×120/50	37/2.03	1.2	39.9	2.5	56.9	8280
4×120/70	37/2.03	1.2	40.3	2.5	57.9	8511
4×120/95	37/2.03	1.2	41.2	2.5	61.2	8790
4×150/70	37/2.25	1.4	45.2	2.5	56.5	8879
4×150/95	37/2.25	1.4	45.5	2.5	57.6	10179
4×150/120	37/2.25	1.4	46.0	2.5	58.7	10739
4×185/70	37/2.52	1.6	50.4	2.5	62.0	11200
4×185/95	37/2.52	1.6	50.6	2.5	63.2	1263
4×185/120	37/2.52	1.6	51.0	2.5	64.2	13050
4×185/150	37/2.52	1.6	51.6	2.5	65.4	13680
4×240/70	61/2.25	1.7	57	2.5	66.9	14140
4×240/95	61/2.25	1.7	58	2.5	68.7	14420
4×240/120	61/2.25	1.7	59.0	2.5	72.8	14763
4×240/150	61/2.25	1.7	60.0	2.5	73.1	15241
4×300/95	61/2.52	1.8	63	2.5	74.6	17467
4×300/120	61/2.52	1.8	64.2	2.5	75.1	18050
4×300/150	61/2.52	1.8	65.7	2.5	76.4	18662
4×300/185	61/2.52	1.8	67	2.5	77.3	19031
4×300/240	61/2.52	1.8	67	2.5	78.6	19878
5 Cores
5×1.5	7/0.53	0.7	9.9	0.9	18.6	537
5×2.5	7/0.67	0.7	10.8	0.9	19.6	631
5×4	7/0.85	0.7	12.1	0.9	21.2	860
5×6	7/1.04	0.7	15.8	1.5	23.7	1036
5×10	7/1.35	0.7	24	2.8	26.0	1358
5×16	7/1.70	0.7	27	2.8	30.0	1940
5×25	7/2.14	0.9	34	2.8	35.4	2619
5×35	19/1.53	0.9	24.4	1.6	38.1	3140
5×50	19/1.78	1	28.0	1.6	42.6	3555
5×70	19/2.14	1.1	32.2	2.0	49.2	5444
5×95	19/2.52	1.1	36.0	2.0	54.1	6941
5×120	37/2.03	1.2	38.0	2.5	60.6	9154
5×150	37/2.25	1.4	42.8	2.5	64.3	10372
5×185	37/2.52	1.6	48.4	2.5	71.5	12828
5×240	61/2.25	1.7	55.0	2.5	80	15980
5×300	61/2.52	1.8	59.6	2.5	86.1	19521
5×400	61/2.85	2	66.1	3.15	96.3	25116
(S) – Sectoral Stranded Conductors
7 Cores
7×1.5	7/0.53	0.7	11.2	0.9	16.0	490
7×2.5	7/0.67	0.7	12.4	0.9	17.2	602
7×4	7/0.85	0.7	14.1	1.25	19.8	871
10 Cores
10×1.5	7/0.53	0.7	14.3	1.25	20.0	761
10×2.5	7/0.67	0.7	15.9	1.25	21.8	943
10×4	7/0.85	0.7	18.5	1.25	24.4	1213
12 Cores
12×1.5	7/0.53	0.7	14.8	1.25	20.5	827
12×2.5	7/0.67	0.7	16.5	1.25	22.4	1020
12×4	7/0.85	0.7	19.1	1.6	25.7	1462
19 Cores
19×1.5	7/0.53	0.7	17.4	1.6	24.0	1186
19×2.5	7/0.67	0.7	19.9	1.6	26.7	1498
19×4	7/0.85	0.7	22.6	1.6	29.4	1931
27 Cores
27×1.5	7/0.53	0.7	21.3	1.6	28.1	1537
27×2.5	7/0.67	0.7	23.9	1.6	30.9	1933
27×4	7/0.85	0.7	27.2	1.6	34.4	2532
37 Cores
37×1.5	7/0.53	0.7	23.9	1.6	30.7	1856
37×2.5	7/0.67	0.7	26.9	1.6	33.9	2372
37×4	7/0.85	0.7	31.1	2.0	39.3	3448
48 Cores
48×1.5	7/0.53	0.7	27.5	1.6	34.6	2276
48×2.5	7/0.67	0.7	31.3	2.0	39.6	3252
48×4	7/0.85	0.7	35.7	2.0	44.2	4273

Note : Other conductor sizes & core confi gurations are available upon request.

Applicable Standards

BS EN 60228BS7655BS 6004BS EN 50525BS 7889IEC 60502BS 5467BS 6346

Certificate Display

**Low Voltage Directive Attestation (EU)**

Type and routine tests are issued from our own testing centre under the ISO 9001 quality system — test reports and certificates accompany every shipment.
