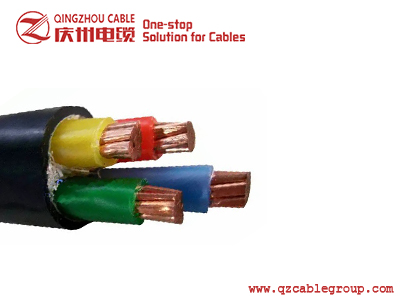

XLPE INSULATED ELECTRICAL ARMOURED and NON-ARMOURED POWER CABLE

Application:

XLPE Insulated armoured power cable is used to transmit and distribute power in power transmission and distribution system of 600~1000v 3.6kv~35kV . It is generally applied to the fields including power, construction, mines, metallurgy, petrochemical industry and communication in complete replace of oil immersed paper insulated power cable.

The range of hard-wearing steel wire armour (SWA) and aluminium wire armour (AWA) XLPE insulated cables is manufactured in accordance with IEC 60502-1 and is designed for use in applications where there is a risk of mechanical stress and where protection is required against mechanical damage. It is commonly used for the supply of mains electricity and for auxiliary control cables in diverse environments including aerial power networks, outdoors, indoors, underground systems and in cable ducting. The SWA armour means these are direct burial cables – suitable for installation directly into free draining soil as they are protected from damage should be they accidentally hit. These cables are suitable for use clipped directly onto a surface, on a tray, in a basket or in free air.

CONSTRUCTION

XLPE INSULATED UNARMOURED PVC SHEATHED CABLE 0.6 / 1 ( 1.2 ) kV

XLPE INSULATED ARMOURED PVC SHEATHED CABLE 0.6 / 1 (1.2) kV

XLPE INSULATED, PE INNER SHEATH, SCREENED AND PE SHEATHED UNDERGROUND CABLE 0.6 / 1 (1.2) kV

SINGLE CORE – XLPE INSULATED UNARMOURED PVC SHEATHED CABLE FOR VOLTAGES 6.6 kV UP TO AND INCLUDING 33kV TO IEC 60502

SINGLE CORE – XLPE INSULATED ARMOURED PVC SHEATHED CABLE FOR VOLTAGES 6.6 kV UP TO AND INCLUDING 33kV TO IEC 60502

SINGLE CORE – XLPE INSULATED UNARMOURED PE INNER AND OUTER SHEATH CABLE FOR VOLTAGES 6.35 / 11 (12) kV AND 12.7 / 22 (24) kV

THREE CORES – XLPE INSULATED UNARMOURED PVC SHEATHED CABLE FOR VOLTAGES 6.6 kV UP TO AND INCLUDING 33 kV TO IEC 60502

THREE CORES – XLPE INSULATED ARMOURED PVC SHEATHED CABLE FOR VOLTAGES 6.6 kV UP TO AND INCLUDING 33 kV TO IEC 60502

THREE CORES – XLPE INSULATED UNARMOURED PE INNER AND OUTER SHEATH CABLE FOR VOLTAGE 6.35 / 11 (12 ) kV

0.6/1kV XLPE Insulated Un-armoured/Armoured Cable	Core	Armor
Cu or Al/XLPE/PVC Power Cable	Single Core	No
Cu or Al/XLPE/AWA/PVC Power Cable	Single Core	AWA
Cu or Al/XLPE/PVC Power Cable	Two Cores	No
Cu or Al/XLPE/STA/PVC Power Cable	Two Cores	STA
Cu or Al/XLPE/SWA/PVC Power Cable	Two Cores	SWA
Cu or Al/XLPE/PVC Power Cable	Three Cores	No
Cu or Al/XLPE/PVC Power Cable	Three Cores	STA
Cu or Al/XLPE/SWA/PVC Power Cable	Three Cores	SWA
Cu or Al/XLPE/PVC Power Cable	3+1 Cores	No
Cu or Al/XLPE/STA/PVC Power Cable	3+1 Cores	STA
Cu or Al/XLPE/SWA/PVC Power Cable	3+1 Cores	SWA
Cu or Al/XLPE/PVC Power Cable	Four Cores	No
Cu or Al/XLPE/STA/PVC Power Cable	Four Cores	STA
Cu or Al/XLPE/SWA/PVC Power Cable	Four Cores	SWA
Cu or Al/XLPE/PVC Power Cable	4+1 Cores	No
Cu or Al/XLPE/STA/PVC Power Cable	4+1 Cores	STA
Cu or Al/XLPE/SWA/PVC Power Cable	4+1 Cores	SWA
Cu or Al/XLPE/PVC Power Cable	Five Cores	No
Cu or Al/XLPE/STA/PVC Power Cable	Five Cores	STA
Cu or Al/XLPE/SWA/PVC Power Cable	Five Cores	SWA
Cu or Al/XLPE/PVC Power Cable	3+2 Cores	No
Cu or Al/XLPE/STA/PVC Power Cable	3+2 Cores	STA
Cu or Al/XLPE/SWA/PVC Power Cable	3+2 Cores	SWA

Voltage rating for  XLPE Power Cable	No. x Nominal Cross Section of Conductor             No. x  mm2
	1 core	2 core	3 core	3+1 core	4core	3+2 core	4+1 core	5 core
0.6/1 kV	1×4 mm2	2×4 mm2	3×4 mm2	3×4 mm2 + 1×2.5mm2	4×4 mm2	3×4 mm2 + 2×2.5mm2	4×4 mm2 + 1×2.5mm2	5×2.5 mm2
	1×6 mm2	2×6 mm2	3×6 mm2	3×6 mm2 + 1×4 mm2	4×6 mm2	3×6 mm2 + 2×4 mm2	4×6 mm2 + 1×4 mm2	5×4 mm2
	1×10 mm2	2×10 mm2	3×10 mm2	3×10 mm2 + 1×6 mm2	4×10 mm2	3×10 mm2 + 2×6 mm2	4×10 mm2 + 1×6 mm2	5×6 mm2
	1×16 mm2	2×16 mm2	3x16mm2	3×16 mm2 + 1×10 mm2	4×16 mm2	3×16 mm2 + 2×10 mm2	4×16 mm2 + 1×10 mm2	5×10 mm2
	1x 25 mm2	2x 25 mm2	3x 25 mm2	3×25 mm2 + 1x16mm2	4×25 mm2	3×25 mm2 + 2x16mm2	4×25 mm2 + 1x16mm2	5×16 mm2
	1×35 mm2	2×35 mm2	3x 35 mm2	3×35 mm2 + 1x16mm2	4×35 mm2	3×35 mm2 + 2x16mm2	4×35 mm2 + 1x16mm2	5×25 mm2
	1×50 mm2	2×50 mm2	3x 50 mm2	3×50 mm2 + 1x25mm2	4×50 mm2	3×50 mm2 + 2x25mm2	4×50 mm2 + 1x25mm2	5×35 mm2
	1×70 mm2	2×70 mm2	3x 70 mm2	3×70 mm2 + 1x35mm2	4×70 mm2	3×70 mm2 + 2x35mm2	4×70 mm2 + 1x35mm2	5×50 mm2
	1×95 mm2	2×95 mm2	3x 95 mm2	3×95 mm2 + 1x50mm2	4×95 mm2	3×95 mm2 + 2x50mm2	4×95 mm2 + 1x50mm2	5×70 mm2
	1×120 mm2	2×120 mm2	3x 120 mm2	3x120mm2 + 1x70mm2	4×120 mm2	3x120mm2 + 2x70mm2	4x120mm2 + 1x70mm2	5×95 mm2
	1×150 mm2	2×150 mm2	3x 150 mm2	3x150mm2 + 1x70mm2	4×150 mm2	3x150mm2 + 2x70mm2	4x150mm2 + 1x70mm2
	1×185 mm2	2×185 mm2	3x 185 mm2	3x185mm2 + 1x95mm2	4×185 mm2	3x185mm2 + 2x95mm2	4x185mm2 + 1x95mm2
	1×240 mm2		3x 240 mm2	3x240mm2 + 1x120mm2	4×240 mm2	3x240mm2 + 2x120mm2	4x240mm2 + 1x120mm2
	1×300 mm2		3x 300 mm2	3x300mm2 + 1x150mm2	4×300 mm2	3x300mm2 + 2x150mm2	4x300mm2 + 1x150mm2
	1×400 mm2
	1×500 mm2

Medium Voltage XLPE Insulated Armoured Power Cable

3.6/6(7.2)kV, 3.8/6.6(7.2)kV, 6/10(12)kV,6.35/11(12)kV, 8.7/10(15)kV,8.7/15(17.5)kV, 12/20(22)kV,12.7/22(24)kV, 12.7/22(24)kV,18/30(36)kV, 19/33(36)kV XLPE Insulated Power Cable	Conductor		Insulation	Armor				Outer Sheath
	Aluminum	Copper	XLPE	SW	ST	DST	AW	PVC	PE
Cu/XLPE/PVC		P	P	—	—	—	—	P
Cu/ XLPE /PE		P	P	—	—	—	—		P
Al/ XLPE /PVC	P		P	—	—	—	—	P
Al/ XLPE /PE	P		P	—	—	—	—		P
Cu/ XLPE /STA/PVC		P	P	—	P	—	—	P
Cu/ XLPE /STA/PE		P	P	—	P	—	—		P
Al/ XLPE /STA/PVC	P		P	—	P	—	—	P
Al/ XLPE /STA/PE	P		P	—	P	—	—		P
Cu/ XLPE /DSTA/PVC		P	P	—	—	P	—	P
Cu/ XLPE /DSTA/PE		P	P	—	—	P	—		P
Al/ XLPE /DSTA/PVC	P		P	—	—	P	—	P
Al/ XLPE /DSTA/PE	P		P	—	—	P	—		P
Cu/ XLPE /SWA/PVC		P	P	P	—	—	—	P
Cu/ XLPE /SWA/PE		P	P	P	—	—	—		P
Al/PVC/SWA/PVC	P		P	P	—	—	—	P
Al/PVC/SWA/PE	P		P	P	—	—	—		P
Cu/PVC/AWA/PVC		P	P	—	—	—	P	P
Cu/PVC/AWA/PE		P	P	—	—	—	P		P
Al/PVC/AWA/PVC	P		P	—	—	—	P	P
Al/PVC/AWA/PE	P		P	—	—	—	P		P
Armor material :   SW=steel wire, ST=steel tape, DST=double steel tape, AW=aluminum wire

Voltage rating for Medium Voltage XLPE Power Cable	No. x Nominal Cross Section of Conductor      No. x  mm2
	1 core	3 core
3.6/6(7.2)kV 3.6/6.6(7.2) kV, 6/10(12)kV 8.7/10(12)kV, 8.7/15(17.5)kV 12/20(24)kV 18/30(36)kV 19/33(36)kV 21/35(40.5)kV 26/35(40.5)kV	1x 25 mm2	3x 25 mm2
	1×35 mm2	3x 35 mm2
	1×50 mm2	3x 50 mm2
	1×70 mm2	3x 70 mm2
	1×95 mm2	3x 95 mm2
	1×120 mm2	3x 120 mm2
	1×150 mm2	3x 150 mm2
	1×185 mm2	3x 185 mm2
	1×240 mm2	3x 240 mm2
	1×300 mm2	3x 300 mm2
	1×400 mm2	3x 400 mm2
	1×500 mm2	3x 500 mm2
	1×630 mm2

Product Range

XLPE Insulated Unarmoured PVC Sheathed Cable – 0.6/1(1.2) kV

XLPE Insulated Armoured PVC Sheathed Cable – 0.6/1(1.2) kV

XLPE Insulated PE Inner Sheath, Screened And PE Sheathed Underground Cable – 0.6/1(1.2) kV

XLPE Insulated Armoured PVC Sheathed Cable – 1.9/3.3(3.6) kV

Single Core – XLPE Insulated Unarmoured PVC Sheathed Cable For Voltages 6.6 kV Up To And Including 33 kV

Single Core – XLPE Insulated Armoured PVC Sheathed Cable For Voltages 6.6 kV Up To And Including 33 kV

Single Core – XLPE Insulated Unarmoured PE Inner And Outer Sheath Cable For Voltages 6.35/11(12) kV

And 12.7/22(24) kV

Three Cores – XLPE Insulated Unarmoured PVC Sheathed Cable For Voltages 6.6 kV Up To And Including 33 kV

Three Cores – XLPE Insulated Armoured PVC Sheathed Cable For Voltages 6.6 kV Up To And Including 33 kV

Three Cores – XLPE Insulated Unarmoured PE Inner And Outer Sheath Cable For Voltages 6.35/11(12) kV

XLPE INSULATED UNARMOURED PVC SHEATHED CABLE 0.6 / 1 ( 1.2 ) kV

DESCRIPTION

Single core and multicore cables with copper or aluminium conductor, XLPE insulated and PVC sheathed. Cables are rated at 0.6 / 1 (1.2) kV and conformed to IEC 60502, MS 2104 & MS 2106.

CONSTRUCTION

Conductor

Plain circular, compacted or shaped stranded copper or aluminium conductor, conform to IEC 60228 class 2.

Insulation

XLPE ( cross-linked polyethylene ) rated at 90ºC.

Colours for core identification

Single core – natural (black on request) Two cores -red, black

Three cores – red, yellow and blue OR

Four cores – red, yellow, blue and black

Five cores – red, yellow, blue, black and green/yellow

Optional colours

Single core – natural (brown or blue on request)

Two cores – brown, blue

Three cores – brown, black, grey

Four cores – brown, black, grey, blue

Five cores – brown, black, grey, blue and green/yellow

Assembly

Two, three, four or five insulated conductors are laid up together if necessary filled with non- hygroscopic material compatible with the insulation. The filling may be omitted provided the outer shape of the cables remains practically circular and no adhesion occurs between cores and sheath.

Sheath

PVC type ST2 to IEC 60502, colour black.

APPLICATION

These cables are designated for general use including underground burial, where they are not likely to suffer mechanical damage.

Note: Cables complying with BS5467 and customer’s specification are available upon request.

0.6 /1 (1.2) kV XLPE INSULATED UNARMOURED PVC SHEATHED CABLE – SINGLE CORE

CU/XLPE/PVC CABLE

AL/XLPE/PVC CABLE

	Nominal cross- sectional area	Conductor Shape		Nominal thickness of insulation			Nominal thickness of sheath		Approximate overall diameter		Approximate weight of cable
											Copper		Aluminium
	mm2			mm			mm		mm		Kg / Km		Kg / Km
1.5			r.m.		0.7	1.4		5.8		45		–
2.5			r.m.		0.7	1.4		6.2		60		–
4			r.m.		0.7	1.4		6.8		80		–
6			r.m.		0.7	1.4		7.3		100		65
10			r.m.		0.7	1.4		8.3		140		85
16			c.c.		0.7	1.4		9.0		200		100
25			c.c.		0.9	1.4		10.6		310		150
35			c.c.		0.9	1.4		11.8		400		190
50			c.c.		1.0	1.4		13.2		530		230
70			c.c.		1.1	1.4		15.1		740		320
95			c.c.		1.1	1.5		17.0		1000		420
120			c.c.		1.2	1.5		18.8		1250		510
150			c.c.		1.4	1.6		20.8		1560		620
185			c.c.		1.6	1.6		23.0		1900		750
240			c.c.		1.7	1.7		25.8		2470		960
300			c.c.		1.8	1.8		28.5		3090		1190
400			c.c.		2.0	1.9		31.9		3910		1490
500			c.c.		2.2	2.0		35.5		4900		1850
630			c.c.		2.4	2.2		40.0		6270		2350
800			c.c.		2.6	2.3		43.5		7890		2940
1000			r.m.		2.8	2.4		52.0		9880		3690

0.6 / 1 (1.2) kV XLPE INSULATED UNARMOURED PVC SHEATHED CABLE – TWO CORES

CU/XLPE/PVC CABLE

AL/XLPE/PVC CABLE

	Nominal cross- sectional area		Conductor Shape	Nominal thickness of insulation			Nominal thickness of sheath		Approximate overall diameter		Approximate weight of cable
											Copper		Aluminium
	mm2			mm			mm		mm		Kg / Km		Kg / Km
1.5		r.m.			0.7	1.8		9.7		110		–
2.5		r.m.			0.7	1.8		10.5		140		–
4		r.m.			0.7	1.8		11.6		180		–
6		r.m.			0.7	1.8		12.7		240		160
10		r.m.			0.7	1.8		14.6		340		220
16		c.c.			0.7	1.8		16.5		480		280
25		c.c.			0.9	1.8		19.8		710		400
35		c.c.			0.9	1.8		22.1		930		500
50		c.c.			1.0	1.8		24.8		1220		630
70		c.c.			1.1	1.8		28.6		1680		840
95		c.c.			1.1	1.9		32.4		2260		1090
120		c.c.			1.2	2.0		36.0		2830		1340
150		c.c.			1.4	2.2		40.1		3530		1640
185		c.c.			1.6	2.3		44.7		4330		2050
240		c.c.			1.7	2.5		50.3		5620		2620
300		c.c.			1.8	2.6		55.5		6970		3200
400		c.c.			2.0	2.9		62.5		8860		4040

Note : r.m. – circular stranded, c.c. – compacted circular stranded, s.m. – shaped stranded

0.6 / 1 (1.2) kV XLPE INSULATED UNARMOURED PVC SHEATHED CABLE – THREE CORES

CU/XLPE/PVC CABLE

AL/XLPE/PVC CABLE

	Nominal cross- sectional area	Conductor Shape	Nominal thickness of insulation	Nominal thickness of sheath	Approximate overall diameter	Approximate weight of cable
						Copper	Aluminium
	mm2		mm	mm	mm	Kg / Km	Kg / Km
1.5		r.m.	0.7	1.8	10.1	130		–
2.5		r.m.	0.7	1.8	11.0	170		–
4		r.m.	0.7	1.8	12.2	230		–
6		r.m.	0.7	1.8	13.4	300		190
10		r.m.	0.7	1.8	15.4	450		260
16		c.c.	0.7	1.8	17.4	630		340
25		c.c.	0.9	1.8	21.0	960		490
35		c.c.	0.9	1.8	23.5	1270		620
50		s.m.	1.0	1.8	24.1	1580		700
70		s.m.	1.1	1.9	27.9	2220		950
95		s.m.	1.1	2.0	31.4	3000		1240
120		s.m.	1.2	2.1	34.8	3750		1530
150		s.m.	1.4	2.3	38.8	4680		1890
185		s.m.	1.6	2.4	43.2	5760		2340
240		s.m.	1.7	2.6	48.6	7490		2990
300		s.m.	1.8	2.7	53.4	9320		3650
400		s.m.	2.0	3.0	60.1	11860		4630

0.6 / 1 (1.2) kV XLPE INSULATED UNARMOURED PVC SHEATHED CABLE – FOUR CORES

CU/XLPE/PVC CABLE

AL/XLPE/PVC CABLE

Nominal cross- sectional area	Conductor Shape	Nominal thickness of insulation	Nominal thickness of sheath	Approximate overall diameter	Approximate weight of cable
					Copper	Aluminium
mm2		mm	mm	mm	Kg / Km	Kg / Km
1.5	r.m.	0.7	1.8	10.9	160	–
2.5	r.m.	0.7	1.8	11.9	210	–
4	r.m.	0.7	1.8	13.2	280	–
6	r.m.	0.7	1.8	14.6	380	230
10	r.m.	0.7	1.8	16.9	570	320
16	c.c.	0.7	1.8	19.0	810	420
25	c.c.	0.9	1.8	23.0	1240	610
35	c.c.	0.9	1.8	25.8	1640	780
50	s.m.	1.0	1.8	27.1	2110	920
70	s.m.	1.1	2.0	31.6	2980	1280
95	s.m.	1.1	2.1	35.7	4020	1660
120	s.m.	1.2	2.3	39.8	5050	2070
150	s.m.	1.4	2.4	44.1	6280	2540
185	s.m.	1.6	2.6	49.3	7760	3170
240	s.m.	1.7	2.8	55.4	10080	4040
300	s.m.	1.8	3.0	61.3	12560	4980
400	s.m.	2.0	3.3	68.9	15940	6300

Note : r.m. – circular stranded, c.c. – compacted circular stranded, s.m. – shaped stranded

0.6 / 1 (1.2) kV XLPE INSULATED UNARMOURED PVC SHEATHED CABLE- FOUR CORES WITH REDUCED NEUTRAL

CU/XLPE/PVC CABLE

AL/XLPE/PVC CABLE

Phase		Neutral		Phase	Neutral	Nominal thickness of sheath	Approximate overall diameter	Approximate weight of cable
Nominal cross- Sectional area		Nominal cross- Sectional area		Nominal Thickness of insulation				Copper	Aluminium
mm2		mm2		mm	mm	mm	mm	Kg / Km	Kg / Km
25	c.c.	16	c.c.	0.9	0.7	1.8	22.2	1130	570
35	c.c.	16	c.c.	0.9	0.7	1.8	24.3	1440	700
50	s.m.	25	c.c.	1.0	0.9	1.8	27.1	1890	870
70	s.m.	35	c.c.	1.1	0.9	2.0	31.4	2640	1190
95	s.m.	50	c.c.	1.1	1.0	2.1	35.7	3570	1560
120	s.m.	70	c.c.	1.2	1.1	2.3	39.6	4540	1940
150	s.m.	70	c.c.	1.4	1.1	2.4	43.9	5480	2340
185	s.m.	95	c.c.	1.6	1.1	2.6	49.1	6860	2940
240	s.m.	120	c.c.	1.7	1.2	2.8	55.0	8840	3720
300	s.m.	150	c.c.	1.8	1.4	3.0	60.9	11020	4590
400	s.m.	185	c.c.	2.0	1.6	3.3	68.5	13960	5800

Note : r.m. – circular stranded, c.c. – compacted circular stranded, s.m. – shaped stranded

XLPE INSULATED UNARMOURED PVC SHEATHED CABLE – FIVE CORES CU/XLPE/PVC CABLE

AL/XLPE/PVC CABLE 0.6 / 1 (1.2) kV

Nominal cross- sectional area	Conductor Shape	Nominal thickness of insulation	Nominal thickness of sheath	Approximate overall diameter	Approximate weight of cable
					Copper	Aluminium
mm2		mm	mm	mm	Kg / Km	Kg / Km
1.5	r.m.	0.7	1.8	11.8	190	–
2.5	r.m.	0.7	1.8	12.9	240	–
4	r.m.	0.7	1.8	14.4	340	–
6	r.m.	0.7	1.8	15.9	450	260
10	r.m.	0.7	1.8	18.4	670	360
16	c.c.	0.7	1.8	20.8	1000	510
25	c.c.	0.9	1.8	25.2	1530	750
35	c.c.	0.9	1.8	28.4	2040	960
50	c.c.	1.0	1.9	32.3	2710	1230
70	c.c.	1.1	2.1	37.8	3800	1690
95	c.c.	1.1	2.2	42.8	5140	2210

Note : r.m. – circular stranded, c.c. – compacted circular stranded, s.m. – shaped stranded

XLPE INSULATED ARMOURED PVC SHEATHED CABLE

0.6 / 1 (1.2) kV

DESCRIPTION

Single core and multicore cables with copper or aluminium conductor, XLPE insulated, armoured and PVC sheathed. Cables are rated at 0.6 / 1 (1.2) kV and conformed to IEC 60502, MS 2105 & MS 2107.

CONSTRUCTION

Conductor

Plain circular, compacted or shaped stranded copper or aluminium conductor, conform to IEC 60228 class 2.

Insulation

XLPE ( cross-linked polyethylene ) rated at 90 oC.

• Colours for core identification
• Single core – natural (black on request)
• Two cores – red, black OR
• Three cores – red, yellow and blue
• Four cores – red, yellow, blue and black

Five cores – red, yellow, blue, black and green/yellow

Optional colours

Single core – natural (brown or blue on request) Two cores – brown, blue

Three cores – brown, black, grey

Four cores – brown, black, grey, blue

Five cores – brown, black, grey, blue and green/yellow

Assembly

Two, three, four or five insulated conductors are laid up together, if necessary filled with non- hygroscopic material compatible with the insulation and covered with a layer of PVC bedding which may be an integral part of the filling.

Armour

Single Core – Aluminium wire shall be applied over the PVC bedding. Multicore – Galvanized steel wire shall be applied over the PVC bedding.

Sheath

PVC type ST2 to IEC 60502 colour black.

APPLICATION

These cables are most suitable for underground burial where there is a risk of mechanical damage.

Note : Cables complying with BS5467 and customer’s specification are available upon request.

XLPE INSULATED ARMOURED PVC SHEATHED CABLE – SINGLE CORE CU/XLPE/PVC/AWA/PVC CABLE

AL/XLPE/PVC/AWA/PVC CABLE 0.6 / 1 (1.2) kV

Nominal cross- sectional area	Conductor Shape	Nominal thickness of insulation	Nominal diameter of aluminium wire	Nominal thickness of sheath	Approximate overall diameter	Approximate weight of cable
						Copper	Aluminium
mm2		mm	mm	mm	mm	Kg / Km	Kg / Km
16	c.c.	0.7	0.9	1.8	13.6	350	250
25	c.c.	0.9	0.9	1.8	15.2	470	310
35	c.c.	0.9	0.9	1.8	16.4	590	370
50	c.c.	1.0	1.25	1.8	18.5	770	480
70	c.c.	1.1	1.25	1.8	20.4	1010	580
95	c.c.	1.1	1.25	1.8	22.1	1290	700
120	c.c.	1.2	1.6	1.8	24.6	1630	880
150	c.c.	1.4	1.6	1.8	26.4	1950	1010
185	c.c.	1.6	1.6	1.8	28.6	2340	1180
240	c.c.	1.7	1.6	1.9	31.4	2950	1430
300	c.c.	1.8	1.6	1.9	33.9	3600	1690
400	c.c.	2.0	2.0	2.1	39.2	4610	2170
500	c.c.	2.2	2.0	2.2	42.8	5670	2600
630	c.c.	2.4	2.0	2.3	47.1	7110	3180
800	c.c.	2.6	2.5	2.5	52.2	9020	4070
1000	r.m.	2.8	2.5	2.7	60.9	11260	5070

XLPE INSULATED ARMOURED PVC SHEATHED CABLE – TWO CORES CU/XLPE/PVC/SWA/PVC CABLE

AL/XLPE/PVC/SWA/PVC CABLE 0.6 / 1 (1.2) kV

Nominal cross- sectional area	Conductor Shape	Nominal thickness of insulation	Nominal diameter of steel wire	Nominal thickness of sheath	Approximate overall diameter	Approximate weight of cable
						Copper	Aluminium
mm2		mm	mm	mm	mm	Kg / Km	Kg / Km
1.5	r.m.	0.7	0.9	1.8	13.5	340	–
2.5	r.m.	0.7	0.9	1.8	14.3	380	–
4	r.m.	0.7	0.9	1.8	15.4	460	–
6	r.m.	0.7	0.9	1.8	16.5	530	450
10	r.m.	0.7	1.25	1.8	19.1	780	660
16	c.c.	0.7	1.25	1.8	21.0	970	770
25	c.c.	0.9	1.6	1.8	25.0	1440	1120
35	c.c.	0.9	1.6	1.8	27.3	1760	1300
50	c.c.	1.0	1.6	1.8	30.0	2120	1530
70	c.c.	1.1	1.6	2.0	34.2	2760	1910
95	c.c.	1.1	2.0	2.1	39.2	3790	2600
120	c.c.	1.2	2.0	2.2	42.8	4510	3020
150	c.c.	1.4	2.0	2.3	46.7	5350	3430
185	c.c.	1.6	2.5	2.5	53.7	6870	4500
240	c.c.	1.7	2.5	2.7	59.3	8450	5320
300	c.c.	1.8	2.5	2.8	64.9	10150	6220
400	c.c.	2.0	2.5	3.1	71.9	12390	7410
500	c.c.	2.2	3.15	3.3	78.9	15730	9660

Note : r.m. – circular stranded, c.c. – compacted circular stranded, s.m. – shaped stranded

XLPE INSULATED ARMOURED PVC SHEATHED CABLE – THREE CORES CU/XLPE/PVC/SWA/PVC CABLE

AL/XLPE/PVC/SWA/PVC CABLE 0.6 /1 (1.2) kV

Nominal cross- sectional area	Conductor Shape	Nominal thickness of insulation	Nominal diameter of steel wire	Nominal thickness of sheath	Approximate overall diameter	Approximate weight of cable
						Copper	Aluminium
mm2		mm	mm	mm	mm	Kg / Km	Kg / Km
1.5	r.m.	0.7	0.9	1.8	13.9	370	–
2.5	r.m.	0.7	0.9	1.8	14.8	430	–
4	r.m.	0.7	0.9	1.8	16.0	510	–
6	r.m.	0.7	0.9	1.8	17.2	610	500
10	r.m.	0.7	1.25	1.8	19.9	910	730
16	c.c.	0.7	1.25	1.8	21.9	1150	860
25	c.c.	0.9	1.6	1.8	26.2	1740	1260
35	c.c.	0.9	1.6	1.8	28.7	2130	1460
50	s.m.	1.0	1.6	1.9	29.5	2480	1600
70	s.m.	1.1	2.0	2.0	34.5	3540	2270
95	s.m.	1.1	2.0	2.2	38.2	4460	2700
120	s.m.	1.2	2.0	2.3	41.6	5380	3150
150	s.m.	1.4	2.5	2.5	48.0	6890	4100
185	s.m.	1.6	2.5	2.6	52.4	8210	4790
240	s.m.	1.7	2.5	2.8	58.2	10290	5780
300	s.m.	1.8	2.5	3.0	63.2	12390	6720
400	s.m.	2.0	2.5	3.2	69.7	15250	8020
500	c.c.	2.2	3.15	3.5	84.5	20660	11550

XLPE INSULATED ARMOURED PVC SHEATHED CABLE – FOUR CORES CU/XLPE/PVC/SWA/PVC CABLE

AL/XLPE/PVC/SWA/PVC CABLE 0.6 / 1 (1.2) kV

Nominal cross- sectional area	Conductor Shape	Nominal thickness of insulation	Nominal diameter of steel wire	Nominal thickness of sheath	Approximate overall diameter	Approximate weight of cable
						Copper	Aluminium
mm2		mm	mm	mm	mm	Kg / Km	Kg / Km
1.5	r.m.	0.7	0.9	1.8	14.7	410	–
2.5	r.m.	0.7	0.9	1.8	15.7	480	–
4	r.m.	0.7	0.9	1.8	17.0	580	–
6	r.m.	0.7	1.25	1.8	19.1	820	680
10	r.m.	0.7	1.25	1.8	21.4	1070	820
16	c.c.	0.7	1.6	1.8	24.2	1520	1120
25	c.c.	0.9	1.6	1.8	28.2	2080	1460
35	c.c.	0.9	1.6	1.9	31.2	2600	1730
50	s.m.	1.0	1.6	2.0	32.7	3130	1940
70	s.m.	1.1	2.0	2.2	38.4	4480	2770
95	s.m.	1.1	2.0	2.3	42.5	5680	3320
120	s.m.	1.2	2.5	2.5	48.8	7310	4330
150	s.m.	1.4	2.5	2.6	53.1	8780	5040
185	s.m.	1.6	2.5	2.8	58.3	10510	5910
240	s.m.	1.7	2.5	3.0	64.8	13220	7180
300	s.m.	1.8	2.5	3.2	70.7	16000	8420
400	s.m.	2.0	3.15	3.5	80.3	20750	11110
500	c.c.	2.2	3.15	3.8	93.0	26130	14060

Note : r.m. – circular stranded, c.c. – compacted circular stranded, s.m. – shaped stranded

XLPE INSULATED ARMOURED PVC SHEATHED CABLE

– FOUR CORES WITH REDUCED NEUTRAL CU/XLPE/PVC/SWA/PVC CABLE

AL/XLPE/PVC/SWA/PVC CABLE 0.6 / 1 (1.2) kV

Phase		Neutral		Phase		Neutral	Nominal diameter of steel wire	Nominal thickness of sheath	Approximate overall diameter	Approximate weight of cable
Nominal cross- sectional area	Conductor Shape	Nominal cross- sectional area	Conductor Shape	Nominal Thickness of insulation						Copper	Aluminium
mm2		mm2		mm		mm	mm	mm	mm	Kg / Km	Kg / Km
25	c.c.	16	c.c.		0.9	0.7	1.6	1.8	27.4	1950	1390
35	c.c.	16	c.c.		0.9	0.7	1.6	1.9	29.5	2320	1580
50	s.m.	25	c.c.		1.0	0.9	1.6	2.0	32.5	2890	1850
70	s.m.	35	c.c.		1.1	0.9	2.0	2.2	38.2	4130	2640
95	s.m.	50	c.c.		1.1	1.0	2.0	2.3	42.3	5200	3150
120	s.m.	70	c.c.		1.2	1.1	2.5	2.5	46.4	6360	3720
150	s.m.	70	c.c.		1.4	1.1	2.5	2.6	52.9	7970	4760
185	s.m.	95	c.c.		1.6	1.1	2.5	2.8	58.1	9600	5590
240	s.m.	120	c.c.		1.7	1.2	2.5	3.0	64.6	12000	6750
300	s.m.	150	c.c.		1.8	1.4	2.5	3.2	70.3	14450	7860
400	s.m.	185	c.c.		2.0	1.6	3.15	3.5	79.5	18690	9720

XLPE INSULATED ARMOURED PVC SHEATHED CABLE – FIVE CORES CU/XLPE/PVC/SWA/PVC CABLE

AL/XLPE/PVC/SWA/PVC CABLE 0.6 / 1 (1.2) kV

Nominal cross- sectional area	Conductor Shape	Nominal thickness of insulation	Nominal diameter of steel wire	Nominal thickness of sheath	Approximate overall diameter	Approximate weight of cable
						Copper	Aluminium
mm2		mm	mm	mm	mm	Kg / Km	Kg / Km
1.5	r.m.	0.7	0.9	1.8	15.6	450	–
2.5	r.m.	0.7	0.9	1.8	16.7	540	–
4	r.m.	0.7	1.25	1.8	18.9	770	–
6	r.m.	0.7	1.25	1.8	20.4	930	740
10	r.m.	0.7	1.25	1.8	22.9	1220	910
16	c.c.	0.7	1.6	1.8	26.0	1770	1280
25	c.c.	0.9	1.6	1.8	30.4	2450	1670
35	c.c.	0.9	1.6	1.9	33.8	3100	2020
50	c.c.	1.0	2.0	2.1	39.1	4230	2760
70	c.c.	1.1	2.0	2.3	44.6	5550	3440
95	c.c.	1.1	2.5	2.4	51.8	7580	4650

Note : r.m. – circular stranded, c.c. – compacted circular stranded, s.m. – shaped stranded

XLPE INSULATED, PE INNER SHEATH, SCREENED AND PE SHEATHED UNDERGROUND CABLE

0.6 / 1 (1.2) kV

DESCRIPTION

Circular compacted and shaped stranded aluminium conductor, XLPE insulated, four cores assembled together with non- hygroscopic filler, extruded with PE inner sheath, copper tape screened and followed by an extruded PE outer sheath. Cables are rated at 0.6/1 (1.2) kV and conformed to IEC 60502.

CONSTRUCTION

Conductor

Plain compacted or shaped stranded aluminium conductor, conform to IEC 60228 class 2.

Insulation

XLPE (cross-linked polyethylene) rated at 90 oC.

• Colours for core identification
• Four cores – red, yellow, blue, and black
• Optional colours
• OR Four cores – brown, black, grey, blue
• Assembly

Four insulated conductors are laid up together, if necessary filled with non-hygroscopic material compatible with the insulation and inner sheath materials.

Inner Sheath

Medium density polyetylene (MDPE).

Metallic Screen

Copper tape screen (SCT).

Sheath

Medium density polyethylene (MDPE).

APPLICATION

These cables are designated for general use including underground burial, where they are not likely to suffer mechanical damage.

XLPE INSULATED SCREENED PE SHEATHED CABLE – FOUR CORES AL/XLPE/MDPE/SCT/MDPE CABLE ( WITH COPPER TAPE SCREENED ) 0.6 / 1 (1.2) kV

	Nominal cross- sectional area		Conductor Shape	Nominal thickness of insulation			Nominal thickness of PE inner sheath		Metallic Screening		Nominal thickness of PE outer sheath		Approximate overall diameter		Approximate weight of cable
									Approximate thickness of copper tape						Aluminium
	mm2			mm			mm		mm		mm		mm		kg/mm
16		c.c.			0.7	1.0		0.2		1.8		21.4		538
25		c.c.			0.9	1.0		0.2		1.8		25.4		758
35		c.c.			0.9	1.0		0.2		1.8		28.1		943
50		s.m.			1.0	1.0		0.2		1.9		30.2		1139
70		s.m.			1.1	1.2		0.2		2.0		34.9		1532
95		s.m.			1.1	1.2		0.2		2.2		39.2		1960
120		s.m.			1.2	1.4		0.2		2.3		43.5		2417
150		s.m.			1.4	1.4		0.2		2.5		48.0		2923
185		s.m.			1.6	1.4		0.2		2.6		53.0		3575
240		s.m.			1.7	1.6		0.2		2.8		59.5		4534
300		s.m.			1.8	1.6		0.2		3.0		65.4		5516
400		s.m.			2.0	1.8		0.2		3.3		73.4		6945

Note : c.c. – compacted circular stranded, s.m. – shaped stranded

XLPE INSULATED ARMOURED PVC SHEATHED CABLE

1.9 / 3.3 (3.6) kV

DESCRIPTION

Single core and multicore cables with copper or aluminium conductor, XLPE insulated, armoured and PVC sheathed. Cables are rated at 1.9 / 3.3 (3.6) kV and conformed to IEC 60502.

CONSTRUCTION

Conductor

Plain circular, compacted stranded copper or aluminium conductor, conform to IEC 60228 class 2.

Insulation

XLPE (cross-linked polyethylene) rated at 90 oC.

Colours for core identification

Single core – natural OR Three cores- red, yellow, and blue

• Optional colours
• Single core – natural
• Three cores – brown, black and grey
• Assembly

Three insulated conductors are laid up together, if necessary, filled with non-hygroscopic material compatible with the insulation and covered with layer of PVC bedding which may be an integral part of the filling.

Armour

Single Core – Aluminium wire shall be applied over the PVC bedding. Multicore – Galvanized steel wire shall be applied over the PVC bedding.

Sheath

PVC type ST2 to IEC 60502 colour black.

APPLICATION

These cables are most suitable for underground burial where there is a risk of mechanical damage.

Note : Cables complying with BS5467 and customer’s specification are available upon request.

XLPE INSULATED ARMOURED PVC SHEATHED CABLE – SINGLE CORE CU/XLPE/PVC/AWA/PVC CABLE

AL/XLPE/PVC/AWA/PVC CABLE 1.9 / 3.3 (3.6) kV

Nominal cross- sectional area		Conductor Shape		Nominal thickness of insulation			Nominal diameter of aluminium wire	Nominal thickness of sheath			Approximate overall diameter		Approximate weight of cable
													Copper	Aluminium
mm2				mm			mm	mm			mm		Kg / Km	Kg / Km
	10		r.m.		2.0	0.9			1.8	15.5		367			304
	16		c.c.		2.0	0.9			1.8	16.2		439			339
	25		c.c.		2.0	1.25			1.8	18.1		598			439
	35		c.c.		2.0	1.25			1.8	19.3		720			499
	50		c.c.		2.0	1.25			1.8	20.5		867			568
	70		c.c.		2.0	1.25			1.8	22.2		1108			676
	95		c.c.		2.0	1.6			1.8	24.8		1445			846
	120		c.c.		2.0	1.6			1.8	26.2		1714			958
	150		c.c.		2.0	1.6			1.8	27.6		2008			1079
	185		c.c.		2.0	1.6			1.8	29.4		2404			1238
	240		c.c.		2.0	1.6			1.9	31.9		3037			1490
	300		c.c.		2.0	1.6			2.0	34.3		3691			1750
	400		c.c.		2.0	2.0			2.1	38.4		4708			2226
	500		c.c.		2.2	2.0			2.2	41.9		5788			2659
	630		c.c.		2.4	2.0			2.3	46.1		7311			3251
	800		c.c.		2.6	2.5			2.5	52.2		9390			4197
	1000		r.m.		2.8	2.5			2.7	60.9		11799			5252

XLPE INSULATED ARMOURED PVC SHEATHED CABLE – THREE CORES CU/XLPE/PVC/SWA/PVC CABLE

AL/XLPE/PVC/SWA/PVC CABLE 1.9 / 3.3 (3.6) kV

Nominal cross- sectional area		Conductor Shape			Nominal thickness of insulation		Nominal diameter of steel wire		Nominal thickness of sheath		Approximate overall diameter		Approximate weight of cable
													Copper	Aluminium
mm2					mm		mm		mm		mm		Kg / Km	Kg / Km
	10		r.m	2.0		1.6		1.8		26.2		1418			1224
	16		c.c	2.0		1.6		1.8		27.8		1678			1371
	25		c.c	2.0		1.6		1.9		30.7		2116			1629
	35		c.c	2.0		1.6		1.9		33.2		2540			1865
	50		c.c	2.0		2.0		2.1		37.8		3422			2508
	70		c.c	2.0		2.0		2.2		41.6		4293			2972
	95		c.c	2.0		2.0		2.3		44.8		5273			3441
	120		c.c	2.0		2.5		2.4		50.6		6731			4416
	150		c.c	2.0		2.5		2.5		53.8		7768			4924
	185		c.c	2.0		2.5		2.7		57.9		9192			5625
	240		c.c	2.0		2.5		2.8		63.6		11472			6738
	300		c.c	2.0		2.5		3.0		68.8		13711			7773
	400		c.c	2.0		2.5		3.2		75.0		16756			9161

Note : r.m. – circular stranded, c.c. – compacted circular stranded

SINGLE CORE – XLPE INSULATED UNARMOURED PVC SHEATHED CABLE FOR VOLTAGES 6.6 kV UP TO AND INCLUDING 33kV TO IEC 60502

DESCRIPTION

Circular compacted stranded copper or aluminium conductor, XLPE insulated, with copper wire or copper tape screened and PVC outer sheath.

CONSTRUCTION

Conductor

Plain circular compacted stranded copper or aluminium conductor to IEC 60228 class 2.

Conductor Screen

Extruded layer of semiconductive compound.

Insulation

XLPE (cross-linked polyethylene) rated at 90 oC.

Insulation Screen

Non-metallic part

Extruded layer of semiconductive compound.

Metallic part

Copper wire screen (SCW) or Copper tape screen (SCT).

Outer Sheath

PVC type ST2 to IEC 60502 colour black.

APPLICATION

For installation on trays, ducts or direct burial .

Note : Cables complying with BS 6622 and customer’s specification are available upon request.

: PE outer sheath is available upon request.

XLPE INSULATED UNARMOURED PVC SHEATHED CABLE – SINGLE CORE CU/XLPE/SCW/PVC CABLE ( WITH COPPER WIRE SCREENED )

AL/XLPE/SCW/PVC CABLE ( WITH COPPER WIRE SCREENED ) 3.8 / 6.6 (7.2) kV

Nominal cross-			Nominal	Nominal thickness of XLPE insulation		Nominal cross- sectional area of metallic screen			Nominal	Approximate overall diameter of cable			Approximate weight of cable
sectional area of conductor			diameter of conductor						thickness of PVC sheath				Copper		Aluminium
mm2			mm	mm		mm2			mm	mm			Kg / Km		Kg / Km
	50	8.1			3.0		16	1.6			22	933		635
	70	9.7			3.0		16	1.7			24	1174		743
	95	11.5			3.0		16	1.7			26	1456		858
	120	12.9			3.0		16	1.8			28	1729		973
	150	14.3			3.0		25	1.8			29	2095		1167
	185	16.1			3.0		25	1.9			31	2492		1328
	240	18.4			3.0		25	2.0			34	3113		1567
	300	20.6			3.0		25	2.0			36	3735		1796
	400	23.3			3.0		35	2.2			39	4712		2232
	500	26.2			3.2		35	2.3			42	5765		2638
	630	29.8			3.2		35	2.4			46	7231		3158
	800	33.7			3.2		50	2.5			50	9128		3940

XLPE INSULATED UNARMOURED PVC SHEATHED CABLE – SINGLE CORE CU/XLPE/SCT/PVC CABLE ( WITH COPPER TAPE SCREENED )

AL/XLPE/SCT/PVC CABLE ( WITH COPPER TAPE SCREENED ) 3.8 / 6.6 (7.2) kV

Nominal cross- sectional area of conductor			Nominal diameter of conductor	Nominal thickness of XLPE insulation			Metallic Screening		Nominal thickness of PVC sheath	Approximate overall diameter of cable			Approximate weight of cable
							Approximate thickness of copper tape						Copper		Aluminium
mm2			mm	mm			mm		mm	mm			Kg / Km		Kg / Km
	50	8.1			3.0	0.1		1.6			20	805		506
	70	9.7			3.0	0.1		1.7			22	1049		618
	95	11.5			3.0	0.1		1.7			24	1335		737
	120	12.9			3.0	0.1		1.8			25	1610		855
	150	14.3			3.0	0.1		1.8			27	1897		968
	185	16.1			3.0	0.1		1.9			29	2297		1132
	240	18.4			3.0	0.1		2.0			31	2922		1376
	300	20.6			3.0	0.1		2.0			34	3550		1611
	400	23.3			3.0	0.1		2.1			36	4422		1942
	500	26.2			3.2	0.1		2.2			40	5479		2353
	630	29.8			3.2	0.1		2.3			44	6953		2897
	800	33.7			3.2	0.1		2.5			49	8741		3553

XLPE INSULATED UNARMOURED PVC SHEATHED CABLE – SINGLE CORE CU/XLPE/SCW/PVC CABLE ( WITH COPPER WIRE SCREENED )

AL/XLPE/SCW/PVC CABLE ( WITH COPPER WIRE SCREENED ) 6.35 / 11 (12) kV

Nominal cross-		Nominal	Nominal thickness of XLPE insulation		Nominal cross- sectional area of metallic screen			Nominal	Approximate overall diameter of cable			Approximate weight of cable
sectional area of conductor		diameter of conductor						thickness of PVC sheath				Copper		Aluminium
mm2		mm	mm		mm2			mm	mm			Kg / Km		Kg / Km
50	8.1			3.4		16	1.7			23	972		673
70	9.7			3.4		16	1.7			25	1204		773
95	11.5			3.4		16	1.8			27	1501		903
120	12.9			3.4		16	1.8			28	1763		1007
150	14.3			3.4		25	1.9			30	2145		1217
185	16.1			3.4		25	1.9			32	2530		1366
240	18.4			3.4		25	2.0			34	3153		1608
300	20.6			3.4		25	2.1			37	3796		1857
400	23.3			3.4		35	2.2			40	4760		2280
500	26.2			3.4		35	2.3			43	5790		2664
630	29.8			3.4		35	2.4			47	7259		3203
800	33.7			3.4		50	2.5			51	9159		3971

XLPE INSULATED UNARMOURED PVC SHEATHED CABLE – SINGLE CORE CU/XLPE/SCT/PVC CABLE ( WITH COPPER TAPE SCREENED )

AL/XLPE/SCT/PVC CABLE ( WITH COPPER TAPE SCREENED ) 6.35 / 11 (12) kV

Nominal cross- sectional area of conductor			Nominal diameter of conductor	Nominal thickness of XLPE insulation			Metallic Screening		Nominal thickness of PVC sheath	Approximate overall diameter of cable			Approximate weight of cable
							Approximate thickness of copper tape						Copper		Aluminium
mm2			mm	mm			mm		mm	mm			Kg / Km		Kg / Km
	50	8.1			3.4	0.1		1.6			21	834		536
	70	9.7			3.4	0.1		1.7			23	1081		649
	95	11.5			3.4	0.1		1.8			25	1380		782
	120	12.9			3.4	0.1		1.8			26	1646		890
	150	14.3			3.4	0.1		1.9			28	1947		1019
	185	16.1			3.4	0.1		1.9			29	2337		1172
	240	18.4			3.4	0.1		2.0			32	2965		1419
	300	20.6			3.4	0.1		2.1			34	3612		1673
	400	23.3			3.4	0.1		2.2			37	4488		2008
	500	26.2			3.4	0.1		2.3			40	5525		2399
	630	29.8			3.4	0.1		2.4			45	7003		2947
	800	33.7			3.4	0.1		2.5			49	8773		3585

XLPE INSULATED UNARMOURED PVC SHEATHED CABLE – SINGLE CORE CU/XLPE/SCW/PVC CABLE ( WITH COPPER WIRE SCREENED )

AL/XLPE/SCW/PVC CABLE ( WITH COPPER WIRE SCREENED ) 8.7 / 15 (17.5) kV

	Nominal cross-		Nominal	Nominal thickness of XLPE insulation		Nominal cross- sectional area of metallic screen			Nominal	Approximate overall diameter of cable			Approximate weight of cable
	sectional area of conductor		diameter of conductor						thickness of PVC sheath				Copper		Aluminium
	mm2		mm	mm		mm2			mm	mm			Kg / Km		Kg / Km
50		8.1			4.5		16	1.7			26	1053		754
70		9.7			4.5		16	1.8			27	1303		872
95		11.5			4.5		16	1.8			29	1593		995
120		12.9			4.5		16	1.9			31	1875		1119
150		14.3			4.5		25	1.9			32	2248		1320
185		16.1			4.5		25	2.0			34	2655		1490
240		18.4			4.5		25	2.1			37	3288		1742
300		20.6			4.5		25	2.1			39	3921		1982
400		23.3			4.5		35	2.3			42	4914		2435
500		26.2			4.5		35	2.4			45	5957		2830
630		29.8			4.5		35	2.5			50	7442		3386
800		33.7			4.5		50	2.6			54	9357		4169

XLPE INSULATED UNARMOURED PVC SHEATHED CABLE – SINGLE CORE CU/XLPE/SCT/PVC CABLE ( WITH COPPER TAPE SCREENED )

AL/XLPE/SCT/PVC CABLE ( WITH COPPER TAPE SCREENED ) 8.7 / 15 (17.5) kV

Nominal cross- sectional area of conductor			Nominal diameter of conductor	Nominal thickness of XLPE insulation			Metallic Screening		Nominal thickness of PVC sheath	Approximate overall diameter of cable			Approximate weight of cable
							Approximate thickness of copper tape						Copper		Aluminium
mm2			mm	mm			mm		mm	mm			Kg / Km		Kg / Km
	50	8.1			4.5	0.1		1.7			23	931		632
	70	9.7			4.5	0.1		1.8			25	1184		753
	95	11.5			4.5	0.1		1.8			27	1479		881
	120	12.9			4.5	0.1		1.9			29	1763		1007
	150	14.3			4.5	0.1		1.9			30	2056		1127
	185	16.1			4.5	0.1		2.0			32	2466		1301
	240	18.4			4.5	0.1		2.1			34	3104		1558
	300	20.6			4.5	0.1		2.1			37	3742		1803
	400	23.3			4.5	0.1		2.2			40	4629		2149
	500	26.2			4.5	0.1		2.3			43	5676		2549
	630	29.8			4.5	0.1		2.4			47	7168		3112
	800	33.7			4.5	0.1		2.6			51	8976		3787

XLPE INSULATED UNARMOURED PVC SHEATHED CABLE – SINGLE CORE CU/XLPE/SCW/PVC CABLE ( WITH COPPER WIRE SCREENED )

AL/XLPE/SCW/PVC CABLE ( WITH COPPER WIRE SCREENED ) 12.7 / 22 (24) kV

Nominal cross-		Nominal	Nominal thickness of XLPE insulation		Nominal cross- sectional area of metallic screen			Nominal	Approximate overall diameter of cable			Approximate weight of cable
sectional area of conductor		diameter of conductor						thickness of PVC sheath				Copper		Aluminium
mm2		mm	mm		mm2			mm	mm			Kg / Km		Kg / Km
50	8.1			5.5		16	1.8			28	1146		847
70	9.7			5.5		16	1.9			30	1403		972
95	11.5			5.5		16	1.9			31	1699		1101
120	12.9			5.5		16	2.0			33	1986		1231
150	14.3			5.5		25	2.0			34	2364		1436
185	16.1			5.5		25	2.1			36	2778		1613
240	18.4			5.5		25	2.1			39	3402		1856
300	20.6			5.5		25	2.2			41	4060		2122
400	23.3			5.5		35	2.3			44	5044		2564
500	26.2			5.5		35	2.4			47	6096		2969
630	29.8			5.5		35	2.5			52	7594		3538
800	33.7			5.5		50	2.7			56	9548		4360

XLPE INSULATED UNARMOURED PVC SHEATHED CABLE – SINGLE CORE CU/XLPE/SCT/PVC CABLE ( WITH COPPER TAPE SCREENED )

AL/XLPE/SCT/PVC CABLE ( WITH COPPER TAPE SCREENED ) 12.7 / 22 (24) kV

Nominal cross- sectional area of conductor			Nominal diameter of conductor	Nominal thickness of XLPE insulation			Metallic Screening		Nominal thickness of PVC sheath	Approximate overall diameter of cable			Approximate weight of cable
							Approximate thickness of copper tape						Copper		Aluminium
mm2			mm	mm			mm		mm	mm			Kg / Km		Kg / Km
	50	8.1			5.5	0.1		1.8			26	1027		729
	70	9.7			5.5	0.1		1.8			27	1275		843
	95	11.5			5.5	0.1		1.9			29	1588		990
	120	12.9			5.5	0.1		2.0			31	1878		1122
	150	14.3			5.5	0.1		2.0			32	2176		1247
	185	16.1			5.5	0.1		2.1			34	2593		1428
	240	18.4			5.5	0.1		2.1			36	3222		1677
	300	20.6			5.5	0.1		2.2			39	3886		1947
	400	23.3			5.5	0.1		2.3			42	4782		2302
	500	26.2			5.5	0.1		2.4			45	5840		2713
	630	29.8			5.5	0.1		2.5			49	7348		3291
	800	33.7			5.5	0.1		2.6			53	9145		3957

XLPE INSULATED UNARMOURED PVC SHEATHED CABLE – SINGLE CORE CU/XLPE/SCW/PVC CABLE ( WITH COPPER WIRE SCREENED )

AL/XLPE/SCW/PVC CABLE ( WITH COPPER WIRE SCREENED ) 19 / 33 (36) kV

	Nominal cross-		Nominal	Nominal thickness of XLPE insulation		Nominal cross- sectional area of metallic screen			Nominal	Approximate overall diameter of cable			Approximate weight of cable
	sectional area of conductor		diameter of conductor						thickness of PVC sheath				Copper	Aluminium
	mm2		mm	mm		mm2			mm	mm			Kg / Km	Kg / Km
50		8.1			8.0		16	2.0			33	1405			1107
70		9.7			8.0		16	2.0			35	1662			1231
95		11.5			8.0		16	2.1			37	1989			1391
120		12.9			8.0		16	2.1			38	2273			1517
150		14.3			8.0		25	2.2			40	2680			1752
185		16.1			8.0		25	2.2			42	3091			1926
240		18.4			8.0		25	2.3			44	3754			2208
300		20.6			8.0		25	2.4			47	4434			2495
400		23.3			8.0		35	2.5			49	5442			2962
500		26.2			8.0		35	2.6			52	6520			3393
630		29.8			8.0		35	2.7			57	8055			3999
800		33.7			8.0		50	2.8			61	10018			4830

XLPE INSULATED UNARMOURED PVC SHEATHED CABLE – SINGLE CORE CU/XLPE/SCT/PVC CABLE ( WITH COPPER TAPE SCREENED )

AL/XLPE/SCT/PVC CABLE ( WITH COPPER TAPE SCREENED ) 19 / 33 (36) kV

Nominal cross- sectional area of conductor		Nominal diameter of conductor	Nominal thickness of XLPE insulation			Metallic Screening		Nominal thickness of PVC sheath	Approximate overall diameter of cable			Approximate weight of cable
						Approximate thickness of copper tape						Copper		Aluminium
mm2		mm	mm			mm		mm	mm			Kg / Km		Kg / Km
50	8.1			8.0	0.1		2.0			31	1297		999
70	9.7			8.0	0.1		2.0			33	1558		1127
95	11.5			8.0	0.1		2.1			35	1888		1290
120	12.9			8.0	0.1		2.1			36	2176		1420
150	14.3			8.0	0.1		2.2			38	2502		1574
185	16.1			8.0	0.1		2.2			39	2917		1752
240	18.4			8.0	0.1		2.3			42	3585		2039
300	20.6			8.0	0.1		2.4			44	4269		2330
400	23.3			8.0	0.1		2.5			47	5190		2710
500	26.2			8.0	0.1		2.6			50	6274		3148
630	29.8			8.0	0.1		2.7			55	7819		3763
800	33.7			8.0	0.1		2.8			59	9651		4463

SINGLE CORE – XLPE INSULATED ARMOURED PVC SHEATHED CABLE FOR VOLTAGES 6.6 kV UP TO AND INCLUDING 33kV TO IEC 60502

DESCRIPTION

Circular compacted stranded copper or aluminium conductor, XLPE insulated, with copper tape screened and covered with extruded PVC bedding, aluminium wire armoured and PVC outer sheath.

CONSTRUCTION

Conductor

Plain circular compacted stranded copper or aluminium conductor to IEC 60228 class 2.

Conductor Screen

Extruded layer of semiconductive compound.

Insulation

XLPE (cross-linked polyethylene) rated at 90 oC.

Insulation Screen

Non-metallic part

Extruded layer of semiconductive compound.

Metallic part

Copper tape screen (SCT).

Bedding

Extruded layer of PVC ST2 compound.

Armour

Aluminium wires shall be applied helically over the PVC bedding.

Outer Sheath

PVC type ST2 to IEC 60502 colour black.

APPLICATION

For installation on trays, ducts or direct burial.

Note : cables complying with BS 6622 and customer’s specification are available upon request.

: PE outer sheath is available upon request.

XLPE INSULATED ARMOURED PVC SHEATHED CABLE – SINGLE CORE CU/XLPE/SCT/PVC/AWA/PVC CABLE ( WITH COPPER TAPE SCREENED ) AL/XLPE/SCT/PVC/AWA/PVC CABLE ( WITH COPPER TAPE SCREENED ) 3.8 / 6.6 (7.2) kV

Nominal cross- sectional area of conduuctor		Nominal diameter of conductor	Nominal thickness of XLPE insulation			Metallic Screening		Nominal diameter of aluminium wire		Nominal thickness of PVC sheath	Approximate overall diameter of cable			Approximate weight of cable
						Approximate thickness of copper tape								Copper	Aluminium
mm2		mm	mm			mm		mm		mm	mm			Kg / Km	Kg / Km
50	8.1			3.0	0.1		1.6		1.8			27	1218			920
70	9.7			3.0	0.1		1.6		1.9			28	1495			1064
95	11.5			3.0	0.1		1.6		1.9			30	1811			1213
120	12.9			3.0	0.1		1.6		2.0			32	2115			1359
150	14.3			3.0	0.1		2.0		2.1			34	2528			1599
185	16.1			3.0	0.1		2.0		2.1			36	2946			1782
240	18.4			3.0	0.1		2.0		2.2			38	3630			2084
300	20.6			3.0	0.1		2.0		2.2			41	4301			2363
400	23.3			3.0	0.1		2.0		2.4			44	5255			2775
500	26.2			3.2	0.1		2.5		2.5			48	6560			3434
630	29.8			3.2	0.1		2.5		2.6			53	8168			4074
800	33.7			3.2	0.1		2.5		2.7			57	10030			4822

XLPE INSULATED ARMOURED PVC SHEATHED CABLE – SINGLE CORE CU/XLPE/SCT/PVC/AWA/PVC CABLE ( WITH COPPER TAPE SCREENED ) AL/XLPE/SCT/PVC/AWA/PVC CABLE ( WITH COPPER TAPE SCREENED ) 6.35 / 11 (12) kV

Nominal cross- sectional area of conduuctor			Nominal diameter of conductor	Nominal thickness of XLPE insulation			Metallic Screening		Nominal diameter of aluminium wire		Nominal thickness of PVC sheath	Approximate overall diameter of cable			Approximate weight of cable
							Approximate thickness of copper tape								Copper	Aluminium
mm2			mm	mm			mm		mm		mm	mm			Kg / Km	Kg / Km
	50	8.1			3.4	0.1		1.6		1.8			27	1261			963
	70	9.7			3.4	0.1		1.6		1.9			29	1541			1109
	95	11.5			3.4	0.1		1.6		2.0			31	1874			1276
	120	12.9			3.4	0.1		2.0		2.0			33	2247			1491
	150	14.3			3.4	0.1		2.0		2.1			35	2581			1652
	185	16.1			3.4	0.1		2.0		2.1			37	3001			1837
	240	18.4			3.4	0.1		2.0		2.2			39	3688			2142
	300	20.6			3.4	0.1		2.0		2.3			42	4382			2443
	400	23.3			3.4	0.1		2.5		2.4			46	5524			3003
	500	26.2			3.4	0.1		2.5		2.5			48	6590			3464
	630	29.8			3.4	0.1		2.5		2.6			53	8201			4145
	800	33.7			3.4	0.1		2.5		2.8			58	10132			4944

XLPE INSULATED ARMOURED PVC SHEATHED CABLE – SINGLE CORE CU/XLPE/SCT/PVC/AWA/PVC CABLE ( WITH COPPER TAPE SCREENED ) AL/XLPE/SCT/PVC/AWA/PVC CABLE ( WITH COPPER TAPE SCREENED ) 8.75 / 15 (17.5) kV

Nominal cross- sectional area of conduuctor		Nominal diameter of conductor	Nominal thickness of XLPE insulation			Metallic Screening		Nominal diameter of aluminium wire		Nominal thickness of PVC sheath	Approximate overall diameter of cable			Approximate weight of cable
						Approximate thickness of copper tape								Copper	Aluminium
mm2		mm	mm			mm		mm		mm	mm			Kg / Km	Kg / Km
50	8.1			4.5	0.1		1.6		1.9			30	1401			1103
70	9.7			4.5	0.1		1.6		2.0			32	1688			1257
95	11.5			4.5	0.1		2.0		2.1			34	2111			1513
120	12.9			4.5	0.1		2.0		2.1			36	2412			1656
150	14.3			4.5	0.1		2.0		2.2			37	2752			1824
185	16.1			4.5	0.1		2.0		2.2			39	3188			2024
240	18.4			4.5	0.1		2.0		2.3			42	3875			2330
300	20.6			4.5	0.1		2.0		2.4			44	4579			2640
400	23.3			4.5	0.1		2.5		2.5			48	5709			3229
500	26.2			4.5	0.1		2.5		2.6			51	6849			3723
630	29.8			4.5	0.1		2.5		2.7			56	8456			4400
800	33.7			4.5	0.1		2.5		2.8			60	10362			5174

XLPE INSULATED ARMOURED PVC SHEATHED CABLE – SINGLE CORE CU/XLPE/SCT/PVC/AWA/PVC CABLE ( WITH COPPER TAPE SCREENED ) AL/XLPE/SCT/PVC/AWA/PVC CABLE ( WITH COPPER TAPE SCREENED ) 12.7 / 22 (24) kV

Nominal cross- sectional area of conduuctor		Nominal diameter of conductor	Nominal thickness of XLPE insulation			Metallic Screening		Nominal diameter of aluminium wire		Nominal thickness of PVC sheath	Approximate overall diameter of cable			Approximate weight of cable
						Approximate thickness of copper tape								Copper	Aluminium
mm2		mm	mm			mm		mm		mm	mm			Kg / Km	Kg / Km
50	8.1			5.5	0.1		2.0		2.0			33	1615			1317
70	9.7			5.5	0.1		2.0		2.1			35	1910			1478
95	11.5			5.5	0.1		2.0		2.1			36	2251			1653
120	12.9			5.5	0.1		2.0		2.2			38	2573			1818
150	14.3			5.5	0.1		2.0		2.2			39	2900			1972
185	16.1			5.5	0.1		2.0		2.3			41	3352			2187
240	18.4			5.5	0.1		2.0		2.4			44	4057			2512
300	20.6			5.5	0.1		2.5		2.5			47	4945			3006
400	23.3			5.5	0.1		2.5		2.6			50	5912			3432
500	26.2			5.5	0.1		2.5		2.7			54	7064			3938
630	29.8			5.5	0.1		2.5		2.8			58	8711			4655
800	33.7			5.5	0.1		2.5		2.9			62	10623			5435

XLPE INSULATED ARMOURED PVC SHEATHED CABLE – SINGLE CORE CU/XLPE/SCT/PVC/AWA/PVC CABLE ( WITH COPPER TAPE SCREENED ) AL/XLPE/SCT/PVC/AWA/PVC CABLE ( WITH COPPER TAPE SCREENED ) 19/33 (36) kV

Nominal cross- sectional area of conduuctor			Nominal diameter of conductor	Nominal thickness of XLPE insulation			Metallic Screening		Nominal diameter of aluminium wire		Nominal thickness of PVC sheath	Approximate overall diameter of cable			Approximate weight of cable
							Approximate thickness of copper tape								Copper	Aluminium
mm2			mm	mm			mm		mm		mm	mm			Kg / Km	Kg / Km
	50	8.1			8.0	0.1		2.0		2.2			38	1993			1695
	70	9.7			8.0	0.1		2.0		2.2			40	2293			1863
	95	11.5			8.0	0.1		2.0		2.3			42	2659			2061
	120	12.9			8.0	0.1		2.0		2.4			43	2996			2240
	150	14.3			8.0	0.1		2.5		2.4			46	3498			2570
	185	16.1			8.0	0.1		2.5		2.5			48	3979			2814
	240	18.4			8.0	0.1		2.5		2.6			50	4714			3169
	300	20.6			8.0	0.1		2.5		2.6			53	5462			3523
	400	23.3			8.0	0.1		2.5		2.8			56	6480			4000
	500	26.2			8.0	0.1		2.5		2.9			59	7662			4536
	630	29.8			8.0	0.1		2.5		3.0			64	9362			5306
	800	33.7			8.0	0.1		2.5		3.1			68	11300			6112

SINGLE CORE – XLPE INSULATED UNARMOURED PE INNER AND OUTER SHEATH CABLE FOR VOLTAGES 6.35 / 11 (12) kV AND 12.7 / 22 (24) kV

DESCRIPTION

Circular compacted stranded aluminium conductor, XLPE insulated, with copper tape screened, extruded with PE inner sheath and followed by an extruded PE outer sheath. Complies with Tenaga National Berhad (TNB) specification.

CONSTRUCTION

Conductor

Plain circular compacted stranded aluminium conductor to IEC 60228 class 2.

Conductor Screen

Extruded layer of semiconductive compound.

Insulation

XLPE (cross-linked polyethylene) rated at 90 oC.

Insulation Screen

Non-metallic part

Extruded layer of semiconductive compound.

Metallic part

Copper tape screen (SCT).

Inner Sheath

MDPE type ST7 to IEC 60502 colour black.

Outer Sheath

MDPE type ST7 to IEC 60502 colour black containing an effective termite repellent.

APPLICATION

These cables are generally suitable for direct burial or for installation on trays or ducts.

XLPE INSULATED UNARMOURED PE INNER AND OUTER SHEATH CABLE – SINGLE CORE AL/XLPE/SCT/MDPE/MDPE CABLE ( WITH COPPER TAPE SCREENED ) 6.35 / 11 (12) kV

			Nominal thickness of XLPE insulation			Metallic					Approximate overall diameter of cable			Approximate
Nominal cross-		Nominal				Screening		Nominal		Nominal				weight of cable
sectional area of conductor		diameter of conductor				Approximate thickness of		thickness of PE inner sheath		thickness of PE outer sheath				Aluminium
						copper tape
mm2		mm	mm			mm		mm		mm	Kg / Km			Kg / Km
50	8.1			3.4	0.2		2.5		1.8			27	772
70	9.7			3.4	0.2		2.5		1.8			29	891
95	11.5			3.4	0.2		2.5		1.8			30	1029
120	12.9			3.4	0.2		2.5		1.8			32	1151
150	14.3			3.4	0.2		2.5		1.9			33	1289
185	16.1			3.4	0.2		2.5		1.9			35	1458
240	18.4			3.4	0.2		2.5		2.0			38	1722
300	20.6			3.4	0.2		2.5		2.1			40	1991
400	23.3			3.4	0.2		2.5		2.2			43	2346
500	26.2			3.4	0.2		2.5		2.3			46	2755
630	29.8			3.4	0.2		2.5		2.4			51	3332
800	33.7			3.4	0.2		2.5		2.5			55	3995

XLPE INSULATED UNARMOURED PE INNER AND OUTER SHEATH CABLE – SINGLE CORE AL/XLPE/SCT/MDPE/MDPE CABLE ( WITH COPPER TAPE SCREENED ) 12.7 / 22 (24) kV

Nominal cross- sectional area of conductor		Nominal diameter of conductor	Nominal thickness of XLPE insulation			Metallic Screening		Nominal thickness of PE inner sheath		Nominal thickness of PE outer sheath	Approximate overall diameter of cable			Approximate weight of cable
						Approximate thickness of copper tape								Aluminium
mm2		mm	mm			mm		mm		mm	Kg / Km			Kg / Km
50	8.1			5.5	0.2		2.5		1.8			31	983
70	9.7			5.5	0.2		2.5		1.9			33	1123
95	11.5			5.5	0.2		2.5		1.9			35	1272
120	12.9			5.5	0.2		2.5		2.0			36	1414
150	14.3			5.5	0.2		2.5		2.0			38	1551
185	16.1			5.5	0.2		2.5		2.1			40	1743
240	18.4			5.5	0.2		2.5		2.2			42	2025
300	20.6			5.5	0.2		2.5		2.2			45	2297
400	23.3			5.5	0.2		2.5		2.3			47	2670
500	26.2			5.5	0.2		2.5		2.4			51	3099
630	29.8			5.5	0.2		2.5		2.5			55	3704
800	33.7			5.5	0.2		2.5		2.7			59	4411

THREE CORES – XLPE INSULATED UNARMOURED PVC SHEATHED CABLE FOR VOLTAGES 6.6 kV UP TO AND INCLUDING 33 kV TO IEC 60502

DESCRIPTION

Circular compacted stranded copper or aluminium conductor, XLPE insulated, copper tape screened, three cores assembled together with non-hygroscopic polypropylene fillers and extruded with PVC outer sheath.

CONSTRUCTION

Conductor

Plain circular compacted stranded copper or aluminium conductor to IEC 60228 class 2.

Conductor Screen

Extruded layer of semiconductive compound.

Insulation

XLPE (cross-linked polyethylene) rated at 90 oC.

Insulation Screen

Non-metallic part

Extruded layer of semiconductive compound.

Metallic part

Copper tape screen (SCT).

Colours For Core Identification

Red, yellow and blue tapes shall be applied between non metallic and metallic part of insulation screen.

Assembly

Three screened cores are laid up together, if necessary filled with non-hygroscopic material compatible with insulation and covered with a layer of PVC sheath.

Outer Sheath

PVC type ST2 IEC 60502 colour black.

APPLICATION

These cables are generally suitable for direct burial or for installation on trays or ducts. Where there is a risk of mechanical damage, armoured cables should be used.

Note: Cables complying with BS 6622 and customer’s specification are available upon request.

: PE outer sheath is available upon request.

XLPE INSULATED UNARMOURED PVC SHEATHED CABLE – THREE CORES CU/XLPE/SCT/PVC CABLE ( WITH COPPER TAPE SCREENED )

AL/XLPE/SCT/PVC CABLE ( WITH COPPER TAPE SCREENED ) 3.8 / 6.6 (7.2) kV

Nominal cross- sectional area of conductor		Nominal diameter of conductor	Nominal thickness of XLPE insulation			Metallic Screening		Nominal thickness of PVC sheath	Approximate overall diameter of cable			Approximate weight of cable
						Approximate thickness of copper tape						Copper	Aluminium
mm2		mm	mm			mm		mm	mm			Kg / Km	Kg / Km
50	8.1			3.0	0.1		2.3			41	2640			1728
70	9.7			3.0	0.1		2.4			44	3417			2097
95	11.5			3.0	0.1		2.6			49	4385			2555
120	12.9			3.0	0.1		2.7			52	5263			2950
150	14.3			3.0	0.1		2.8			55	6211			3371
185	16.1			3.0	0.1		2.9			59	7485			3922
240	18.4			3.0	0.1		3.1			65	9506			4777
300	20.6			3.0	0.1		3.2			70	11556			5623
400	23.3			3.0	0.1		3.4			76	14372			6783

XLPE INSULATED UNARMOURED PVC SHEATHED CABLE – THREE CORES CU/XLPE/SCT/PVC CABLE ( WITH COPPER TAPE SCREENED )

AL/XLPE/SCT/PVC CABLE ( WITH COPPER TAPE SCREENED ) 6.35 / 11 (12) kV

Nominal cross- sectional area of conductor		Nominal diameter of conductor	Nominal thickness of XLPE insulation			Metallic Screening		Nominal thickness of PVC sheath	Approximate overall diameter of cable			Approximate weight of cable
						Approximate thickness of copper tape						Copper	Aluminium
mm2		mm	mm			mm		mm	mm			Kg / Km	Kg / Km
50	8.1			3.4	0.1		2.4			43	2769			1856
70	9.7			3.4	0.1		2.5			46	3557			2237
95	11.5			3.4	0.1		2.6			50	4513			2683
120	12.9			3.4	0.1		2.7			54	5398			3085
150	14.3			3.4	0.1		2.8			57	6354			3513
185	16.1			3.4	0.1		3.0			61	7666			4102
240	18.4			3.4	0.1		3.1			66	9670			4941
300	20.6			3.4	0.1		3.3			71	11765			5833
400	23.3			3.4	0.1		3.5			78	14598			7010

XLPE INSULATED UNARMOURED PVC SHEATHED CABLE – THREE CORES CU/XLPE/SCT/PVC CABLE ( WITH COPPER TAPE SCREENED )

AL/XLPE/SCT/PVC CABLE ( WITH COPPER TAPE SCREENED ) 8.7 / 15 (17.5) kV

Nominal cross- sectional area of conductor		Nominal diameter of conductor	Nominal thickness of XLPE insulation			Metallic Screening		Nominal thickness of PVC sheath	Approximate overall diameter of cable			Approximate weight of cable
						Approximate thickness of copper tape						Copper	Aluminium
mm2		mm	mm			mm		mm	mm			Kg / Km	Kg / Km
50	8.1			4.5	0.1		2.6			48	3137			2224
70	9.7			4.5	0.1		2.7			52	3953			2633
95	11.5			4.5	0.1		2.8			55	4937			3107
120	12.9			4.5	0.1		2.9			59	5845			3533
150	14.3			4.5	0.1		3.0			62	6826			3985
185	16.1			4.5	0.1		3.1			66	8137			4574
240	18.4			4.5	0.1		3.3			71	10212			5482
300	20.6			4.5	0.1		3.4			76	12308			6376
400	23.3			4.5	0.1		3.7			83	15223			7635

XLPE INSULATED UNARMOURED PVC SHEATHED CABLE – THREE CORES CU/XLPE/SCT/PVC CABLE ( WITH COPPER TAPE SCREENED )

AL/XLPE/SCT/PVC CABLE ( WITH COPPER TAPE SCREENED ) 12.7 / 22 (24) kV

Nominal cross- sectional area of conductor		Nominal diameter of conductor	Nominal thickness of XLPE insulation			Metallic Screening		Nominal thickness of PVC sheath	Approximate overall diameter of cable			Approximate weight of cable
						Approximate thickness of copper tape						Copper	Aluminium
mm2		mm	mm			mm		mm	mm			Kg / Km	Kg / Km
50	8.1			5.5	0.1		2.7			52	3483			2570
70	9.7			5.5	0.1		2.8			56	4323			3003
95	11.5			5.5	0.1		3.0			60	5360			3530
120	12.9			5.5	0.1		3.1			64	6292			3980
150	14.3			5.5	0.1		3.2			67	7293			4453
185	16.1			5.5	0.1		3.3			71	8631			5067
240	18.4			5.5	0.1		3.4			76	10706			5976
300	20.6			5.5	0.1		3.6			81	12872			6939
400	23.3			5.5	0.1		3.8			87	15789			8201

XLPE INSULATED UNARMOURED PVC SHEATHED CABLE – THREE CORES CU/XLPE/SCT/PVC CABLE ( WITH COPPER TAPE SCREENED )

AL/XLPE/SCT/PVC CABLE ( WITH COPPER TAPE SCREENED ) 19 / 33 (36) kV

			Nominal thickness of XLPE insulation			Metallic			Approximate overall diameter of cable			Approximate weight of cable
Nominal cross-		Nominal				Screening		Nominal
sectional area of conductor		diameter of conductor				Approximate thickness of		thickness of PVC sheath				Copper	Aluminium
						copper tape
mm2		mm	mm			mm		mm	mm			Kg / Km	Kg / Km
50	8.1			8.0	0.1		3.1			64	4521			3608
70	9.7			8.0	0.1		3.2			68	5420			4100
95	11.5			8.0	0.1		3.3			72	6494			4664
120	12.9			8.0	0.1		3.4			75	7478			5165
150	14.3			8.0	0.1		3.5			78	8530			5689
185	16.1			8.0	0.1		3.7			82	9970			6406
240	18.4			8.0	0.1		3.8			88	12131			7401
300	20.6			8.0	0.1		4.0			93	14380			8448
400	23.3			8.0	0.1		4.2			99	17402			9814

THREE CORES – XLPE INSULATED ARMOURED PVC SHEATHED CABLE FOR VOLTAGES 6.6 kV UP TO AND INCLUDING 33 kV TO IEC 60502

DESCRIPTION

Circular compacted stranded copper or aluminium conductor, XLPE insulated copper tape screened, three cores assembled together with non-hygroscopic polypropylene fillers, covered with extruded PVC bedding, armoured and PVC outer sheath.

CONSTRUCTION

Conductor

Plain circular compacted stranded copper or aluminium conductor to IEC 60228 class 2.

Conductor Screen

Extruded layer of semiconductive compound.

Insulation

XLPE (cross-linked polyethylene) rated at 90 oC.

Insulation Screen

Non-metallic part

Extruded layer of semiconductive compound.

Metallic part

Copper tape screen (SCT).

Colours For Core Identification

Red, yellow, and blue tapes shall be applied between non metallic and metallic part of insulation screen.

Assembly

Three screened cores are laid up together, if necessary filled with non-hygroscopic material compatible with insulation and covered with a layer of PVC sheath.

Bedding

Extruded layer of PVC ST2 compound.

Armour

Galvanized steel wires shall be applied helically over the PVC bedding.

Outer Sheath

PVC type ST2 to IEC 60502 colour black.

APPLICATION

These cables are generally suitable for direct burial or for installation on trays or ducts. Where there is a risk of mechanical damage, armoured cable should be used.

Note: Cables complying with BS 6622 and customer’s specification are available upon request. Galvanized steel tape is applied helically over the PVC bedding is available upon request.

XLPE INSULATED ARMOURED PVC SHEATHED CABLE – THREE CORES CU/XLPE/SCT/PVC/SWA/PVC CABLE ( WITH COPPER TAPE SCREENED ) AL/XLPE/SCT/PVC/SWA/PVC CABLE ( WITH COPPER TAPE SCREENED ) 3.8 / 6.6 (7.2) kV

Nominal cross- sectional area of conduuctor		Nominal diameter of conductor	Nominal thickness of XLPE insulation			Metallic Screening		Nominal diameter of steel wire	Nominal thickness of PVC sheath		Approximate overall diameter of cable			Approximate weight of cable
						Approximate thickness of copper tape								Copper		Aluminium
mm2		mm	mm			mm		mm	mm		mm			Kg / Km		Kg / Km
50	8.1			3.0	0.1		2.5			2.6		50	5086		4173
70	9.7			3.0	0.1		2.5			2.7		54	6068		4749
95	11.5			3.0	0.1		2.5			2.9		58	7272		5442
120	12.9			3.0	0.1		2.5			3.0		61	8381		6068
150	14.3			3.0	0.1		2.5			3.1		65	9533		6692
185	16.1			3.0	0.1		2.5			3.2		69	11047		7484
240	18.4			3.0	0.1		3.15			3.4		76	14244		9514
300	20.6			3.0	0.1		3.15			3.6		81	16760		10827
400	23.3			3.0	0.1		3.15			3.8		88	20029		12441

XLPE INSULATED ARMOURED PVC SHEATHED CABLE – THREE CORES CU/XLPE/SCT/PVC/SWA/PVC CABLE ( WITH COPPER TAPE SCREENED ) AL/XLPE/SCT/PVC/SWA/PVC CABLE ( WITH COPPER TAPE SCREENED ) 6.35 / 11 (12) kV

Nominal cross- sectional area of conduuctor		Nominal diameter of conductor	Nominal thickness of XLPE insulation			Metallic Screening		Nominal diameter of steel wire	Nominal thickness of PVC sheath		Approximate overall diameter of cable			Approximate weight of cable
						Approximate thickness of copper tape								Copper		Aluminium
mm2		mm	mm			mm		mm	mm		mm			Kg / Km		Kg / Km
50	8.1			3.4	0.1		2.5			2.7		51	5319		4406
70	9.7			3.4	0.1		2.5			2.8		55	6336		5016
95	11.5			3.4	0.1		2.5			2.9		59	7500		5670
120	12.9			3.4	0.1		2.5			3.0		63	8617		6304
150	14.3			3.4	0.1		2.5			3.1		66	9805		6965
185	16.1			3.4	0.1		2.5			3.3		70	11334		7771
240	18.4			3.4	0.1		3.15			3.5		77	14597		9867
300	20.6			3.4	0.1		3.15			3.6		82	17089		11157
400	23.3			3.4	0.1		3.15			3.9		89	20417		12828

XLPE INSULATED ARMOURED PVC SHEATHED CABLE – THREE CORES CU/XLPE/SCT/PVC/SWA/PVC CABLE ( WITH COPPER TAPE SCREENED ) AL/XLPE/SCT/PVC/SWA/PVC CABLE ( WITH COPPER TAPE SCREENED ) 8.7 / 15 (17.5) kV

Nominal cross- sectional area of conduuctor			Nominal diameter of conductor	Nominal thickness of XLPE insulation			Metallic Screening		Nominal diameter of steel wire	Nominal thickness of PVC sheath		Approximate overall diameter of cable			Approximate weight of cable
							Approximate thickness of copper tape								Copper		Aluminium
mm2			mm	mm			mm		mm	mm		mm			Kg / Km		Kg / Km
	50	8.1			4.5	0.1		2.5			2.9		57	5976		5063
	70	9.7			4.5	0.1		2.5			3.0		61	7069		5749
	95	11.5			4.5	0.1		2.5			3.1		65	8264		6434
	120	12.9			4.5	0.1		2.5			3.2		68	9407		7094
	150	14.3			4.5	0.1		3.15			3.4		73	11405		8564
	185	16.1			4.5	0.1		3.15			3.5		77	13064		9500
	240	18.4			4.5	0.1		3.15			3.6		83	15540		10810
	300	20.6			4.5	0.1		3.15			3.8		88	18046		12113
	400	23.3			4.5	0.1		3.15			4.0		95	21448		13860

XLPE INSULATED ARMOURED PVC SHEATHED CABLE – THREE CORES CU/XLPE/SCT/PVC/SWA/PVC CABLE ( WITH COPPER TAPE SCREENED ) AL/XLPE/SCT/PVC/SWA/PVC CABLE ( WITH COPPER TAPE SCREENED ) 12.7/ 22 (24) kV

Nominal cross- sectional area of conduuctor		Nominal diameter of conductor	Nominal thickness of XLPE insulation			Metallic Screening		Nominal diameater of steel wire	Nominal thickness of PVC sheath		Approximate overall diameter of cable			Approximate weight of cable
						Approximate thickness of copper tape								Copper		Aluminium
mm2		mm	mm			mm		mm	mm		mm			Kg / Km		Kg / Km
50	8.1			5.5	0.1		2.5			3.0		61	6606		5693
70	9.7			5.5	0.1		2.5			3.1		65	7697		6378
95	11.5			5.5	0.1		2.5			3.2		69	8947		7117
120	12.9			5.5	0.1		3.15			3.4		74	11021		8708
150	14.3			5.5	0.1		3.15			3.5		77	12195		9354
185	16.1			5.5	0.1		3.15			3.6		82	13882		10318
240	18.4			5.5	0.1		3.15			3.8		87	16436		11707
300	20.6			5.5	0.1		3.15			4.0		93	18982		13050
400	23.3			5.5	0.1		3.15			4.2		99	22485		14896

XLPE INSULATED ARMOURED PVC SHEATHED CABLE – THREE CORES CU/XLPE/SCT/PVC/SWA/PVC CABLE ( WITH COPPER TAPE SCREENED ) AL/XLPE/SCT/PVC/SWA/PVC CABLE ( WITH COPPER TAPE SCREENED ) 19/33 (36) kV

Nominal cross- sectional area of conduuctor		Nominal diameter of conductor	Nominal thickness of XLPE insulation			Metallic Screening		Nominal diameter of steel wire	Nominal thickness of PVC sheath			Approximate overall diameter of cable		Approximate weight of cable
						Approximate thickness of copper tape								Copper		Aluminium
mm2		mm	mm			mm		mm	mm			mm		Kg / Km		Kg / Km
50	8.1			8.0	0.1		3.15			3.4	75		9250		8337
70	9.7			8.0	0.1		3.15			3.6	79		10466		9146
95	11.5			8.0	0.1		3.15			3.7	83		11858		10028
120	12.9			8.0	0.1		3.15			3.8	86		13124		10811
150	14.3			8.0	0.1		3.15			3.9	90		14460		11619
185	16.1			8.0	0.1		3.15			4.0	94		16116		12552
240	18.4			8.0	0.1		3.15			4.2	100		18825		14095
300	20.6			8.0	0.1		3.15			4.4	105		21466		15533
400	23.3			8.0	0.1		3.15			4.6	111		24969		17381

THREE CORES – XLPE INSULATED UNARMOURED PE INNER AND OUTER SHEATH CABLE FOR VOLTAGE

6.35 / 11 (12 ) kV

DESCRIPTION

Circular compacted stranded aluminium conductor, XLPE insulated, with copper tape screened, three cores assembled together with non-hygroscopic polypropylene fillers, extruded with PE inner sheath and followed by an extruded PE outer sheath. Complies with Tenaga Nasional Berhad (TNB) specification..

CONSTRUCTION

Conductor

Plain circular compacted stranded aluminium conductor to IEC 60228 class 2.

Conductor Screen

Extruded layer of semiconductive compound.

Insulation

XLPE (cross-linked polyethylene) rated at 90 oC.

Insulation Screen

Non-metallic part

Extruded layer of semiconductive compound.

Metallic part

Copper tape screen (SCT).

Colours For Core Identification

Red,yellow and blue tapes shall be applied between non metallic and metallic part of insulation screen.

Assembly

Three screened cores are laid up together, if necessary filled with non-hygroscopic material compatible with insulation and inner sheath.

Inner Sheath

MDPE type ST7 to IEC 60502 colour black.

Outer Sheath

MDPE type ST7 to IEC 60502 colour back, containing and effective termite repellent.

APPLICATION

These cables are generally suitable for direct burial or for installation on trays or ducts.

XLPE INSULATED UNARMOURED PE INNER AND OUTER SHEATH CABLE – THREE CORES AL/XLPE/SCT/MDPE/MDPE CABLE ( WITH COPPER TAPE SCREENED ) 6.35 / 11 (12) kV

Nominal cross- sectional area of conductor	Nominal diameter of conductor	Nominal thickness of XLPE insulation	Metallic Screening	Nominal thickness of PE inner Sheath	Nominal thickness of PE outer Sheath	Approximate overall diameter of cable	Approximate weight of cable
			Approximate thickness of copper tape				Aluminium
mm2	mm	mm	mm	mm	mm	Kg / Km	Kg / Km

50	8.1	3.4	0.2	2.5	2.4	48	2264
70	9.7	3.4	0.2	2.5	2.5	52	2673
95	11.5	3.4	0.2	2.5	2.7	56	3163
120	12.9	3.4	0.2	2.5	2.8	60	3586
150	14.3	3.4	0.2	2.5	2.9	63	4035
185	16.1	3.4	0.2	2.5	3.0	67	4619
240	18.4	3.4	0.2	2.5	3.1	72	5512
300	20.6	3.4	0.2	2.5	3.3	77	6398
400	23.3	3.4	0.2	2.5	3.6	84	7624
