LV & MV Power Cables

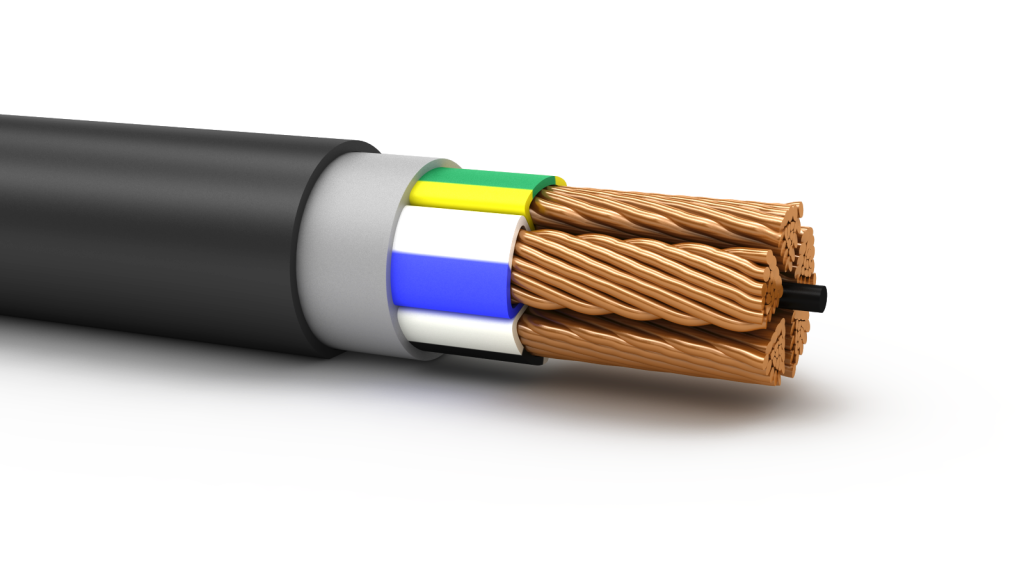

Low Voltage Power Cables

Low Voltage(450/750v 0.6/1KV) Single-Multi-Core PVC/XLPE Insulated Power and Control Cables

Standards: IEC 60228 · IEC 60502-1 · IEC 60332-3-22 · IEC 60332-3-23 · IEC 60332-3-24 · IEC60754-1/2

Product Description

Low Voltage(450/750v 0.6/1KV) Single-Multi-Core PVC/XLPE Insulated Power and Control Cables

Introduction

Low voltage power cables are used for electricity supply in low voltage installation system, They are suitable for installation in indoors and outdoors, in cable ducts, underground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage.

As one of the leaders in the cable industry in China, we offer an extensive range of cables and cabling systems to raise industrial productivity, improve business performance, enhance security, enrich the quality of life, and assure long-term network reliability. We supplies cables solutions for structures of all types: from small residences to public and office buildings and big industrial complexes.

Construction

Conductors

The conductors shall be either of Class 1 or Class 2 of plain or metal-coated annealed copper or of plain aluminium or aluminium alloy, or of Class 5 of plain or metal-coated copper in accordance with IEC 60228.

Insulation

PVC Insulation material and thickness shall be as per IEC 60502-1, PVC material shall be Type A as per IEC 60502-1.

Colour Code

Colour Code (1)

1 Core	Red or Black
2 Cores	Red, Black
3 Cores	Red, Yellow, Blue
4 Cores	Red, Yellow, Blue, Black
5 Cores	Red, Yellow, Blue, Black, Green
Above 5 Cores	Black Cores with White numerals

Colour Code (2

1 Core	Brown or Blue
2 Cores	Brown, Blue
3 Cores	Brown, Black, Grey
4 Cores	Blue, Brown, Black, Grey
5 Cores	Green/Yellow, Blue, Brown, Black, Grey
Above 5 Cores	Black Cores with White numerals

Other colours can be manufactured upon request.

Armour

AWA/SWA/STA/DSTA

Outer Sheath

Outer sheath shall be of extruded PVC Type ST1/ST2 as per IEC 60502-1, Polyethylene type ST3/ST7, Halogen free compound ST8, Polychloroprene, chlorosulfonated polyethylene or similar polymers, type SE1 are also available on request.

Fire Performance of Cable Sheaths

Cables can be supplied with special flame retardant PVC outer sheath to comply with the flame test requirements of IEC 60332-3-22, IEC 60332-3-23 and IEC 60332-3-24, Halogen Free material comply to IEC60754-1/2 and IEC 60684-2.

XLPE insulated Power Cable

0.6/1kV XLPE Insulated Unarmoured/Armoured Cable	Core	Armor
Cu or Al/XLPE/PVC Power Cable	Single Core	No
Cu or Al/XLPE/AWA/PVC Power Cable	Single Core	AWA
Cu or Al/XLPE/PVC Power Cable	Two Cores	No
Cu or Al/XLPE/STA/PVC Power Cable	Two Cores	STA
Cu or Al/XLPE/SWA/PVC Power Cable	Two Cores	SWA
Cu or Al/XLPE/PVC Power Cable	Three Cores	No
Cu or Al/XLPE/STA/PVC Power Cable	Three Cores	STA
Cu or Al/XLPE/SWA/PVC Power Cable	Three Cores	SWA
Cu or Al/XLPE/PVC Power Cable	3+1 Cores	No
Cu or Al/XLPE/STA/PVC Power Cable	3+1 Cores	STA
Cu or Al/XLPE/SWA/PVC Power Cable	3+1 Cores	SWA
Cu or Al/XLPE/PVC Power Cable	Four Cores	No
Cu or Al/XLPE/STA/PVC Power Cable	Four Cores	STA
Cu or Al/XLPE/SWA/PVC Power Cable	Four Cores	SWA
Cu or Al/XLPE/PVC Power Cable	4+1 Cores	No
Cu or Al/XLPE/STA/PVC Power Cable	4+1 Cores	STA
Cu or Al/XLPE/SWA/PVC Power Cable	4+1 Cores	SWA
Cu or Al/XLPE/PVC Power Cable	Five Cores	No
Cu or Al/XLPE/STA/PVC Power Cable	Five Cores	STA
Cu or Al/XLPE/SWA/PVC Power Cable	Five Cores	SWA
Cu or Al/XLPE/PVC Power Cable	3+2 Cores	No
Cu or Al/XLPE/STA/PVC Power Cable	3+2 Cores	STA
Cu or Al/XLPE/SWA/PVC Power Cable	3+2 Cores	SWA

PVC insulated Power Cable

0.6/1kV PVC Insulated un-armoured/armoured Cable	Conductor		Insulation	Armor				Outer Sheath
0.6/1kV PVC Insulated un-armoured/armoured Cable	Aluminum	Copper	PVC	SW	ST	DST	AW	PVC	PE
Cu/PVC/PVC		P	P	—	—	—	—	P
Cu/PVC/PE		P	P	—	—	—	—		P
Al/PVC/PVC	P		P	—	—	—	—	P
Al/PVC/PE	P		P	—	—	—	—		P
Cu/PVC/STA/PVC		P	P	—	P	—	—	P
Cu/PVC/STA/PE		P	P	—	P	—	—		P
Al/PVC/STA/PVC	P		P	—	P	—	—	P
Al/PVC/STA/PE	P		P	—	P	—	—		P
Cu/PVC/DSTA/PVC		P	P	—	—	P	—	P
Cu/PVC/DSTA/PE		P	P	—	—	P	—		P
Al/PVC/DSTA/PVC	P		P	—	—	P	—	P
Al/PVC/DSTA/PE	P		P	—	—	P	—		P
Cu/PVC/SWA/PVC		P	P	P	—	—	—	P
Cu/PVC/SWA/PE		P	P	P	—	—	—		P
Al/PVC/SWA/PVC	P		P	P	—	—	—	P
Al/PVC/SWA/PE	P		P	P	—	—	—		P
Cu/PVC/AWA/PVC		P	P	—	—	—	P	P
Cu/PVC/AWA/PE		P	P	—	—	—	P		P
Al/PVC/AWA/PVC	P		P	—	—	—	P	P
Al/PVC/AWA/PE	P		P	—	—	—	P		P
Armor material : SW=steel wire, ST=steel tape, DST=double steel tape, AW=aluminum wire

Product Range

450/750 V Single-core non-sheathed cables, PVC insulated with copper conductor

0.6/1 kV Single-core cables, PVC insulated, unarmoured with copper conductor

0.6/1 kV Single-core cables, PVC insulated, unarmoured with aluminum conductor

0.6/1 kV Multi-core cables, PVC insulated, unarmoured with copper conductor

0.6/1 kV Multi-core cables, PVC insulated, unarmoured with aluminum conductor

0.6/1 kV Single-core cables, PVC insulated, wire armoured with copper conductor

0.6/1 kV Single-core cables, PVC insulated, wire armoured with aluminum conductor

0.6/1 kV Multi-core cables, PVC insulated, tape armoured with copper conductor

0.6/1 kV Multi-core cables, PVC insulated, tape armoured with aluminum conductor

0.6/1 kV Multi-core cables, PVC insulated, wire armoured with copper conductor

0.6/1 kV Multi-core cables, PVC insulated, wire armoured with aluminum conductor

0.6/1 kV Single-core cables, XLPE insulated, unarmoured with copper conductor

0.6/1 kV Single-core cables, XLPE insulated, unarmoured with aluminum conductor

0.6/1 kV Multi-core cables, XLPE insulated, unarmoured with copper conductor

0.6/1 kV Multi-core cables, XLPE insulated, unarmoured with aluminum conductor

0.6/1 kV Single-core cables, XLPE insulated, wire armoured with copper conductor

0.6/1 kV Single-core cables, XLPE insulated, wire armoured with aluminum conductor

0.6/1 kV Multi-core cables, XLPE insulated, tape armoured with copper conductor

0.6/1 kV Multi-core cables, XLPE insulated, tape armoured with aluminum conductor

0.6/1 kV Multi-core cables, XLPE insulated, wire armoured with copper conductor

0.6/1 kV Multi-core cables, XLPE insulated, wire armoured with aluminum conductor

0.6/1 kV Control cables, PVC insulated, unarmoured with copper conductor

0.6/1 kV Control cables, PVC insulated, copper tape shielded with copper conductor

0.6/1 kV Control cables, PVC insulated, wire armoured with copper conductor

0.6/1 kV Control cables, XLPE insulated, unarmoured with copper conductor

0.6/1 kV Control cables, XLPE insulated, copper tape shielded with copper conductor

0.6/1 kV Control cables, XLPE insulated, wire armoured with copper conductor

600/1000 V Single-core cables, XLPE insulated, unarmoured with copper conductor

600/1000 V Multi-core cables, XLPE insulated, unarmoured with copper conductor

600/1000 V Single-core cables, XLPE insulated, wire armoured with copper conductor

600/1000 V Multi-core cables, XLPE insulated, wire armoured with copper conductor

Power Cable Size

No. x Nominal Cross Section of Conductor No. x mm2
1 core	2 core	3 core	3+1 core	4core	3+2 core	4+1 core	5 core
1×4 mm2	2×4 mm2	3×4 mm2	3×4 mm2 + 1×2.5mm2	4×4 mm2	3×4 mm2 + 2×2.5mm2	4×4 mm2 + 1×2.5mm2	5×2.5 mm2
1×6 mm2	2×6 mm2	3×6 mm2	3×6 mm2 + 1×4 mm2	4×6 mm2	3×6 mm2 + 2×4 mm2	4×6 mm2 + 1×4 mm2	5×4 mm2
1×10 mm2	2×10 mm2	3×10 mm2	3×10 mm2 + 1×6 mm2	4×10 mm2	3×10 mm2 + 2×6 mm2	4×10 mm2 + 1×6 mm2	5×6 mm2
1×16 mm2	2×16 mm2	3x16mm2	3×16 mm2 + 1×10 mm2	4×16 mm2	3×16 mm2 + 2×10 mm2	4×16 mm2 + 1×10 mm2	5×10 mm2
1x 25 mm2	2x 25 mm2	3x 25 mm2	3×25 mm2 + 1x16mm2	4×25 mm2	3×25 mm2 + 2x16mm2	4×25 mm2 + 1x16mm2	5×16 mm2
1×35 mm2	2×35 mm2	3x 35 mm2	3×35 mm2 + 1x16mm2	4×35 mm2	3×35 mm2 + 2x16mm2	4×35 mm2 + 1x16mm2	5×25 mm2
1×50 mm2	2×50 mm2	3x 50 mm2	3×50 mm2 + 1x25mm2	4×50 mm2	3×50 mm2 + 2x25mm2	4×50 mm2 + 1x25mm2	5×35 mm2
1×70 mm2	2×70 mm2	3x 70 mm2	3×70 mm2 + 1x35mm2	4×70 mm2	3×70 mm2 + 2x35mm2	4×70 mm2 + 1x35mm2	5×50 mm2
1×95 mm2	2×95 mm2	3x 95 mm2	3×95 mm2 + 1x50mm2	4×95 mm2	3×95 mm2 + 2x50mm2	4×95 mm2 + 1x50mm2	5×70 mm2
1×120 mm2	2×120 mm2	3x 120 mm2	3x120mm2 + 1x70mm2	4×120 mm2	3x120mm2 + 2x70mm2	4x120mm2 + 1x70mm2	5×95 mm2
1×150 mm2	2×150 mm2	3x 150 mm2	3x150mm2 + 1x70mm2	4×150 mm2	3x150mm2 + 2x70mm2	4x150mm2 + 1x70mm2
1×185 mm2	2×185 mm2	3x 185 mm2	3x185mm2 + 1x95mm2	4×185 mm2	3x185mm2 + 2x95mm2	4x185mm2 + 1x95mm2
1×240 mm2		3x 240 mm2	3x240mm2 + 1x120mm2	4×240 mm2	3x240mm2 + 2x120mm2	4x240mm2 + 1x120mm2
1×300 mm2		3x 300 mm2	3x300mm2 + 1x150mm2	4×300 mm2	3x300mm2 + 2x150mm2	4x300mm2 + 1x150mm2
1×400 mm2
1×500 mm2

Applicable Standards

IEC 60228IEC 60502-1IEC 60332-3-22IEC 60332-3-23IEC 60332-3-24IEC60754-1/2IEC 60684-2
