Data Center – MC Feeder XHHWXHHW-2 AL 8000

Product Description

MC Feeder, XHHW-2 Aluminum

Standards

UL 1569

Metal Clad Cables. UL 44

Rubber-Insulated wires and cables.

ICEA S-95-658

Standard for Nonshielded Power Cables Rated 2000 Volts or Less. IEEE 1202

IEEE Standard for Flame-

Propagation Testing of Wire and Cable.

Federal Specification A-A599544 (formerly J-C-30B)

Specifications

Maximum operating voltage:

• 600/1000 volts

Maximum conductor operation temperature:

• 90 °C wet and dry

Engineering Information

1. Conductor: Stranded Aluminum alloy (AA-8000) compacted

conductor, Class B stranding, per ASTM B801.

Sizes: 6 AWG up to 750 kcmil.

2. Insulation: Flame retardant thermoset crosslinked

polyethylene (XLPE).

UL listed as MC.

1

2

Single conductors are rated XHHW-2.

3

Voltage rating for XHHW-2

conductors is 600 volts and 1000 volts for sizes 6 AWG and larger. Cable

rated for sunlight

4

Resistance

Listed for use in UL 1, 2, and 3-Hour Through Penetration Firestop Systems.

Conductor Identification:

Extruded colored Insulation or Longitudinal extruded colored stripes.

Application

# Crd.	High Voltage Color Code 277/480V				GND
3	BN	OE	YW	–	GN
4	BN	OE	YW	GY	GN

These cables, according to NEC, are permitted to be installed for services, feeders, and branch circuits, and for power, lighting, control, and signal circuits not exceeding 600/1000 volts as

indicated for the sizes.

May be used in wet or dry

locations, where exposed or

concealed, installed in cable

trays, raceways, duct, and open air, aerially.

In cable trays and approved raceways.

In hazardous (classified) as Class I Div. 2, Class II Div. 2, and Class III Div. 1, in accordance with NEC. Per NEC 300.22 (C), in

envionmental air-handling spaces.

# Crd.	Color Code				GND
3	PE	TN	PK	–	GN
4	PE	TN	PK	GY	GN

3. Grounding: One insulated

aluminum alloy (Al-8000)

compacted stranded conductor. On request, bare ground.

4. Assembly: Phase and grounding conductors are cabled together with binder tape.

5. Armor: Aluminum interlocked armor applied over the binder tape and a longitudinal marker tape for ID.

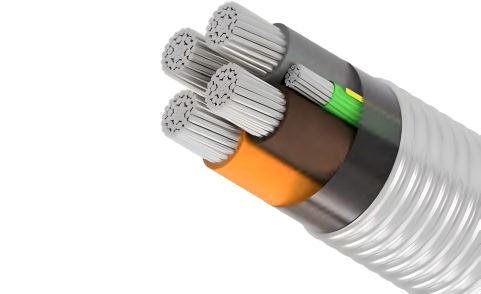

Armored Cable / MC, XHHW-2 Aluminum, Al-8000, XLPE Insulated, 600/1000 V

Armored Cable – MC XHHW-2

Size AWG or kcmil	Number of Conductors	Number of Strands	Insulation Thickness	Grounding Conductor Size	Approximate OD Over Armor	Aluminum Armor Weight	Ampacity at 75°C	Ampacity at 90°C
			mil	AWG	in	lb/kft	A	A
6	3	7	45	6	0.86	305	50	55
6	4	7	45	6	0.93	370	50	55
4	3	7	45	6	1.00	381	65	75
4	4	7	45	6	1.10	473	65	75
2	3	7	45	6	1.09	484	90	100
2	3	7	45	4	1.13	511	90	100
2	4	7	45	6	1.21	604	90	100
2	4	7	45	4	1.25	643	90	100
1	3	19	55	4	1.23	598	100	115
1	4	19	55	4	1.36	752	100	115
1/0	3	19	55	4	1.29	688	120	135
1/0	4	19	55	4	1.44	871	120	135
2/0	3	19	55	4	1.36	798	135	150
2/0	4	19	55	4	1.52	1018	135	150
3/0	3	19	55	4	1.46	935	155	175
3/0	4	19	55	4	1.61	1203	155	175
4/0	3	19	55	2	1.58	1133	180	205
4/0	4	19	55	2	1.82	1470	180	205
250	3	37	65	2	1.77	1315	205	230
250	3	37	65	1	1.79	1340	205	230
250	4	37	65	2	1.96	1702	205	230
250	4	37	65	1	2.00	1726	205	230
300	3	37	65	2	1.82	1467	230	260
300	3	37	65	1	1.89	1525	230	260
350	3	37	65	2	1.90	1643	250	280
350	3	37	65	1	1.99	1707	250	280
350	4	37	65	2	2.20	2198	250	280
350	4	37	65	1/0	2.23	2248	250	280
350	4	37	65	4/0	2.37	2438	250	280

*NOTES*:

1) Additional conductor sizes are available upon request.

2) Detailed cable datasheets are available upon request.

3) A detailed construction drawing will be submitted for customer review and approval prior to processing the purchase order.

4) All values shown are nominal and subject to normal manufacturing tolerances. Where required, the compatibility with glands, connectors,, and accessories should be verified using the actual dimensions of the product.

5) Ampacities of conductors are based on the National Electrical Code (NFPA 70) Table 310.16. Refer to NEC Table 310.15(C) for ampacity adjustment factors when more than three current-carrying conductors are present.

6) At the manufacturer’s option and subject to prior customer notification and approval, larger grounding conductor sizes may be divided into three conductors, one in each interstice.

Armored Cable / MC, XHHW-2 Aluminum, Al-8000, XLPE Insulated, 600/1000 V

Technical Data

Armored Cable – MC XHHW-2

*NOTES*:

1) Additional conductor sizes are available upon request.

2) Detailed cable datasheets are available upon request.

3) A detailed construction drawing will be submitted for customer review and approval prior to processing the purchase order.

4) All values shown are nominal and subject to normal manufacturing tolerances. Where required, the compatibility with glands, connectors, and accessories should be verified using the actual dimensions of the product.

5) Ampacities of conductors are based on the National Electrical Code (NFPA 70) Table 310.16. Refer to NEC Table 310.15(C) for ampacity adjustment factors when more than three current-carrying conductors are present.

6) At the manufacturer’s option and subject to prior customer notification and approval, larger grounding conductor sizes may be divided into three conductors, one in each interstice.
