THHW THWN

Product Description

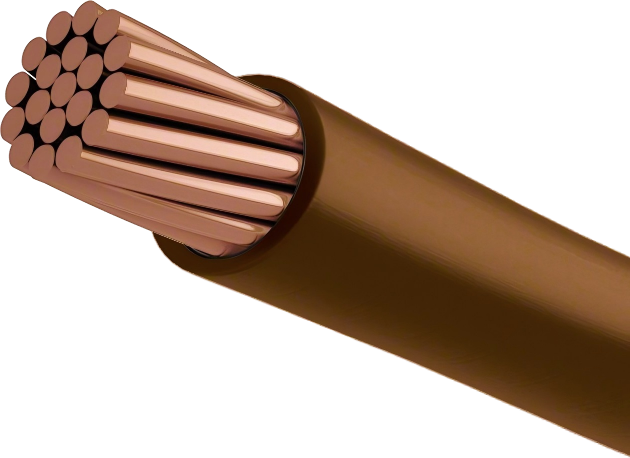

THHN/THWN-2 Copper, PVC Insulated

Nylon Jacket, 600 V

A

Features

THHN/THWN-2 Marking apply only to sizes 8 AWG up to 1000 kcmil.

Use of lubrication is not

mandatory to install THHN/ THWN-2 conductors in the

raceways or cable trays.

PVC insulation offers exceptional electrical, physical and flame-

retardant properties.

All sizes are UL/cUL Listed as MTW (Not Solid), AWM,

T90 Nylon, and TWN75.

All sizes meet VW-1 and FT1 Vertical Flame Test.

All colors in sizes 1/0 and larger are UL listed and marked CT USE in accordance with NEC meeting UL 1685 vertical-tray flame test and also marked FT4 meeting

IEEE 1202 vertical-tray test both at 70,000 BTU/Hr.

All colors in sizes 8 AWG and larger are rated SR for Sunlight Resistance exposure.

All sizes and colors are GRII for Gasoline and Oil resistance.

RoHS compliance in sizes 14 AWG to 10 AWG.

BIG Sequential Footage Marking for easy identification, in sizes 1/0 AWG and larger, every 1 ft.

1

2

3

Colored insulation and a nylon jacket are color-coded (sizes 8 AWG and larger) for visual identification of conductors in electrical installations.

Engineering Information

1. Conductors: Solid uncoated

copper conductors per ASTM B3.

Stranded uncoated copper conductors per ASTM B3, B8 and B787.

On request, Class I for conductor size 250 kcmil to 1000 kcmil per per ASTM B172 and ASTM B174.

2. Insulation: Polyvinyl Chloride (PVC) per UL 83 and UL 1063.

3. Jacket (color coded): Low

friction tough polyamide, Nylon, per UL 83 and UL 1063.

Installation Performance A significant reduction (25% – 30%) in the pulling force is achieved

for THHN/THWN-2 when

compared to the pulling forced required for Standard THHN/

THWN-2 without any lubricant. Further, this reduction is

• comparable to the reduction
• achieved when the Standard
• THHN/THWN-2 conductors
• are pulled using a lubricant in
• identical installation. These
• results demonstrate that it is

feasible to install the THHN/ THWN-2 conductors without the use of a lubricant in an NFPA

70 (NEC ) compliant installation.

Application

HNQZ Wire and Cable

THHN/THWN-2 conductors in all colors are suitable for use in general-purpose wiring in

Bu i ld ing Wire

accordance with the

requirements of NFPA 70 (NEC ). Type THHN/THWN-2 conductors are approved for use at a

maximum voltage of 600 volts and a maximum conductor

temperature of 90 °C in wet or dry locations and 75 °C when exposed to gasoline and oil.

Also rated AWM for 105 °C dry and 80 °C in oil.

Specifications

UL Standard 83 (THHN/THWN-2)

UL Standard 758 (AWM) UL Standard 1063 (MTW)

CSA Standard C22.2 No. 75 (T90

Nylon/TWN75.

ASTM B3, B8, and B787.

ICEA S-95-658/NEMA WC70.

Federal Specification A-A-59544.

ANSI/NFPA 70 National Electric Code (NEC ).

Test Methods: UL 1581, UL 2556, and UL 1685 as applicable

pulling force for THHN/THWN-2

500 – 500 – 500 – 1/o THHN/THWN-2 conductors in 3″ EMT conduits with four 90 o Bends

conduit fill: 30. 8%

THHN/THWN-2 Copper, PVC Insulated, Nylon Jacket, 600 V

THHN/THWN-2 600 V, Copper Conductors

The above data are approximate and subject to normal manufacturing tolerances. Where required, the compatibility with glands, connectors, and accessories should be verified using the actual dimensions of the product.

* Allowable capacities shown are for general use as specified by the National Electrical Code Sections 310.15 and 240.4(D). In addition, also refer to Section 110.14 for requirements for markings on the equipment and the permitted ampacities for the conductors.

** For made-to-order items: Minimum runs, pricing, and lead times are subject to the plant’s production schedule.

*** Size 8 solid in green color is available as a stock item.

PRINT LEGENDS Sizes:

STRANDED CONDUCTOR SIZES 8–1 AWG (IN ALL COLORS):

HNQZ WIRE & CABLE E102470 S (UL) MTW OR THHN OR THWN-2 OR AWM OR GR II SIZE AWG (SIZE mm²) CU 600 V VW-1 SR OR C(UL) TYPE T90 NYLON OR TWN75 FT1.

CONDUCTOR SIZES: 1/0 AWG – 1000 kcmil (IN ALL COLORS):

HNQZ WIRE & CABLE E102470 S (UL) MTW OR THHN OR THWN-2 OR AWM OR GR II SIZE AWG (SIZE mm²) CU 600 V VW-1 SR FOR CT USE FT4 OR C(UL) TYPE T90 NYLON OR TWN75 FT1.

PRINT LEGEND: 8 AWG SOLID (IN ALL COLORS)

HNQZ WIRE & CABLE E95989 S (UL) THHN OR THWN-2 OR AWM OR GR II (SIZE) AWG (SIZE mm²) CU 600 V VW-1 SR OR C(UL) TYPE T90 NYLON OR TWN75 FT1

PRINT LEGENDS: 14–10 AWG:

SOLID:

HNQZ WIRE & CABLE E95989 S (UL) THHN OR THWN-2 OR AWM OR GR II (SIZE) AWG (SIZE mm²) CU 600 V VW-1 OR C(UL) TYPE T90 NYLON OR TWN75 FT1 RoHS

STRANDED:

HNQZ WIRE & CABLE E102470 S (UL) MTW OR THHN OR THWN-2 ORAWM OR GR II (SIZE) AWG (SIZE mm²) CU 600 VW-1 OR C(UL) TYPE T90 NYLON OR TWN75 FT1 RoHS

THHN/THWN-2 Copper, PVC Insulated, Nylon Jacket, 600 V

Technical Data continued

THHN/THWN-2 600 V, Copper Conductors Flexible Stranding

Size			Strand Size (AWG)	Number of strands (Stranding Class I)	Nominal Thickness		Nominal Diameter	Nominal Mass	Min Bending Radius	Ampacity
AWG or kcmil		mm2			PVC (in)	Nylon (in)
							in	lb/kft	in	60 °C*	75 °C*	90 °C*	90 °C**
2		33.60	24	161	0.040	0.006	0.411	237	1.64	95	115	130	190
1		42.40	24	210	0.050	0.007	0.478	312	1.91	110	130	150	220
1/0		53.50	24	266	0.050	0.007	0.524	392	2.10	125	150	170	260
2/0		67.40	24	342	0.050	0.007	0.579	496	2.32	145	175	195	300
3/0		85.00	24	418	0.050	0.007	0.628	600	2.51	165	200	225	350
4/0		107.00	24	532	0.050	0.007	0.694	755	2.78	195	230	260	405
250		127.00	24	637	0.060	0.008	0.770	919	3.08	215	255	290	455
300		152.00	24	735	0.060	0.008	0.817	1053	3.27	240	285	320	500
350		177.00	24	882	0.060	0.008	0.882	1253	3.53	260	310	350	570
400		203.00	24	980	0.060	0.008	0.923	1387	3.69	280	335	380	615
500		253.00	24	1225	0.060	0.008	1.015	1719	5.08	320	380	430	700
600		304.00	24	1470	0.070	0.009	1.121	2072	5.61	355	420	475	780
750		380.00	24	1862	0.070	0.009	1.242	2625	6.21	400	475	535	885

The above data are approximate and subject to normal manufacturing tolerances. Where required, the compatibility with glands, connectors, and accessories should be verified using the actual dimensions of the product.

* Allowable capacities shown are for general use as specified by the National Electrical Code Sections 310.15(B)(16) of the NEC, 2017 Edition for insulated conductors rated

Up to and including 2000 volts, 60ºC Through 90ºC (140ºF Through 194ºF) Not more than three current-carrying conductors in a raceway, cable, or earth (directly buried), based on an ambient temperature of 30ºC (86ºF) and 240.4(D). In addition, also refer to Section 110.14 for requirements for markings on the equipment and the permitted ampacities for the conductors.

** Allowable Ampacities are based on Table 310.15(B)(17) of the NEC, 2017 Edition of Single-Insulated Conductors Rated Up to and Including 2000 Volts in Free Air, Based on an Ambient Temperature of 30ºC (86ºF)

PRINT LEGENDS Sizes:

CONDUCTOR SIZES 250 kcmil – 750 kcmil (IN ALL COLORS):

HNQZ WIRE & CABLE E315239 (UL) MTW OR THHN OR THWN-2 OR AWM OR GR II SIZE AWG (SIZE mm²) (STRANDS Class I) CU 600 V VW-1 SR FOR CT USE FT4 OR C(UL) TYPE T90 NYLON OR TWN75 FT1.
