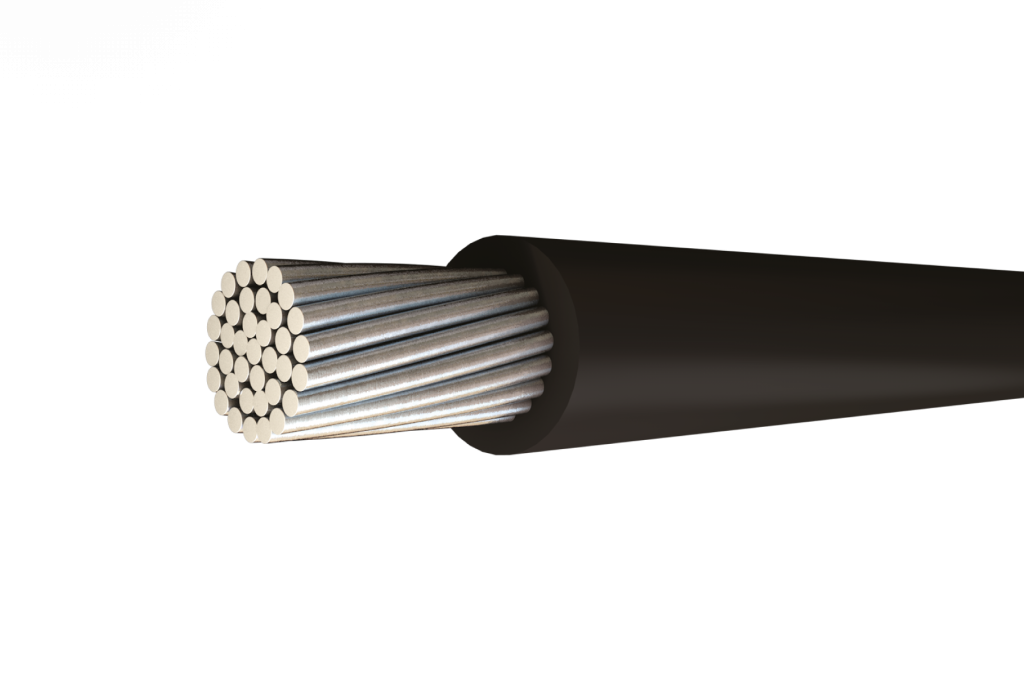

Secondary Underground Distribution Aluminium Cable
Single conductors are UL Listed as Type USE-2.
- Excellent heat, ozone, oil and chemical resistance.
- Resistant to tear and abrasion. Suitable for direct burial.
Product Description
Secondary URD aluminum
Features
Single conductors are UL Listed as Type USE-2.
Excellent heat, ozone, oil and chemical resistance.
Resistant to tear and abrasion. Suitable for direct burial.
AA-8000 Series aluminum alloy conductor where increased
flexibility is required.
Application
Used for secondary distribution and underground service at 600 V or less.
May be used in ducts or direct burial.
Standards
ICEA S-105-692
600 V Single Layer Thermoset Insulated Utility Underground Distribution Cable.
UL 854
Service-Entrance Cables.
Specifications
Maximum operating voltage:
• 600 V
1
2
3
Maximum conductor operation temperatures:
• 90 °C wet and dry
Engineering Information
1. Conductor: Aluminum alloy
S IN GL E
1350-H19, compressed Class B stranding, or unilay-compressed per ASTM B231.
| Parameter | Specification |
|---|---|
| Conductor Phase ID | Ink printed. Configurations |
| Single | One black phase insulated conductor. |
| Duplex | One black phase |
insulated conductor and one neutral insulated conductor cabled together.
Triplex: Two black phase
insulated conductors (A & B) and one neutral insulated conductor cabled together.
Quadruplex: Three black phase insulated conductors (A, B & C) and one neutral insulated
conductor cabled together.
On request, AA-8000 series
aluminum alloy per ASTM B800 and B801 or copper conductors.
2. Separator: A suitable opaque tape, as required.
D U P L EX
3. Insulation:
Phase conductor: Black thermoset cross-linked polyethylene (XLPE).
Neutral conductor: Black
thermoset cross-linked
polyethylene (XLPE), with three yellow extruded stripes.
TR I P L E X
Q U A DRUP L E X
Secocon ady URD Cable – lumnnu
Secondary URD aluminum, XLPE insulated, 600 V
Single
CodeWord |
Phase Conductor |
XLPE Insulation |
||||
SizeAWG orkcmil |
NumberofStrands |
InsulationThicknessmil |
Cable ODmil |
CodeWordSuffix |
Net Weightlb/kft |
|
|
Princeton |
6 |
7 |
60 |
0.31 |
/XLP |
45 |
|
Mercer |
4 |
7 |
60 |
0.35 |
/XLP |
65 |
|
Clemson |
2 |
7 |
60 |
0.41 |
/XLP |
94 |
|
Kenyon |
1 |
19 |
80 |
0.49 |
/XLP |
125 |
|
Harvard |
1/0 |
19 |
80 |
0.53 |
/XLP |
150 |
|
Yale |
2/0 |
19 |
80 |
0.57 |
/XLP |
182 |
|
Tufts |
3/0 |
19 |
80 |
0.62 |
/XLP |
221 |
|
Beloit |
4/0 |
19 |
80 |
0.68 |
/XLP |
271 |
|
Hofstra |
250 |
37 |
95 |
0.76 |
/XLP |
323 |
|
Gonzaga |
300 |
37 |
95 |
0.81 |
/XLP |
377 |
|
Rutgers |
350 |
37 |
95 |
0.86 |
/XLP |
431 |
|
Dartmouth |
400 |
37 |
95 |
0.91 |
/XLP |
485 |
|
Brown |
450 |
37 |
95 |
0.95 |
/XLP |
539 |
|
Emory |
500 |
37 |
95 |
0.99 |
/XLP |
592 |
|
Duke |
600 |
61 |
110 |
1.10 |
/XLP |
711 |
|
Furman |
700 |
61 |
110 |
1.17 |
/XLP |
816 |
|
Sewanee |
750 |
61 |
110 |
1.20 |
/XLP |
870 |
|
Fordham |
1000 |
61 |
110 |
1.35 |
/XLP |
1129 |
The above data are approximate and subject to normal manufacturing tolerances. Other sizes are available upon request. Ampacities: Refer to the beginning of the section.
Duplex
CodeWord |
Phase Conductor |
Neutral Conductor |
Cable OD |
XLPE Insulation |
||||||||
SizeAWG orkcmil |
NumberofStrands |
InsulationThicknessmils |
SizeAWG orkcmil |
NumberofStrands |
InsulationThicknessmil |
SinglePhasein |
CompleteCablein |
CodeWordSuffix |
Net Weight |
|||
lb/kft |
||||||||||||
|
Alcorn |
8 |
1 |
60 |
8 |
1 |
60 |
0.25 |
0.50 |
/XLP/EYS |
62.2 |
||
|
Claflin |
6 |
7 |
60 |
6 |
7 |
60 |
0.31 |
0.61 |
/XLP/EYS |
92.8 |
||
|
Delgado |
4 |
7 |
60 |
4 |
7 |
60 |
0.35 |
0.70 |
/XLP/EYS |
131.7 |
||
|
Cedarcrest |
2 |
7 |
60 |
4 |
7 |
60 |
0.41 |
0.82 |
/XLP/EYS |
161.4 |
||
|
Everett |
2 |
7 |
60 |
2 |
7 |
60 |
0.41 |
0.82 |
/XLP/EYS |
191.2 |
||
|
Findlay |
2/0 |
19 |
80 |
2/0 |
19 |
80 |
0.57 |
1.15 |
/XLP/EYS |
372.0 |
||
|
Hanover |
4/0 |
19 |
80 |
4/0 |
19 |
80 |
0.68 |
1.36 |
/XLP/EYS |
552.1 |
||
|
Glenville |
350 |
37 |
95 |
350 |
37 |
95 |
0.86 |
1.72 |
/XLP/EYS |
880.2 |
||
|
The above data are approximate and subject to normal manufacturing tolerances. Other sizes available upon request. Ampacities: Refer to beginning of section. |
||||||||||||
Secondary URD aluminum, XLPE Insulated, 600 V
Technical Data continued
Triplex
CodeWord |
Phase Conductor |
Neutral Conductor |
Cable OD |
XLPE Insulation |
||||||
SizeAWG orkcmil |
NumberofStrands |
InsulationThicknessmil |
SizeAWG orkcmil |
NumberofStrands |
InsulationThicknessmil |
SinglePhasein |
Complete Cablein |
CodeWordSuffix |
Net Weight |
|
lb/kft |
||||||||||
|
Erskine |
6 |
7 |
60 |
6 |
7 |
60 |
0.31 |
0.66 |
/XLP/EYS |
139 |
|
Vassar |
4 |
7 |
60 |
4 |
7 |
60 |
0.35 |
0.76 |
/XLP/EYS |
198 |
|
Stephens |
2 |
7 |
60 |
4 |
7 |
60 |
0.41 |
0.88 |
/XLP/EYS |
257 |
|
Ramapo |
2 |
7 |
60 |
2 |
7 |
60 |
0.41 |
0.88 |
/XLP/EYS |
287 |
|
Grossmont |
1 |
19 |
80 |
1 |
19 |
80 |
0.49 |
1.06 |
/XLP/EYS |
383 |
|
Brenau |
1/0 |
19 |
80 |
2 |
7 |
60 |
0.53 |
1.14 |
/XLP/EYS |
402 |
|
Bergen |
1/0 |
19 |
80 |
1/0 |
19 |
80 |
0.53 |
1.14 |
/XLP/EYS |
460 |
|
Fisk |
2/0 |
19 |
80 |
2 |
7 |
60 |
0.57 |
1.24 |
/XLP/EYS |
468 |
|
Converse |
2/0 |
19 |
80 |
1 |
19 |
80 |
0.57 |
1.24 |
/XLP/EYS |
500 |
|
Shaw |
2/0 |
19 |
80 |
1/0 |
19 |
80 |
0.57 |
1.24 |
/XLP/EYS |
525 |
|
Hunter |
2/0 |
19 |
80 |
2/0 |
19 |
80 |
0.57 |
1.24 |
/XLP/EYS |
558 |
|
Calvert |
3/0 |
19 |
80 |
2 |
7 |
60 |
0.62 |
1.34 |
/XLP/EYS |
547 |
|
Chase |
3/0 |
19 |
80 |
1 |
19 |
80 |
0.62 |
1.34 |
/XLP/EYS |
579 |
|
Hollins |
3/0 |
19 |
80 |
1/0 |
19 |
80 |
0.62 |
1.34 |
/XLP/EYS |
605 |
|
Rockland |
3/0 |
19 |
80 |
3/0 |
19 |
80 |
0.62 |
1.34 |
/XLP/EYS |
677 |
|
Coburn |
4/0 |
19 |
80 |
1 |
19 |
80 |
0.68 |
1.47 |
/XLP/EYS |
680 |
|
Molloy |
4/0 |
19 |
80 |
1/0 |
19 |
80 |
0.68 |
1.47 |
/XLP/EYS |
705 |
|
Sweetbriar |
4/0 |
19 |
80 |
2/0 |
19 |
80 |
0.68 |
1.47 |
/XLP/EYS |
738 |
|
Monmouth |
4/0 |
19 |
80 |
4/0 |
19 |
80 |
0.68 |
1.47 |
/XLP/EYS |
828 |
|
Aquinas |
250 |
37 |
95 |
2/0 |
19 |
80 |
0.76 |
1.63 |
/XLP/EYS |
844 |
|
Pratt |
250 |
37 |
95 |
3/0 |
19 |
80 |
0.76 |
1.63 |
/XLP/EYS |
884 |
|
Yeshiva |
250 |
37 |
95 |
250 |
37 |
95 |
0.76 |
1.63 |
/XLP/EYS |
987 |
|
Allen |
300 |
37 |
95 |
2/0 |
19 |
80 |
0.81 |
1.75 |
/XLP/EYS |
956 |
|
Greenville |
350 |
37 |
95 |
1/0 |
19 |
80 |
0.86 |
1.85 |
/XLP/EYS |
1034 |
|
Gloucester |
350 |
37 |
95 |
3/0 |
19 |
80 |
0.86 |
1.85 |
/XLP/EYS |
1106 |
|
Wesleyan |
350 |
37 |
95 |
4/0 |
19 |
80 |
0.86 |
1.85 |
/XLP/EYS |
1156 |
|
Newark |
350 |
37 |
95 |
350 |
37 |
95 |
0.86 |
1.85 |
/XLP/EYS |
1320 |
|
Old Dominion |
500 |
37 |
95 |
4/0 |
19 |
80 |
0.99 |
2.13 |
/XLP/EYS |
1483 |
|
Holyoke |
500 |
37 |
95 |
300 |
37 |
95 |
0.99 |
2.13 |
/XLP/EYS |
1592 |
|
Rider |
500 |
37 |
95 |
350 |
37 |
95 |
0.99 |
2.13 |
/XLP/EYS |
1647 |
|
Westchester |
500 |
37 |
95 |
500 |
37 |
95 |
0.99 |
2.13 |
/XLP/EYS |
1811 |
|
Villanova |
750 |
61 |
110 |
350 |
37 |
95 |
1.20 |
2.58 |
/XLP/EYS |
2215 |
|
Voorhees |
750 |
61 |
110 |
450 |
37 |
95 |
1.20 |
2.58 |
/XLP/EYS |
2324 |
|
Fairfield |
750 |
61 |
110 |
500 |
37 |
95 |
1.20 |
2.58 |
/XLP/EYS |
2379 |
|
Seton Hall |
750 |
61 |
110 |
750 |
61 |
110 |
1.20 |
2.58 |
/XLP/EYS |
2662 |
The above data are approximate and subject to normal manufacturing tolerances. Other sizes are available upon request.
Ampacities: Refer to the beginning of the section.
Secondary URD aluminum, XLPE Insulated, 600 V
Quadruplex
CodeWord |
Phase Conductor |
Neutral Conductor |
Cable OD |
XLPE Insulation |
||||||
SizeAWG orkcmil |
NumberofStrands |
InsulationThicknessmil |
SizeAWG orkcmil |
NumberofStrands |
InsulationThicknessmil |
SinglePhasein |
CompleteCablein |
CodeWordSuffix |
Net Weight |
|
lb/kft |
||||||||||
|
Tulsa |
4 |
7 |
60 |
4 |
7 |
60 |
0.35 |
0.85 |
/XLP/EYS |
263 |
|
Miami |
2 |
7 |
60 |
6 |
7 |
60 |
0.41 |
0.99 |
/XLP/EYS |
333 |
|
Dyke |
2 |
7 |
60 |
4 |
7 |
60 |
0.41 |
0.99 |
/XLP/EYS |
353 |
|
Wittenberg |
2 |
7 |
60 |
2 |
7 |
60 |
0.41 |
0.99 |
/XLP/EYS |
382 |
|
Notre Dame |
1/0 |
19 |
80 |
2 |
7 |
60 |
0.53 |
1.28 |
/XLP/EYS |
556 |
|
Purdue |
1/0 |
19 |
80 |
1/0 |
19 |
80 |
0.53 |
1.28 |
/XLP/EYS |
614 |
|
Syracuse |
2/0 |
19 |
80 |
1 |
19 |
80 |
0.57 |
1.39 |
/XLP/EYS |
686 |
|
Lafayette |
2/0 |
19 |
80 |
2/0 |
19 |
80 |
0.57 |
1.39 |
/XLP/EYS |
744 |
|
Swarthmore |
3/0 |
19 |
80 |
1/0 |
19 |
80 |
0.62 |
1.51 |
/XLP/EYS |
831 |
|
Davidson |
3/0 |
19 |
80 |
3/0 |
19 |
80 |
0.62 |
1.51 |
/XLP/EYS |
903 |
|
McPherson |
4/0 |
19 |
80 |
2 |
7 |
60 |
0.68 |
1.64 |
/XLP/EYS |
924 |
|
Doane |
4/0 |
19 |
80 |
1/0 |
19 |
80 |
0.68 |
1.64 |
/XLP/EYS |
981 |
|
Wake Forest |
4/0 |
19 |
80 |
2/0 |
19 |
80 |
0.68 |
1.64 |
/XLP/EYS |
1014 |
|
Earlham |
4/0 |
19 |
80 |
4/0 |
19 |
80 |
0.68 |
1.64 |
/XLP/EYS |
1104 |
|
Rust |
250 |
37 |
95 |
3/0 |
19 |
80 |
0.76 |
1.83 |
/XLP/EYS |
1213 |
|
Palomar |
250 |
37 |
95 |
250 |
37 |
95 |
0.76 |
1.83 |
/XLP/EYS |
1316 |
|
Slippery Rock |
350 |
37 |
95 |
4/0 |
19 |
80 |
0.86 |
2.08 |
/XLP/EYS |
1596 |
|
Niagara |
350 |
37 |
95 |
350 |
37 |
95 |
0.86 |
2.08 |
/XLP/EYS |
1760 |
|
Morehouse |
500 |
37 |
95 |
300 |
37 |
95 |
0.99 |
2.39 |
/XLP/EYS |
2196 |
|
Wofford |
500 |
37 |
95 |
350 |
37 |
95 |
0.99 |
2.39 |
/XLP/EYS |
2251 |
|
Marshall |
500 |
37 |
95 |
500 |
37 |
95 |
0.99 |
2.39 |
/XLP/EYS |
2415 |
|
Westminster |
750 |
61 |
110 |
350 |
37 |
95 |
1.20 |
2.89 |
/XLP/EYS |
3102 |
|
Windham |
750 |
61 |
110 |
500 |
37 |
95 |
1.20 |
2.89 |
/XLP/EYS |
3266 |
|
Tabor |
750 |
61 |
110 |
750 |
61 |
110 |
1.20 |
2.89 |
/XLP/EYS |
3550 |
The above data are approximate and subject to normal manufacturing tolerances. Other sizes are available upon request.
Ampacities: Refer to the the beginning of the the section.
Certificate Display
Type and routine tests are issued from our own testing centre under the ISO 9001 quality system — test reports and certificates accompany every shipment.
Factory Tour
Why Choose Us
Packing & Shipping
- Wooden, steel or steel-wood drums; drum length to customer requirement
- Drum marking per customer / utility specification
- Both drum ends sealed and protected for sea freight
Ready for Your Next Cable Project?
Send us your specifications, cable schedule or RFQ — our engineering team replies with a technical proposal and price within one working day.
- Emailinfo@qzcablegroup.com
- WhatsApp / WeChat+86 173 3570 4553
- Contact personChloe · Export Department
- Factory addressWest Industrial Park, Zhulin Town, Gongyi City, Henan Province, China
Related products
Related solutions
Power Distribution Cable Solutions
Qingzhou Cable provides low- and medium-voltage cable solutions for electrical distribution networks, supporting power delivery from substations to commercial, industrial and residential users.
Power Substation Cable Solutions
Solar & Renewable Energy Cable Solutions
Building & Infrastructure Cable Solutions
Mining Cable Solutions
