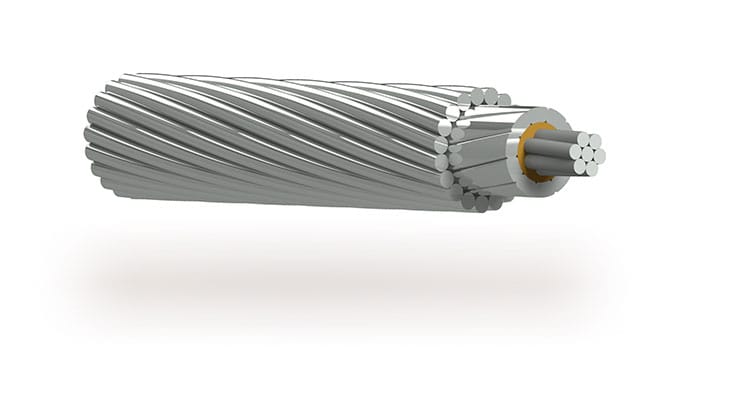

GAP — Gap Type Aluminum Conductor Steel Reinforced Gap Conductor
Bare Conductors

GAP — Gap Type Aluminum Conductor Steel Reinforced Gap Conductor

High Temperature Thermal Resistant Alloy Conductor : Aluminum-Zirconium wires (Type-AT1 or AT3), concentrically stranded over a steel core having a small gap between the Steel core & thermal-resistant aluminum alloy layer. These combination offers best Mechanical as well as Electrical…

  • Aluminium-Zirconium wires (Type-AT3 or AT-1), concentrically stranded over a steel core maintaing gap between the Steel core and…
  • Basic design to：
Get a quote Request datasheet (PDF)

Product Description

Application

High Temperature Thermal Resistant Alloy Conductor : Aluminum-Zirconium wires (Type-AT1 or AT3), concentrically stranded over a steel core having a small gap between the Steel core & thermal-resistant aluminum alloy layer. These combination offers best Mechanical as well as Electrical Characteristics. Extra High Strength Galvanized Steel (EST); or aluminum-claded Extra High Strength Steel (AW). Additional corrosion protection is achieved as High Temperature Grease is applied in Between GAP of Conductor.

Standard

Basic design to：

Thermal-resistant aluminium alloy wires (Type-AT3 or AT1) for overhead line conductor as per IEC 62004

  • Concentric lay stranded overhead electrical conductors IEC 61089, IEC 62420
  • Zinc-coated steel wires for stranded conductors IEC 888, ASTM B957 & more
  • Zinc–5% Aluminum-Mischmetal Alloy-Coated Steel Core Wire EN 50540, ASTM B802, ASTM B803 or ASTM B958.
  • Aluminium Clad Steel Wires, IEC 61232, ASTM B415, EN 50540 & More

Construction

Aluminium-Zirconium wires (Type-AT3 or AT-1), concentrically stranded over a steel core maintaing gap between the Steel core and first Aluminium Layer.

Features:

  • These can operate upto 210°C with specified strength loss,
  • Can carry 100~150% more current as that of ACSR of the same size.
  • For uprating lines, no modifications or reinforcement is required to the existing towers
  • Limiting the sag increase with the increase of the temperature by the thermal expansion coefficient above knee-point related to the steel core

Construction Parameters

GTACSR & GZTACSR

Conductor Size Stranding Cross-Sectional Area Diameter of Complete Conductor Weight Rated Strength DCResistance @20°C
No. of Wires Wire diameter TAL Steel Total TAL Steel Total with Grease Extra High Strength Ultra High Strength
TAL Steel TAL Steel
(mm²) (No.) (No.) (mm) (mm) (mm²) (mm²) (mm²) (mm) (Kg/Km) (Kg/Km) (Kg/Km) (KN) (KN) (Ω/Km)
175 8/12 7 3.35 (TW) 2.10 176.20 24.25 200.45 17.50 486.98 189.44 691.42 66.14 66.87 0.1668
190 12/16 7 2.92 (TW) 2.30 187.30 29.08 216.38 18.20 517.66 227.24 761.90 74.44 75.46 0.1569
195 20/12 7 2.40(R)  2.88(TW) 2.20 168.80 26.61 195.41 18.06 466.53 207.91 690.44 69.51 70.31 0.1741
218 18/12 7 2.78(R)   2.94(TW) 2.25 190.50 27.83 218.33 19.10 526.51 217.47 759.98 74.47 75.31 0.1542
240 8/12 7 4.02 (TW) 2.40 253.40 31.67 285.07 20.60 700.35 247.43 964.78 88.34 89.45 0.1159
248 12/8 7 3.71(TW) 2.40 216.12 31.67 247.79 19.40 597.32 247.43 862.75 83.00 84.11 0.1360
287 18/12 7 3.15(R)   3.43(TW) 2.55 251.00 35.75 286.75 21.77 693.72 279.33 993.04 94.85 96.10 0.1171
287 20/12 7 2.90(R)  3.55(TW) 2.55 251.00 35.75 286.75 21.77 693.72 279.33 993.04 95.33 96.58 0.1171
310 16/12 7 3.90(R)  3.69(TW) 2.80 319.40 43.10 362.50 24.40 882.76 336.78 1241.54 116.10 117.60 0.0920
400 18/12 7 3.90(R)  4.45(TW) 2.80 401.40 43.10 444.50 26.90 1109.40 336.78 1468.18 129.16 130.67 0.0732
410 14/12 7 4.90(R)  3.99(TW) 3.00 414.00 49.48 463.48 27.60 1144.22 386.61 1554.83 138.95 140.68 0.0710
439 15/12 7 4.50(R)   4.04(TW) 2.90 392.50 46.24 438.74 26.84 1084.80 361.27 1469.07 132.44 134.06 0.0749
462 14/12 7 4.90(R)  3.99(TW) 2.95 414.30 47.84 462.14 27.60 1145.05 373.83 1542.88 136.47 138.14 0.0709
540 24/14/10 7 3.55(R)  3.98(TW) 3.10 536.20 52.83 589.03 31.30 1483.12 412.81 1920.93 164.15 166.00 0.0548
620 16/12/12 7 4.80(TW) 4.75(TW) 3.47(TW) 3.20 615.70 56.30 672.00 31.50 1703.01 439.88 2168.89 177.96 179.93 0.0478

GTACSR/AW & GZTACSR/AW

Conductor Size Cross-Sectional Area Stranding Diameter of Complete Conductor Weight Rated Strength DC Resistance @20°C
STAL Steel Total No. of STAL Wires No. of STAL Layers No. of Steel Wires Dia. of Steel Wires STAL Steel Total High Strength Extra High Strength
(mm²) (mm²) (mm²) (mm²) (No.) (No.) (No.) (mm) (mm) (Kg/Km) (Kg/Km) (Kg/Km) (KN) (KN) (Ω/Km)
175 8/12 7 3.35 (TW) 2.10 176.20 24.25 200.45 17.50 486.98 160.46 647.44 57.65 62.26 0.1593
190 12/16 7 2.92 (TW) 2.30 187.30 29.08 216.38 18.20 517.66 192.48 710.14 65.28 69.93 0.1490
195 20/12 7 2.40(R)  2.88(TW) 2.20 168.80 26.61 195.41 18.06 466.53 176.11 642.64 60.20 65.25 0.1652
218 18/12 7 2.78(R)   2.94(TW) 2.25 190.50 27.83 218.33 19.10 526.51 184.21 710.72 64.73 70.02 0.1470
240 8/12 7 4.02 (TW) 2.40 253.40 31.67 285.07 20.60 700.35 209.59 909.94 78.36 83.43 0.1112
248 12/8 7 3.71(TW) 2.40 216.12 31.67 247.79 19.40 597.32 209.59 806.91 73.03 78.09 0.1295
287 18/12 7 3.15(R)   3.43(TW) 2.55 251.00 35.75 286.75 21.77 693.72 236.60 930.32 83.59 89.31 0.1117
287 20/12 7 2.90(R)  3.55(TW) 2.55 251.00 35.75 286.75 21.77 693.72 26.60 720.32 84.07 89.79 0.1117
310 16/12 7 3.90(R)  3.69(TW) 2.80 319.40 43.10 362.50 24.40 882.76 285.27 1168.03 102.52 109.41 0.0880
400 18/12 7 3.90(R)  4.45(TW) 2.80 401.40 43.10 444.50 26.90 1109.40 285.27 1394.67 115.59 122.48 0.0706
410 14/12 7 4.90(R)  3.99(TW) 3.00 414.00 49.48 463.48 27.60 1144.22 327.48 1471.70 123.36 131.28 0.0682
439 15/12 7 4.50(R)   4.04(TW) 2.90 392.50 46.24 438.74 26.84 1084.80 306.00 1390.80 117.87 125.27 0.0720
462 14/12 7 4.90(R)  3.99(TW) 2.95 414.30 47.84 462.14 27.60 1145.05 316.65 1461.70 121.40 129.05 0.0682
540 24/14/10 7 3.55(R)  3.98(TW) 3.10 536.20 52.83 589.03 31.30 1483.12 349.67 1832.79 149.36 156.23 0.0536
620 16/12/12 7 4.80(TW) 4.75(TW) 3.47(TW) 3.20 615.70 56.30 672.00 31.50 1703.01 372.60 2075.61 162.19 169.51 0.0467
