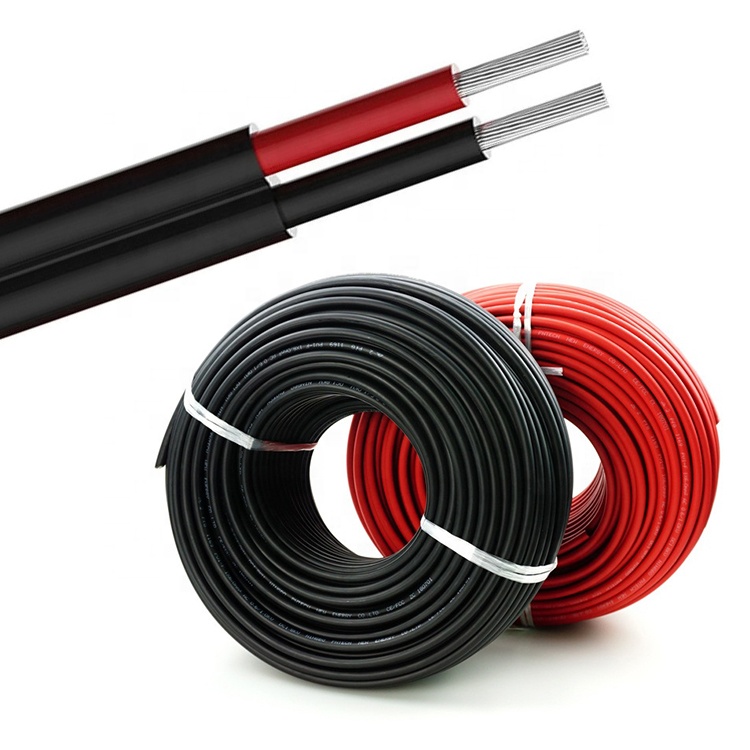

PV Cable Twin Core Solar Cable for Photovoltaic System

Standards: UL4703 · IEC62930 · EN50618 · EN 60228 · IEC 60228 · EN 60332-1

Product Description

PV Cable Twin Core Solar Cable for Photovoltaic System

Description

Twin Core Solar PV cable is highly flexible cable specially designed for connecting photovoltaic panels, compatible with all major connectors, certified by various international certifications such as TUV/UL/IEC/CE/RETIE, compliant with UL4703, IEC62930 and EN50618 standards, It is suitable for different photovoltaic power generation fields such as solar plants, rooftop solar installations and floating power stations. This versatile single core pv cable is designed to meet the different needs of the solar industry. It is suitable for various harsh outdoor environments such as rooftop, deserts, lakes, seasides, and mountains (climate environment with high temperature, high humidity, and strong salt content). It is an important part of the solar system. Good connection quality ensures the long-term and safe operation of the photovoltaic system and effectively reduces the failure rate of the photovoltaic system and the later operating costs.

Specification Of Solar Cable

	Conductor	Class 5 (flexible) tinned copper, based on EN 60228 and IEC 60228
	Insulation & Sheath Jacket	Polyolefin Copolymer electron-beam cross-linked
	Rated voltage	1000/1800VDC,Uo/U=600V/1000VAC
	Test voltage	6500V,50Hz,10Min
	Temperature Rating	-40oC-120oC
	Fire Performance	Flame non-propagation based on UNE-EN 60332-1 and IEC 60332-1
	Smoke Emission	Based on UNE-EN 60754-2 and IEC 60754-2.
	European CPR	Cca/Dca/Eca, according to EN 50575
	Water performance	AD7
	Minimum bend radius	5D (D:cable diameter)
	Optional features	Meter by meter marking, rodent-proof and termite-proof
	Certification	TUV/UL/RETIE/IEC/CE/RoHS

Dimensions Of Solar Cable，The size from 1.5mm2 to 120mm2.

Construction	Conductor Construction	Conductor	Outer	Resistance Max	Current Carring Capacity
n×mm2	n×mm	mm	mm	Ω/Km	A
(16AWG)1×1.5	30×0.25	1.58	4.90	13.3	30
(14AWG)1×2.5	50×0.256	2.06	5.45	7.98	41
(12AWG)1×4.0	56×0.3	2.58	6.15	4.75	55
(10AWG)1×6	84×0.3	3.15	7.15	3.39	70
(8AWG)1×10	142×0.3	4.0	9.05	1.95	98
(6AWG)1×16	228×0.3	5.7	10.2	1.24	132
(4AWG)1×25	361×0.3	6.8	12.0	0.795	176
(2AWG)1×35	494×0.3	8.8	13.8	0.565	218
(1/0AWG)1×50	418×0.39	10.0	16.0	0.393	280
(2/0AWG)1×70	589×0.39	11.8	18.4	0.277	350
(3/0AWG)1×95	798×0.39	13.8	21.3	0.210	410
(4/0AWG)1×120	1007×0.39	15.6	21.6	0.164	480

Applicable Standards

UL4703IEC62930EN50618EN 60228IEC 60228EN 60332-1IEC 60332-1EN 60754-2

Certificate Display

**Low Voltage Directive Attestation (EU)**

Type and routine tests are issued from our own testing centre under the ISO 9001 quality system — test reports and certificates accompany every shipment.

Factory Tour

Why Choose Us

50+ years of experience Trusted manufacturing expertise since 1969

International standards IEC, ASTM, BS, CSA and other global standards

Strict quality control Comprehensive testing throughout production

Large production capacity Reliable supply for utility and EPC projects

Fast global delivery Efficient manufacturing and worldwide shipping

Technical support Expert assistance from inquiry to project completion

Packing & Shipping

Wooden, steel or steel-wood drums; drum length to customer requirement
Drum marking per customer / utility specification
Both drum ends sealed and protected for sea freight
