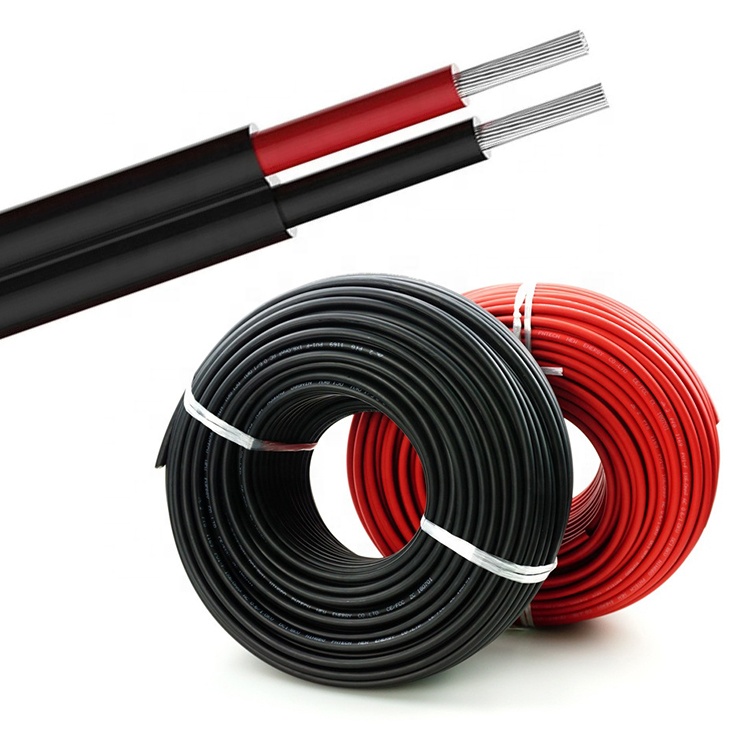

Solar PV Cable UL 4703 2000V AC

Product Description

Solar PV Cable UL 4703 2000V AC

ALUMINIUM ALLOY SOLAR CABLE Photovoltaic Power Cable, UL 4703, 2000 V

APPLICATION

PV halogen free flame-retardant Aluminium Alloy conductor E-Beam crosslinked Polyolefins insulated Wire is designed to use in Outdoor Solar application as per NEC 690 in wet & dry location. The cable is rated direct burial, Sunlight resistant and weatherproof.

CHARACTERISTICS

Voltage Rating

Max. Rated Voltage: 2000 V

Max. Short circuit temp: 250°C

Operation Temperature

Fixed: -40°C to +90° C

CONSTRUCTION

Conductor: AA8000 Series Stranded Aluminium Alloy conductor as per ASTM B-801.

Insulation: Halogen free flame-retardant E-Beam crosslinked Polyolefins.

Core Identification

(-ve) Black, (+ve) Red

Bending Radius

Fixed installation: 8-10 X D

Test Voltage

As per UL 44

OUTSTANDING FEATURES

• UV resistant
• Ozone resistant
• Flame retardant
• High temperature resistant
• Oil and gasoline resistant
• Moisture resistant

STANDARD FOLLOWS

• ASTM B-801
• UL 44
• UL 4703
• UL 854
• UL 1685
• CSA C22.2 No. 271

COMPLIANCE

• UL 854 for USE-2
• UL 44 for Type RHW-2
• UL 4703 for Type PV
• UL 1685 CT Flame rated (for 1/0 AWG and above)
• c(UL) CSA C22.2 No. 271 RPVU90
• ANSI ICEA S 95 658 NEMA WC70
• FT1, FT2, FT4, VW-1
• NEC NFPA 70, NEC 310, NEC Section 690.31
• EPA 40 CFR part 261 for leachable lead content per TCLP
• RoHS and REACH compliant

COPPER SOLAR CABLE Photovoltaic Power Cable, UL 4703, 2000 V

APPLICATION

PV halogen free flame-retardant Copper conductor, E-Beam crosslinked Polyolefins insulated Wire is designed to use in Outdoor Solar application as per NEC 690 in wet & dry location. The cable is rated direct burial, Sunlight resistant and weatherproof.

CHARACTERISTICS

Voltage Rating

Max. Rated Voltage: 2000 V

Max. Short circuit temp: 250°C

Operation Temperature

Fixed: -40°C to +90° C

CONSTRUCTION

Conductor: Stranded (Class B) Bare or Tinned Copper conductor as per ASTM B3, B33 & ASTM B8

Insulation: Halogen free Flame retardant EBeam crosslinked Polyolefins.

Core Identification

(-ve) Black, (+ve) Red

Bending Radius

Fixed installation: 8-10 D

Test Voltage

As per UL 44

OUTSTANDING FEATURES

• Flame retardant
• UV, Ozone resistant
• High temperature resistant
• Oil and Gasoline resistant
• Moisture resistant

Meets cold bend and cold impact at -40°C

STANDARD FOLLOWS

• UL 4703
• ASTM B8
• UL 44
• UL 854
• UL 1685
• CSA C22.2 No. 271
• COMPLIANCE
• UL 854 for USE-2
• UL 44 for Type RHW-2
• UL 4703 for Type PV
• UL 1685 CT Flame rated (for 1/0 AWG and above)
• c(UL) CSA C22.2 No. 271 RPVU90
• ANSI ICEA S 95 658 NEMA WC70
• FT1, FT2, FT4, VW-1
• NEC NFPA 70, NEC 310, NEC Section 690.31
• EPA 40 CFR part 261 for leachable lead content per TCLP
• RoHS and REACH compliant
• OSHA acceptable
• Federal Spec A-A-59544

ALUMINIUM ALLOY SOLAR CABLE Photovoltaic Power Cable, UL 4703, 2000 V

Dimensional and electrical Characteristics:

Conductor Size	No. of Strands	Conductor Dia.	Max. D.C. Resistance at 20° C.	Nominal Insulation Thickness	Approx Overall Dia.	Ampacity in Air	Ampacity in Earth (Directly buried)
AWG/MCM	Nos.	mm	Ohm/Km	mm	mm	Amps	Amps
8	7	3.4	3.52	2.15	8	60	45
6	7	4.29	2.21	2.15	8.9	85	55
4	7	5.41	1.39	2.15	10	115	75
2	7	6.81	0.875	2.15	11.4	150	100
1	19	7.59	0.693	2.66	13.2	175	115
1/0	19	8.53	0.55	2.66	14.2	205	135
2/0	19	9.55	0.436	2.66	15.2	235	150
3/0	19	10.7	0.346	2.66	16.3	270	175
4/0	19	12.1	0.274	2.66	17.7	315	205
250	37	13.2	0.232	3.04	19.6	355	230
300	37	14.5	0.194	3.04	20.9	395	260
350	37	15.6	0.166	3.04	22	445	280
400	37	16.7	0.145	3.04	23.1	480	305
500	37	18.7	0.116	3.04	26	545	350
600	61	20.7	0.0967	3.43	28.9	615	385
700	61	22.3	0.0829	3.43	30.5	670	425
750	61	23.1	0.0774	3.43	31.3	700	435
800	61	23.8	0.0725	3.43	32	725	445
900	61	25.4	0.0645	3.43	33.6	790	480
1000	61	26.9	0.058	3.43	35.1	845	500

*Above data is approximate and subject to standard manufacturing tolerance.

*The above Current Ratings is based on NEC Table No. 310.16 at ambient temperature of 30°C

COPPER SOLAR CABLE Photovoltaic Power Cable, UL 4703, 2000 V

Dimensional and electrical Characteristics:

No. of Cores	Conductor Size	No. of strands	Nominal Insulation thickness	Nominal Overall diameter	Nominal Overall diameter	Max. Conductor D.C. Resistance at 25°C	Ampacity in Air	Ampacity in Earth
No.	AWG/KCMIL	No.	mm	mm	mil	Ohms/Km	Amps	Amps
1	12	7	1.90	6.3	248.03	5.46	40	30
1	10	7	1.90	7.0	275.60	3.42	55	40
1	8	7	2.15	8.3	326.77	2.14	80	55
1	6	7	2.15	9.2	362.21	1.35	105	75
1	4	7	2.15	10.5	413.39	0.847	140	95
1	2	7	2.15	12.1	476.38	0.532	190	130
1	1	19	2.66	14.2	559.06	0.421	220	145
1	1/0	19	2.66	15.2	598.43	0.335	260	170
1	2/0	19	2.66	16.4	645.67	0.266	300	195
1	3/0	19	2.66	17.8	700.79	0.211	350	225
1	4/0	19	2.66	19.3	759.84	0.167	405	260
1	250	37	3.04	21.3	838.58	0.142	455	290
1	300	37	3.04	22.7	893.7	0.118	500	320
1	350	37	3.04	24.1	948.82	0.101	570	350
1	400	37	3.04	25.3	996.06	0.088	615	380
1	500	37	3.04	27.5	1082.68	0.071	700	430
1	600	61	3.43	28.93	1138.98	0.059	780	475
1	750	61	3.43	33.2	1307.09	0.047	885	535
1	1000	61	3.43	37.2	1464.57	0.035	1055	615

*Above values are approximate and subject to standard manufacturing tolerance

*The above Current Rating is based on NEC Table No. 310.16 at ambient temperature of 30°C
