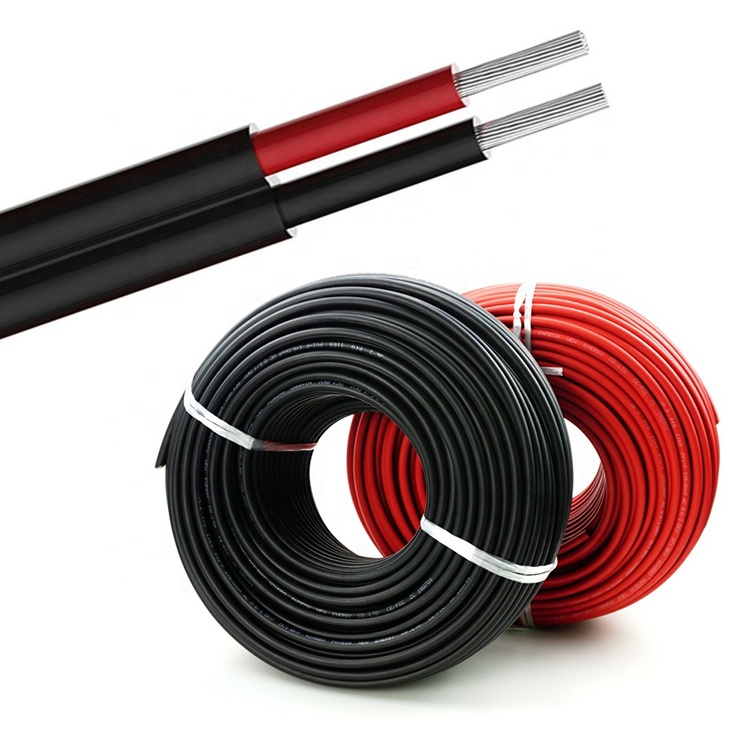

Solar Cable AS NZS 5000 XLPO PVC
Our photovoltaic (PV) cables are used for interconnecting photovoltaic solar panel arrays in solar energy farms. These solar panel cables are suitable for fixed installations, both internal and external, and in open environments or in conduits.
- Standards: EN 50618 · IEC 62930 · AS/NZS 5000.1 · EN 60228 · IEC 60228 · EN 60811
Product Description
Solar Cable AS NZS 5000 XLPO PVC-AT
Our photovoltaic (PV) cables are used for interconnecting photovoltaic solar panel arrays in solar energy farms. These solar panel cables are suitable for fixed installations, both internal and external, and in open environments or in conduits.
The compounds have zero halogen, low smoke properties and are ultra violet ray as well as ozone resistant.
These cables can last for over 25 years. What’s more, these can offer the rodent-resistance feature and are available in a range of options: copper, copper-coated aluminium or 8000 series aluminium.
Rodent and termite-resistant cables are made with the nylon-12 layer between two layers of XLPO. Depents on application twin solar cables can also be offered.
Solar Cable Application
These pv cables are suitable for permanent outdoor long-term use, under variable and harsh climate conditions. They are designed and tested to operate at a normal maximum conductor temperature of 90°C and for 20,000 hours up to 120°C. Therefore, the expected period use is 30 years under normal usage conditions
PV Cables Design
Solar 1.5kV DC cables are designed and manufactured to EN 50618, IEC 62930, AS/NZS 5000.1 and other relevant standards.
Conductor – Flexible Electrolytic Tinned Class 5 Copper to EN 60228 or IEC 60228
Insulation – Crosslinked Halogen Free & Flame Retardant Insulation, Colour: Red or Black
Outer Sheath – Crosslinked Halogen Free & Flame Retardant UV and ozone resistant Sheath in Black or Black with Red Strips
Termite Protection: Nylon jacket termite protection can be offered for cables susceptible to attack from rodents and termites.
5kV DC feeder cables can also be offered with X-90 Insulation and HDPE or PVC over sheath upon request.
Solar 1.5kV DC cables Manufactured Standards
Solar 1.5kV DC cables are designed and manufactured to EN 50618, IEC 62930, AS/NZS 5000.1 and other relevant standards.
Electrical Properties
| Parameter | Specification |
|---|---|
| Rated DC Voltage | 1.5kV |
| Maximum Permitted DC Voltage | 1.8kV |
| Maximum Permitted AC Voltage | 1.0 kV |
| Spark Test | 6000 Vac (8400 Vdc) |
| Voltage Withstand | 6.5 kV AC or 15 kV dc |
Mechanical Characteristics
Minimum Bending Radius
1. Crosslinked Halogen Free & Flame Retardant Insulated and sheathed cables: 6 x OD (Installed), 8 x OD (During Installation)
2 Crosslinked Halogen Free & Flame Retardant Insulated and sheathed cables with Nylon jacket: 15 x OD (Installed), 25 x OD (During Installation)
3 Crosslinked Polyethylene (X-90) Insulated and HDPE sheathed cables with or without Nylon jacket: 15 x OD (Installed), 25 x OD (During Installation)
4. Crosslinked Polyethylene (X-90) Insulated and PVC sheathed cables: 15 x OD (Installed), 18 x OD (During Installation)
5. Crosslinked Polyethylene (X-90) Insulated and PVC sheathed cables with Nylon jacket: 15 x OD (Installed), 25 x OD (During Installation)
| Parameter | Specification |
|---|---|
| Dynamic Penetration | According to requirement of Cables for PV systems |
| Tensile Strength | 6.5 N/mm2 for insulation and 8 N/mm2 for sheathing – according to EN 60811 |
| Elongation of Insulation and sheathing | 125% – according to EN60811 |
| Shrinkage | 2% at 120°C according to EN 60811-1-3 |
| Application | These cables are used for interconnecting solar panels, combiner boxes and inverters in dry or damp conditions as well as in harsh environments exposed to ultraviolet sunlight radiation. These can be installed in open trays and in ducts or conduits. |
| Characteristics | Annealed tinned flexible copper conductor, electron beam cross -linked polyolefin (XLPO) insulation and sheath. |
| Applicable standards | EN-50618/2014, IEC: 62930, TuV 2pfg, 1990/05.12, AS/NZS:5000.1: 2005, UL:4703. |
| Product range | 2.5 mm to 300 mm |
| Advantages | The electron beam cross-linked wires and cables offer superior performance in demanding applications and in extreme environments. Some of the properties include: high di-electric strength, UV and ozone resistance, halogen-free, flame retardancy, oil and chemical resistance, weather, impact, abrasion and crack resistance, good cold flexibility, very long life cycle, compatibility with all popular connectors and ROHS compliance. |
Solar Cables 1.5kV DC Types
1. 1C, Aluminium Conductor XLPO Insulated & Sheathed Cable 1500 V DC to EN: 50618 & AS/NZS 5000.1
2. 1C, Aluminium Conductor XLPO Insulated, Termite protected Polyamide jacket & XLPO Sheathed Cable 1500 V DC to EN: 50618 & AS/NZS 5000.1
3. 2 x 1C, Aluminium Conductor XLPO Insulated & Sheathed Feeder – Duplex Cable 1500 V DC to EN: 50618 & AS/NZS 5000.1
4. 2 x 1C, Aluminium Conductor XLPO Insulated, Termite protected Polyamide jacket & XLPO Sheathed Feeder-Duplex Cable 1500V DC to EN: 50618 & AS/NZS 5000.1
5. 1C, Aluminium Conductor XLPE Insulated & HDPE Sheathed Cable 1500 V DC to EN: 50618 & AS/NZS 5000.1
6. 1C, Aluminium Conductor XLPE Insulated, Termite protected Polyamide jacket & HDPE Sheathed Cable 1500 V DC to EN: 50618 & AS/NZS 5000.1
7. 2 x 1C, Aluminium Conductor XLPE Insulated & HDPЕ Sheathed Feeder – Duplex Cable 1500 V DC to EN: 50618 & AS/NZS 5000.1
8. 2 x 1C, Aluminium Conductor XLPE Insulated, Termite protected Polyamide jacket & HDPE Sheathed Feeder-Duplex Cable 1500 V DC to EN: 50618 & AS/NZS 5000.1
9. 1C, Aluminium Conductor XLPE Insulated & PVC Sheathed Cable 1500 V DC to EN: 50618 & AS/NZS 5000.1
10. 1C, Aluminium Conductor XLPE Insulated, Termite protected Polyamide jacket & PVC Sheathed Cable 1500 V DC to EN: 50618 & AS/NZS 5000.1
11. 2 x 1C, Aluminium Conductor XLPE Insulated & PVC Sheathed Feeder – Duplex Cable 1500 V DC to EN: 50618 & AS/NZS 5000.1
12. 2 x 1C, Aluminium Conductor XLPE Insulated, Termite protected Polyamide jacket & PVC Sheathed Feeder – Duplex Cable 1500 V DC to EN: 50618 & AS/NZS 5000.1
Applicable Standards
Certificate Display
Type and routine tests are issued from our own testing centre under the ISO 9001 quality system — test reports and certificates accompany every shipment.
Factory Tour
Why Choose Us
Packing & Shipping
- Wooden, steel or steel-wood drums; drum length to customer requirement
- Drum marking per customer / utility specification
- Both drum ends sealed and protected for sea freight
