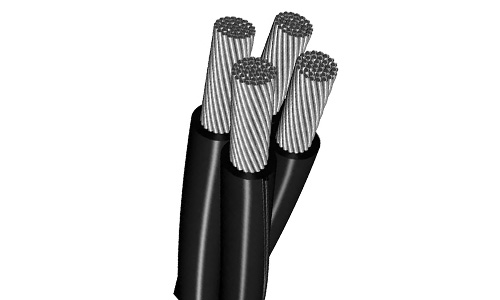

T2X — Bundle Assembled Aerial Cables XLPE-insulated
T2X Bundle Assembled Aerial Cables XLPE-insulated
Product Description
T2X Bundle Assembled Aerial Cables XLPE-insulated
T2X Bundle Assembled Aerial Cables XLPE-insulated Application
Power distribution networks with rated voltages up to U0/U 0,6/1 kV.
For the realization of single-phase or three-phase electrical connections and for the realization of three-phase power supply networks for household subscribers and single-phase, two-phase or three-phase public lighting networks
T2X Bundle Assembled Aerial Cables XLPE-insulated Cable Production standard
ST 125; SR HD 626 S1
T2X Bundle Assembled Aerial Cables XLPE-insulated Cable Construction
Phase conductor: Solid conductor (re) (section ≤16 mm2), concentrically stranded aluminium conductor (rm)
Null conductor: Concentrically stranded steel-aluminum conductor (rm)
Insulation: Crosslinked polyethylene, TIX 2 type.
Insulation color: Black
T2X Bundle Assembled Aerial Cables XLPE-insulated Parameter
| Conductor cross-section | max la 20ºC Electric resistance at 20º C, max. Ω/km |
Permissible charge A |
No. of wires in conductor, min. | Nominal radial insulation thickness mm |
Breaking strength kN |
Diam ext nominal Nominal outer diam. mm |
| 10 | 3.08 | 70 | 1 | 1.1 | 1.6 | 5.8 |
| 16 | 1.91 | 90 | 1 | 1.1 | 2.4 | 7.2 |
| 25 | 1.2 | 107 | 7 | 1.3 | 3.7 | 9.0 |
| 35 | 0.868 | 132 | 7 | 1.3 | 5.2 | 9.6 |
| 50 | 0.641 | 165 | 7 | 1.5 | 7.2 | 11.1 |
| 70 | 0.443 | 205 | 14 | 1.5 | 12.4 | 12.7 |
| 95 | 0.32 | 240 | 19 | 1.7 | 16.8 | 14.8 |
| Conductor neutru 50/8 |
0.595 | 165 | 6/1 | 1.5 | 16.8 | 11.9 |
| 70/12 | 0.413 | 205 | 26/7 | 1.5 | 25.77 | 12.7 |
| 95/15 | 0.320 | 240 | 26/7 | 1.7 | 33.72 | 14.8 |
| Cable type | Total cable mass, inf. kg/km |
Cable type | Total cable mass, inf kg/km |
| T2X 10Al+16 Al | 101 | T2X 50 OL-Al+3x35Al +2x16Al | 747 |
| T2X 16Al+25 Al | 153 | T2X 50 OL-Al+3x35Al+3x16Al | 813 |
| T2X 2x10Al | 86 | T2X 50 OL-Al+3x35Al+1x35Al | 746 |
| T2X 2x10Al+16Al | 142 | T2X 50 OL-Al+1x50Al | 405 |
| T2X 2x16Al | 118 | T2X 50 OL-Al+3x50Al | 745 |
| T2X 2x25Al | 188 | T2X 50 OL-Al+3x50Al +1x16Al | 804 |
| T2X 3x16Al+25Al | 271 | T2X 50 OL-Al+3x50Al+2x16Al | 863 |
| T2X 3x25Al +16Al | 345 | T2X 50 OL-Al+3x50Al+3x16Al | 924 |
| T2X 3x35Al | 464 | T2X 50 OL-Al+3x50Al +1x25Al | 839 |
| T2X 4x10Al | 172 | T2X 50 OL-Al+3x50Al+3x25Al | 1032 |
| T2X 4x16Al | 250 | T2X 50 OL-Al+3x50Al +1x35Al | 869 |
Certificate Display
Type and routine tests are issued from our own testing centre under the ISO 9001 quality system — test reports and certificates accompany every shipment.
Factory Tour
Why Choose Us
Packing & Shipping
- Wooden, steel or steel-wood drums; drum length to customer requirement
- Drum marking per customer / utility specification
- Both drum ends sealed and protected for sea freight
Ready for Your Next Cable Project?
Send us your specifications, cable schedule or RFQ — our engineering team replies with a technical proposal and price within one working day.
- Emailinfo@qzcablegroup.com
- WhatsApp / WeChat+86 173 3570 4553
- Contact personChloe · Export Department
- Factory addressWest Industrial Park, Zhulin Town, Gongyi City, Henan Province, China
