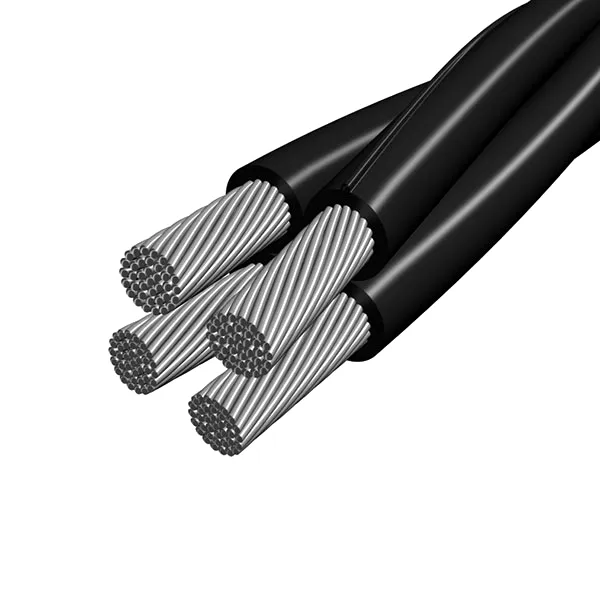

TYIR — Bundled Overhead Line Cable

TYIR / TYIR 50 OL-AL PVC Bundled Overhead Line Cable

Product Description

TYIR / TYIR 50 OL-AL PVC Bundled Overhead Line Cable

TYIR / TYIR 50 OL-AL Cable Application

Power distribution networks with rated voltages up to U0/U 0,6/1 kV.
For the realization of single-phase or three-phase electrical connections and for the realization of three-phase power supply networks for household subscribers and single-phase, two-phase or three-phase public lighting networks

TYIR / TYIR 50 OL-AL Cable Production standard

ST 125-2006; SR HD 626 S1

TYIR / TYIR 50 OL-AL Cable Construction

Phase conductor : Concentrically stranded alluminium conductor (rm)
Neutral conductor:Steel-aluminium carrier
Insualtion :PVC
Insulation color : Black

TYIR / TYIR 50 OL-AL Cable Parameter

Cable construction	Outer diameter	Aluminium cond. weight	Total cable weight
	mm	kg/km	kg/km
TYIR 10 Al+16 Al	12.6	67	130
TYIR 16 Al+25 Al	15.4	107	190
TYIR 2×10 Al	11.7	51	106
TYIR 2×16 Al	13.5	84	155
TYIR 2×25 Al	17.4	131	231
TYIR 35OL-Al+3x35Al	24.1	375	656
TYIR 3×16+25Al	17.3	192	347
TYIR 3×25+16Al	19.8	256	493
TYIR 3x35Al	20.8	279	450
TYIR 4x10Al	14.1	102	211
TYIR 4x16Al	16.3	169	309
TYIR 5x16Al	18.2	208	371
TYIR 50 OL-Al+16 Al	18.8	174	353
TYIR 50 OL-Al+16 Al+16 Al	18.8	216	427
TYIR 50 OL-Al+25 Al	20.8	198	394
TYIR 50 OL-Al+25 Al+25 Al	20.8	263	509
TYIR 50 OL-Al+2×35+35 Al	24.8	418	807
TYIR 50 OL-Al+2×50 Al	23.5	412	726
TYIR 50 OL-Al+2×50 Al+35Al	26.5	474	807
TYIR 50 OL-AL+35Al+35Al	21.8	319	579
TYIR 50 OL-Al+3×16 Al	19.4	258	502
TYIR 50 OL-Al+3×16 Al+16Al	20.2	300	576
TYIR 50 OL-Al+3×16 Al+2x16Al	25.2	341	650
TYIR 50 OL-Al+3×16 Al+3x16A	25.6	383	725
TYIR 50 OL-Al+3×25 Al	21	329	625
TYIR 50 OL-Al+3×25 Al+16Al	21.2	371	699
TYIR 50 OL-Al+3×25 Al+2x16Al	27	424	885
TYIR 50 OL-Al+3×25 Al+3x16Al	27.5	467	983
TYIR 50 OL-Al+3×35 Al	24.8	412	729
TYIR 50 OL-Al+3×35 Al+16Al	26	454	803
TYIR 50 OL-Al+3×35 Al+2x16Al	33	496	877
TYIR 50 OL-Al+3×35 Al+35Al	34.8	505	875
TYIR 50 OL-Al+3×35 Al+3x16Al	37.8	538	951
TYIR 50 OL-Al+3×35 Al+3x25Al	37.8	609	1075
TYIR 50 OL-Al+3×50 Al	37.8	505	846
TYIR 50 OL-Al+3×50 Al+16Al	37.8	547	921
TYIR 50 OL-Al+3×50 Al+2x16Al	37.8	587	993
TYIR 50 OL-Al+3×50 Al+35Al	38.3	599	996
TYIR 50 OL-Al+3×50 Al+3x16Al	38.3	632	1079
TYIR 50 OL-Al+3×50 Al+3x25Al	40	702	1193
TYIR 50 OL-Al+3×50 Al+2x25Al	42.5	637	1077
TYIR 50 OL-Al+3×50 Al+3x35Al	42.5	785	1296
TYIR 50 OL-Al+3×70 Al	42.5	668	1079
TYIR 50 OL-Al+3×70 Al+16Al	42.5	709	1153
YIR 50 OL-Al+3×70 Al+2x16Al	42.5	751	1227
TYIR 50 OL-Al+3×70 Al+2x25Al	42.5	799	1309
TYIR 50 OL-Al+3×70 Al+35Al	42.5	761	1229
TYIR 50 OL-Al+3×70 Al+3x16Al	42.5	793	1302
TYIR 50 OL-Al+3×70 Al+3x25Al	42.5	864	1425
TYIR 50 OL-Al+3×70 Al+3x35Al	42.5	948	1528
TYIR 50 OL-Al+3×95 Al	43	863	1357
TYIR 50 OL-Al+3×95 Al+2x16Al	44	946	1505
TYIR 50 OL-Al+3×95 Al+3x16Al	44	987	1579
TYIR 50 OL-Al+3×95 Al+2x25Al	43	995	1588
TYIR 50 OL-Al+50 Al	26	257	468
TYIR 50 OL-Al+50 Al+35Al	26	350	618
TYIR 50 OL-Al+35 Al	27	225	429
TYIR 50 OL-Al+35 Al+16Al	27	268	506
TYIR 50 OL-Al+70 Al	27	311	545

Certificate Display

**Low Voltage Directive Attestation (EU)**

Type and routine tests are issued from our own testing centre under the ISO 9001 quality system — test reports and certificates accompany every shipment.

Factory Tour

Why Choose Us

50+ years of experience Trusted manufacturing expertise since 1969

International standards IEC, ASTM, BS, CSA and other global standards

Strict quality control Comprehensive testing throughout production

Large production capacity Reliable supply for utility and EPC projects

Fast global delivery Efficient manufacturing and worldwide shipping

Technical support Expert assistance from inquiry to project completion

Packing & Shipping

Wooden, steel or steel-wood drums; drum length to customer requirement
Drum marking per customer / utility specification
Both drum ends sealed and protected for sea freight
