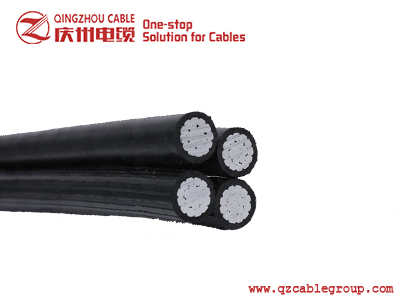

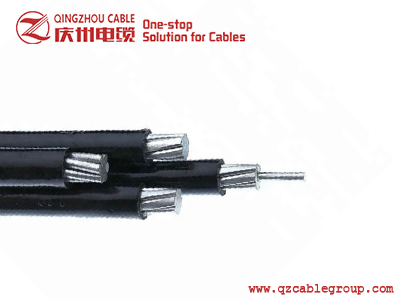

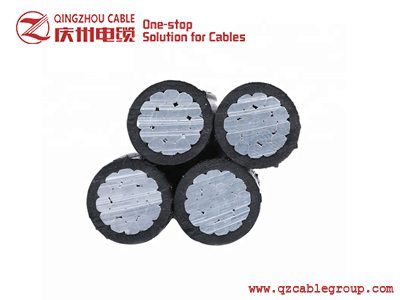

0.6/1KV RECLINE WIRE CABLE


16mm 25mm 35mm 50mm 70mm 90mmRecline Cable contains high strength, good bending performance, easy to be connected and operated on with buffer design and sheath to prevent damage from environmental and mechanical stress


Application

Overhead aluminium conductor aerial bounded cable recline cable is to supply power from the utility's lines to the consumer's weather head. For service at 600 volt or less (phase to phase) at a conductor temperature of 75℃ maximum for polyethylene insulation or 90℃ maximum for cross-linked insulation. 0.6/1KV RECLINE WIRE CABLE

Standard

British Standard BS 7870-5:1999

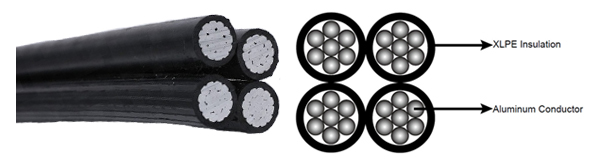

Recline Cable–British Standard BS 7870-5 (AL/XLPE)

Number of cores x nominal cross section max. conductor- resistance min. breaking load of conductor strand Current rating in the air Outer diameter Total weight
mm^2 Ohm/km kN A mm kg/km
1x 16 RM 1,910 2,5 72 80 74
1x 25 RM 1,200 4,0 107 90 106
1x 35 RM 0,868 5,5 132 105 138
1x 50 RM 0,641 8,0 165 118 182
1x 70 RM 0,443 10,7 205 130 252
1x 95 RM 0,320 13,7 240 154 333
1x 120 RM 0,253 18,6 290 170 408
1x 150 RM 0,206 23,2 334 190 502
1x 185 RM 0,164 28,7 389 210 611
1x 240 RM 0,125 37,2 467 240 801
2x 16 RM 1,910 2,5 72 156 147
2x 25 RM 1,200 4,0 107 180 208
2x 35 RM 0,868 5,5 132 200 277
2x 50 RM 0,641 8,0 165 235 361
2x 70 RM 0,443 10,7 205 254 505
2x 95 RM 0,320 13,7 240 303 666
2x 150 RM 0,206 23,2 334 380 1004
4x 16 RM 1,910 2,5 72 188 286
4x 25 RM 1,200 4,0 107 212 430
4x 35 RM 0,868 5,5 132 241 553
4x 50 RM 0,641 8,0 165 278 746
4x 70 RM 0,443 10,7 205 318 1009
4x 95 RM 0,320 13,7 240 378 1332
4x 120 RM 0,253 18,6 290 544 1632
4x 50 + 1x 25 RM 0,641/1,200 8,0/4,0 165/107 319 814
4x 50 + 1x 35 RM 0,641/0,868 8,5/5,5 165/132 319 845
4x 70 + 1x 25 RM 0,443/1,200 10,7/4,0 205/107 360 1105
4x 70 + 2x 25 RM 0,443/1,200 10,7/4,0 205/107 400 1217
4x 95 + 1x 25 RM 0,320/1,200 13,7/4,0 240/107 418 1438
4x 95 + 2x 25 RM 0,320/1,200 13,7/4,0 240/107 420 1544
4×120 + 1x 25 RM 0,253/1,200 18,6/4,0 290/107 590 2050
