INDOOR OPTICAL FIBER CABLE

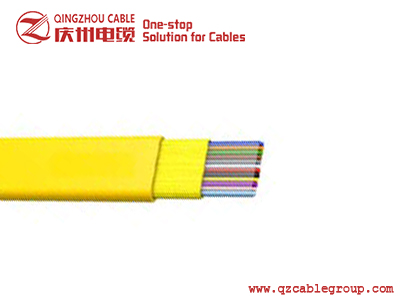

Indoor Flat Fiber Ribbon Fiber Optic Cable
Description:
Flat ribbon cable uses fiber ribbon as optical transmission medium, covered with aramid yarn as strength member, then extruded with a PVC sheath. Other sheath materials, like LSZH and TPU, are available on request.
Application :
1. Ribbon fiber flexible connection jumper
2. Various indoor cabling solutions. Especially used in good laying conditions.
3. Interconnection between apparatuses
Indoor Flat Fiber Ribbon Fiber Optic Cable
|
Fiber Counts |
Cable Diamter(mm) |
Weight (kg/km) |
Tensile strength(N) |
Crush Resistance(N/100mm) |
Minimum bending radius (mm) |
|||
|
|
|
|
Short-term |
Long-term |
Short-term |
Long-term |
Static |
Dynamic |
|
2 |
2.5*3.5 |
7.3 |
200 |
80 |
500 |
200 |
30 |
50 |
|
4 |
2.5*3.5 |
7.4 |
200 |
80 |
500 |
200 |
30 |
50 |
|
6 |
2.5*4.0 |
8.2 |
200 |
80 |
500 |
200 |
30 |
50 |
|
8 |
2.5*4.5 |
9.3 |
200 |
80 |
500 |
200 |
30 |
50 |
|
12 |
2.5*5.0 |
10 |
200 |
80 |
500 |
200 |
30 |
50 |
Note:
1.Cables can be supplied with a range of single mode or multimode fibers.
2. The dimensions and raw materials can be designed according to the demand of the customers.
3. Standard Reel Length: 2000m/reel: other lengths available on request.
LSZH/PVC/TPU Simplex single Fiber Optic Cable
Description:
Simplex fiber optic cable comes with a single buffered fiber,aramid yarn strength members and low smoke zero halogen(LSZH)/PVC/TPU outer jacket.
Application :
1. Terminated with various types of connectors
2. As pigtail of communication equipment
3. Suitable for communication equipment served
LSZH/PVC/TPU Simplex single Fiber Optic Cable
|
Cable Diamter (mm) |
Tight Buffer diameter (mm) |
Weight (kg/km) |
Tensile strength(N) |
Crush Resistance |
Minimum bending radius (mm) |
|||
|
|
|
|
Short-term |
Long-term |
Short-term |
Long-term |
Static |
Dynamic |
|
1.6 |
0.6 |
2.8 |
150 |
80 |
500 |
100 |
20D |
10D |
|
1.8 |
0.6 |
3.0 |
150 |
80 |
500 |
100 |
20D |
10D |
|
2.0 |
0.9 |
4.25 |
150 |
80 |
500 |
100 |
20D |
10D |
|
2.4 |
0.9 |
5.00 |
150 |
80 |
500 |
100 |
20D |
10D |
|
2.8 |
0.9 |
6.60 |
150 |
80 |
500 |
100 |
20D |
10D |
|
3.0 |
0.9 |
7.00 |
150 |
80 |
500 |
100 |
20D |
10D |
Note:
1.Cables can be supplied with a range of single mode or multimode fibers.
2. The dimensions and raw materials can be designed according to the demand of the customers.
3. Standard Reel Length: 2000m/reel: other lengths available on request.

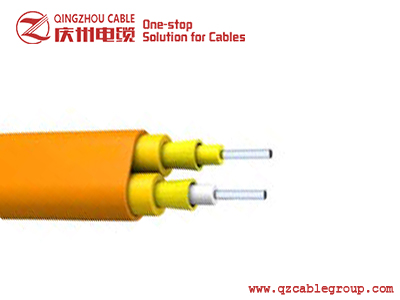

LSZH/PVC/TPU Ruggedised Duplex Flat Fiber Optic Cable
Description:
Ruggedised fiber optic cable comprises of duplex fiber cable with additonal layer of PVC jacket.Low smoke zero halogen(LSZH)/PVC/TPU outer jacket will provide added protection and better tensile strength for the cable and makes it suitable to be used in more demanding environment.
Application :
1. Duplex optical fiber flexible connection jumper or pigtail
2. Indoor riser level and plenum level cabling
3.Instruments communicationequipment interconnection
LSZH/PVC/TPU Ruggedised Duplex Flat Fiber Optic Cable
|
Cable Diameter(mm) |
Inner Jacket diameter(mm) |
Weight(kg/km) |
Tensile strength(N) |
Crush Resistance(N/100mm) |
Minimum bending radius (mm)) |
|||
|
|
|
|
Short-term |
Long-term |
Short-term |
Long-term |
Static |
Dynamic |
|
3.0*5.0 |
1.8 |
56 |
300 |
800 |
1000 |
500 |
60 |
30 |
|
3.2*5.6 |
2 |
65 |
300 |
800 |
1000 |
500 |
60 |
30 |
|
4.0*7.0 |
3 |
88 |
300 |
800 |
1000 |
500 |
60 |
30 |
Note:
1.Cables can be supplied with a range of single mode or multimode fibers.
2. The dimensions and raw materials can be designed according to the demand of the customers.
3. Standard Reel Length: 2000m/reel: other lengths available on request.

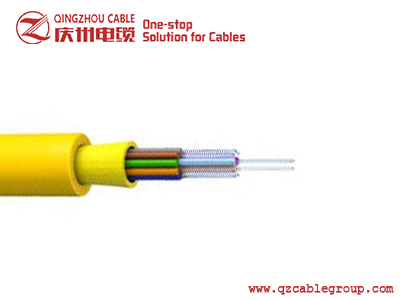

Indoor Multi Purpose Distribution Fiber Optic Cable
Description:
Multi purpose distribution cable use 6-fiber sub-units(900μm tight buffer, aramid yarn as strength member). A fiber reinforced plastic(FRP) locates in the center of core as a non-metallic strength member. The sub-units are stranded around the cable core. The cable is completed with a LSZH or PVC jacket.
Application :
1. Backbone distribution cable in building
2. Indoor cabling
Indoor Multi Purpose Distribution Fiber Optic Cable
|
Fiber Counts |
Cable Diamter(mm) |
Weight |
Tensile strength(N) |
Crush Resistance(N/100mm) |
Minimum bending radius (mm) |
|||
|
|
|
|
Short-term |
Long-term |
Short-term |
Long-term |
Static |
Dynamic |
|
24 |
15.5±0.4 |
205 |
1500 |
500 |
1500 |
600 |
10D |
20D |
|
36 |
17.5±0.4 |
255 |
1500 |
500 |
1500 |
600 |
10D |
20D |
|
48 |
17.5±0.4 |
255 |
1500 |
500 |
1500 |
600 |
10D |
20D |
|
72 |
19.5±0.4 |
320 |
1500 |
500 |
1500 |
600 |
10D |
20D |
|
96 |
22.0±0.4 |
395 |
1500 |
500 |
1500 |
600 |
10D |
20D |
|
144 |
28.0±0.4 |
579 |
1500 |
500 |
1500 |
600 |
10D |
20D |
Note:
1.Cables can be supplied with a range of single mode or multimode fibers.
2. The dimensions and raw materials can be designed according to the demand of the customers.
3. Standard Reel Length: 2000m/reel: other lengths available on request.
PVC/LSZH non armoured Tight Buffered Cable
Description:
Non armoured tight buffered cable that can cater up to a maximum of 24 900µm fibers.The cable is made up of aramid yarn strength members and flame retardant PVC outer jacket which will provide flame retardant capability in the event of fire brekout or low smoke zero halogen(LSZH)outer jacket which provides not only the flame retardant capability but also emits low smoke and non toxic gas when in the event of fire breakout.
Application :
1. Multi-core fiber flexible connector
2. Indoor cabling
PVC/LSZH non armoured Tight Buffered Cable
|
Fiber Counts |
Cable Diamter(mm) |
Weight |
Tensile strength(N) |
Crush Resistance(N/100mm) |
Minimum bending radius (mm) |
|||
|
|
|
|
Short-term |
Long-term |
Short-term |
Long-term |
Static |
Dynamic |
|
4 |
5.2±0.4 |
16.2 |
130 |
440 |
1000 |
300 |
60 |
30 |
|
6 |
5.5±0.4 |
20 |
130 |
440 |
1000 |
300 |
60 |
30 |
|
8 |
6.2±0.4 |
26 |
130 |
440 |
1000 |
300 |
60 |
30 |
|
12 |
6.5±0.4 |
31.5 |
200 |
660 |
1000 |
300 |
60 |
30 |
|
24 |
8.2±0.4 |
50.5 |
200 |
660 |
1000 |
300 |
60 |
30 |
|
36 |
9.0±0.4 |
70.5 |
200 |
660 |
1000 |
300 |
60 |
30 |
|
48 |
10.5±0.4 |
88.5 |
200 |
660 |
1000 |
300 |
60 |
30 |
Note:
1.Cables can be supplied with a range of single mode or multimode fibers.
2. The dimensions and raw materials can be designed according to the demand of the customers.
3. Standard Reel Length: 2000m/reel: other lengths available on request.
