OPGW OVERHEAD GROUND WIRE


Optical Ground Wire is designed to replace traditional static / shield / earth wires on overhead transmission lines with the added benefit of containing optical fibers which can be used for telecommunications purposes.


OPGW OVERHEAD GROUND WIRE

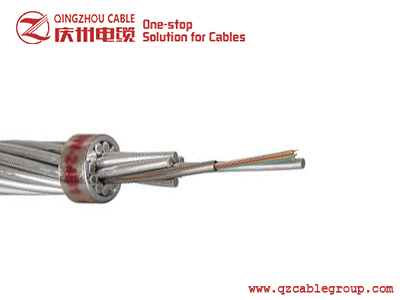

Overhead Optical Ground Wire Description:

The Aluminum tube is surrounded by single or double layers of aluminum clad steel wires(ACS) or mix ACS wires and aluminum alloy wires. Good anti-corrosion performance. Material and structure are uniform, good resistance to vibration fatigue.

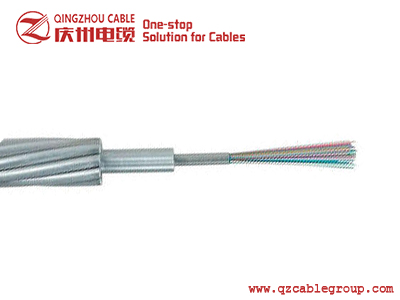

Optical Ground Wire Description:

The central Al-covered steel tube is surrounded by single or double layers of aluminum clad steel wires(ACS) or mix ACS wires and aluminum alloy wires. Al-covered Stainless Steel tube design increases the cross section of AL, to reach a better fault current and lightning resistance performance. Apply to the transmission line which requires small diameter and large fault current.

Overhead Optical Ground Wire(OPGW)

Application: Aerial / ground (earth) wire.

Overhead Optical Ground Wire Typical Design:

Specification

Fiber Count

Diameter(mm)

Weight (kg/km)

RTS(KN)

Short Circuit(KA2s)

OPGW-113(87.9;176.9)

48

14.8

600

70.1

33.9

OPGW-70(81;41)

24

12

500

81

41

OPGW-66(79;36)

36

11.8

484

79

36

OPGW-77(72;36)

36

12.7

503

72

67

Note:

1.Only a part of Overhead Optical Ground Wire are listed in the table. Cables with other specifications can be inquired.

2.Cables can be supplied with a range of single mode or multimode fibers.

3.Specially designed Cable structure is available on request.

4.Cables can be supplied with dry core or semi dry core

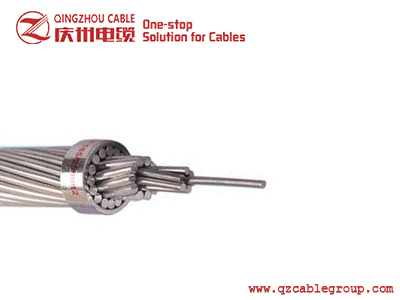

Optical Ground Wire(OPGW)

Application: Aerial / ground (earth) wire.

Optical Ground Wire Typical Design for Single Layer

Specification

Fiber Count

Diameter(mm)

Weight (kg/km)

RTS(KN)

Short Circuit(KA2s)

OPGW-80(82.3;46.8)

24

11.9

504

82.3

46.8

OPGW-70(54.0;8.4)

24

11

432

70.1

33.9

OPGW-80(84.6;46.7)

48

12.1

514

84.6

46.7

Optical Ground WireTypical Design for Double Layer&nbsp

Specification

Fiber Count

Diameter(mm)

Weight (kg/km)

RTS(KN)

Short Circuit (KA2s)

OPGW-143(87.9;176.9)

36

15.9

617

87.9

176.9

Note:

1.Only a part of Optical Ground Wire are listed in the table. Cables with other specifications can be inquired.

2.Cables can be supplied with a range of single mode or multimode fibers.

3.Specially designed Cable structure is available on request.

4.Cables can be supplied with dry core or semi dry core
