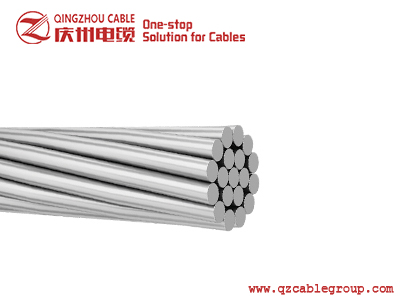

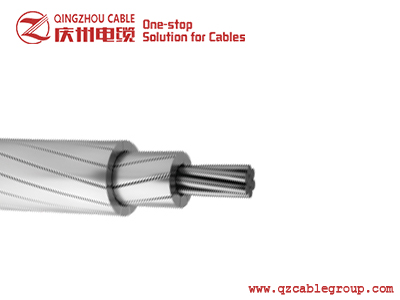

TAAAC Conductor-Thermal Resistant Aluminum-alloy Conductors
Application:
Urban network capacity transformation, substation, power plant construction and general lines
Standards:
IEC 61089 / BS EN 50182
Characteristics:
(Compared with conventional ACSR)
1.Long-term working temperature of 150℃, short-term temperature up to 180℃, so that the continuous allowable carrying capacity of the same specification of ordinary wire 1.5~1.6 times.
2.Under normal temperature, with ordinary aluminum wire has the same strength, high temperature operation mechanical strength retention rate can be maintained at more than 90%.
3.Compared with ordinary aluminum wire, it has the same creep properties at room temperature or high temperature.
4.There is no significant difference between the salt spray test in laboratory and the outdoor air exposure test.
5.Installation and maintenance are the same as ordinary wire installation procedures, without any special tools, tooling, installation and maintenance are convenient, and the cost is low.
TAAAC Conductor-Thermal Resistant Aluminum-alloy Conductors JEC 197
Cross Sectional area |
Na/Dia of wire |
Approximately |
DC conduvtor Resistance at 20℃,max |
Calcuated breaking load min |
Current Carrying capacity |
Standard Delivery lenght |
||
Overall diameter |
Net weight |
|||||||
mm² |
Pcs/mm |
mm |
Kg/km |
Ω/km |
kgf |
n |
A |
m |
150 |
19/3.20 |
16 |
419 |
0.1910 |
2270 |
22268 |
700 |
5000 |
200 |
19/3.70 |
18.5 |
560 |
0.1430 |
3030 |
29724 |
850 |
5000 |
240 |
19/4.00 |
20 |
655 |
0.1220 |
3490 |
34236 |
945 |
3000 |
300 |
37/3.20 |
22.4 |
821 |
0.0958 |
4430 |
43458 |
1090 |
3000 |
400 |
37/3.70 |
25.9 |
1097 |
0.0737 |
5890 |
57780 |
1325 |
2000 |
510 |
37/4.20 |
29.4 |
1414 |
0.0571 |
7460 |
73182 |
1565 |
2000 |
660 |
61/3.70 |
33.3 |
1812 |
0.0448 |
9720 |
95353 |
1840 |
1500 |
850 |
61/4.20 |
37.8 |
2335 |
0.0347 |
12300 |
120663 |
2175 |
1000 |
980 |
91/3.70 |
40.7 |
2716 |
0.0302 |
14500 |
142245 |
2380 |
1000 |
1030 |
91/3.80 |
41.8 |
2865 |
0.0286 |
15320 |
150289 |
2465 |
1000 |
1260 |
91/4.20 |
46.2 |
3501 |
0.0234 |
18350 |
180013 |
2800 |
500 |
NOTE:Continuous operating temperature of conductor=35℃,wind velcity=0.6m/sec
TAAAC Conductor-Thermal Resistant Aluminum-alloy Conductors JEC 3046-95
Nominal Cross section area |
Structure [number x diameter of wire] |
Calculation area cross cestion |
Approx. Diameter of conductor |
Min.breaking strength |
DC Resistance of conductor at 20℃ |
Approx Mass of conductor |
Current Carrying capacity |
|
mm² |
n |
mm |
mm² |
mm |
kN |
Ω/km |
Kg/km |
A |
120 |
19 |
2.80 |
117.0 |
14.00 |
17.5 |
0.2493 |
320.1 |
566 |
150 |
19 |
3.15 |
148.1 |
15.75 |
22.2 |
0.1970 |
405.1 |
659 |
200 |
19 |
3.65 |
198.8 |
18.25 |
29.2 |
0.1467 |
543.9 |
798 |
240 |
19 |
4.00 |
238.8 |
20.00 |
34.2 |
0.1220 |
654.5 |
897 |
300 |
37 |
3.20 |
297.6 |
22.40 |
44.5 |
0.0986 |
816.0 |
1036 |
400 |
37 |
3.70 |
397.8 |
25.90 |
58.0 |
0.0737 |
1097.0 |
1258 |
510 |
37 |
4.20 |
512.6 |
29.40 |
73.3 |
0.0571 |
1413.0 |
1491 |
660 |
61 |
3.70 |
655.9 |
33.30 |
95.6 |
0.0448 |
1812.0 |
1753 |
850 |
61 |
4.20 |
845.1 |
37.80 |
120.9 |
0.0342 |
2334.0 |
2073 |
980 |
61 |
3.70 |
978.4 |
40.70 |
142.7 |
0.0302 |
2714.0 |
2272 |
1030 |
91 |
3.80 |
1032.1 |
41.80 |
150.5 |
0.0286 |
2864.0 |
2353 |
1260 |
91 |
4.20 |
1260.8 |
46.20 |
180.3 |
0.0234 |
3499.0 |
2672 |
1600 |
127 |
4.00 |
1595.9 |
52.00 |
228.5 |
0.0186 |
4440.0 |
3083 |
2020 |
127 |
4.50 |
2019.5 |
58.50 |
289.0 |
0.0147 |
5616.0 |
3540 |
2500 |
127 |
5.00 |
2493.7 |
65.00 |
357.0 |
0.0118 |
6937.0 |
3988 |
