0.6/1KV SERVICE DROP CABLE


The service drop consists of three phase wires and a neutral wire which is grounded. Primarily used for 120V overhead service applications such as street lighting, outdoor lighting, and temporary service for construction.


Application

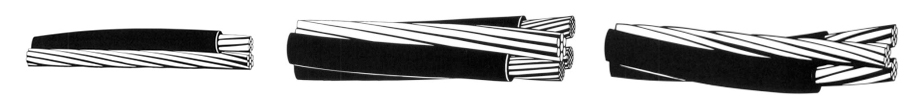

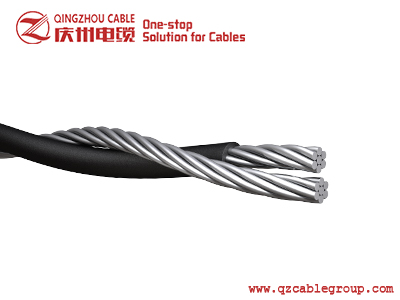

Duplex 600/1000V ABC primarily used for 120 volt overhead service applications such as street lighting, outdoor lighting, and temporary service for construction. To be used at voltages of 600 volts phase-to-phase or less and at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for cross linked polyethylene (XLP) insulated conductors.

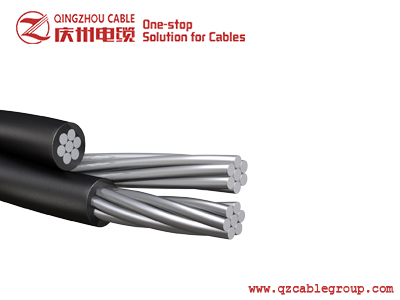

Triplex 600/1000V ABC used to supply power, usually from a pole-mounted transformer, to the user's service head where connection to the service entrance cable is made. To be used at voltages of 600 volts phase-to-phase or less and at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for crosslinked polyethylene (XLP) insulated conductors.

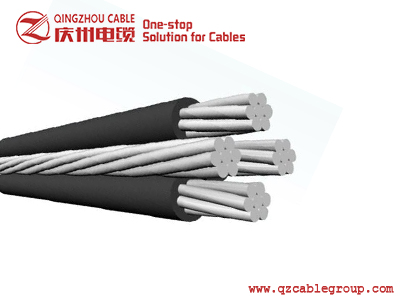

Quadruplex 600/1000V ABC used to supply 3-phase power, usually from a pole-mounted transformer, to the user's service head where connection to the service entrance cable is made. To be used at voltages of 600 volts phase-to-phase or less and at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for crosslinked polyethylene (XLP) insulated conductors.

Standard

IECA-S-76-474

0.6/1KV SERVICE DROP CABLE

Construction

Conductors are concentrically stranded, compressed 1350-H19 aluminum. Insulated with either polyethylene or cross linked polyethylene (XLP). Neutral messengers are concentrically stranded 6201, AAC, or ACSR.

Conductors are manufactured with ridges for phase identification (one conductor one ridge, one conductor two ridges, one conductor plain.) Optional

Duplex 600/1000V ABC – Aluminium Service Drop Cable

Code Name

Phase conductor

Bare Neutral Message

Nominal Weight (kg/km)

Allowable Ampacity

Size & No.of wires

Insulation Thick(mm)

Nominal Diameter (mm)

Size & No.of wires

Rated Strength (kg)

XLPE

Aluminum

(A)







Bare

OD











AAC Bare Neutral Wire Supported

Pekingese

6-Solid

1.14

4.1

6.4

6-7

255

20.8

72.9

78

Collie

6-7

1.14

4.6

6.9

6-7

255

23.8

72.9

78

Cocker

6-7

1.52

4.6

7.7

6-7

255

32.7

72.9

78

Dachshund

4-Solid

1.14

5.2

7.5

6-7

400

26.8

114.6

103

Spaniel

4-7

1.14

5.9

8.2

6-7

400

29.8

116.1

103

Cairn

4-7

1.52

5.9

8.9

6-7

400

40.2

116.1

103

Doberman

2-7

1.14

7.4

9.7

2-7

612

38.7

184.5

136

Airedale

1-19

1.52

8.4

11.5

1-7

56.5

233.6

158

Basset

1/0-7

1.52

9.3

12.4

1/0-7

903

64

294.7

182

Malemure

1/0-19

1.52

9.4

12.5

1/0-7

903

64

294.7

182

AAAC Bare Neutral Wire Supported

Chihuahua

6-Solid

1.14

4.1

6.4

6-7

499

20.8

72.9

78

Vizsla

6-7

1.14

4.6

6.9

6-7

499

23.8

72.9

78

Harrier

4-Solid

1.14

5.2

7.5

4-7

798

26.8

116.1

103

Whippet

4-7

1.14

5.9

8.2

4-7

798

29.8

116.1

103

Schnauzer

2-7

1.14

7.4

9.7

2-7

1270

38.7

184.5

136

Afghan

1/0-7

1.52

9.3

12.4

1/0-7

2023

64

296.1

182

Heeler

1/0-19

1.52

9.4

12.5

1/0-7

2023

64

296.1

182

ACSR Bare Neutral Wire Supported

Setter

6-Solid

1.14

4.1

6.4

6/6/01

540

20.8

72.9

78

Shepherd

6-7

1.14

4.6

6.9

6/6/01

540

23.8

72.9

78

Retriever

6-7

1.52

4.6

7.7

6/6/01

540

32.7

72.9

78

Eskimo

4-Solid

1.14

5.2

7.5

4/6/01

844

26.8

114.6

103

Terrier

4-7

1.14

5.9

8.2

4/6/01

844

29.8

116.1

103

Yorkshirc

4-7

1.52

5.9

8.9

4/6/01

844

40.2

116.1

103

Chow

2-7

1.14

7.4

9.7

2/6/01

1293

38.7

184.5

136

Labrador

1-19

1.52

8.4

11.5

2/6/01

1610

56.5

233.6

158

Bloodhound

1/0-7

1.52

9.3

12.4

1/0-6/1

1987

64

294.7

182

Bull

1/0-19

1.52

9.4

12.5

1/0-6/1

1987

64

294.7

182

MORE

Triplex 600/1000V ABC——Aluminium Service Drop Wire

Code Name

Phase conductor

Bare Neutral Message

Nominal Weight (kg/km)

Allowable Ampacity

Size & No.of wires

Insulation Thick(mm)

Nominal Diameter (mm)

Size & No.of wires

Rated Strength (kg)

XLPE

Aluminum

Total

(A)







Bare

OD













AAAC Bare Neutral Wire Supported

Homarus

6-Solid

1.14

4.115

6.4

6-7

499

42

118

159

78

Minex

6-Solid

1.14

4.115

13.3

6-7

499

42

118

159

78

Cabera

6-7

1.14

4.65

6.9

6-7

499

48

118

165

78

Hippa

6-7

1.14

4.65

6.9

6-7

499

48

118

165

78

Artemia

4-Solid

1.14

5.182

7.5

6-7

499

52

162

214

103

Maria

4-7

1.14

5.89

8.2

6-7

499

60

188

247

103

Crab

4-7

1.14

5.89

8.2

6-7

499

60

162

222

103

Ludia

4-Solid

1.14

5.182

7.5

6-7

499

52

162

214

103

Prawn

4-Solid

1.14

5.182

7.5

4-7

798

52

188

240

103

Metalia

4-7

1.14

5.89

8.2

4-7

798

60

188

247

103

Prawn

4-Solid

1.14

5.182

7.5

4-7

798

52

188

240

103

Metalia

4-7

1.14

5.89

8.2

4-7

798

60

188

247

103

Bamacles

4-7

1.14

5.89

8.2

4-7

798

60

188

247

103

Solaster

2-7

1.14

7.42

9.7

4-7

798

76

258

333

136

Pagarus

2-7

1.52

7.42

10.5

4-7

798

100

258

357

136

Shrimp

2-7

1.14

7.42

9.7

2-7

1270

76

298

374

136

Lobster

2-7

1.52

7.42

10.5

2-7

1270

100

298

397

136

Encope

1-19

1.52

8.43

11.5

2-7

1270

115

347

461

158

Sanderab

1/0-7

1.52

9.35

12.4

2-7

1270

128

409

537

182

Echinus

1/0-19

1.52

9.47

12.5

2-7

1270

130

409

539

182

Gammarus

1/0-7

1.52

9.35

12.4

1/0-7

2023

128

473

601

182

Leda

1/0-19

1.52

9.47

12.5

1/0-7

2023

130

473

603

182

Crayfish

2/0-7

1.52

10.5

13.6

2-7

1270

146

487

631

210

Sipho

2/0-19

1.52

10.6

13.7

2-7

1270

147

487

634

210

Dungenese

2/0-7

1.52

10.5

13.6

2/0-7

2445

146

595

740

210

Cyclops

2/0-7

1.52

10.6

13.7

2/0-7

2445

147

595

743

210

Slug

3/0-7

1.52

11.8

14.8

1/0-7

2023

165

650

816

242

Fulgur

3/0-19

1.52

11.9

15

1/0-7

2023

168

650

819

242

Balanus

3/0-19

2.03

11.9

16

1/0-7

2023

216

650

868

242

Stonecrab

3/0-7

1.52

11.8

14.8

3/0-7

3080

165

752

917

242

Flustra

3/0-7

1.52

11.9

15

3/0-7

3080

168

752

920

242

Crisia

3/0-19

2.03

11.9

16

3/0-7

3080

216

752

969

242

Squid

4/0-7

1.52

13.3

16.3

2/0-7

2431

191

820

1011

279

Area

4/0-19

1.52

13.4

16.5

2/0-7

2431

192

820

1012

279

Bugula

4/0-19

2.03

13.4

17.5

2/0-7

2431

246

820

1066

279

Kingerab

4/0-7

1.52

13.3

16.3

4/0-7

3883

191

948

1137

279

Lepas

4/0-19

1.52

13.4

16.5

4/0-7

3883

192

948

1140

279

Cassi

4/0-19

2.03

13.4

17.5

4/0-7

3883

246

948

1194

279

ACSR Bare Neutral Wire Supported

Paludina

6-Solid

1.14

4.115

6.401

6-6/1

540

42

112

170

79

Voluta

6-7

1.14

4.67

6.96

6-6/1

540

48

112

176

79

Bolma

6-7

1.52

4.67

7.722

6-6/1

540

64

112

194

79

Scallop

6-Solid

1.14

5.182

7.468

6-6/1

540

52

155

225

138

Stombus

4-7

1.14

5.89

8.179

6-6/1

540

60

155

232

138

Carnea

4-7

1.52

5.89

8.941

6-6/1

540

80

155

253

138

Whelk

4-Solid

1.14

5.182

7.468

4-6/1

844

52

177

258

138

Periwinkle

4-7

1.14

5.89

8.179

4-6/1

844

60

177

263

138

Calma

4-7

1.52

5.89

8.941

4-6/1

844

80

177

284

138

Cockle

2-7

1.14

5.89

8.179

4-6/1

844

60

247

335

183

Gebia

2-7

1.52

5.89

8.941

4-6/1

844

80

247

354

183

Conch

2-7

1.14

5.89

8.179

2-6/1

1293

60

281

384

183

Uca

2-7

1.52

5.89

8.941

2-6/1

1293

80

281

405

183

Vermeths

2-7

1.52

8.33

11.379

1-6/1

1610

113

354

522

210

Atya

1-19

1.52

8.33

11.379

1-6/1

1610

113

430

524

210

Janthina

1/0-7

1.52

8.33

11.379

2-6/1

1293

113

393

549

242

Ranella

1/0-19

1.52

9.47

12.522

2-6/1

1293

130

393

566

242

Neritina

1/0-7

1.52

9.35

12.395

1/0-6/1

1987

128

448

644

242

Cenia

1/0-19

1.52

9.47

12.522

1/0-6/1

1987

130

448

646

242

Cavolinia

2/0-7

1.52

10.5

13.564

1-6/1

1610

146

496

697

279

AAC Bare Neutral Wire Supported

Halotis

6-Solid

1.14

4.115

6.4

6-7

255

42

110

152

78

Pike

6-7

0.76

4.67

6.2

6-7

255

31

112

143

78

Fusus

4-Solid

1.14

5.182

7.5

4-7

400

52

177

229

103

Oyster

4-7

1.14

5.89

8.2

4-7

400

76

177

237

103

Clam

2-7

1.14

7.42

9.7

2-7

612

100

281

359

136

Pyrula

1-7

1.52

8.33

11.4

1-7

744

113

356

467

158

Hyas

1-19

1.52

8.43

11.5

1-7

744

115

356

469

158

Murex

1/0-7

1.52

9.35

12.4

1/0-7

903

128

385

513

182

Purpura

1/0-19

1.52

9.47

12.5

1/0-7

903

130

385

515

182

Nasa

2/0-7

1.52

10.52

13.6

2/0-7

1139

146

566

710

210

Trophon

2/0-7

1.52

10.64

13.7

2/0-7

1139

147

566

713

210

Quahog

3/0-7

2.03

11.79

15.9

3/0-7

1379

214

713

926

242

Lone

2/0-19

2.03

11.94

16

3/0-7

1379

217

713

929

242

Melita

3/0-19

1.52

11.94

15

3/0-19

1501

168

713

881

242

Coquina

4/0-7

1.52

13.26

16.3

4/0-7

1737

191

899

1089

279

Tusk

4/0-7

2.03

13.26

17.3

4/0-7

1737

243

899

1141

279

Apus

4/0-19

2.03

13.41

17.5

4/0-7

1737

246

899

1144

279

Portunus

4/0-19

1.52

13.41

16.5

4/0-19

1823

194

899

1091

279

Chiton

266.8-19

2.03

14.88

18.9

266.8-19

2254

277

1133

1409

310

Nannynose

336.4-19

2.03

16.92

21

336.4-19

2790

321

1427

1749

330

MORE

Quadruplex 600/1000V ABC——Aluminium Service Drop Wire

Code Name

Phase conductor

Bare Neutral Message

Nominal Weight (kg/km)

Allowable Ampacity

Size & No.of wires

Insulation Thick(mm)

Nominal Diameter (mm)

Size & No.of wires

Rated Strength (kg)

XLPE

Aluminum

Total

(A)







Bare

OD













AAAC Bare Neutral Wire Supported

Bay

6-Solid

1.143

4.115

6.401

6/7

503.485

63

155

217

78

French-conch

6/7

1.143

4.674

6.96

6/7

503.485

71

155

226

78

Cerman-conch

4-Solid

1.143

5.182

7.468

4/7

798.318

79

247

324

103

Arabian

4/7

1.143

5.893

8.179

4/7

784.711

89

247

336

103

Belgain

2/7

1.143

7.417

9.703

2/7

1270.052

115

391

506

136

Saddle

1/19

1.524

8.433

11.481

2/7

1270.052

171

466

637

158

Plow

1/0-7

1.524

9.347

12.395

1/0-7

2023.011

192

624

814

182

Sherland

1/0-19

1.524

9.474

12.522

1/0-7

2023.011

193

624

817

182

Dapple-grey

2/0-7

1.524

10.516

13.564

2/0-7

2444.85

217

786

1005

210

Thoroughbred

2/0-19

1.524

10.643

13.691

2/0-7

2444.85

220

786

1007

210

Dobbin

3/0-7

1.524

11.786

14.834

3/0-7

3079.876

249

991

1238

242

Trotter

3/0-19

1.524

11.938

14.986

3/0-7

3079.876

251

991

1243

242

Pony

4/0-7

1.524

13.259

16.307

4/0-7

3882.73

286

1250

1534

279

Walking

4/0-19

1.524

13.411

16.459

4/0-7

3882.73

289

1250

1539

279

ACSR Bare Neutral Wire Supported

Morochuca

6-Solid

1.143

4.115

6.401

6-6/1

533.722

63

149

229

78

Chola

6/7

1.143

4.674

6.96

6-6/1

533.722

71

149

237

78

Morgan

4-Solid

1.143

5.182

7.468

6-6/1

843.677

79

238

344

103

Hackney

4/7

1.143

5.893

8.179

6-6/1

843.677

90

238

356

103

Palomino

2/7

1.143

7.417

9.703

6-6/1

1292.732

115

377

557

136

Albino

1/19

1.524

8.433

11.481

6-6/1

1610.245

171

473

699

158

Standardbred

1/0-7

1.524

9.347

12.395

1/0-6/1

1986.724

192

598

859

182

Costena

1/0-19

1.524

9.474

12.522

1/0-6/1

1986.724

193

598

862

182

Chicoteagues

2/0-7

1.524

10.516

13.564

2/0-6/1

2404.027

217

753

1060

210

Grullo

2/0-19

1.524

10.643

13.691

2/0-6/1

2404.027

220

753

1063

210

mare

3/0-7

1.524

11.786

14.834

3/0-6/1

3002.766

249

951

1308

242

Suffolk

3/0-19

1.524

11.938

14.986

3/0-6/1

3002.766

251

951

1313

242

Stallion

4/0-7

1.524

13.259

16.307

4/0-6/1

3787.474

286

1198

1622

279

Appaloosa

4/0-19

1.524

13.411

16.459

4/0-6/1

3787.474

289

1198

1627

279

AAC Bare Neutral Wire Supported

Quarter

6-Solid

1.143

4.115

6.401

6/7

255.371

63

149

211

78

Clydesdale

4-Solid

1.143

5.182

7.468

4/7

399.613

79

237

315

103

Pinto

4/7

1.143

5.893

8.179

4/7

399.613

89

237

326

136

Mustang

2/7

1.143

7.417

9.703

2/7

612.347

115

377

491

158

Shire

1/19

1.524

8.443

11.481

1/19

743.888

171

475

646

158

Libyan

1/0-7

1.524

9.347

12.395

1/0-7

902.644

192

598

790

182

Criollo

1/0-19

1.524

9.474

12.522

1/0-19

902.644

193

598

793

182

Orloff

2/0-7

1.524

10.516

13.564

2/0-7

1138.511

217

754

973

210

Peroheron

2/0-19

1.524

10.643

13.691

2/0-19

1138.511

220

754

976

210

Mongolian

3/0-7

1.524

11.786

14.834

3/0-7

1378.914

249

951

1199

242

Hanoverian

3/0-19

1.524

11.938

14.986

3/0-19

1378.914

251

951

1204

242

Singlefoot

4/0-7

1.524

13.259

16.307

4/0-7

1737.25

286

1199

1485

279

Oldenburg

4/0-19

1.524

13.411

16.459

4/0-19

1737.25

289

1199

1490

279

MORE

LEAVE MESSAGE

Please Leave you want to know message! We will respond to your inquiry within 24 hours!
