APPLICATION:

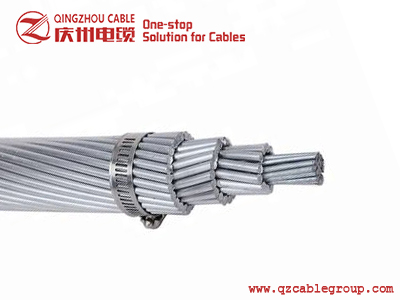

ACSR – Aluminum Conductor Steel Reinforced is used as bare overhead transmission cable and as primary and secondary distribution cable. ACSR offers optimal strength for line design. Variable steel core stranding for desired strength to be achieved without sacrificing ampacity.
CONDUCTORS:
ACSR conductors are formed by several wires of aluminium and galvanized steel, stranded in concentric layers. The wire or wires which form the core, are made of galvanized steel and the external layer or layers, are of aluminium. Galvanized steel core consist normally of 1, 7 or 19 wires. The diameters of steel and aluminium wires can be the same, or different.
By varying the relative proportions of aluminium and steel, the required characteristics for any particular application can be reached. A higher U. T. S. Can be obtained, by increasing steel content, and a higher current carrying capacity by increasing aluminium content.
SPECIFICATIONS
-
American Standard&Canadian national standards-ASTM B 232/B 232M CSA C49
-
British Standards-BS 215-2 BS EN 50182
-
International Electrotechnical Commission International Standards-IEC 61089 A1/S1A A1/S2A A1/S3A
-
German Standards-DIN 48204
-
Japanese Industrial Standards-JIS C 3110
-
Russian National Standard-GOST 839-80
-
French Standard -NF C 34120
ACSR conductors ASTM B 232/B 232M CSA C49
Code | KCMIL OR AWG | Stranding | Stranding | Total Section Area | Weight | Breaking Load | Electrical Resistance @20o | Current Rating* | |||||||||
AL | Steel | AL | Steel | O.D. | |||||||||||||
mm^2 | mm^2 | No.×mm | No.×mm | mm | mm^2 | Kg/Km | KN | Ω/Km | A | ||||||||
Wren | 8 | 8.37 | 1.39 | 6/1.33 | 1/1.33 | 3.99 | 9.76 | 33.8 | 3.29 | 3.430 | 48 | ||||||
Warbler | 7 | 10.55 | 1.77 | 6/1.50 | 1/1.50 | 4.50 | 12.32 | 42.8 | 4.14 | 2.720 | 60 | ||||||
Turkey | 6 | 13.3 | 2.22 | 6/1.68 | 1/1.68 | 5.04 | 15.52 | 53.6 | 5.19 | 2.1499 | 76 | ||||||
Thrush | 5 | 16.77 | 2.8 | 6/1.89 | 1/1.89 | 5.67 | 19.57 | 67.9 | 6.56 | 1.711 | 80 | ||||||
Swan | 4 | 21.18 | 3.53 | 6/2.12 | 1/2.12 | 6.36 | 24.71 | 85.3 | 7.83 | 1.3501 | 101 | ||||||
Swallow | 3 | 26.66 | 4.45 | 6/2.38 | 1/2.38 | 7.14 | 31.11 | 107.9 | 10.0 | 1.076 | 129 | ||||||
Swanate | 4 | 21.12 | 5.35 | 7/1.96 | 1/2.61 | 6.53 | 26.47 | 99.6 | 9.79 | 1.3539 | 102 | ||||||
Sparrow | 2 | 33.59 | 5.6 | 6/2.67 | 1/2.67 | 8.01 | 39.19 | 135.7 | 11.92 | 0.8512 | 135 | ||||||
Sparate | 2 | 33.54 | 8.55 | 7/2.47 | 1/3.30 | 8.24 | 42.09 | 158.7 | 15.08 | 0.8525 | 135 | ||||||
Robin | 1 | 42.41 | 7.07 | 6/3.00 | 1/3.00 | 9 | 49.48 | 171.1 | 14.86 | 0.6742 | 156 | ||||||
Raven | 1/0 | 53.52 | 8.92 | 6/3.37 | 1/3.37 | 10.11 | 62.44 | 216.1 | 18.33 | 0.5343 | 180 | ||||||
Quail | 2/0 | 67.33 | 11.22 | 6/3.78 | 1/3.78 | 11.34 | 78.55 | 272 | 22.46 | 0.4247 | 207 | ||||||
Pigeon | 3/0 | 85.12 | 14.19 | 6/4.25 | 1/4.25 | 12.75 | 99.31 | 343 | 28.02 | 0.3359 | 239 | ||||||
Penguin | 4/0 | 107.22 | 17.87 | 6/4.77 | 1/4.77 | 14.31 | 125.09 | 432.7 | 35.36 | 0.2667 | 275 | ||||||
Partridge | 266.8 | 134.87 | 21.99 | 26/2.57 | 7/2.00 | 16.28 | 156.86 | 545.9 | 47.15 | 0.2141 | 316 | ||||||
Owl | 266.8 | 135.2 | 17.6 | 6/5.36 | 7/1.79 | 16.09 | 152.8 | 509.0 | 42.3 | 0.2123 | 314 | ||||||
Waxwing | 266.8 | 134.98 | 7.5 | 18/3.09 | 1/3.09 | 15.45 | 142.48 | 430.2 | 29.8 | 0.2129 | 313 | ||||||
Piper | 300 | 152.0 | 35.5 | 30/2.54 | 7/2.54 | 17.78 | 187.5 | 698 | 67.8 | 0.1898 | 341 | ||||||
Ostrich | 300 | 152.19 | 24.71 | 26/2.73 | 7/2.12 | 17.28 | 176.9 | 613.4 | 53.38 | 0.1897 | 341 | ||||||
Phoebe | 300 | 152.0 | 8.5 | 18/3.28 | 1/3.28 | 16.40 | 160.5 | 485 | 35.2 | 0.1895 | 322 | ||||||
Merlin | 336.4 | 170.22 | 9.46 | 18/3.47 | 1/3.47 | 17.35 | 179.68 | 542.8 | 37.36 | 0.1688 | 361 | ||||||
Linnet | 336.4 | 170.55 | 27.83 | 26/2.89 | 7/2.25 | 18.31 | 198.38 | 687.5 | 59.16 | 0.1693 | 365 | ||||||
Oriole | 336.4 | 170.5 | 39.78 | 30/2.69 | 7/2.69 | 18.83 | 210.28 | 783.3 | 72.06 | 0.1698 | 367 | ||||||
Chickadee | 397.5 | 200.93 | 11.16 | 18/3.77 | 1/3.77 | 18.85 | 212.09 | 641.3 | 43.15 | 0.143 | 400 | ||||||
Brant | 397.5 | 201.56 | 26.13 | 24/3.27 | 7/2.18 | 19.62 | 227.69 | 761 | 61.83 | 0.1433 | 403 | ||||||
Ibis | 397.5 | 201.34 | 32.73 | 26/3.14 | 7/2.44 | 19.88 | 234.07 | 812.4 | 68.05 | 0.1434 | 404 | ||||||
Lark | 397.5 | 200.9 | 46.88 | 30/2.92 | 7/2.92 | 20.44 | 247.78 | 925.2 | 84.07 | 0.1441 | 406 | ||||||
Pelican | 477 | 242.31 | 13.46 | 18/4.14 | 1/4.14 | 20.7 | 255.77 | 769.7 | 51.15 | 0.1186 | 448 | ||||||
Flicker | 477 | 241.58 | 31.4 | 24/3.58 | 7/2.39 | 21.49 | 272.98 | 913.5 | 72.06 | 0.1195 | 450 | ||||||
Hawk | 477 | 241.65 | 39.19 | 26/3.44 | 7/2.67 | 21.77 | 280.84 | 975.1 | 81.84 | 0.1195 | 451 | ||||||
Hen | 477 | 241.27 | 56.3 | 30/3.20 | 7/3.20 | 22.4 | 297.57 | 1110.6 | 98.3 | 0.12 | 453 | ||||||
Toucan | 477 | 241.7 | 23.8 | 22/3.74 | 7/2.08 | 21.2 | 265.5 | 854 | 68.9 | 0.1193 | 421 | ||||||
Heron | 500 | 253.4 | 59.1 | 30/3.28 | 7/3.28 | 22.96 | 312.5 | 1163 | 108 | 0.1139 | 441 | ||||||
Osprey | 556.5 | 282.47 | 15.69 | 18/4.47 | 1/4.47 | 22.35 | 298.16 | 897.7 | 59.6 | 0.1017 | 492 | ||||||
Sapsucker | 556.5 | 282.0 | 27.6 | 22/4.04 | 7/2.24 | 22.88 | 309.6 | 995 | 78.8 | 0.1023 | 494 | ||||||
Parakeet | 556.5 | 282.31 | 36.6 | 24/3.87 | 7/2.58 | 23.22 | 318.91 | 1065.6 | 83.18 | 0.1023 | 495 | ||||||
Dove | 556.5 | 282.59 | 45.92 | 26/3.72 | 7/2.89 | 23.55 | 328.51 | 1138.6 | 94.3 | 0.1022 | 497 | ||||||
Eagle | 556.5 | 282.07 | 65.82 | 30/3.46 | 7/3.46 | 24.22 | 347.89 | 1295.6 | 114.76 | 0.1026 | 499 | ||||||
Peacock | 605 | 306.13 | 39.78 | 24/4.03 | 7/2.69 | 24.19 | 345.91 | 1158.9 | 90.74 | 0.0943 | 520 | ||||||
Squab | 605 | 305.83 | 49.81 | 26/3.87 | 7/3.01 | 24.51 | 355.64 | 1237 | 101.41 | 0.0944 | 521 | ||||||
Wood Duck | 605 | 307.06 | 71.65 | 30/3.61 | 7/3.61 | 25.27 | 378.71 | 1408.4 | 121.43 | 0.0943 | 525 | ||||||
DUCK | 605 | 306.6 | 39.7 | 54/2.69 | 7/2.69 | 24.21 | 346.3 | 1160 | 101 | 0.09435 | 524 | ||||||
Teal | 605 | 307.06 | 69.62 | 30/3.61 | 19/2.16 | 25.24 | 376.68 | 1396.6 | 124.54 | 0.0943 | 525 | ||||||
Egret | 636 | 322.3 | 73.5 | 30/3.70 | 19/2.22 | 25.9 | 395.8 | 1469 | 141 | 0.08955 | 532 | ||||||
Goose | 636 | 322.3 | 41.8 | 54/2.76 | 7/2.76 | 24.84 | 364.1 | 1220 | 104 | 0.08975 | 532 | ||||||
Goldfinch | 636 | 322.3 | 31.6 | 22/4.32 | 7/2.40 | 24.48 | 353.9 | 1138 | 89.3 | 0.08949 | 532 | ||||||
Kingbird | 636 | 323.01 | 17.95 | 18/4.78 | 1/4.78 | 23.9 | 340.96 | 1026.6 | 68.05 | 0.089 | 533 | ||||||
Swift | 636 | 323.02 | 8.97 | 36/3.38 | 1 /3.38 | 23.66 | 331.99 | 956.5 | 60.05 | 0.089 | 532 | ||||||
Rook | 636 | 323.07 | 41.88 | 24/4.14 | 7/2.76 | 24.84 | 364.95 | 1217.5 | 95.19 | 0.0894 | 537 | ||||||
Grosbeak | 636 | 321.84 | 52.49 | 26/3.97 | 7/3.09 | 25.15 | 374.33 | 1300.8 | 104.97 | 0.0897 | 537 | ||||||
Scoter | 636 | 322.56 | 75.26 | 30/3.70 | 7/3.70 | 25.9 | 397.82 | 1480.7 | 127.66 | 0.0897 | 541 | ||||||
Egret | 636 | 322.56 | 73.54 | 30/3.70 | 19/2.22 | 25.9 | 396.1 | 1469 | 130.77 | 0.0897 | 541 | ||||||
Flamingo | 666.6 | 337.27 | 43.72 | 24/4.23 | 7/2.82 | 25.38 | 380.99 | 1276.6 | 99.64 | 0.0856 | 551 | ||||||
Gannet | 666.6 | 338.26 | 54.9 | 26/4.07 | 7/3.16 | 25.76 | 393.16 | 1363.3 | 110.31 | 0.0854 | 553 | ||||||
Gull | 666.6 | 337.8 | 43.7 | 54/2.82 | 7/2.82 | 25.38 | 337.8 | 1278 | 109 | 0.08563 | 536 | ||||||
– | 666.6 | 337.8 | 17.4 | 42/3.20 | 7/1.78 | 24.54 | 337.8 | 10 | 7077.8 | 0.08552 | 536 | ||||||
Stilt | 715.5 | 363.27 | 46.88 | 24/4.39 | 7/2.92 | 26.32 | 410.15 | 1370.4 | 107.2 | 0.0795 | 576 | ||||||
Starling | 715.5 | 361.93 | 59.15 | 26/4.21 | 7/3.28 | 26.68 | 421.08 | 1463.7 | 118.32 | 0.0798 | 577 | ||||||
Redwing | 715.5 | 362.06 | 82.41 | 30/3.92 | 19/2.35 | 27.43 | 444.47 | 1650.6 | 143.23 | 0.0799 | 580 | ||||||
Crow | 715.5 | 362.6 | 46.8 | 54/2.92 | 7/2.92 | 26.28 | 362.6 | 1370 | 117 | 0.07978 | 548 | ||||||
– | 715.5 | 362.6 | 18.6 | 42/3.32 | 7/1.84 | 25.44 | 409.4 | 1148 | 83.6 | 0.07968 | 548 | ||||||
Coot | 795 | 401.86 | 11.16 | 36/3.77 | 1/3.77 | 26.39 | 413.02 | 1195.8 | 73.39 | 0.0715 | 607 | ||||||
Tern | 795 | 403.77 | 27.83 | 45/3.38 | 7/2.25 | 27.03 | 431.6 | 1331.8 | 94.3 | 0.0715 | 610 | ||||||
Condor | 795 | 402.33 | 52.15 | 54/3.08 | 7/3.08 | 27.72 | 454.48 | 1520.7 | 118.32 | 0.0718 | 612 | ||||||
Cuckoo | 795 | 402.33 | 52.15 | 24/4.62 | 7/3.08 | 27.72 | 454.48 | 1522.2 | 117.43 | 0.0718 | 612 | ||||||
Drake | 795 | 402.56 | 65.44 | 26/4.44 | 7/3.45 | 28.11 | 468 | 1626.4 | 131.66 | 0.0717 | 615 | ||||||
Macaw | 795 | 402.8 | 20.70 | 42/3.49 | 7/1.94 | 26.76 | 423.5 | 1276 | 92.5 | 0.07171 | 617 | ||||||
Mallard | 795 | 403.84 | 91.78 | 26/4.44 | 7/3.45 | 28.96 | 495.62 | 1836 | 159.24 | 0.0717 | 619 | ||||||
Crane | 874.5 | 443.1 | 57.4 | 54/3.23 | 7/3.23 | 29.07 | 443.1 | 1676 | 138 | 0.06527 | 638 | ||||||
– | 874.5 | 443.1 | 22.9 | 42/3.67 | 7/2.04 | 28.14 | 466.0 | 1404 | 102 | 0.06519 | 638 | ||||||
Ruddy | 900 | 455.5 | 31.67 | 45/3.59 | 7/2.40 | 28.74 | 487.17 | 1507.3 | 104.53 | 0.0634 | 656 | ||||||
– | 900 | 456.0 | 23.6 | 42/3.72 | 7/2.07 | 28.53 | 479.6 | 1554 | 105 | 0.06334 | 659 | ||||||
Canary | 900 | 456.28 | 59.15 | 54/3.28 | 7/3.28 | 29.52 | 515.43 | 1723.1 | 134.33 | 0.0633 | 660 | ||||||
Catbird | 954 | 484.61 | 13.46 | 36/4.14 | 1/4.14 | 28.98 | 498.07 | 1434.4 | 86.74 | 0.0593 | 679 | ||||||
Rail | 954 | 483.84 | 33.54 | 45/3.70 | 7/2.47 | 29.61 | 517.38 | 1598.1 | 110.76 | 0.0597 | 680 | ||||||
Cardinal | 954 | 484.53 | 62.81 | 54/3.38 | 7/3.38 | 30.42 | 547.34 | 1825.9 | 142.34 | 0.0596 | 685 | ||||||
Phoenix | 954 | 483.4 | 24.9 | 42/3.83 | 7/2.13 | 29.37 | 508.3 | 1532 | 109 | 0.05976 | 683 | ||||||
Cardinal | 954 | 484.53 | 62.81 | 54/3.38 | 7/3.38 | 30.42 | 547.34 | 1825.9 | 142.34 | 0.0596 | 685 | ||||||
Tanager | 522.79 | 14.52 | 36/4.30 | 1/4.30 | 30.1 | 537.31 | 1553.5 | 93.85 | 0.055 | 710 | |||||||
Orotlan | 523.87 | 36.31 | 45/3.85 | 7/2.57 | 30.81 | 560.18 | 1730.5 | 118.32 | 0.0551 | 713 | |||||||
Snowbird | 1033.5 | 523.7 | 26.8 | 42/3.98 | 7/2.21 | 30.51 | 550.5 | 1658 | 118 | 0.05516 | 718 | ||||||
Curlew | 1033.5 | 522.51 | 67.73 | 54/3.51 | 7/3.51 | 31.59 | 590.24 | 1977.6 | 153.9 | 0.0553 | 716 | ||||||
Bluejay | 565.49 | 38.9 | 45/4.00 | 7/2.66 | 31.98 | 604.39 | 1866 | 127.66 | 0.0511 | 745 | |||||||
Beaumont | 1113 | 564.0 | 128.8 | 42/4.13 | 7/2.29 | 31.65 | 692.8 | 1785 | 126 | 0.05122 | 747 | ||||||
Finch | 1113 | 565.03 | 71.57 | 54/3.65 | 19/2.19 | 32.85 | 636.6 | 2127.8 | 164.58 | 0.0514 | 748 | ||||||
Bunting | 605.76 | 41.88 | 45/4.14 | 7/2.76 | 33.12 | 647.64 | 1996.9 | 136.55 | 0.0477 | 776 | |||||||
– | 1192.5 | 604.3 | 31.1 | 42/4.28 | 7/2.38 | 32.82 | 635.4 | 1915 | 135 | 0.04781 | 779 | ||||||
Grackle | 1192.5 | 602.79 | 76.89 | 54/3.77 | 19/2.27 | 33.97 | 679.68 | 2278.1 | 176.59 | 0.0481 | 777 | ||||||
Skylark | 646.02 | 17.95 | 36/4.78 | 1/4.78 | 33.46 | 663.97 | 1913.6 | 115.65 | 0.0445 | 804 | |||||||
Bittern | 644.4 | 44.66 | 45/4.27 | 7/2.85 | 34.17 | 689.06 | 2130.8 | 145.89 | 0.0448 | 805 | |||||||
Pheasant | 1272 | 645.08 | 81.71 | 54/3.90 | 19/2.34 | 35.1 | 726.79 | 2431.4 | 183.26 | 0.045 | 808 | ||||||
Scissortail | 1272 | 644.5 | 33.3 | 42/4.42 | 7/2.46 | 33.90 | 677.8 | 2043 | 144 | 0.04482 | 786 | ||||||
Dipper | 684.24 | 47.2 | 45/4.40 | 7/2.93 | 35.19 | 731.44 | 2263.2 | 154.79 | 0.0422 | 834 | |||||||
Martin | 1351.5 | 685.39 | 86.67 | 54/4.02 | 19/2.41 | 36.17 | 772.06 | 2581.7 | 194.82 | 0.0423 | 838 | ||||||
– | 1351.5 | 684.8 | 35.2 | 42/4.56 | 7/2.53 | 34.95 | 720.0 | 2169 | 153 | 0.04218 | 814 | ||||||
Bobolink | 725.27 | 50.14 | 45/4.53 | 7/3.02 | 36.24 | 775.41 | 2397.2 | 164.13 | 0.0398 | 862 | |||||||
Plover | 1431 | 726.92 | 91.78 | 54/4.14 | 19/2.48 | 37.24 | 818.7 | 2734.9 | 206.39 | 0.0399 | 866 | ||||||
– | 1431 | 725.1 | 37.5 | 42/4.69 | 7/2.61 | 35.97 | 762.6 | 2298 | 162 | 0.03984 | 843 | ||||||
Nuthatch | 1510.5 | 764.2 | 52.83 | 45/4.65 | 7/3.10 | 37.2 | 817.03 | 2529.6 | 171.25 | 0.0378 | 888 | ||||||
Parrot | 1510.5 | 766.06 | 97.03 | 54/4.25 | 19/2.55 | 38.25 | 863.09 | 2883.7 | 217.51 | 0.0379 | 892 | ||||||
– | 1510.5 | 765.4 | 39.5 | 42/4.82 | 7/2.68 | 36.96 | 804.9 | 2425 | 171 | 0.03774 | 868 | ||||||
Lapwing | 1590 | 807.53 | 55.6 | 45/4.78 | 7/3.18 | 38.22 | 863.13 | 2663.5 | 180.14 | 0.0358 | 916 | ||||||
Falcon | 1590 | 806.23 | 102.43 | 54/4.36 | 19/2.62 | 39.26 | 908.66 | 3038.5 | 229.52 | 0.036 | 919 | ||||||
– | 1590 | 805.7 | 70.8 | 48/4.62 | 7/3.59 | 38.49 | 876.5 | 2783 | 211 | 0.03586 | 871 | ||||||
– | 1590 | 805.7 | 34.6 | 72/3.77 | 7/2.51 | 37.69 | 840.3 | 2501 | 172 | 0.03590 | 871 | ||||||
Chukar | 903.18 | 73.54 | 84/3.70 | 19/2.22 | 40.7 | 976.72 | 3083.1 | 217.51 | 0.0321 | 976 | |||||||
Bluebird | 1092.84 | 88.84 | 84/4.07 | 19/2.44 | 44.76 | 1181.68 | 3731.9 | 256.65 | 0.0266 | 1083 | |||||||
Kiwi | 1099.76 | 47.52 | 72/4.41 | 7/2.94 | 44.1 | 1147.28 | 3423.9 | 215.28 | 0.0264 | 1083 | |||||||
Thrasher | 1171.42 | 63.94 | 76/4.43 | 19/2.07 | 45.79 | 1235.36 | 3754.2 | 243.75 | 0.0248 | 1122 | |||||||
High Strength Stranding | |||||||||||||||||
Grouse** | 40.54 | 14.12 | 8/2.54 | 1/4.24 | 9.32 | 54.66 | 221.4 | 21.75 | 0.7089 | 153 | |||||||
Petrel** | 51.61 | 30.1 | 12/2.34 | 7/2.34 | 11.7 | 81.71 | 377.7 | 42.08 | 0.5595 | 181 | |||||||
Minorca** | 56.11 | 32.73 | 12/2.44 | 7/2.44 | 12.2 | 88.84 | 411.1 | 45.81 | 0.5146 | 191 | |||||||
Leghorn** | 68.2 | 39.78 | 12/2.69 | 7/2.69 | 13.45 | 107.98 | 499.2 | 55.16 | 0.4234 | 215 | |||||||
Guinea** | 80.36 | 46.88 | 12/2.92 | 7/2.92 | 14.6 | 127.24 | 589.7 | 64.94 | 0.3593 | 238 | |||||||
Dotterel** | 89.41 | 52.15 | 12/3.08 | 7/3.08 | 15.4 | 141.56 | 656.1 | 70.28 | 0.323 | 254 | |||||||
Dorking** | 96.51 | 56.3 | 12/3.20 | 7/3.20 | 16 | 152.81 | 707.8 | 75.62 | 0.2992 | 267 | |||||||
Cochin** | 107.04 | 62.44 | 12/3.37 | 7/3.37 | 16.85 | 169.48 | 783.9 | 84.07 | 0.2698 | 284 | |||||||
Brahma*&** | 102.79 | 91.78 | 12/3.37 | 7/3.37 | 18.12 | 194.57 | 1003.8 | 114.76 | 0.2809 | 283 |
Aluminum Conductors Steel Reinforced, BS 215 Part 2
Code Name | Area | Stranding | Approx. Overall Diameter | Weight | Nominal Breaking Load | D.C. Resistance at 20℃ | Standard Length | ||||||
Nominal Alum. | Alum. | Steel | Total | Alum. | Steel | Alum. | Steel | Total | |||||
mm2 | mm2 | mm2 | mm2 | mm | mm | mm | kg/km | kg/km | kg/km | kN | ohm/km | m±5% | |
Mole | 10 | 10.62 | 1.77 | 12.39 | 6/1.50 | 1/1.50 | 4.50 | 29 | 14 | 43 | 4.14 | 2.076 | 3000 |
Squirrel | 20 | 20.94 | 3.49 | 24.43 | 6/2.11 | 1/2.11 | 6.33 | 58 | 27 | 85 | 7.88 | 1.368 | 3000 |
Gopher | 25 | 26.25 | 4.37 | 30.62 | 6/2.36 | 1/2.36 | 7.08 | 72 | 34 | 106 | 9.61 | 1.093 | 2500 |
Weasel | 30 | 31.61 | 5.27 | 36.88 | 6/2.59 | 1/2.59 | 7.77 | 87 | 41 | 128 | 11.45 | 0.9077 | 2000 |
Fox | 35 | 36.66 | 6.11 | 42.77 | 6/2.79 | 1/2.79 | 8.37 | 101 | 48 | 149 | 13.20 | 0.7822 | 2000 |
Ferret | 40 | 42.41 | 7.07 | 49.48 | 6/3.00 | 1/3.00 | 9.00 | 117 | 55 | 172 | 15.20 | 0.6766 | 2500 |
Rabbit | 50 | 52.88 | 8.82 | 61.70 | 6/3.35 | 1/3.35 | 10.05 | 145 | 69 | 214 | 18.35 | 0.5426 | 2000 |
Mink | 60 | 63.18 | 10.53 | 73.71 | 6/3.66 | 1/3.66 | 10.98 | 173 | 82 | 255 | 21.80 | 0.4545 | 3000 |
Skunk | 60 | 63.27 | 36.93 | 100.30 | 12/2.59 | 7/2.59 | 12.95 | 175 | 290 | 465 | 53.00 | 0.4567 | 2500 |
Beaver | 70 | 74.82 | 12.47 | 87.29 | 6/3.99 | 1/3.99 | 11.97 | 205 | 97 | 302 | 25.70 | 0.3825 | 2500 |
Horse | 70 | 73.37 | 42.80 | 116.17 | 12/2.79 | 7/2.79 | 13.95 | 203 | 335 | 538 | 61.20 | 0.3936 | 2000 |
Racoon | 75 | 79.20 | 13.20 | 92.40 | 6/4.10 | 1/4.10 | 12.30 | 217 | 103 | 320 | 27.20 | 0.3622 | 2500 |
Otter | 80 | 83.88 | 13.98 | 97.86 | 6/4.22 | 1/4.22 | 12.66 | 230 | 109 | 339 | 28.80 | 0.3419 | 2500 |
Cat | 90 | 95.40 | 15.90 | 111.30 | 6/4.50 | 1/4.50 | 13.50 | 262 | 124 | 386 | 32.70 | 0.3007 | 2000 |
Hare | 100 | 105.0 | 17.50 | 122.50 | 6/4.72 | 1/4.72 | 14.16 | 288 | 137 | 425 | 36.00 | 0.2733 | 2000 |
Dog | 100 | 105.0 | 13.50 | 118.5 | 6/4.72 | 7/1.57 | 14.15 | 288 | 106 | 394 | 32.70 | 0.2733 | 2000 |
Hyena | 100 | 105.8 | 20.44 | 126.2 | 7/4.39 | 7/1.93 | 14.57 | 290 | 160 | 450 | 40.90 | 0.2712 | 2000 |
Leopard | 125 | 131.3 | 16.80 | 148.1 | 6/5.28 | 7/1.75 | 15.81 | 360 | 132 | 492 | 40.70 | 0.2184 | 2000 |
Coyote | 125 | 132.1 | 20.10 | 152.2 | 26/2.54 | 7/1.91 | 15.89 | 365 | 157 | 522 | 46.40 | 0.2187 | 2000 |
Cougar | 125 | 130.3 | 7.25 | 137.5 | 18/3.05 | 1/3.05 | 15.25 | 362 | 57 | 419 | 29.80 | 0.2189 | 2000 |
Tiger | 125 | 131.1 | 30.60 | 161.7 | 30/2.36 | 7/2.36 | 16.52 | 362 | 240 | 602 | 58.00 | 0.2202 | 2500 |
Wolf | 150 | 158.0 | 36.90 | 194.9 | 30/2.59 | 7/2.59 | 18.13 | 437 | 289 | 726 | 69.20 | 0.1828 | 2000 |
Dingo | 150 | 158.7 | 8.80 | 167.5 | 18/3.35 | 1/3.35 | 16.75 | 437 | 69 | 506 | 35.70 | 0.1815 | 3000 |
Lynx | 175 | 183.4 | 42.80 | 226.2 | 30/2.79 | 7/2.79 | 19.53 | 507 | 335 | 842 | 79.80 | 0.1576 | 2000 |
Caracal | 175 | 184.2 | 10.30 | 194.5 | 18/3.61 | 1/3.61 | 18.05 | 507 | 80 | 587 | 41.10 | 0.1563 | 2500 |
Panther | 200 | 212.0 | 49.50 | 261.5 | 30/3.00 | 7/3.00 | 21.00 | 586 | 388 | 974 | 92.25 | 0.1363 | 2500 |
Lion | 225 | 238.5 | 55.60 | 294.2 | 30/3.18 | 7/3.18 | 22.26 | 659 | 436 | 1095 | 109.60 | 0.1212 | 2000 |
Bear | 250 | 264.0 | 61.60 | 325.6 | 30/3.35 | 7/3.35 | 23.45 | 730 | 483 | 1213 | 111.10 | 0.1093 | 2000 |
Goat | 300 | 324.3 | 75.70 | 400.0 | 30/3.71 | 7/3.71 | 25.97 | 896 | 593 | 1489 | 135.70 | 0.08910 | 3000 |
Sheep | 350 | 374.1 | 87.30 | 461.4 | 30/3.99 | 7/3.99 | 27.93 | 1034 | 684 | 1718 | 155.90 | 0.07704 | 2500 |
Antelope | 350 | 373.1 | 48.40 | 421.5 | 54/2.97 | 7/2.97 | 26.73 | 1032 | 379 | 1411 | 118.20 | 0.07727 | 2500 |
Bison | 350 | 381.8 | 49.50 | 431.3 | 54/3.00 | 7/3.00 | 27.00 | 1056 | 388 | 1444 | 120.90 | 0.07573 | 3000 |
Jaguar | 200 | 210.6 | 11.70 | 222.3 | 18/3.86 | 1/3.86 | 19.30 | 580 | 91 | 671 | 46.55 | 0.13670 | 2000 |
Deer | 400 | 429.3 | 100.20 | 529.5 | 30/4.27 | 7/4.27 | 29.89 | 1186 | 785 | 1971 | 178.50 | 0.06726 | 2500 |
Zebra | 400 | 428.9 | 55.60 | 484.5 | 54/3.18 | 7/3.18 | 28.62 | 1186 | 435 | 1621 | 131.90 | 0.06740 | 2000 |
Elk | 450 | 477.0 | 111.30 | 588.3 | 30/4.50 | 7/4.50 | 31.50 | 1318 | 872 | 2190 | 198.20 | 0.06056 | 2000 |
Camel | 450 | 475.2 | 61.60 | 536.8 | 54/3.35 | 7/3.35 | 30.15 | 1314 | 483 | 1797 | 145.70 | 0.06073 | 2500 |
Moose | 500 | 528.7 | 68.50 | 597.2 | 54/3.53 | 7/3.53 | 31.77 | 1462 | 537 | 1999 | 161.10 | 0.05470 | 2000 |
Aluminum Conductors Steel Reinforced DIN 48204
Area | Stranding and wire diameter | Overall Diameter | Linear mass | Nominal breaking load | Maximum resistance at 20 ℃ | ||||||
Nominal | Actual | ||||||||||
Al/St | Al | St | Total | Al | St | Al | St | Total | |||
mm2 | mm2 | mm2 | mm2 | mm | mm | mm | kg/km | kg/km | kg/km | daN | ohm/km |
16/2.5 | 15.3 | 2.5 | 17.8 | 6/1.80 | 1/1.80 | 5.4 | 42 | 20 | 62 | 595 | 1.8780 |
25/4.0 | 23.8 | 4.0 | 27.8 | 6/2.25 | 1/2.25 | 6.8 | 65 | 32 | 97 | 920 | 1.2002 |
36/6.0 | 34.3 | 5.7 | 40.0 | 6/2.70 | 1/2.70 | 8.1 | 94 | 46 | 140 | 1265 | 0.8352 |
44/32.0 | 44.0 | 31.7 | 75.7 | 14/2.00 | 7/2.40 | 11.2 | 122 | 250 | 372 | 4500 | 0.6573 |
50/8.0 | 48.3 | 8.0 | 56.3 | 6/3.20 | 1/3.20 | 9.6 | 132 | 64 | 196 | 1710 | 0.5946 |
50/30 | 51.2 | 29.8 | 81.0 | 12/2.33 | 7/2.33 | 11.7 | 141 | 237 | 378 | 4380 | 0.5643 |
70/12 | 69.9 | 11.4 | 81.3 | 26/1.85 | 7/1.44 | 11.7 | 193 | 91 | 284 | 2680 | 0.4130 |
95/15 | 94.4 | 15.3 | 109.7 | 26/2.15 | 7/1.67 | 13.6 | 260 | 123 | 383 | 3575 | 0.3058 |
95/55 | 96.5 | 56.3 | 152.8 | 12/3.20 | 7/3.20 | 16.0 | 266 | 446 | 712 | 7935 | 0.2992 |
105/75 | 105.7 | 75.5 | 181.5 | 14/3.10 | 9/2.25 | 17.5 | 292 | 599 | 891 | 10845 | 0.2735 |
120/20 | 121.06 | 19.8 | 141.4 | 26/2.44 | 7/1.90 | 15.5 | 336 | 158 | 494 | 4565 | 0.2374 |
120/70 | 122.0 | 71.3 | 193.3 | 12/3.6 | 7/3.60 | 18.0 | 337 | 564 | 901 | 10000 | 0.2364 |
125/30 | 127.9 | 29.8 | 157.7 | 30/2.33 | 7/2.33 | 16.3 | 353 | 238 | 591 | 5760 | 0.2259 |
150/25 | 148.9 | 24.2 | 173.1 | 26/2.70 | 7/2.10 | 17.1 | 411 | 194 | 605 | 5525 | 0.1939 |
170/40 | 171.8 | 40.1 | 211.9 | 30/2.70 | 7/2.70 | 18.9 | 475 | 319 | 794 | 7675 | 0.1682 |
185/30 | 183.8 | 29.8 | 213.6 | 26/3.00 | 7/2.33 | 19.0 | 507 | 239 | 746 | 6620 | 0.1571 |
210/35 | 209.1 | 34.1 | 243.2 | 26/3.20 | 7/2.49 | 20.3 | 577 | 273 | 850 | 7490 | 0.1380 |
210/50 | 212.1 | 49.5 | 261.6 | 30/3.00 | 7/3.00 | 21.0 | 587 | 394 | 981 | 9390 | 0.1362 |
230/30 | 230.9 | 29.8 | 260.7 | 24/3.50 | 7/2.33 | 21.0 | 638 | 239 | 877 | 7310 | 0.1249 |
240/40 | 243.0 | 39.5 | 282.5 | 26/3.45 | 7/2.68 | 21.9 | 671 | 316 | 987 | 8640 | 0.1188 |
265/35 | 263.7 | 34.1 | 297.8 | 24/3.74 | 7/2.49 | 22.4 | 728 | 274 | 1002 | 8305 | 0.1094 |
300/50 | 304.3 | 49.5 | 353.7 | 26/3.86 | 7/3.00 | 24.5 | 840 | 396 | 1236 | 10700 | 0.09487 |
305/40 | 304.6 | 39.5 | 344.1 | 54/2.68 | 7/2.68 | 24.1 | 843 | 317 | 1160 | 9940 | 0.0949 |
340/30 | 339.3 | 29.8 | 369.1 | 48/3.00 | 7/2.33 | 25.0 | 938 | 242 | 1180 | 9290 | 0.08509 |
380/50 | 382.0 | 49.5 | 431.5 | 54/3.00 | 7/3.00 | 27.0 | 1056 | 397 | 1453 | 12310 | 0.08509 |
385/35 | 386.0 | 34.1 | 420.1 | 48/3.20 | 7/2.49 | 26.7 | 1067 | 277 | 1344 | 10480 | 0.07573 |
435/55 | 434.03 | 59.3 | 490.6 | 54/3.20 | 7/3.20 | 28.8 | 1203 | 450 | 1653 | 13645 | 0.07478 |
450/40 | 448.7 | 39.5 | 488.2 | 48/3.45 | 7/2.68 | 28.7 | 1241 | 320 | 1561 | 12075 | 0.06656 |
490/65 | 490.3 | 63.6 | 553.9 | 54/3.40 | 7/3.40 | 30.6 | 1356 | 510 | 1866 | 15310 | 0.06434 |
495/35 | 494.1 | 34.1 | 528.2 | 45/3.74 | 7/2.49 | 29.9 | 1363 | 283 | 1646 | 12180 | 0.05846 |
510/45 | 510.2 | 45.3 | 555.5 | 48/3.68 | 7/2.87 | 30.7 | 1413 | 365 | 1778 | 13665 | 0.05655 |
550/70 | 550.0 | 71.3 | 621.3 | 54/3.60 | 7/3.60 | 32.4 | 1520 | 572 | 2092 | 17060 | 0.05259 |
560/50 | 561.7 | 49.5 | 611.2 | 48/3.86 | 7/3.00 | 32.2 | 1553 | 401 | 1954 | 14895 | 0.0514 |
570/40 | 565.5 | 39.5 | 610.3 | 45/4.00 | 7/2.68 | 32.2 | 1563 | 325 | 1888 | 13900 | 0.05108 |
650/45 | 698.8 | 45.3 | 653.49 | 45/4.30 | 7/2.87 | 34.4 | 1791 | 372 | 2163 | 15552 | 0.0442 |
680/85 | 678.8 | 86.0 | 764.8 | 54/4.00 | 18/2.40 | 36.0 | 1866 | 702 | 2570 | 21040 | 0.0426 |
1045/45 | 1045.58 | 45.3 | 1090.9 | 72/4.30 | 7/2.87 | 43.0 | 2879 | 370 | 3249 | 21787 | 0.0277 |
Aluminum Conductors Steel Reinforced, IEC 61089 Characteristics of A1/S1A Conductors
Code Number | Steel Ratio | Areas | No. of Wires | Wire Dia. | Diameter | Linear Mass | Rated Strength | C. Resistance at 20℃ | |||||
Alum. | Steel | Total | Alum. | Steel | Alum. | Steel | Core | Cond | |||||
% | mm2 | mm2 | mm2 | mm | mm | mm | mm | kg/km | kN | ohm/km | |||
16 | 17 | 16 | 2.67 | 18.7 | 6 | 1 | 1.84 | 1.84 | 1.84 | 5.53 | 64.6 | 6.08 | 1.7934 |
25 | 17 | 25 | 4.17 | 29.2 | 6 | 1 | 2.30 | 2.30 | 2.30 | 6.91 | 100.9 | 9.13 | 1.1478 |
40 | 17 | 40 | 6.67 | 46.7 | 6 | 1 | 2.91 | 2.91 | 2.91 | 8.74 | 161.5 | 14.40 | 0.7174 |
63 | 17 | 63 | 10.5 | 73.5 | 6 | 1 | 3.66 | 3.66 | 3.66 | 11.0 | 254.4 | 21.63 | 0.4555 |
100 | 17 | 100 | 16.7 | 117 | 6 | 1 | 4.61 | 4.61 | 4.61 | 13.8 | 403.8 | 34.33 | 0.2869 |
125 | 6 | 125 | 6.94 | 132 | 18 | 1 | 2.97 | 2.97 | 2.97 | 14.9 | 397.9 | 29.17 | 0.2304 |
125 | 16 | 125 | 20.4 | 145 | 26 | 7 | 2.47 | 1.92 | 5.77 | 15.7 | 503.9 | 45.69 | 0.2310 |
160 | 6 | 160 | 8.89 | 169 | 18 | 1 | 3.36 | 3.36 | 3.36 | 16.8 | 509.3 | 36.18 | 0.1800 |
160 | 16 | 160 | 26.1 | 186 | 26 | 7 | 2.80 | 2.18 | 6.53 | 17.7 | 644.9 | 57.69 | 0.1805 |
200 | 6 | 200 | 11.1 | 211 | 18 | 1 | 3.76 | 3.76 | 3.76 | 18.8 | 636.7 | 44.22 | 0.1440 |
200 | 16 | 200 | 32.6 | 233 | 26 | 7 | 3.13 | 2.43 | 7.30 | 19.8 | 806.2 | 70.13 | 0.1444 |
250 | 10 | 250 | 24.6 | 275 | 22 | 7 | 3.80 | 2.11 | 6.34 | 21.6 | 880.6 | 68.72 | 0.1154 |
250 | 16 | 250 | 40.7 | 291 | 26 | 7 | 3.50 | 2.72 | 8.16 | 22.2 | 1007.7 | 87.67 | 0.1155 |
315 | 7 | 315 | 21.8 | 337 | 45 | 7 | 2.99 | 1.99 | 5.97 | 23.9 | 1039.6 | 79.03 | 0.0917 |
315 | 16 | 315 | 51.3 | 366 | 26 | 7 | 3.93 | 3.05 | 9.16 | 24.9 | 1269.7 | 106.83 | 0.0917 |
400 | 7 | 400 | 27.7 | 428 | 45 | 7 | 3.36 | 2.24 | 6.73 | 26.9 | 1320.1 | 98.36 | 0.0722 |
400 | 13 | 400 | 51.9 | 452 | 54 | 7 | 3.07 | 3.07 | 9.21 | 27.6 | 1510.3 | 123.04 | 0.0723 |
450 | 7 | 450 | 31.1 | 481 | 45 | 7 | 3.57 | 2.38 | 7.14 | 28.5 | 1485.2 | 107.47 | 0.0642 |
450 | 13 | 450 | 58.3 | 508 | 54 | 7 | 3.26 | 3.26 | 9.77 | 29.3 | 1699.1 | 138.42 | 0.0643 |
500 | 7 | 500 | 34.6 | 535 | 45 | 7 | 3.76 | 2.51 | 7.52 | 30.1 | 1650.2 | 119.41 | 0.0578 |
500 | 13 | 500 | 64.8 | 565 | 54 | 7 | 3.43 | 3.43 | 10.3 | 30.9 | 1887.9 | 153.80 | 0.0578 |
560 | 7 | 560 | 38.7 | 599 | 45 | 7 | 3.98 | 2.65 | 7.96 | 31.8 | 1848.2 | 133.74 | 0.0516 |
560 | 13 | 560 | 70.9 | 631 | 54 | 19 | 3.63 | 2.18 | 10.9 | 32.7 | 2103.4 | 172.59 | 0.0516 |
630 | 7 | 630 | 43.6 | 674 | 45 | 7 | 4.22 | 2.81 | 8.44 | 33.8 | 2079.2 | 150.45 | 0.0459 |
630 | 13 | 630 | 79.8 | 710 | 54 | 19 | 3.85 | 2.31 | 11.6 | 34.7 | 2366.3 | 191.77 | 0.0459 |
710 | 7 | 710 | 49.1 | 759 | 45 | 7 | 4.48 | 2.99 | 8.96 | 35.9 | 2343.2 | 169.56 | 0.0407 |
710 | 13 | 710 | 89.9 | 800 | 54 | 19 | 4.09 | 2.45 | 12.3 | 36.8 | 2666.8 | 216.12 | 0.0407 |
800 | 4 | 800 | 34.6 | 835 | 72 | 7 | 3.76 | 2.51 | 7.52 | 37.6 | 2480.2 | 167.41 | 0.0361 |
800 | 8 | 800 | 66.7 | 867 | 84 | 7 | 3.48 | 3.48 | 10.4 | 38.3 | 2732.7 | 205.33 | 0.0362 |
800 | 13 | 800 | 101 | 901 | 54 | 19 | 4.44 | 2.61 | 13.0 | 39.1 | 3004.9 | 243.52 | 0.0362 |
900 | 4 | 900 | 38.9 | 939 | 72 | 7 | 3.99 | 2.66 | 7.98 | 39.9 | 2790.2 | 188.33 | 0.0321 |
900 | 8 | 900 | 75.0 | 975 | 84 | 7 | 3.69 | 3.69 | 11.1 | 40.6 | 3074.2 | 226.50 | 0.0322 |
1000 | 4 | 1000 | 43.2 | 1043 | 72 | 7 | 4.21 | 2.80 | 8.41 | 42.1 | 3100.3 | 209.26 | 0.0289 |
1120 | 4 | 1120 | 47.3 | 1167 | 72 | 19 | 4.45 | 1.78 | 8.90 | 44.5 | 3464.9 | 234.53 | 0.0258 |
1120 | 8 | 1120 | 91.2 | 1211 | 84 | 19 | 4.12 | 2.47 | 12.4 | 45.3 | 3811.5 | 283.17 | 0.0258 |
1250 | 8 | 1250 | 102 | 1352 | 84 | 19 | 4.35 | 2.61 | 13.1 | 47.9 | 4253.9 | 316.04 | 0.0232 |
1250 | 4 | 1250 | 52.8 | 1303 | 72 | 19 | 4.70 | 1.88 | 9.40 | 47.0 | 3867.1 | 261.75 | 0.0231 |
Aluminum Conductors Steel Reinforced, IEC 61089 Characteristics of A1/S1B Conductors
Code Number | Steel Ratio | Areas | No. of Wires | Wire Dia. | Diameter | Linear Mass | Rated Strength | C. Resistance at 20℃ | |||||
Alum. | Steel | Total | Alum. | Steel | Alum. | Steel | Core | Cond | |||||
% | mm2 | mm2 | mm2 | mm | mm | mm | mm | kg/km | kN | ohm/km | |||
16 | 17 | 16 | 2.67 | 18.7 | 6 | 1 | 1.84 | 1.84 | 1.84 | 5.53 | 64.6 | 5.89 | 1.7934 |
25 | 17 | 25 | 4.17 | 29.2 | 6 | 1 | 2.30 | 2.30 | 2.30 | 6.91 | 100.9 | 8.83 | 1.1478 |
40 | 17 | 40 | 6.67 | 46.7 | 6 | 1 | 2.91 | 2.91 | 2.91 | 8.74 | 161.5 | 13.93 | 0.7174 |
63 | 17 | 63 | 10.5 | 73.5 | 6 | 1 | 3.66 | 3.66 | 3.66 | 11.0 | 254.4 | 20.58 | 0.4555 |
100 | 17 | 100 | 16.7 | 117 | 6 | 1 | 4.61 | 4.61 | 4.61 | 13.8 | 403.8 | 32.67 | 0.2869 |
125 | 6 | 125 | 6.94 | 132 | 18 | 1 | 2.97 | 2.97 | 2.97 | 14.9 | 397.9 | 28.68 | 0.2304 |
125 | 16 | 125 | 20.4 | 145 | 26 | 7 | 2.47 | 1.92 | 5.77 | 15.7 | 503.9 | 44.27 | 0.2310 |
160 | 6 | 160 | 8.89 | 169 | 18 | 1 | 3.36 | 3.36 | 3.36 | 16.8 | 509.3 | 35.29 | 0.1800 |
160 | 16 | 160 | 26.1 | 186 | 26 | 7 | 2.80 | 2.18 | 6.53 | 17.7 | 644.9 | 55.86 | 0.1805 |
200 | 6 | 200 | 11.1 | 211 | 18 | 1 | 3.76 | 3.76 | 3.76 | 18.8 | 636.7 | 43.11 | 0.1440 |
200 | 16 | 200 | 32.6 | 233 | 26 | 7 | 3.13 | 2.43 | 7.30 | 19.8 | 806.2 | 67.85 | 0.1444 |
250 | 10 | 250 | 24.6 | 275 | 22 | 7 | 3.80 | 2.11 | 6.34 | 21.6 | 880.6 | 67.01 | 0.1154 |
250 | 16 | 250 | 40.7 | 291 | 26 | 7 | 3.50 | 2.72 | 8.16 | 22.2 | 1007.7 | 84.82 | 0.1155 |
315 | 7 | 315 | 21.8 | 337 | 45 | 7 | 2.99 | 1.99 | 5.97 | 23.9 | 1039.6 | 77.51 | 0.0917 |
315 | 16 | 315 | 51.3 | 366 | 26 | 7 | 3.93 | 3.05 | 9.16 | 24.9 | 1269.7 | 101.70 | 0.0917 |
400 | 7 | 400 | 27.7 | 428 | 45 | 7 | 3.36 | 2.24 | 6.73 | 26.9 | 1320.1 | 96.42 | 0.0722 |
400 | 13 | 400 | 51.9 | 452 | 54 | 7 | 3.07 | 3.07 | 9.21 | 27.6 | 1510.3 | 117.85 | 0.0723 |
450 | 7 | 450 | 31.1 | 481 | 45 | 7 | 3.57 | 2.38 | 7.14 | 28.5 | 1485.2 | 105.29 | 0.0642 |
450 | 13 | 450 | 58.3 | 508 | 54 | 7 | 3.26 | 3.26 | 9.77 | 29.3 | 1699.1 | 132.58 | 0.0643 |
500 | 7 | 500 | 34.6 | 535 | 45 | 7 | 3.76 | 2.51 | 7.52 | 30.1 | 1650.2 | 116.99 | 0.0578 |
500 | 13 | 500 | 64.8 | 565 | 54 | 7 | 3.43 | 3.43 | 10.3 | 30.9 | 1887.9 | 147.31 | 0.0578 |
560 | 7 | 560 | 38.7 | 599 | 45 | 7 | 3.98 | 2.65 | 7.96 | 31.8 | 1848.2 | 131.03 | 0.0516 |
560 | 13 | 560 | 70.9 | 631 | 54 | 19 | 3.63 | 2.18 | 10.9 | 32.7 | 2103.4 | 167.63 | 0.0516 |
630 | 7 | 630 | 43.6 | 674 | 45 | 7 | 4.22 | 2.81 | 8.44 | 33.8 | 2079.2 | 147.40 | 0.0459 |
630 | 13 | 630 | 79.8 | 710 | 54 | 19 | 3.85 | 2.31 | 11.6 | 34.7 | 2366.3 | 186.19 | 0.0459 |
710 | 7 | 710 | 49.1 | 759 | 45 | 7 | 4.48 | 2.99 | 8.96 | 35.9 | 2343.2 | 166.12 | 0.0407 |
710 | 13 | 710 | 89.9 | 800 | 54 | 19 | 4.09 | 2.45 | 12.3 | 36.8 | 2666.8 | 209.83 | 0.0407 |
800 | 4 | 800 | 34.6 | 835 | 72 | 7 | 3.76 | 2.51 | 7.52 | 37.6 | 2480.2 | 164.99 | 0.0361 |
800 | 8 | 800 | 66.7 | 867 | 84 | 7 | 3.48 | 3.48 | 10.4 | 38.3 | 2732.7 | 198.67 | 0.0362 |
800 | 13 | 800 | 101 | 901 | 54 | 19 | 4.44 | 2.61 | 13.0 | 39.1 | 3004.9 | 236.43 | 0.0362 |
900 | 4 | 900 | 38.9 | 939 | 72 | 7 | 3.99 | 2.66 | 7.98 | 39.9 | 2790.2 | 185.61 | 0.0321 |
900 | 8 | 900 | 75.0 | 975 | 84 | 7 | 3.69 | 3.69 | 11.1 | 40.6 | 3074.2 | 219.00 | 0.0322 |
1000 | 4 | 1000 | 43.2 | 1043 | 72 | 7 | 4.21 | 2.80 | 8.41 | 42.1 | 3100.3 | 206.23 | 0.0289 |
1120 | 4 | 1120 | 47.3 | 1167 | 72 | 19 | 4.45 | 1.78 | 8.90 | 44.5 | 3464.9 | 231.22 | 0.0258 |
1120 | 8 | 1120 | 91.2 | 1211 | 84 | 19 | 4.12 | 2.47 | 12.4 | 45.3 | 3811.5 | 276.78 | 0.0258 |
1250 | 8 | 1250 | 52.8 | 1303 | 72 | 19 | 4.35 | 2.61 | 13.1 | 47.9 | 4253.9 | 258.06 | 0.0231 |
1250 | 4 | 1250 | 102 | 1352 | 84 | 19 | 4.70 | 1.88 | 9.40 | 47.0 | 3867.1 | 308.91 | 0.0232 |
Aluminum Conductors Steel Reinforced, IEC 61089
Characteristics of A1/S2A Conductors
Code Number | Steel Ratio | Areas | No. of Wires | Wire Dia. | Diameter | Linear Mass | Rated Strength | D.C. Resistance at 20℃ | |||||
Alum. | Steel | Total | Alum. | Steel | Alum. | Steel | Core | Cond | |||||
% | mm2 | mm2 | mm2 | mm | mm | mm | mm | kg/km | kN | ohm/km | |||
16 | 17 | 16 | 2.67 | 18.7 | 6 | 1 | 1.84 | 1.84 | 1.84 | 5.53 | 64.6 | 6.45 | 1.7934 |
25 | 17 | 25 | 4.17 | 29.2 | 6 | 1 | 2.30 | 2.30 | 2.30 | 6.91 | 100.9 | 9.71 | 1.1478 |
40 | 17 | 40 | 6.67 | 46.7 | 6 | 1 | 2.91 | 2.91 | 2.91 | 8.74 | 161.5 | 15.33 | 0.7174 |
63 | 17 | 63 | 10.5 | 73.5 | 6 | 1 | 3.66 | 3.66 | 3.66 | 11.0 | 254.4 | 22.37 | 0.4555 |
100 | 17 | 100 | 16.7 | 117 | 6 | 1 | 4.61 | 4.61 | 4.61 | 13.8 | 403.8 | 35.50 | 0.2869 |
125 | 6 | 125 | 6.94 | 132 | 18 | 1 | 2.97 | 2.97 | 2.97 | 14.9 | 397.9 | 30.14 | 0.2304 |
125 | 16 | 125 | 20.4 | 145 | 26 | 7 | 2.47 | 1.92 | 5.77 | 15.7 | 503.9 | 48.54 | 0.2310 |
160 | 6 | 160 | 8.89 | 169 | 18 | 1 | 3.36 | 3.36 | 3.36 | 16.8 | 509.3 | 37.42 | 0.1800 |
160 | 16 | 160 | 26.1 | 186 | 26 | 7 | 2.80 | 2.18 | 6.53 | 17.7 | 644.9 | 61.34 | 0.1805 |
200 | 6 | 200 | 11.1 | 211 | 18 | 1 | 3.76 | 3.76 | 3.76 | 18.8 | 636.7 | 45.00 | 0.1440 |
200 | 16 | 200 | 32.6 | 233 | 26 | 7 | 3.13 | 2.43 | 7.30 | 19.8 | 806.2 | 74.69 | 0.1444 |
250 | 10 | 250 | 24.6 | 275 | 22 | 7 | 3.80 | 2.11 | 6.34 | 21.6 | 880.6 | 72.16 | 0.1154 |
250 | 16 | 250 | 40.7 | 291 | 26 | 7 | 3.50 | 2.72 | 8.16 | 22.2 | 1007.7 | 93.37 | 0.1155 |
315 | 7 | 315 | 21.8 | 337 | 45 | 7 | 2.99 | 1.99 | 5.97 | 23.9 | 1039.6 | 82.08 | 0.0917 |
315 | 16 | 315 | 51.3 | 366 | 26 | 7 | 3.93 | 3.05 | 9.16 | 24.9 | 1269.7 | 114.02 | 0.0917 |
400 | 7 | 400 | 27.7 | 428 | 45 | 7 | 3.36 | 2.24 | 6.73 | 26.9 | 1320.1 | 102.23 | 0.0722 |
400 | 13 | 400 | 51.9 | 452 | 54 | 7 | 3.07 | 3.07 | 9.21 | 27.6 | 1510.3 | 130.30 | 0.0723 |
450 | 7 | 450 | 31.1 | 481 | 45 | 7 | 3.57 | 2.38 | 7.14 | 28.5 | 1485.2 | 111.82 | 0.0642 |
450 | 13 | 450 | 58.3 | 508 | 54 | 7 | 3.26 | 3.26 | 9.77 | 29.3 | 1699.1 | 146.58 | 0.0643 |
500 | 7 | 500 | 34.6 | 535 | 45 | 7 | 3.76 | 2.51 | 7.52 | 30.1 | 1650.2 | 124.25 | 0.0578 |
500 | 13 | 500 | 64.8 | 565 | 54 | 7 | 3.43 | 3.43 | 10.3 | 30.9 | 1887.9 | 162.87 | 0.0578 |
560 | 7 | 560 | 38.7 | 599 | 45 | 7 | 3.98 | 2.65 | 7.96 | 31.8 | 1848.2 | 139.16 | 0.0516 |
560 | 13 | 560 | 70.9 | 631 | 54 | 19 | 3.63 | 2.18 | 10.9 | 32.7 | 2103.4 | 182.52 | 0.0516 |
630 | 7 | 630 | 43.6 | 674 | 45 | 7 | 4.22 | 2.81 | 8.44 | 33.8 | 2079.2 | 156.55 | 0.0459 |
630 | 13 | 630 | 79.8 | 710 | 54 | 19 | 3.85 | 2.31 | 11.6 | 34.7 | 2366.3 | 202.94 | 0.0459 |
710 | 7 | 710 | 49.1 | 759 | 45 | 7 | 4.48 | 2.99 | 8.96 | 35.9 | 2343.2 | 176.43 | 0.0407 |
710 | 13 | 710 | 89.9 | 800 | 54 | 19 | 4.09 | 2.45 | 12.3 | 36.8 | 2666.8 | 228.71 | 0.0407 |
800 | 4 | 800 | 34.6 | 835 | 72 | 7 | 3.76 | 2.51 | 7.52 | 37.6 | 2480.2 | 172.25 | 0.0361 |
800 | 8 | 800 | 66.7 | 867 | 84 | 7 | 3.48 | 3.48 | 10.4 | 38.3 | 2732.7 | 214.67 | 0.0362 |
800 | 13 | 800 | 101 | 901 | 54 | 19 | 4.44 | 2.61 | 13.0 | 39.1 | 3004.9 | 257.71 | 0.0362 |
900 | 4 | 900 | 38.9 | 939 | 72 | 7 | 3.99 | 2.66 | 7.98 | 39.9 | 2790.2 | 193.78 | 0.0321 |
900 | 8 | 900 | 75.0 | 975 | 84 | 7 | 3.69 | 3.69 | 11.1 | 40.6 | 3074.2 | 231.75 | 0.0322 |
1000 | 4 | 1000 | 43.2 | 1043 | 72 | 7 | 4.21 | 2.80 | 8.41 | 42.1 | 3100.3 | 215.31 | 0.0289 |
1120 | 4 | 1120 | 47.3 | 1167 | 72 | 19 | 4.45 | 1.78 | 8.90 | 44.5 | 3464.9 | 241.15 | 0.0258 |
1120 | 8 | 1120 | 91.2 | 1211 | 84 | 19 | 4.12 | 2.47 | 12.4 | 45.3 | 3811.5 | 295.94 | 0.0258 |
1250 | 4 | 1250 | 52.8 | 1303 | 72 | 19 | 4.70 | 1.88 | 9.40 | 47.0 | 3867.1 | 269.14 | 0.0231 |
1250 | 8 | 1250 | 102 | 1352 | 84 | 19 | 4.35 | 2.61 | 13.1 | 47.9 | 4253.9 | 330.29 | 0.0232 |
Aluminum Conductors Steel Reinforced, IEC 61089 Characteristics of A1/S2B Conductors
Code Number | Steel Ratio | Areas | No. of Wires | Wire Dia. | Diameter | Linear Mass | Rated Strength | D.C. Resistance at 20℃ | |||||
Alum. | Steel | Total | Alum. | Steel | Alum. | Steel | Core | Cond | |||||
% | mm2 | mm2 | mm2 | mm | mm | mm | mm | kg/km | kN | ohm/km | |||
16 | 17 | 16 | 2.67 | 18.7 | 6 | 1 | 1.84 | 1.84 | 1.84 | 5.53 | 64.6 | 6.27 | 1.7934 |
25 | 17 | 25 | 4.17 | 29.2 | 6 | 1 | 2.30 | 2.30 | 2.30 | 6.91 | 100.9 | 9.42 | 1.1478 |
40 | 17 | 40 | 6.67 | 46.7 | 6 | 1 | 2.91 | 2.91 | 2.91 | 8.74 | 161.5 | 14.87 | 0.7174 |
63 | 17 | 63 | 10.5 | 73.5 | 6 | 1 | 3.66 | 3.66 | 3.66 | 11.0 | 254.4 | 21.63 | 0.4555 |
100 | 17 | 100 | 16.7 | 117 | 6 | 1 | 4.61 | 4.61 | 4.61 | 13.8 | 403.8 | 34.33 | 0.2869 |
125 | 6 | 125 | 6.94 | 132 | 18 | 1 | 2.97 | 2.97 | 2.97 | 14.9 | 397.9 | 29.65 | 0.2304 |
125 | 16 | 125 | 20.4 | 145 | 26 | 7 | 2.47 | 1.92 | 5.77 | 15.7 | 503.9 | 47.12 | 0.2310 |
160 | 6 | 160 | 8.89 | 169 | 18 | 1 | 3.36 | 3.36 | 3.36 | 16.8 | 509.3 | 36.80 | 0.1800 |
160 | 16 | 160 | 26.1 | 186 | 26 | 7 | 2.80 | 2.18 | 6.53 | 17.7 | 644.9 | 59.51 | 0.1805 |
200 | 6 | 200 | 11.1 | 211 | 18 | 1 | 3.76 | 3.76 | 3.76 | 18.8 | 636.7 | 44.22 | 0.1440 |
200 | 16 | 200 | 32.6 | 233 | 26 | 7 | 3.13 | 2.43 | 7.30 | 19.8 | 806.2 | 72.41 | 0.1444 |
250 | 10 | 250 | 24.6 | 275 | 22 | 7 | 3.80 | 2.11 | 6.34 | 21.6 | 880.6 | 70.44 | 0.1154 |
250 | 16 | 250 | 40.7 | 291 | 26 | 7 | 3.50 | 2.72 | 8.16 | 22.2 | 1007.7 | 90.52 | 0.1155 |
315 | 7 | 315 | 21.8 | 337 | 45 | 7 | 2.99 | 1.99 | 5.97 | 23.9 | 1039.6 | 80.55 | 0.0917 |
315 | 16 | 315 | 51.3 | 366 | 26 | 7 | 3.93 | 3.05 | 9.16 | 24.9 | 1269.7 | 110.43 | 0.0917 |
400 | 7 | 400 | 27.7 | 428 | 45 | 7 | 3.36 | 2.24 | 6.73 | 26.9 | 1320.1 | 100.29 | 0.0722 |
400 | 13 | 400 | 51.9 | 452 | 54 | 7 | 3.07 | 3.07 | 9.21 | 27.6 | 1510.3 | 126.67 | 0.0723 |
450 | 7 | 450 | 31.1 | 481 | 45 | 7 | 3.57 | 2.38 | 7.14 | 28.5 | 1485.2 | 109.64 | 0.0642 |
450 | 13 | 450 | 58.3 | 508 | 54 | 7 | 3.26 | 3.26 | 9.77 | 29.3 | 1699.1 | 142.50 | 0.0643 |
500 | 7 | 500 | 34.6 | 535 | 45 | 7 | 3.76 | 2.51 | 7.52 | 30.1 | 1650.2 | 121.83 | 0.0578 |
500 | 13 | 500 | 64.8 | 565 | 54 | 7 | 3.43 | 3.43 | 10.3 | 30.9 | 1887.9 | 158.33 | 0.0578 |
560 | 7 | 560 | 38.7 | 599 | 45 | 7 | 3.98 | 2.65 | 7.96 | 31.8 | 1848.2 | 136.45 | 0.0516 |
560 | 13 | 560 | 70.9 | 631 | 54 | 19 | 3.63 | 2.18 | 10.9 | 32.7 | 2103.4 | 177.56 | 0.0516 |
630 | 7 | 630 | 43.6 | 674 | 45 | 7 | 4.22 | 2.81 | 8.44 | 33.8 | 2079.2 | 153.50 | 0.0459 |
630 | 13 | 630 | 79.8 | 710 | 54 | 19 | 3.85 | 2.31 | 11.6 | 34.7 | 2366.3 | 197.36 | 0.0459 |
710 | 7 | 710 | 49.1 | 759 | 45 | 7 | 4.48 | 2.99 | 8.96 | 35.9 | 2343.2 | 172.99 | 0.0407 |
710 | 13 | 710 | 89.9 | 800 | 54 | 19 | 4.09 | 2.45 | 12.3 | 36.8 | 2666.8 | 222.42 | 0.0407 |
800 | 4 | 800 | 34.6 | 835 | 72 | 7 | 3.76 | 2.51 | 7.52 | 37.6 | 2480.2 | 169.83 | 0.0361 |
800 | 8 | 800 | 66.7 | 867 | 84 | 7 | 3.48 | 3.48 | 10.4 | 38.3 | 2732.7 | 210.00 | 0.0362 |
800 | 13 | 800 | 101 | 901 | 54 | 19 | 4.44 | 2.61 | 13.0 | 39.1 | 3004.9 | 250.61 | 0.0362 |
900 | 4 | 900 | 38.9 | 939 | 72 | 7 | 3.99 | 2.66 | 7.98 | 39.9 | 2790.2 | 191.06 | 0.0321 |
900 | 8 | 900 | 75.0 | 975 | 84 | 7 | 3.69 | 3.69 | 11.1 | 40.6 | 3074.2 | 226.50 | 0.0322 |
1000 | 4 | 1000 | 43.2 | 1043 | 72 | 7 | 4.21 | 2.80 | 8.41 | 42.1 | 3100.3 | 212.28 | 0.0289 |
1120 | 4 | 1120 | 47.3 | 1167 | 72 | 19 | 4.45 | 1.78 | 8.90 | 44.5 | 3464.9 | 237.84 | 0.0258 |
1120 | 8 | 1120 | 91.2 | 1211 | 84 | 19 | 4.12 | 2.47 | 12.4 | 45.3 | 3811.5 | 289.55 | 0.0258 |
1250 | 8 | 1250 | 52.8 | 1303 | 72 | 19 | 4.70 | 1.88 | 9.40 | 47.0 | 3867.1 | 265.44 | 0.0231 |
1250 | 4 | 1250 | 102 | 1352 | 84 | 19 | 4.35 | 2.61 | 13.1 | 47.9 | 4253.9 | 323.16 | 0.0232 |
ACSR, Type AC, Aluminium Conductors Steel Reinforced (GOST 839-80)
Nominal Corss-section | Number of Wires | Wire Diameter | Calculated Cross-section | Overall Diameter | D.C. Resistance at 20 | Min. Breaking Load | Conductor Weight | Grease Weight |
mm2 | mm | mm2 | mm | Ω/km | kg/km | kg/km | ||
10 | 7 | 1,35 | 10,0 | 4,05 | 2,8631 | 1950 | 27,4 | – |
16 | 7 | 1,70 | 15,9 | 5,10 | 1,8007 | 3021 | 43,0 | 0,5 |
25 | 7 | 2,13 | 24,9 | 6,40 | 1,1498 | 4500 | 68,0 | 0,5 |
35 | 7 | 2,50 | 34,3 | 7,50 | 0,8347 | 5913 | 94,0 | 0,5 |
40 | 7 | 2,70 | 40,0 | 8,09 | 0,7157 | 6800 | 109,4 | – |
50 | 7 | 3,00 | 49,5 | 9,00 | 0,5784 | 8198 | 135,0 | 0,5 |
63 | 7 | 3,39 | 63,0 | 10,16 | 0,4544 | 10390 | 172,3 | – |
70 | 7 | 3,55 | 69,3 | 10,70 | 0,4131 | 11288 | 189,0 | 1,0 |
95 | 7 | 4,10 | 92,4 | 12,30 | 0,3114 | 14784 | 252,0 | 1,0 |
100 | 19 | 2,59 | 100,0 | 12,94 | 0,2877 | 17000 | 274,9 | – |
120 | 19 | 2,80 | 117,0 | 14,00 | 0,2459 | 19890 | 321,0 | 16 |
125 | 19 | 2,89 | 125,0 | 14,47 | 0,2301 | 21250 | 343,6 | – |
150 | 19 | 3,15 | 148,0 | 15,80 | 0,1944 | 24420 | 406,0 | 20 |
160 | 19 | 3,27 | 160,0 | 16,37 | 0,1798 | 26400 | 439,8 | – |
185 | 19 | 3,50 | 182,8 | 17,50 | 0,1574 | 29832 | 502,0 | 25 |
200 | 19 | 3,66 | 200,0 | 18,30 | 0,1438 | 32000 | 549,7 | – |
240 | 19 | 4,00 | 238,7 | 20,00 | 0,1205 | 38192 | 655,0 | 33 |
250 | 19 | 4,09 | 250,0 | 20,47 | 0,1150 | 40000 | 687,1 | – |
300 | 37 | 3,15 | 288,3 | 22,10 | 0,1000 | 47569 | 794,0 | 54 |
315 | 37 | 3,29 | 315,0 | 23,05 | 0,0915 | 51970 | 867,5 | – |
350 | 37 | 3,45 | 345,8 | 24,20 | 0,0833 | 57057 | 952,0 | 65 |
400 | 37 | 3,66 | 389,2 | 25,60 | 0,0740 | 63420 | 1072,0 | 73 |
450 | 37 | 3,90 | 449,1 | 27,30 | 0,0642 | 71856 | 1206,0 | 84 |
500 | 37 | 4,15 | 500,4 | 29,10 | 0,0576 | 80000 | 1378,0 | 94 |
550 | 61 | 3,37 | 544,0 | 30,30 | 0,0529 | 89760 | 1500,0 | 117 |
560 | 37 | 4,39 | 560,0 | 30,73 | 0,0531 | 89600 | 1542,2 | – |
600 | 61 | 3,50 | 586,8 | 31,50 | 0,0491 | 95632 | 1618,0 | 126 |
630 | 61 | 3,63 | 630,0 | 32,64 | 0,0458 | 100800 | 1738,4 | – |
650 | 61 | 3,66 | 641,7 | 32,90 | 0,0450 | 104575 | 1771,0 | 138 |
700 | 61 | 3,80 | 691,7 | 34,20 | 0,0417 | 112725 | 1902,0 | 149 |
710 | 61 | 3,85 | 710,0 | 34,65 | 0,0406 | 113600 | 1959,2 | – |
750 | 61 | 3,95 | 747,4 | 35,60 | 0,0386 | 119584 | 2062,0 | 161 |
ACSR Type Ackp Asx All-Greased Aluminium Conductors Steel Reinforced (GOST 839-80)
Aluminum Section/Steel Core Section | Number of Aluminum Wires | Aluminum Wire Diameter | Number of Steel Wires | Steel Wire Diameter | Calculated Cross-section | Overall Diameter | DC Resistance at 20 | Min. Breaking Load | Conductor Weight | Grease Weight |
mm2 | mm | mm | mm2 | mm | Ω/km | kg/km | kg/km | |||
(10/1,8) | 6 | 1,50 | 1 | 1,50 | 10,6/1,77 | 4,5 | 2,7064 | 4089 | 42,7 | 1,0 |
(16/2,7) | 6 | 1,85 | 1 | 1,85 | 16/2,69 | 5,6 | 1,7818 | 6220 | 64,9 | 1,0 |
(25/4,2) | 6 | 2,30 | 1 | 2,30 | 24,9/4,15 | 6,9 | 1,1521 | 9296 | 100,3 | 1,5 |
(35/6,2) | 6 | 2,80 | 1 | 2,80 | 36,9/6,15 | 8,4 | 0,7774 | 13524 | 148,0 | 2,5 |
40/6,7 | 6 | 2,91 | 1 | 2,91 | 40/6,7 | 8,74 | 0,7172 | 14400 | 161,3 | |
(50/8,0) | 6 | 3,20 | 1 | 3,20 | 48,2/8,04 | 9,6 | 0,5951 | 17112 | 195,0 | 3,0 |
63/10,5 | 6 | 3,66 | 1 | 3,66 | 63/10,5 | 10,97 | 0,4553 | 21630 | 254,0 | |
(70/11) | 6 | 3,80 | 1 | 3,80 | 68/11,3 | 11,4 | 0,4218 | 24130 | 276,0 | 4,5 |
(70/72) | 18 | 2,20 | 19 | 2,20 | 68,4/72,2 | 15,4 | 0,4194 | 96826 | 755,0 | 38,0 |
(95/16) | 6 | 4,50 | 1 | 4,50 | 95,4/15,9 | 13,5 | 0,3007 | 33369 | 385,0 | 6,0 |
(95/141) | 24 | 2,20 | 37 | 2,20 | 91,2/141 | 19,8 | 0,3146 | 180775 | 1357,0 | 69,0 |
100/16,7 | 6 | 4,61 | 1 | 4,61 | 100/16,7 | 13,82 | 0,2868 | 34333 | 403,2 | |
(120/19) | 26 | 2,40 | 7 | 1,85 | 118/18,8 | 15,2 | 0,2440 | 41521 | 471,0 | 11,0 |
(120/27) | 30 | 2,20 | 7 | 2,20 | 114/26,6 | 15,4 | 0,2531 | 49465 | 528,0 | 14,0 |
125/6,9 | 18 | 2,97 | 1 | 2,97 | 125/6,9 | 14,67 | 0,2304 | 29167 | 397,9 | |
125/20,4 | 26 | 2,47 | 7 | 1,92 | 125/20,4 | 15,67 | 0,2308 | 45694 | 503,5 | |
(150/19) | 24 | 2,80 | 7 | 1,85 | 148/18,8 | 16,8 | 0,2046 | 46307 | 554,0 | 12 |
(150/24) | 26 | 2,70 | 7 | 2,10 | 149/24,2 | 17,1 | 0,2039 | 52279 | 599 | 14 |
(150/34) | 30 | 2,50 | 7 | 2,50 | 147/34,3 | 17,5 | 0,2061 | 62643 | 675 | 18 |
160/8,9 | 18 | 3,36 | 1 | 3,36 | 160/8,9 | 16,82 | 0,1800 | 36178 | 509,4 | |
160/26,1 | 26 | 2,80 | 7 | 2,18 | 160/26,1 | 17,73 | 0,1803 | 57689 | 644,5 | |
(185/24) | 24 | 3,15 | 7 | 2,10 | 187/24,2 | 18,9 | 0,1540 | 58075 | 705 | 14 |
(185/29) | 26 | 2,98 | 7 | 2,30 | 181/29 | 18,8 | 0,1591 | 62055 | 728 | 16 |
(185/43) | 30 | 2,80 | 7 | 2,80 | 185/43,1 | 19,6 | 0,1559 | 77767 | 846 | 23 |
(185/128) | 54 | 2,10 | 37 | 2,10 | 187/128 | 23,1 | 0,1543 | 183816 | 1525 | 63 |
200/11,1 | 18 | 3,76 | 1 | 3,76 | 200/11,1 | 18,81 | 0,1440 | 44222 | 636,7 | |
200/32,6 | 26 | 3,13 | 7 | 2,43 | 200/32,6 | 19,82 | 0,1442 | 70134 | 805,6 | |
(205/27) | 24 | 3,30 | 7 | 2,20 | 205/26,6 | 19,8 | 0,1407 | 63740 | 774 | 15 |
(240/32) | 24 | 3,60 | 7 | 2,40 | 244/31,7 | 21,6 | 0,1182 | 75050 | 921 | 17 |
(240/39) | 26 | 3,40 | 7 | 2,65 | 236/38,6 | 21,6 | 0,1222 | 80895 | 952 | 22 |
(240/56) | 30 | 3,20 | 7 | 3,20 | 241/56,3 | 22,4 | 0,1197 | 98253 | 1106 | 30 |
(300/39) | 24 | 4,00 | 7 | 2,65 | 301/38,6 | 24,0 | 0,0958 | 90574 | 1132 | 22 |
(300/48) | 26 | 3,80 | 7 | 2,95 | 295/47,8 | 24,1 | 0,0978 | 100623 | 1186 | 27 |
(300/66) | 30 | 3,50 | 19 | 2,10 | 288,5/65,8 | 24,5 | 0,1000 | 117520 | 1313 | 37 |
(300/67) | 30 | 3,50 | 7 | 3,50 | 288,5/67,3 | 24,5 | 0,1000 | 126270 | 1323 | 37 |
(300/204) | 54 | 2,65 | 37 | 2,65 | 298/204 | 29,2 | 0,0968 | 284579 | 2428 | 102 |
315/21,8 | 45 | 2,99 | 7 | 1,99 | 315/21,8 | 23,83 | 0,0917 | 79030 | 1039,2 | |
315/51,3 | 26 | 3,93 | 7 | 3,05 | 315/51,3 | 24,87 | 0,0916 | 106834 | 1268,9 | |
(330/30) | 48 | 2,98 | 7 | 2,30 | 335/29,1 | 24,8 | 0,0861 | 88848 | 1152 | 16 |
(330/43) | 54 | 2,80 | 7 | 2,80 | 332/43,1 | 25,2 | 0,0869 | 103784 | 1255 | 23 |
400/27,7 | 45 | 3,36 | 7 | 2,24 | 400/27,7 | 26,91 | 0,0722 | 98356 | 1319,7 | |
400/51,9 | 54 | 3,07 | 7 | 3,07 | 400/51,9 | 27,64 | 0,0722 | 123037 | 1509,7 | |
(400/18) | 42 | 3,40 | 7 | 1,85 | 381/18,8 | 26,0 | 0,0758 | 85600 | 1199 | 12 |
(400/22) | 76 | 2,57 | 7 | 2,00 | 394/22 | 26,6 | 0,0733 | 95115 | 1261 | 12 |
(400/51) | 54 | 3,05 | 7 | 3,05 | 394/51,1 | 27,5 | 0,0733 | 120481 | 1490 | 28 |
(400/64) | 26 | 4,37 | 7 | 3,40 | 390/63,5 | 27,7 | 0,0741 | 129183 | 1572 | 35 |
(400/93) | 30 | 4,15 | 19 | 2,50 | 406/93,2 | 29,1 | 0,0711 | 173715 | 1851 | 53 |
450/31,1 | 45 | 3,57 | 7 | 2,38 | 450/31,1 | 28,55 | 0,0646 | 107467 | 1484,6 | |
450/58,3 | 54 | 3,26 | 7 | 3,26 | 450/58,3 | 29,32 | 0,0642 | 138417 | 1698,4 | |
(450/56) | 54 | 3,20 | 7 | 3,20 | 434/56,3 | 28,8 | 0,0666 | 131370 | 1640 | 30 |
500/34,6 | 45 | 3,76 | 7 | 2,51 | 500/34,6 | 30,09 | 0,0577 | 119407 | 1649,6 | |
500/64,8 | 54 | 3,43 | 7 | 3,43 | 500/64,8 | 30,90 | 0,0578 | 153796 | 1887,1 | |
(500/26) | 42 | 3,90 | 7 | 2,20 | 502/26,6 | 30,00 | 0,0575 | 112548 | 1592,0 | 15 |
(500/27) | 76 | 2,84 | 7 | 2,20 | 481/26,6 | 29,40 | 0,0600 | 112188 | 1537,0 | 15 |
(500/64) | 54 | 3,40 | 7 | 3,40 | 490/63,5 | 30,60 | 0,0588 | 148257 | 1852,0 | 33 |
(500/204) | 90 | 2,65 | 37 | 2,65 | 496/204 | 34,50 | 0,0580 | 319609 | 2979,0 | 105 |
(500/336) | 54 | 3,40 | 61 | 2,65 | 490/336 | 37,50 | 0,0588 | 466649 | 4005,0 | 168 |
(550/71) | 54 | 3,60 | 7 | 3,60 | 549/71,2 | 32,40 | 0,0526 | 166164 | 2076,0 | 38 |
560/38,7 | 45 | 3,98 | 7 | 2,65 | 560/38,7 | 31,84 | 0,0515 | 133736 | 1847,5 | |
560/70,9 | 54 | 3,63 | 19 | 2,18 | 560/70,9 | 32,70 | 0,0516 | 172592 | 2102,2 | |
(600/72) | 54 | 3,70 | 19 | 2,20 | 580/72,2 | 33,20 | 0,0498 | 183835 | 2170,0 | 39 |
630/43,6 | 45 | 4,22 | 7 | 2,81 | 630/43,6 | 33,79 | 0,0458 | 150453 | 2078,5 | |
630/79,8 | 54 | 3,85 | 19 | 2,31 | 630/79,8 | 34,69 | 0,0459 | 191772 | 2365,0 | |
(650/79) | 96 | 2,90 | 19 | 2,30 | 634/78,9 | 34,70 | 0,0456 | 200451 | 2372,0 | 42 |
(700/86) | 96 | 3,02 | 19 | 2,40 | 687/85,9 | 36,20 | 0,0420 | 217775 | 2575,0 | 46 |
710/49,1 | 45 | 4,48 | 7 | 2,99 | 710/49,1 | 35,86 | 0,0406 | 169559 | 2342,4 | |
710/89,9 | 54 | 4,09 | 19 | 2,45 | 710/89,9 | 36,82 | 0,0407 | 216124 | 2665,3 | |
(750/93) | 96 | 3,15 | 19 | 2,50 | 748/93,2 | 37,70 | 0,0386 | 234450 | 2800,0 | 49 |
800/34,6 | 72 | 3,76 | 7 | 2,51 | 800/34,6 | 37,61 | 0,0361 | 167407 | 2479,6 | |
800/66,7 | 84 | 3,48 | 7 | 3,48 | 800/66,7 | 38,30 | 0,0361 | 205433 | 2732,3 | |
800/101,3 | 54 | 4,34 | 19 | 2,61 | 800/101,3 | 39,09 | 0,0361 | 243520 | 3003,2 | |
(800/105) | 96 | 3,30 | 19 | 2,65 | 821/105 | 39,70 | 0,0352 | 260073 | 3092,0 | 57 |
900/38,9 | 72 | 3,99 | 7 | 2,66 | 900/38,9 | 39,89 | 0,0321 | 188333 | 2789,5 | |
900/75 | 84 | 3,69 | 7 | 3,69 | 900/75 | 40,63 | 0,0321 | 226500 | 3073,9 | |
1000/43,2 | 72 | 4,21 | 7 | 2,80 | 1000/43,2 | 42,05 | 0,0289 | 209259 | 3099,4 | |
(1000/56) | 76 | 4,10 | 7 | 3,20 | 1003,2/56,3 | 42,40 | 0,0288 | 224047 | 3210,0 | 30 |
1120/47,3 | 72 | 4,45 | 19 | 1,78 | 1120/47,3 | 44,50 | 0,0258 | 23428 | 3463,9 | |
1120/91,2 | 84 | 4,12 | 19 | 2,47 | 1120/91,2 | 45,32 | 0,0253 | 283168 | 3810,7 | |
1250/52,8 | 72 | 4,70 | 19 | 1,88 | 1250/52,8 | 47,02 | 0,0231 | 261750 | 3865,9 | |
1250/101,8 | 84 | 4,35 | 19 | 2,61 | 1250/101,8 | 47,88 |
French Standard -NF C 34120
CODE |
SECTION mm2 |
STRANDING No. x mm |
OVERALL DIAMETER mm |
TENSILE S. STEEL HBAR. |
RATED STRENGTH kN |
ELECTRICAL RESISTANCE 20ºC. ohms/km |
CONDUCTOR WEIGHT kg/km |
GREASE WEIGHT g/m |
|||||||
Al |
Steel |
Total |
Al |
Steel |
Core |
Total |
Al |
Steel |
Total |
Outside layer greased |
Outside layer ungreased |
||||
CANNA 37.7 |
28.27 |
9.42 |
37.69 |
9 x 2.00 |
3 x 2.00 |
– |
8.30 |
117.60 |
1.625 |
1.020 |
80 |
155 |
75 |
6 |
2 |
CANNA 59.7 |
37.7 |
21.99 |
59.69 |
12 x 2.00 |
7 x 2.00 |
6 |
10 |
117.60 |
3.27 |
0.766 |
103 |
276 |
173 |
7 |
3 |
CANNA 75.5 |
47.71 |
27.83 |
75.54 |
12 x 2.25 |
7 x 2.25 |
6.75 |
11.25 |
117.60 |
4.115 |
0.605 |
128 |
349 |
220 |
10 |
4 |
CANNA 116.2 |
94.25 |
21.99 |
116.24 |
30 x 2.00 |
7 x 2.00 |
6 |
14 |
117.60 |
4.315 |
0.306 |
258 |
432 |
174 |
13 |
7 |
CROCUS 116.12 |
94.25 |
21.99 |
116.24 |
30 x 2.00 |
7 x 2.00 |
6 |
14 |
156.80 |
4.93 |
0.306 |
258 |
432 |
174 |
13 |
7 |
CANNA 147.1 |
119.28 |
27.83 |
147.11 |
30 x 2.25 |
7 x 2.25 |
6.75 |
15.75 |
117.60 |
5.4 |
0.243 |
327 |
547 |
220 |
18 |
10 |
CROCUS 147.1 |
119.28 |
27.83 |
147.11 |
30 x 2.25 |
7 x 2.25 |
6.75 |
15.75 |
156.80 |
6.18 |
0.243 |
327 |
547 |
220 |
18 |
10 |
CANNA 181.6 |
147.26 |
34.36 |
181.62 |
30 x 2.50 |
7 x 2.50 |
7.5 |
17.5 |
117.60 |
6.49 |
0.197 |
403 |
675 |
272 |
22 |
12 |
CROCUS 181.6 |
147.26 |
34.36 |
181.62 |
30 x 2.50 |
7 x 2.50 |
7.5 |
17.5 |
156.80 |
7.42 |
0.197 |
403 |
675 |
272 |
22 |
12 |
CANNA 228 |
184.72 |
43.1 |
227.82 |
30 x 2.80 |
7 x 2.80 |
8.4 |
19.6 |
117.60 |
8.05 |
0.157 |
506 |
848 |
342 |
26 |
15 |
CROCUS 228 |
184.72 |
43.1 |
227.82 |
30 x 2.80 |
7 x 2.80 |
8.4 |
19.6 |
156.80 |
9.21 |
0.157 |
506 |
848 |
342 |
26 |
15 |
CANNA 288 |
233.8 |
54.55 |
288.35 |
30 x 3.15 |
7 x 3.15 |
9.45 |
22.05 |
117.60 |
9.85 |
0.124 |
642 |
1074 |
432 |
33 |
18 |
CROCUS 288 |
233.8 |
54.55 |
288.35 |
30 x 3.15 |
7 x 3.15 |
9.45 |
22.05 |
156.80 |
11.38 |
0.124 |
642 |
1074 |
432 |
33 |
18 |
CROCUS 297 |
221.67 |
75.54 |
297.21 |
36 x 2.80 |
19 x 2.25 |
11.25 |
22.45 |
156.8 |
17.72 |
0.1305 |
594 |
624 |
1218 |
35 |
20 |
CROCUS 412 |
325.72 |
85.95 |
411.67 |
32 x 3.60 |
19 x 2.40 |
12 |
26.4 |
156.8 |
17.33 |
0.0898 |
676 |
917 |
1593 |
50 |
25 |
CROCUS 612 |
507.83 |
104.7 |
611.76 |
66 x 3.13 |
19 x 2.65 |
13.25 |
32.2 |
156.8 |
23.15 |
0.0566 |
824 |
1417 |
2241 |
70 |
40 |
CROCUS 865 |
717.33 |
148.06 |
865.39 |
66 x 3.72 |
19 x 3.15 |
15.75 |
38.1 |
156.8 |
31.9 |
0.0405 |
1164 |
2010 |
3174 |
100 |
55 |
CROCUS 1185 |
956.666 |
227.82 |
1184.48 |
54 x 2.8 |
37 x 2.80 66 x +3.47 |
19.7 |
44.7 |
156.8 |
48.05 |
0.0303 |
1796 |
2682 |
4478 |
140 |
100 |
