AAC conductor IEC 61089 Standard

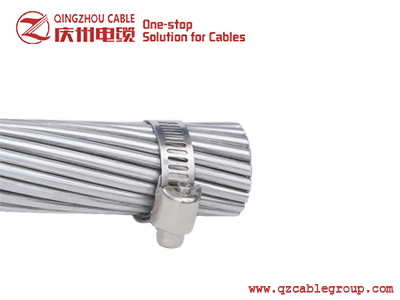

AAC conductor is also known as aluminium stranded conductor. It is manufactured from electrolytic-ally refined aluminium, with a minimum purity of 99.7%.
abc & aac cable manufacturers in china
price of aac conductor


AAC conductor IEC 61089 Standard

Henan Qingzhou cable group is a professional aluminum cable manufacturer from China, Meet your kinds of requirement aluminum wire cable With over 26 years production experience and 10 years export experience, factory price without any third party.

AAC conductor IEC 61089 Standard

Get a free quote by e-mail: info@qzcablegroup.com

Application

Conductor AAC has been widely used in power transmission lines with various voltage levels, because they have such good characteristics as simple structure, convenient installation and maintenance, low cost large transmission capacity , And they are also suitable for laying across rivers valleys and the places where special geographical features exist. It is mainly used for electric distribution lines with little span, less stress. Temperature for continuous use is up to 75 ℃.

Structure

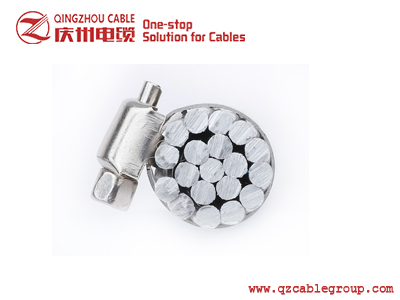

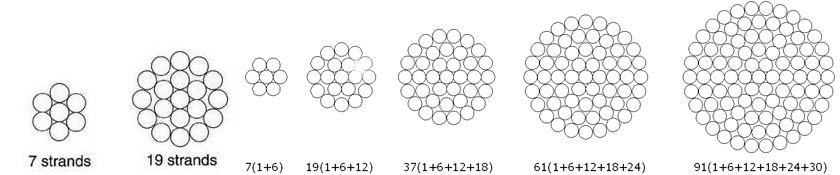

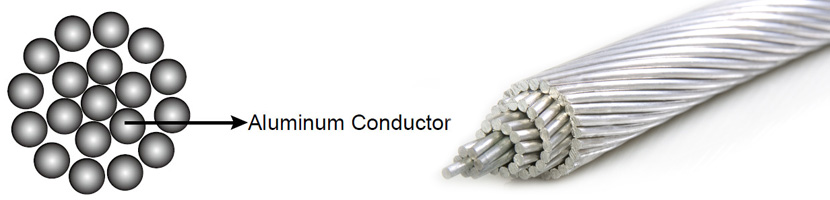

Bare AAC wire is a concentric-lay-stranded conductor consisting of hard drawn aluminum wires available in both single layer and multi-layer constructions. Huatong AAC conductor ensuring purity of min.99.55% 1350-H19 Aluminum. Temperature for continuous use is up to 75℃.Aluminum 1350 wires are concentrically stranded and wrapped helically around a central wire. Each successive layer has six wires more than the previous underlying layer.

AAC conductor IEC 61089 Standard



Code

Nominal Area

Stranding

Overall Diameter

Weight

Rated Strength

Electrical Resistance

Current Rating*

mm^2

No.×mm

mm

kg/km

KN

Ω/Km

A

10

10

7/1.35

4.05

27.4

1.95

2.8633

62

16

16

7/1.71

5.13

43.8

3.04

1.7896

84

25

25

7/2.13

6.39

68.4

4.5

1.1453

110

40

40

7/2.70

8.1

109.4

6.8

0.7158

147

63

63

7/3.39

10.17

172.3

10.39

0.4545

195

100

100

19/2.59

12.95

274.8

17

0.2877

259

125

125

19/2.89

14.45

343.6

21.25

0.2302

297

160

160

19/3.27

16.35

439.8

26.4

0.1798

345

200

200

19/3.66

18.3

549.7

32

0.1439

396

250

250

19/4.09

20.45

687.1

40

0.1151

454

315

315

37/3.29

23.03

867.9

51.97

0.0916

522

400

400

37/3.71

25.97

1102

64

0.0721

603

450

450

37/3.94

27.58

1239.8

72

0.0641

647

500

500

37/4.15

29.05

1377.6

80

0.0577

688

560

560

37/4.39

30.73

1542.9

89.6

0.0515

736

630

630

61/3.63

32.67

1738.3

100.8

0.0458

789

710

710

61/3.85

34.65

1959.1

113.6

0.0407

845

800

800

61/4.09

36.81

2207.4

128

0.0361

905

900

900

61/4.33

38.97

2483.3

144

0.0321

967

1000

1000

61/4.57

41.13

2759.2

160

0.0289

1026

1120

1120

91/3.96

43.56

3093.5

179.2

0.0258

1091

1250

1250

91/4.18

45.98

3452.6

200

0.0231

1157

1400

1400

91/4.43

48.73

3866.9

224

0.0207

1226

1500

1500

91/4.58

50.38

4143.1

240

0.0193

1270



If you need other AAC standard, we can manufacture them according to your request.
