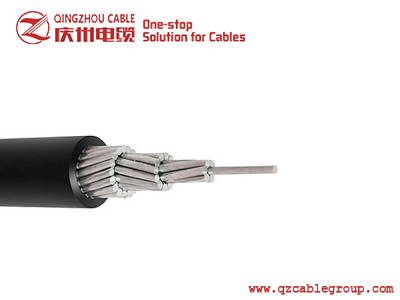

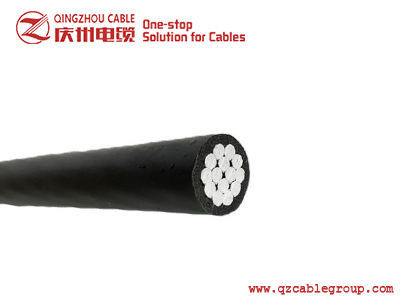

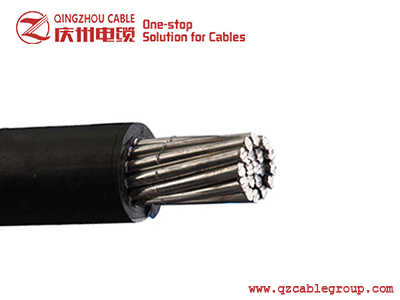

COVERED AL LINE WIRE WEATHERPROOF


Covered Line Wire is used primarily for overhead secondary distribution lines. It is not an electrically insulated conductor and is treated as bare conductor when installed.


COVERED AL LINE WIRE WEATHERPROOF

Applications

Covered Line Wire is used primarily for overhead secondary distribution lines. It is not an electrically insulated conductor and is treated as bare conductor when installed.

Construction

Conductors are aluminum alloy 1350-H19, 6201-181, or ACSR conductors, concentrically stranded and covered for weather proofing with polyethylene(PE), high density polyethylene (HDPE) or crosslinked polyethylene(XLPE).

Standards

ASTM B-230 – Aluminum 1350-H19 Wire for Electrical Purposes.

ASTM B-231 – Concentric-Lay-Stranded Aluminum Conductors, Coated-Steel Reinforced (ACSR).

ASTM B-1248 – Polyethylene Plastics Molding and Extrusion Materials.

ASTM C-8.35 – Specifications for Weather-Resistant Polyethylene-Covered Wire and Cable.

ICEAS-61-402

NEMA PUB NO. WC 5-1973 – Standards Publication Thermoplastic insulated Wire and Cable for the

Transmission and Distribution of Electrical Energy.

Notes

The code words as given apply to conventional polyethylene line wire.

For 6201 aluminum conductors diameter equivalent to ACSR construction or 1350 aluminum equivalent.

Ampacity ratings based on 75 ºC conductor temperature, 25 ºC ambient temperature elevation – sea level.

Emissivity 0.91 coefficient of absorption 0.95. Thermal resistivity of covering -3ºC-Cm2/Watt CM. Wind speed 2ft/sec in sun.

To determine correct ampacity by conductor size, please consult the National Electric Code, latestedition.

Covered Line Wire AAC Aluminum Conductor

Item #



Size

AWG or MCM



Strand



Outside

Diameter



Rated

Breaking

Strength



Weight

Per

MFT

XLP



Weight

Per

MFT

Poly



Ampacity

XLP



Apple

6

Solid

.222 Inches

445 Lbs

33.0 Lbs

32.0 Lbs

105 Amps

Pear

4

Solid

.264 Inches

675 Lbs

48.5 Lbs

47.3 Lbs

135 Amps

Apricot

4

7/w

.285 Inches

790 Lbs

51.5 Lbs

50.8 Lbs

140 Amps

Peach

2

7/w

.373 Inches

1220 Lbs

87.1 Lbs

84.0 Lbs

180 Amps

Quince

1/0

7/w

.477 Inches

1790 Lbs

140.7 Lbs

135.6 Lbs

240 Amps

Orange

2/0

7/w

.522 Inches

2260 Lbs

171.9 Lbs

166.2 Lbs

280 Amps

Fig

3/0

7/w

.570 Inches

2740 Lbs

210.5 Lbs

204.0 Lbs

320 Amps

Olive

4/0

7/w

.626 Inches

3450 Lbs

258.7 Lbs

251.4 Lbs

370 Amps

Pomegranate

4/0

19/w

.632 Inches

3620 Lbs

254.8 Lbs

247.9 Lbs

370 Amps

Mulberry

266.8

19/w

.692 Inches

4470 Lbs

313.5 Lbs

305.8 Lbs

430 Amps

Anona

336.4

19/w

.766 Inches

5535 Lbs

387.6 Lbs

378.8 Lbs

495 Amps

Molles

397.5

19/w

.852 Inches

6400 Lbs

469.2 Lbs

457.4 Lbs

545 Amps

Huckleberry

477.0

37/w

.921 Inches

7820 Lbs

550.0 Lbs

537.5 Lbs

610 Amps

Paw Paw

556.5

37/w

.982 Inches

8950 Lbs

633.0 Lbs

619.4 Lbs

670 Amps

Breadfruit

636.0

61/w

1.080 Inches

10510 Lbs

742.6 Lbs

724.7 Lbs

720 Amps

Persimmon

795.0

61/w

1.187 Inches

12900 Lbs

910.0 Lbs

890.0 Lbs

825 Amps

MORE

Covered Line Wire ACSR Aluminum Conductor

Item #



Size

AWG or MCM



Strand



Outside

Diameter



Rated

Breaking

Strength



Weight

Per

MFT

XLP



Weight

Per

MFT

Poly



Ampacity

XLP



Walnut

6

6/1

.258 Inches

1131 Lbs

49 Lbs

47 Lbs

105 Amps

Butternut

4

6/1

.303 Inches

1170 Lbs

71.8 Lbs

70.0 Lbs

135 Amps

Hickory

4

7/1

.309 Inches

2240 Lbs

81.6 Lbs

79.8 Lbs

135 Amps

Pignut

2

6/1

.397 Inches

2710 Lbs

118.1 Lbs

114.8 Lbs

180 Amps

Beech

2

7/1

.405 Inches

3460 Lbs

134.1 Lbs

130.7 Lbs

180 Amps

Chestnut

1

6/1

.434 Inches

3370 Lbs

145.5 Lbs

141.8 Lbs

210 Amps

Almond

1/0

6/1

.506 Inches

4160 Lbs

190.4 Lbs

184.9 Lbs

235 Amps

Pecan

2/0

6/1

.554 Inches

5040 Lbs

234.2 Lbs

227.9 Lbs

270 Amps

Filbert

3/0

6/1

.607 Inches

6290 Lbs

288.5 Lbs

281.4 Lbs

305 Amps

Buckeye

4/0

6/1

.666 Inches

7930 Lbs

356.5 Lbs

348.5 Lbs

345 Amps

Hackberry

266.8

18/1

.711 Inches

6540 Lbs

354.8 Lbs

346.8 Lbs

435 Amps

MORE

Covered Line Wire Alloy 6201-T81 Aluminum Conductor

Item #



Size

AWG or MCM



Strand



Outside

Diameter



Rated

Breaking

Strength



Weight

Per

MFT

XLP



Weight

Per

MFT

Poly



Ampacity

XLP



Hornbeam

4

7/w

.310 Inches

1480 Lbs

62.1 Lbs

60.1 Lbs

145 Amps

Linden

2

7/w

.406 Inches

2520 Lbs

96.1 Lbs

93.3 Lbs

190 Amps

Oilnut

1/0

7/w

.518 Inches

4010 Lbs

166.1 Lbs

160.0 Lbs

250 Amps

Waterash

2/0

7/w

.567 Inches

4850 Lbs

203.3 Lbs

196.4 Lbs

290 Amps

Shellbark

3/0

7/w

.622 Inches

6110 Lbs

249.4 Lbs

241.4 Lbs

335 Amps

Planetree

4/0

7/w

.683 Inches

7700 Lbs

307.3 Lbs

298.1 Lbs

385 Amps

MORE
