ADSS OPTICAL FIBER CABLE


ADSS (All-Dielectric Self-Supporting) cable is ideal for installation in distribution as well as transmission environments, even when live-line installations are required.


ADSS OPTICAL FIBER CABLE

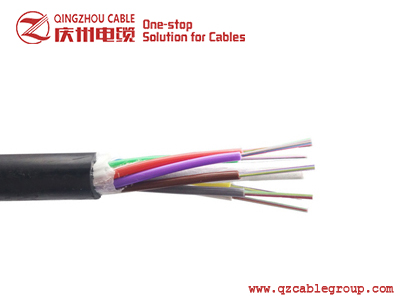

Single Layer All-Dielectric Self-Supporting ADSS Cable

Self-Supporting ADSS Cable Description:

Single layer (Loose tube stranding, Non-metal strength member, Half dry water-blocking, Aramid yarn strength member, PE outer jacket)

Application: Self-support Aerial installation

Self-Supporting ADSS Cable Typical Technical Parameter:

Span (meter)

Weight(kg/km)

Diameter(mm)

Initial Tension (N) Unload Load

12fibers









100

121

12.2

892

1479

200

125

12.4

1338

2043

300

127

12.6

2232

3286

400

132

13.3

3280

4800

   24fibers









100

121

12.2

904

1486

200

125

12.4

2261

3304

300

127

12.6

3322

4826

Note:

1. Only a part of Self-Supporting ADSS Cables are listed in the table. More can be produce as required .

2. Cables can be supplied with a range of single mode or multimode fibers.

3. Specially designed Cable structure is available on request.

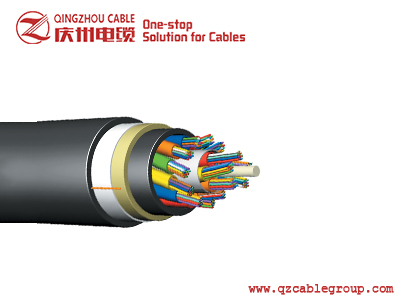

Double Layer Aerial ADSS Cable

Double Layer Aerial ADSS Cable Description:

Double Layer Aerial ADSS Cable is up to 144 optical fibres in jelly-filled loose tubes, laid up around a central non-metallic strength member. The cable is water blocked, aramid yarn reinforced and polyethylene sheathed. Surface printing for the cable includes sequential length marking at one-metre intervals. Mainly installed at existing 220kV or lower voltage power lines . Two Jacket and stranded loose tube design .

Application: duct, direct buried and aerial.

Double Layer Aerial ADSS CableTechnical Parameter:

Ref.
Outer
Diameter
(mm)

Ref.
Weight
(kg/km)

Rec. Daily
Max.
Working
Tension
(kN)

Max Allowable
Working Tension
(kN)

Break
Strength
(kN)

Strength
Member
CSA
(mm2)

Modulus of
Elasticity
CSA
(kN/mm2)

Heat
Expansion
Coefficient
(x10- 6/K)

Suitable Span
(NESC Standard,m)

PE
Jacket

AT
Jacket

A

B

C

D

12.5

125

136

1.5

4

10

4.6

7.6

1.8

160

100

140

100

13.0

132

142

2.25

6

15

7.6

8.3

1.5

230

150

200

150

13.3

137

148

3.0

8

20

10.35

9.45

1.3

300

200

290

200

13.6

145

156

3.6

10

24

13.8

10.8

1.2

370

250

350

250

13.8

147

159

4.5

12

30

14.3

11.8

1.0

420

280

400

280

14.5

164

177

5.4

15

36

18.4

13.6

0.9

480

320

460

320

14.9

171

185

6.75

18

45

22.0

16.4

0.6

570

380

550

380

15.1

179

193

7.95

22

53

26.4

18.0

0.3

670

460

650

460

15.5

190

204

9.0

26

60

32.2

19.1

0.1

750

530

750

510

Note:

1. Only a part of Double Layer Aerial ADSS Cable are listed in the table. More can be produce as required .

2. Cables can be supplied with a range of single mode or multimode fibers.

3. Cables can be supplied with dry core or semi dry core

4. Specially designed Cable structure is available on request.

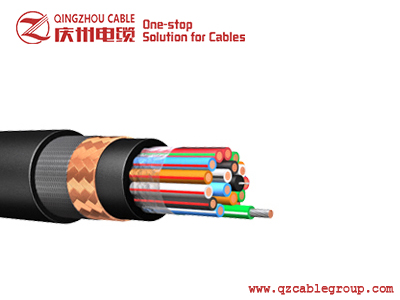

Double Protector Self-Supporting Aerial ADSS Cable

ADSS Optic Fiber Cable Description:

Double protector (Loose tube stranding, Non-metal strength member, Flooding jelly compound, PE inner jacket, Aramid yarn strength member, PE outer jacket)

Application: Self-support Aerial installation

ADSS Optic Fiber Cable Typical Technical Parameter:

Span (meter)

Weight(kg/km)

Diameter(mm)

Initial Tension (N)Unload Load

12fibers









100

121

12.2

892

1479

200

125

12.4

1338

2043

300

127

12.6

2232

3286

400

132

13.3

3280

4800

   24fibers









100

121

12.2

904

1486

200

125

12.4

2261

3304

300

127

12.6

3322

4826

Note:

1. Only a part of ADSS Optic Fiber Cable are listed in the table. More can be produce as required .

2. Cables can be supplied with a range of single mode or multimode fibers.

3. Specially designed Cable structure is available on request.
