OUTERDOOR OPTICAL FIBER CABLE

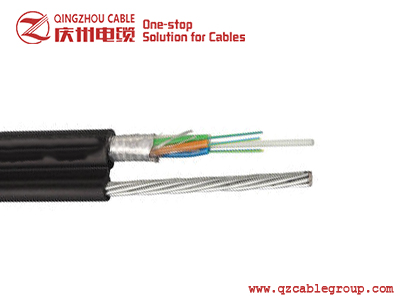

Aerial Self-supporting Armored Figure 8 Cables
Armored Figure 8 Cables Description:
The Aluminium Polyethylene Laminates (APL) protects the cable from rodent and termites. The PE Sheath provides UV and Chemical/Oil resistance. Steel Wire as central strength member, stranded loose tubes construction with 100% filling compound to prevent ingress, Aluminium Polyethylene Laminate (APL) for Armouring, Stranded Wires as self-support and overall PE Outer sheath.
Application: Outdoor Self-Supporting Aerial installation
Aerial Self-supporting Armored Figure 8 Cables
|
Cable Type (Increased by 2 fibers) |
Fiber Count |
Cable Diameter mm |
Cable Weight kg/km |
Tensile Strength Long/Short Term N |
Crush Resistance Long/Short Term N/100mm |
|
GYTC8S/A 2 ~ 30 |
2 ~ 30 |
9.5 x 19.1 |
160.0 |
2000/6000 |
300/ 1000 |
|
GYTC8S/A 32 ~ 36 |
32 ~ 36 |
10.1 x 19.7 |
170.0 |
2000/6000 |
300/ 1000 |
|
GYTC8S/A 38 ~ 60 |
38 ~ 60 |
10.8 x 20.4 |
180.0 |
2000/6000 |
300/ 1000 |
|
GYTC8S/A 62 ~ 72 |
62 ~ 72 |
12.4 x 22.0 |
195.0 |
2000/6000 |
300/ 1000 |
|
GYTC8S/A 74 ~ 96 |
74 ~ 96 |
13.1 x 22.7 |
222.0 |
2000/6000 |
300/ 1000 |
|
GYTC8S/A 98~ 120 |
98~ 120 |
15.7 x 22.3 |
238.0 |
2000/6000 |
300/ 1000 |
|
GYTC8S/A 122~ 144 |
122~ 144 |
15.5 x 25.1 |
273.0 |
2000/6000 |
300/ 1000 |
Note:
1.Cables can be supplied with a range of single mode or multimode fibers.
2. The dimensions and raw materials can be designed according to the demand of the customers.
3. Standard Reel Length: 3000m/reel: other lengths available on request.

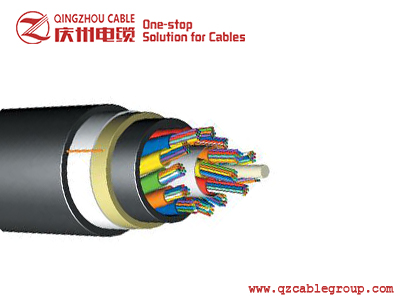

Direct Buried Armored Fiber Optic Cable GYFTY53
Description:
Armoured Direct Buried fiber optic cable comes with a Fiberglass Reinforced plastic (FRP) central strength member,containing maximum up to 24 water blocking gel filled tubes and each tube contains up to maximum 12 fibers.The cable jacket incorporates a water blocking tape,PE inner jacket,a layer of corrugated steel tape armour and PE jackets preventing any water penetration.The corrugated steel tape armouring provides additional mechanical protection &100% rodent proof thus making it suitable for direct burial &harsh environment installations.
Direct Buried Armored Fiber Optic Cable Technical Data
|
Cable Type |
Fiber Count |
Tubes |
Fillers |
Cable Diamete |
Cable Weight kg/km |
Tensile Strength Long/Short Term N |
Crush Resistance Long/Short Term N/100mm |
|
GYFTY53-2~6 |
2~6 |
1 |
7 |
15.8 |
230 |
1000/3000 |
1000/3000 |
|
GYFTY53-8~12 |
8~12 |
2 |
6 |
15.8 |
230 |
1000/3000 |
1000/3000 |
|
GYFTY53-14~18 |
14~18 |
3 |
5 |
15.8 |
230 |
1000/3000 |
1000/3000 |
|
GYFTY53-20~24 |
20~24 |
4 |
4 |
15.8 |
230 |
1000/3000 |
1000/3000 |
|
GYFTY53-26~30 |
26~30 |
5 |
3 |
15.8 |
230 |
1000/3000 |
1000/3000 |
|
GYFTY53-32~36 |
32~36 |
6 |
2 |
15.8 |
230 |
1000/3000 |
1000/3000 |
|
GYFTY53-38~42 |
38~42 |
7 |
1 |
15.8 |
230 |
1000/3000 |
1000/3000 |
|
GYFTY53-44~48 |
44~48 |
8 |
0 |
15.8 |
230 |
1000/3000 |
1000/3000 |
Note:
1. Only a part of GYFTY53 fiber cable are listed in the table. More can be produce as required .
2. Cables can be supplied with a range of single mode or multimode fibers.
3. Specially designed Cable structure is available on request.

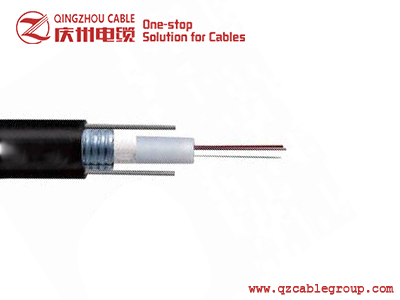

Duct Steel Tape Dry Core Fiber Optic Cable GYTS/GYTA
Description
Armoured loose tube fiber optic cable contain maximum up to 24 water blocking gel filled tubes with a maximum 12 fibers each.This cable comprises of a water blocking tape,a layer of corrugated steel tape armouring and PE outer jacket.The corrugated steel tape armouring provides mechanical and rodent protection to the cable.
Application:
1.Adopted to Outdoor distribution.
2.Suitable for aerial pipeline laying method.
3.Long distance and local area network communication.
Duct Steel Tape Dry Core Fiber Optic Cable
|
Cable |
Out |
Weight |
Minimum |
Minimum |
Minimum |
Storage |
|||
|
(MM) |
(kg) |
Short term |
Long term |
Short term |
Long term |
Short term |
Long term |
(°C) |
|
|
24 |
10.5 |
105 |
1500 |
600 |
1000 |
300 |
20D |
10D |
-40+60 |
|
36 |
10.5 |
105 |
1500 |
600 |
1000 |
300 |
20D |
10D |
-40+60 |
|
42 |
10.5 |
105 |
1500 |
600 |
1000 |
300 |
20D |
10D |
-40+60 |
|
48 |
10.5 |
105 |
1500 |
600 |
1000 |
300 |
20D |
10D |
-40+60 |
|
60 |
10.5 |
105 |
1500 |
600 |
1000 |
300 |
20D |
10D |
-40+60 |
|
72 |
13.5 |
208 |
1500 |
600 |
1000 |
300 |
20D |
10D |
-40+60 |
|
96 |
13.5 |
208 |
1500 |
600 |
1000 |
300 |
20D |
10D |
-40+60 |
|
144 |
15.5 |
295 |
1500 |
600 |
1000 |
300 |
20D |
10D |
-40+60 |
Note:
1. Only a part of GYTS fiber cable are listed in the table. More can be produce as required .
2. Cables can be supplied with a range of single mode or multimode fibers.
3. Specially designed Cable structure is available on request.
Non armoured Loose Tube Fiber Optic Cable GYFTY
Description:
Non armoured loose tube fiber optic cable that comes with a Fiberglass Reinforced plastic (FRP) central strength member which can contain up to a maximum up to 24 water blocking gel filled tubes.Each tube can contain up to maximum 12 fibers.This cable comes with a layer of water blocking tape to prevent water penetration and PE outer jacket.
Application: Duct/Aerial
Non armoured Loose Tube Fiber Optic Cable
|
Cable Type (Increased by 2fibers) |
Fiber Count |
Tubes |
Fillers |
Cable Diameter mm |
Cable Weight kg/km |
Tensile Strength Long/Short Term N |
Crush Resistance Long/Short Term N/100mm |
Bending Radius Static/Dynamic mm |
|
GYFTY 2 ~ 6 |
2 ~ 6 |
1 |
4 |
11.0 |
97 |
600/1500 |
300/1000 |
10D/20D |
|
GYFTY 8 ~ 12 |
8 ~ 12 |
2 |
3 |
11.0 |
97 |
600/1500 |
300/1000 |
10D/20D |
|
GYFTY 14 ~18 |
14 ~18 |
3 |
2 |
11.0 |
97 |
600/1500 |
300/1000 |
10D/20D |
|
GYFTY 20 ~ 24 |
20 ~ 24 |
4 |
1 |
11.0 |
97 |
600/1500 |
300/1000 |
10D/20D |
|
GYFTY 26 ~ 30 |
26 ~ 30 |
4 |
1 |
11.0 |
97 |
600/1500 |
300/1000 |
10D/20D |
|
GYFTY 32 ~ 36 |
32 ~ 36 |
6 |
0 |
11.0 |
97 |
600/1500 |
300/1000 |
10D/20D |
Note:
1.Cables can be supplied with a range of single mode or multimode fibers.
2. The dimensions and raw materials can be designed according to the demand of the customers.
3. Standard Reel Length: 3000m/reel: other lengths available on request.
