Single phase concentric aluminium cable-Kenya


PVC Insulated Single phase concentric aluminum cable service entrance cable, rating voltage 600/1000V


PVC Insulated Single phase concentric aluminium cable with/without copper communication pair -Kenya Standard: KS

Application

Service entrance cable, rating voltage 600/1000V.Single phase concentric aluminium cable-Kenya

Construction KS 04-1022

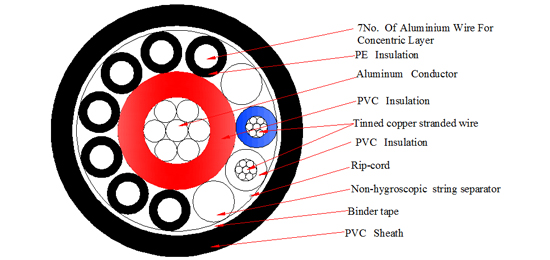

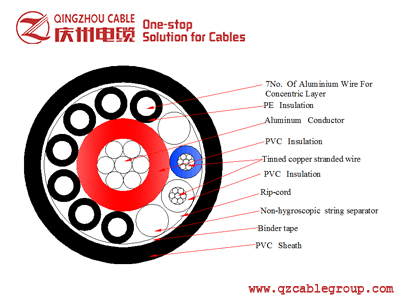

Type I: PVC Insulated Single phase concentric aluminum cable with copper communication pair

1,Conductor: Aluminum Wire,

2,Insulation: Red PVC

3,,Neutral Conductor: PE Insulated Aluminum Wire

4,Communication Pair:2 White Blue

5,Binder Tape: Polyester Tape

6,Outer Sheath:Black PVC

PVC Insulated Single phase concentric aluminum cable with copper communication pair KS 04-1022

Property

Cable sizes

Phase Conductor

Nominal area, mm,

10

16

25

35

Form of conductors

Circular/compacted circular stranded

No. & approx, dia. of wires, No./mm

7/1.35

7/1.70

7/2.14

7/2.52

Min-Max. dia of completed conductors, mm

*

4.6-5.2

5.6-6.5

6.6-7.6



Nominal diameter of conductors, mm

4.05

5.10

6.42

7.56



Minimum thickness of insulation mm

1.55

1.55

1.60

1.65

Concentric neutral Approx, no. of wires

7

11

14

16

Concentric neutral Approx, diameter of wires, mm

1.50

1.50

1.50

1.50

Minimum lay lengths, mm

146.5

155

165

178

Thickness of over sheath, mm

1.4

1.4

1.5

1.6

Minimum thickness of over sheath at any point

1.09

1.09

1.17

1.20

Maximum conductor DC resistance per 1000m of cable

at 20°C

Phase, Ω

3.08

1.15

1.20

0.868

Neutral-earth, Ω

4.61

3.08

1.91

1.20

Maximum weight of the complete conductor excluding insulation

*

43.9

69.5

96.4

Power frequency withstand voltage, for 5mins, kVrms

3.5

Insulation resistance at 500Vdc in 1min at 20qC., MQ/Km

8

8

6

5

* Manufacturer to state the design value based on the sizes of conductors specified

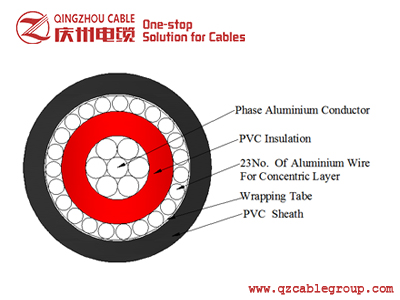

Type II: PVC Insulated Single phase concentric aluminum Single phase concentric aluminium cable-Kenya

cable without copper communication pair-KS 04-1022

1,Conductor: Aluminum Wire,

2,Insulation: Red PVC

3,,Neutral Conductor: Bare Aluminum Wire

4,Binder Tape: Polyester Tape

5,Outer Sheath:Black PVC

PVC Insulated Single phase concentric aluminum cable without copper communication pair

Phase Conductor

Concentric neutral conductor: number. & approx, diameter of wires

No,/mm

Minimum lay lengths

Thickness of over sheath mm

Approxmate overall diameter

Maximum conductor DC resistance per 1000m of cable at 20°C

Nominal area

No.

&approx.dia. of wires mm

Thickness of insulation mm

Phase ohms

Neutral ohms

10

7/1.35

1.55

23/1.13

146.5

1.4

12.21

3.08

1.335

16

7/1.70

1.55

26/1.13

155

1.4

13.34

1.91

1.808

25

7/2.14

1.60

29/1.13

165

1.5

14.88

1.20

1.0586

35

19/1.53

1.65

27/1.35

178

1.6

16.75

0.868

0.7966
