SERVICE ENTRANCE CONCENTRIC CABLE-AFRICA


Aerial SNE CNE Cable is used for house connections. Split concentric cable suitable for power distribution as an underground or overhead cable.


Application

Aerial SNE(Seperate Neutral & Earth)  CNE(Combined Negative & Earth) Cable is used for house connections. This cable can only be used for single phase supply. Cable is made to be suspended in the air. Aerial SNE Cable is also suitable for underground general use, sub main distribution boxes, street lighting systems and high rise buildings. Split concentric cable suitable for power distribution as an underground or overhead cable.

StandardSERVICE ENTRANCE CONCENTRIC CABLE-AFRICA

SANS 1507/6

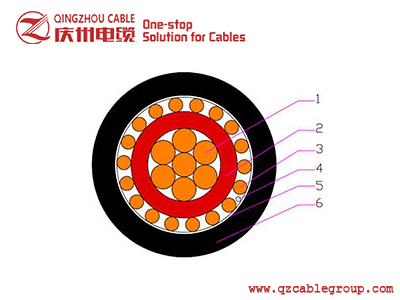

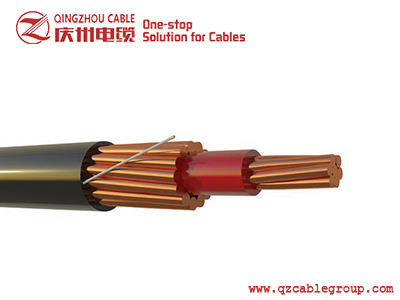

Construction

Type I: Bare neutral and earth conductors

1,Phase Conductor: Stranded Copper Conductor

2,Insulation: XLPE

3,Earth Conductor: Solid Copper Wire

4,Ripcord: Nylon

5,Binder Tape: Polyester Tape

6,Outer Sheath: PE (Polyethylene)



Bare neutral and earth conductors SANS 1507-6

Size

Phase Conductor

XLPE Insulation

Earth Conductor

PE Sheath

Approx. Weight

Structure

O.D

Thickness

O.D

Structure

O.D

Thickness

O.D

mm2

No./mm

mm

mm

mm

No./mm

mm

mm

mm

kg/km

4

7/0.92

2.76

1.0

5.97

8/0.85

6.46

1.4

9.41

131

10

7/1.35

4.05

1.0

5.22

18/0.85

7.75

1.4

10.70

240

Type II: Insulated neutral and bare earth conductorsSERVICE ENTRANCE CONCENTRIC CABLE-AFRICA

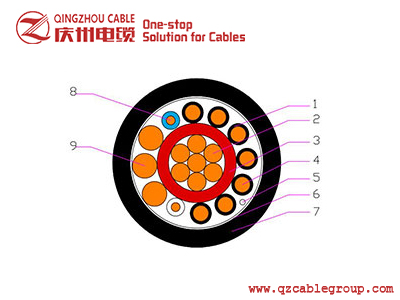

Construction

1,Insulation: black PE (Polyethylene)

2,Phase Conductor: Stranded Copper Conductor

3,Insulation: red XLPE

4,Neutral Conductor:PE insulated Solid Copper Wire

5,Ripcord: Nylon

6,Binder Tape:Polyester Tape

7,Outer Sheath: Black PE (Polyethylene)

8,Pilot Core: PE Insulated Copper Wire

9,Earth Conductor: 3 bare Solid Copper Wire



Insulated neutral and bare earth conductors SANS 1507-6

Size

Phase Conductor

XLPE Insulation

Earth Conductor

Neutral Conductor

Pilot Core

PE Sheath

Approx. Weight

Structure

O.D

Thickness

O.D

Structure

Structure

Structure

Thickness

O.D

mm2

No./mm

mm

mm

mm

No./mm

No./mm

No./mm

mm

mm

kg/km

4

7/0.92

2.76

1.0

5.97

3/1.05

7/0.86

2/1.13

1.4

10.0

168

10

7/1.35

4.05

1.0

5.22

3/1.78

7/1.33

2/1.13

1.6

12.7

334

16

7/1.70

5.10

1.0

7.10

3/2.20

7/1.67

2/1.13

1.6

14.5

502
