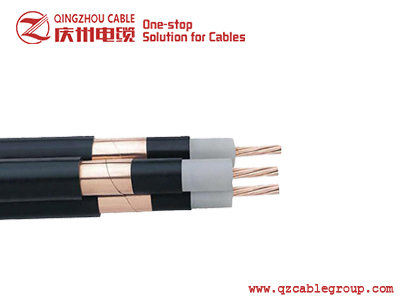

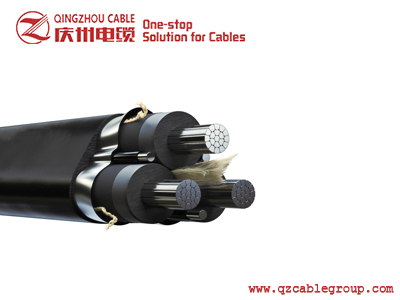

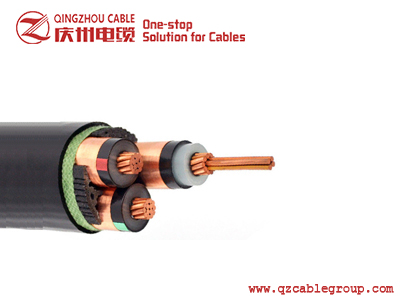

Single Core Three Core MEDIUM VOLTAGE POWER CABLES
APPLICATION
The medium-voltage power cables range is available with a maximum cross-sectional area of 1,000mm2 for single-core cables and 500mm2 for triple-core cables and nominal system voltage ratings of up to 35kV. These cables are used to supply electricity to commercial or residential buildings and to industrial distribution circuits. They are suitable for indoor use (eg. power supply stations) and outdoor use (eg. in cable ducts, underground, and on cable trays for industrial buildings, switch-boards, and power stations). They are designed to meet both the national and international standards in quality and safety.
CABLE CONSTRUCTION
|
Conductor |
Class 2 stranded copper or Class 1 solid /Class 2 stranded aluminium |
|
|
Conductor Screen |
Semi-conductive Cross-Linked Polyethylene (XLPE) |
|
|
Insulation |
XLPE |
|
|
Insulation Screen |
Semi-conductive XLPE |
|
|
Metallic Screen |
Individual or overall copper tape |
|
|
Filler |
Polyethylene Terephthalate (PET) fibres |
|
|
Separator |
Binding Tape |
|
|
Bedding |
Polyvinyl Chloride (PVC) |
Low Smoke Zero Halogen (LSZH) compound |
|
Armour |
Single core cable: Aluminium Wire Armour (AWA) |
|
|
Sheath |
PVC or Medium Density Polyethylene (MDPE) |
LSZH |
Cable names and laying conditions
|
Name |
Laying Occasion |
|
XLPE insulated PVC sheathed power cable |
Laid indoors, and in tunnels and pipelines |
|
XLPE insulated PE sheathed power cable |
|
|
XLPE insulated steel tape armored PVC sheathed power cable |
Adapt for buried laying, not suitable for in-pipe laying |
|
XLPE insulated steel tape armored PE sheathed power cable |
|
|
XLPE insulated thin steel wire armored PVC sheathed power cable |
Laid on riverbeds of rivers or shallow water as connecting lines across rivers or petroleum/natural gas platforms, also used in land high drop areas. |
|
XLPE insulated thin steel wire armored PVC sheathed power cable |
|
|
XLPE insulated thick steel wire armored PVC sheathed power cable |
|
|
XLPE insulated thick steel wire armored PE sheathed power cable |
|
|
PVC insulated and sheathed power cable |
Laid indoors, and in tunnels, pipelines, cable trenches, and flammable and severe corrosion places, and can not bear external mechanical forces. |
|
PVC insulated PE sheathed power cable |
Laid indoors, and in pipelines, cable trenches and severe corrosion places, and cannot bear external mechanical forces. |
|
PVC insulated STA-steel tape armored PVC sheathed power cable |
Laid indoors, and in cable trenches, underground severe corrosion places, and cannot bear tension. |
|
PVC insulated STA-steel tape armored PE sheathed power cable |
Laid indoors, and in cable trenches and underground severe corrosion place, and cannot bear tension. |
|
PVC insulated thin SWA -steel wire armored PVC sheathed power cable |
Laid under ground and in shafts, water and severe corrosion places, and cannot bear high tension. |
|
PVC insulated thin SWA -steel wire armored PVC sheathed power cable |
Laid under ground and in shafts, water and severe corrosion places, and can bear high tension |
|
PVC insulated thick SWA -steel wire armored PVC sheathed power cable |
Laid under ground and in shafts and severe corrosion places, and can bear high tension. |
|
PVC insulated thick SWA -steel wire armored PE sheathed power cable |
Laid under ground and in shafts and severe corrosion places, and can bear high tension. |
Technical Specifications
3.6/6 (7.2) KV XLPE/PVC single core (non-armored) YJV, YJLV
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core cableweight (kg/km) |
Aluminum core cable weight (kg/km) |
||
|
Cross sectional area (mm2) |
Structure |
Outer diameter (mm) |
||||||
|
25 |
Compact round |
6.0 |
2.5 |
0.12 |
1.5 |
17.2 |
510 |
354 |
|
35 |
Compact round |
7.2 |
2.5 |
0.12 |
1.6 |
18.6 |
637 |
418 |
|
50 |
Compact round |
8.4 |
2.5 |
0.12 |
1.6 |
19.8 |
800 |
488 |
|
70 |
Compact round |
10.0 |
2.5 |
0.12 |
1.7 |
21.6 |
1029 |
591 |
|
95 |
Compact round |
11.7 |
2.5 |
0.12 |
1.7 |
23.3 |
1296 |
701 |
|
120 |
Compact round |
13.1 |
2.5 |
0.12 |
1.8 |
24.9 |
1566 |
815 |
|
150 |
Compact round |
14.6 |
2.5 |
0.12 |
1.8 |
26.4 |
1873 |
934 |
|
185 |
Compact round |
16.3 |
2.5 |
0.12 |
1.9 |
28.3 |
2244 |
1085 |
|
240 |
Compact round |
18.5 |
2.6 |
0.12 |
1.9 |
30.7 |
2805 |
1302 |
|
300 |
Compact round |
20.7 |
2.8 |
0.12 |
2.0 |
33.7 |
3456 |
1576 |
|
400 |
Compact round |
23.8 |
3.0 |
0.12 |
2.2 |
37.4 |
4501 |
1994 |
|
500 |
Compact round |
26.6 |
3.2 |
0.12 |
2.3 |
41.4 |
5546 |
2412 |
|
630 |
Compact round |
30.1 |
3.2 |
0.12 |
2.4 |
45.1 |
6853 |
2905 |
|
800 |
Compact round |
35.0 |
3.2 |
0.12 |
2.5 |
50.4 |
8576 |
3562 |
|
1000 |
Milliken conductor |
39.5 |
3.2 |
0.12 |
2.6 |
55.3 |
10592 |
4306 |
3.6/6 (7.2) KV PVC/PVC single core (non-armored) VV, VLV
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core cableweight (kg/km) |
Aluminum core cable weight (kg/km) |
||
|
Cross sectional area (mm2) |
Structure |
Outer diameter (mm) |
||||||
|
10 |
Compact round |
3.9 |
3.4 |
0.12 |
1.4 |
15.7 |
360 |
297 |
|
16 |
Compact round |
5.0 |
3.4 |
0.12 |
1.4 |
16.8 |
444 |
344 |
|
25 |
Compact round |
6.0 |
3.4 |
0.12 |
1.5 |
18.0 |
560 |
404 |
|
35 |
Compact round |
7.2 |
3.4 |
0.12 |
1.5 |
19.2 |
684 |
465 |
|
50 |
Compact round |
8.4 |
3.4 |
0.12 |
1.6 |
20.6 |
861 |
549 |
|
70 |
Compact round |
10.0 |
3.4 |
0.12 |
1.6 |
22.2 |
1087 |
649 |
|
95 |
Compact round |
11.7 |
3.4 |
0.12 |
1.7 |
24.1 |
1371 |
776 |
|
120 |
Compact round |
13.1 |
3.4 |
0.12 |
1.7 |
25.5 |
1636 |
885 |
|
150 |
Compact round |
14.6 |
3.4 |
0.12 |
1.8 |
27.2 |
1962 |
1023 |
|
185 |
Compact round |
16.3 |
3.4 |
0.12 |
1.8 |
28.9 |
2326 |
1168 |
|
240 |
Compact round |
18.5 |
3.4 |
0.12 |
1.9 |
31.3 |
2900 |
1397 |
|
300 |
Compact round |
20.7 |
3.4 |
0.12 |
2.0 |
33.7 |
3523 |
1643 |
|
400 |
Compact round |
23.8 |
3.4 |
0.12 |
2.1 |
37.0 |
4534 |
2027 |
|
500 |
Compact round |
26.6 |
3.4 |
0.12 |
2.2 |
40.0 |
5538 |
2404 |
|
630 |
Compact round |
30.1 |
3.4 |
0.12 |
2.3 |
43.7 |
6837 |
2889 |
|
800 |
Compact round |
35.0 |
3.4 |
0.12 |
2.4 |
48.8 |
8545 |
3531 |
|
1000 |
Milliken conductor |
39.5 |
3.4 |
0.12 |
2.6 |
53.7 |
10539 |
4271 |
3.6/6 (7.2) KV XLPE/PVC 3 cores (non-armored) YJV, YJLV
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core cableweight (kg/km) |
Aluminum core cable weight (kg/km) |
||
|
Cross sectiona area (mm2) |
Structure |
Outer diameter (mm) |
||||||
|
25 |
Compact round |
6.0 |
2.5 |
0.12 |
2.1 |
34.7 |
1521 |
1049 |
|
35 |
Compact round |
7.2 |
2.5 |
0.12 |
2.2 |
37.5 |
1891 |
1230 |
|
50 |
Compact round |
8.4 |
2.5 |
0.12 |
2.3 |
40.2 |
2402 |
1458 |
|
70 |
Compact round |
10.0 |
2.5 |
0.12 |
2.4 |
43.9 |
3082 |
1760 |
|
95 |
Compact round |
11.7 |
2.5 |
0.12 |
2.5 |
47.8 |
3914 |
2121 |
|
120 |
Compact round |
13.1 |
2.5 |
0.12 |
2.6 |
51.1 |
4722 |
2456 |
|
150 |
Compact round |
14.6 |
2.5 |
0.12 |
2.7 |
54.5 |
5676 |
2844 |
|
185 |
Compact round |
16.3 |
2.5 |
0.12 |
2.8 |
58.4 |
6786 |
3293 |
|
240 |
Compact round |
18.5 |
2.6 |
0.12 |
3.0 |
63.9 |
8535 |
4004 |
|
300 |
Compact round |
20.7 |
2.8 |
0.12 |
3.2 |
70.3 |
10512 |
4849 |
|
400 |
Compact round |
23.8 |
3.0 |
0.12 |
3.5 |
78.4 |
13664 |
6113 |
|
500 |
Compact round |
26.6 |
3.2 |
0.12 |
3.7 |
87.0 |
16918 |
7479 |
3.6/6 (7.2) KV PVC/PVC 3 cores (non-armored)VV, VLV
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core cableweight (kg/km) |
Aluminum core cable weight (kg/km) |
||
|
Cross sectional area (mm2) |
Structure |
Outer diameter (mm) |
||||||
|
10 |
Compact round |
3.9 |
3.4 |
0.1 |
1.8 |
28.8 |
1003 |
815 |
|
16 |
Compact round |
5.0 |
3.4 |
0.1 |
1.9 |
31.4 |
1311 |
1009 |
|
25 |
Compact round |
6.0 |
3.4 |
0.1 |
2.0 |
33.8 |
1647 |
1175 |
|
35 |
Compact round |
7.2 |
3.4 |
0.1 |
2.1 |
36.6 |
2052 |
1392 |
|
50 |
Compact round |
8.4 |
3.4 |
0.1 |
2.2 |
39.3 |
2481 |
1537 |
|
70 |
Compact round |
10.0 |
3.4 |
0.1 |
2.3 |
43.0 |
3174 |
1850 |
|
95 |
Compact round |
11.7 |
3.4 |
0.1 |
2.4 |
46.8 |
4010 |
2213 |
|
120 |
Compact round |
13.1 |
3.4 |
0.1 |
2.5 |
50.1 |
4827 |
2557 |
|
150 |
Compact round |
14.6 |
3.4 |
0.1 |
2.6 |
53.5 |
5797 |
2960 |
|
185 |
Compact round |
16.3 |
3.4 |
0.1 |
2.7 |
57.4 |
6916 |
3417 |
|
240 |
Compact round |
18.5 |
3.4 |
0.1 |
2.9 |
62.5 |
8651 |
4112 |
|
300 |
Compact round |
20.7 |
3.4 |
0.1 |
3.1 |
67.6 |
10540 |
4859 |
|
400 |
Compact round |
23.8 |
3.4 |
0.1 |
3.3 |
74.7 |
13601 |
6027 |
|
500 |
Compact round |
26.6 |
3.4 |
0.1 |
3.5 |
81.1 |
16645 |
7178 |
3.6/6 (7.2) KV XLPE/PVC 3 cores (steel wire armored) YJV32, YJLV32
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
PVC bedding thickness (mm) |
Armored wire outer diameter (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core cable weight (kg/km) |
Aluminum core cable weight (kg/km) |
||
|
Cross sectional area (mm2) |
Structure |
Outer diameter (mm) |
||||||||
|
25 |
Compact round |
6.0 |
2.5 |
0.1 |
1.2 |
2.0 |
2.3 |
42.1 |
3317 |
2845 |
|
35 |
Compact round |
7.2 |
2.5 |
0.1 |
1.3 |
2.5 |
2.5 |
46.7 |
4312 |
3651 |
|
50 |
Compact round |
8.4 |
2.5 |
0.1 |
1.3 |
2.5 |
2.5 |
49.3 |
4972 |
4028 |
|
70 |
Compact round |
10.0 |
2.5 |
0.1 |
1.4 |
2.5 |
2.7 |
53.3 |
5968 |
4646 |
|
95 |
Compact round |
11.7 |
2.5 |
0.1 |
1.4 |
2.5 |
2.8 |
57.2 |
7033 |
5239 |
|
120 |
Compact round |
13.1 |
2.5 |
0.1 |
1.5 |
2.5 |
2.9 |
60.6 |
8072 |
5807 |
|
150 |
Compact round |
14.6 |
2.5 |
0.1 |
1.6 |
2.5 |
3.0 |
64.2 |
9288 |
6456 |
|
185 |
Compact round |
16.3 |
2.5 |
0.1 |
1.6 |
2.5 |
3.1 |
68.1 |
10737 |
7245 |
|
240 |
Compact round |
18.5 |
2.6 |
0.1 |
1.7 |
2.5 |
3.3 |
73.9 |
12869 |
8339 |
|
300 |
Compact round |
20.7 |
2.8 |
0.1 |
1.8 |
3.15 |
3.5 |
81.8 |
16183 |
10520 |
|
400 |
Compact round |
23.8 |
3.0 |
0.1 |
2.0 |
3.15 |
3.8 |
90.4 |
20070 |
12519 |
|
500 |
Compact round |
26.6 |
3.2 |
0.1 |
2.1 |
3.15 |
4.1 |
99.3 |
24131 |
14692 |
3.6/6 (7.2) KV PVC/PVC 3 cores (steel wire armored) VV32, VLV32
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
PVC bedding thickness (mm) |
Armored wire outer diameter (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core cable weight (kg/km) |
Aluminum core cable weight (kg/km) |
||
|
Cross sectional area (mm2) |
Structure |
Outer diameter (mm) |
||||||||
|
10 |
Compact round |
3.9 |
3.4 |
0.1 |
1.2 |
2.0 |
2.1 |
36.4 |
2385 |
2196 |
|
16 |
Compact round |
5.0 |
3.4 |
0.1 |
1.2 |
2.0 |
2.1 |
38.8 |
2802 |
2500 |
|
25 |
Compact round |
6.0 |
3.4 |
0.1 |
1.2 |
2.0 |
2.2 |
41.2 |
3236 |
2764 |
|
35 |
Compact round |
7.2 |
3.4 |
0.1 |
1.2 |
2.0 |
2.3 |
44.0 |
3768 |
3107 |
|
50 |
Compact round |
8.4 |
3.4 |
0.1 |
1.3 |
2.5 |
2.5 |
48.5 |
4890 |
3946 |
|
70 |
Compact round |
10.0 |
3.4 |
0.1 |
1.3 |
2.5 |
2.6 |
52.2 |
5789 |
4465 |
|
95 |
Compact round |
11.7 |
3.4 |
0.1 |
1.4 |
2.5 |
2.7 |
56.2 |
6856 |
5059 |
|
120 |
Compact round |
13.1 |
3.4 |
0.1 |
1.5 |
2.5 |
2.8 |
59.7 |
7901 |
5631 |
|
150 |
Compact round |
14.6 |
3.4 |
0.1 |
1.5 |
2.5 |
2.9 |
63.1 |
9076 |
6239 |
|
185 |
Compact round |
16.3 |
3.4 |
0.1 |
1.6 |
2.5 |
3.1 |
67.4 |
10467 |
6968 |
|
240 |
Compact round |
18.5 |
3.4 |
0.1 |
1.7 |
2.5 |
3.2 |
72.5 |
12514 |
7975 |
|
300 |
Compact round |
20.7 |
3.4 |
0.1 |
1.8 |
3.15 |
3.4 |
79.1 |
15590 |
9910 |
|
400 |
Compact round |
23.8 |
3.4 |
0.1 |
1.9 |
3.15 |
3.7 |
86.6 |
19214 |
11641 |
|
500 |
Compact round |
26.6 |
3.4 |
0.1 |
2.0 |
3.15 |
3.9 |
93.2 |
22781 |
13314 |
3.6/6 (7.2) KV XLPE/PVC 3 cores (steel tape armored) YJV22, YJLV22
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
PVC bedding thickness (mm) |
Armored wire outer diameter (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core cable weight (kg/km) |
Aluminum core cable weight (kg/km) |
||
|
Cross sectional area (mm2) |
Structure |
Outer diameter (mm) |
||||||||
|
25 |
Compact round |
6.0 |
2.5 |
0.1 |
1.2 |
0.5 |
2.2 |
39.3 |
2474 |
2002 |
|
35 |
Compact round |
7.2 |
2.5 |
0.1 |
1.3 |
0.5 |
2.3 |
42.3 |
2947 |
2286 |
|
50 |
Compact round |
8.4 |
2.5 |
0.1 |
1.3 |
0.5 |
2.4 |
45.1 |
3537 |
2593 |
|
70 |
Compact round |
10.0 |
2.5 |
0.1 |
1.4 |
0.5 |
2.5 |
48.9 |
4351 |
3030 |
|
95 |
Compact round |
11.7 |
2.5 |
0.1 |
1.4 |
0.5 |
2.6 |
52.8 |
5297 |
3504 |
|
120 |
Compact round |
13.1 |
2.5 |
0.1 |
1.5 |
0.5 |
2.8 |
56.4 |
6277 |
4012 |
|
150 |
Compact round |
14.6 |
2.5 |
0.1 |
1.6 |
0.5 |
2.9 |
60.0 |
7373 |
4541 |
|
185 |
Compact round |
16.3 |
2.5 |
0.1 |
1.6 |
0.5 |
3.0 |
63.9 |
8665 |
5172 |
|
240 |
Compact round |
18.5 |
2.6 |
0.1 |
1.7 |
0.5 |
3.2 |
69.7 |
10618 |
6087 |
|
300 |
Compact round |
20.7 |
2.8 |
0.1 |
1.8 |
0.5 |
3.4 |
76.3 |
12836 |
7173 |
|
400 |
Compact round |
23.8 |
3.0 |
0.1 |
2.0 |
0.8 |
3.7 |
86.1 |
17195 |
9644 |
|
500 |
Compact round |
26.6 |
3.2 |
0.1 |
2.1 |
0.8 |
3.9 |
94.8 |
20887 |
11448 |
3.6/6 (7.2) KV PVC/PVC 3 cores (steel tape armored) VV22, VLV22
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
PVC bedding thickness (mm) |
Armored wire outer diameter (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core cable weight (kg/km) |
Aluminum core cable weight (kg/km) |
||
|
Cross sectional area (mm2) |
Structure |
Outer diameter (mm) |
||||||||
|
10 |
Compact round |
3.9 |
3.4 |
0.1 |
1.2 |
0.2 |
1.9 |
32.2 |
1382 |
1193 |
|
16 |
Compact round |
5.0 |
3.4 |
0.1 |
1.2 |
0.2 |
2.0 |
34.8 |
1722 |
1420 |
|
25 |
Compact round |
6.0 |
3.4 |
0.1 |
1.2 |
0.5 |
2.1 |
38.4 |
2447 |
1975 |
|
35 |
Compact round |
7.2 |
3.4 |
0.1 |
1.2 |
0.5 |
2.2 |
41.2 |
2914 |
2253 |
|
50 |
Compact round |
8.4 |
3.4 |
0.1 |
1.3 |
0.5 |
2.3 |
44.1 |
3426 |
2482 |
|
70 |
Compact round |
10.0 |
3.4 |
0.1 |
1.3 |
0.5 |
2.4 |
47.8 |
4204 |
2879 |
|
95 |
Compact round |
11.7 |
3.4 |
0.1 |
1.4 |
0.5 |
2.6 |
52.0 |
5176 |
3379 |
|
120 |
Compact round |
13.1 |
3.4 |
0.1 |
1.5 |
0.5 |
2.7 |
55.5 |
6099 |
3829 |
|
150 |
Compact round |
14.6 |
3.4 |
0.1 |
1.5 |
0.5 |
2.8 |
58.9 |
7152 |
4315 |
|
185 |
Compact round |
16.3 |
3.4 |
0.1 |
1.6 |
0.5 |
2.9 |
63.0 |
8397 |
4897 |
|
240 |
Compact round |
18.5 |
3.4 |
0.1 |
1.7 |
0.5 |
3.1 |
68.3 |
10290 |
5751 |
|
300 |
Compact round |
20.7 |
3.4 |
0.1 |
1.8 |
0.5 |
3.2 |
73.4 |
12308 |
6628 |
|
400 |
Compact round |
23.8 |
3.4 |
0.1 |
1.9 |
0.5 |
3.5 |
80.9 |
15624 |
8051 |
|
500 |
Compact round |
26.6 |
3.4 |
0.1 |
2.0 |
0.8 |
3.7 |
88.7 |
19733 |
10266 |
6/6 (7.2), 6/10 (12) KV XLPE/PVC single core (non-armored) YJV, YJLV
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core cableweight (kg/km) |
Aluminum core cable weight (kg/km) |
||
|
Cross sectional area (mm2) |
Structure |
Outer diameter (mm) |
||||||
|
25 |
Compact round |
6.0 |
3.4 |
0.12 |
1.6 |
19.4 |
580 |
423 |
|
35 |
Compact round |
7.2 |
3.4 |
0.12 |
1.6 |
20.6 |
702 |
483 |
|
50 |
Compact round |
8.4 |
3.4 |
0.12 |
1.7 |
22.0 |
878 |
566 |
|
70 |
Compact round |
10.0 |
3.4 |
0.12 |
1.7 |
23.6 |
1103 |
665 |
|
95 |
Compact round |
11.7 |
3.4 |
0.12 |
1.8 |
25.5 |
1386 |
791 |
|
120 |
Compact round |
13.1 |
3.4 |
0.12 |
1.8 |
26.9 |
1649 |
898 |
|
150 |
Compact round |
14.6 |
3.4 |
0.12 |
1.9 |
28.6 |
1974 |
1035 |
|
185 |
Compact round |
16.3 |
3.4 |
0.12 |
1.9 |
30.3 |
2337 |
1178 |
|
240 |
Compact round |
18.5 |
3.4 |
0.12 |
2.0 |
32.7 |
2908 |
1406 |
|
300 |
Compact round |
20.7 |
3.4 |
0.12 |
2.1 |
35.3 |
3544 |
1664 |
|
400 |
Compact round |
23.8 |
3.4 |
0.12 |
2.2 |
38.6 |
4554 |
2047 |
|
500 |
Compact round |
26.6 |
3.4 |
0.12 |
2.3 |
42.2 |
5574 |
2440 |
|
630 |
Compact round |
30.1 |
3.4 |
0.12 |
2.4 |
45.9 |
6884 |
2936 |
|
800 |
Compact round |
35.0 |
3.4 |
0.12 |
2.5 |
51.2 |
8611 |
3597 |
|
1000 |
Milliken conductor |
39.5 |
3.4 |
0.12 |
2.7 |
56.3 |
10655 |
4369 |
6 (7.2), 6/10 (12) KV XLPE/PVC 3 cores (non-armored) YJV, YJLV
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core cableweight (kg/km) |
Aluminum core cable weight (kg/km) |
||
|
Cross sectional area (mm2) |
Structure |
Outer diameter (mm) |
||||||
|
25 |
Compact round |
6.0 |
3.4 |
0.12 |
2.2 |
38.9 |
1728 |
1256 |
|
35 |
Compact round |
7.2 |
3.4 |
0.12 |
2.3 |
41.6 |
2111 |
1451 |
|
50 |
Compact round |
8.4 |
3.4 |
0.12 |
2.4 |
44.4 |
2636 |
1692 |
|
70 |
Compact round |
10.0 |
3.4 |
0.12 |
2.5 |
48.1 |
3336 |
2015 |
|
95 |
Compact round |
11.7 |
3.4 |
0.12 |
2.7 |
52.0 |
4185 |
2392 |
|
120 |
Compact round |
13.1 |
3.4 |
0.12 |
2.8 |
55.2 |
5009 |
2743 |
|
150 |
Compact round |
14.6 |
3.4 |
0.12 |
2.9 |
58.7 |
5979 |
3148 |
|
185 |
Compact round |
16.3 |
3.4 |
0.12 |
3.0 |
62.5 |
7109 |
3616 |
|
240 |
Compact round |
18.5 |
3.4 |
0.12 |
3.1 |
67.6 |
8845 |
4314 |
|
300 |
Compact round |
20.7 |
3.4 |
0.12 |
3.3 |
73.1 |
10764 |
5101 |
|
400 |
Compact round |
23.8 |
3.4 |
0.12 |
3.5 |
80.2 |
13848 |
6297 |
|
500 |
Compact round |
26.6 |
3.4 |
0.12 |
3.7 |
87.9 |
17019 |
7580 |
6/6(7.2)6/10(12)KV XLPE/PVC 3 cores(steel wire armored)YJV32,YJLV32
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
PVC bedding thickness (mm) |
Armored wire outer diameter (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core cable weight (kg/km) |
Aluminum core cable weight (kg/km) |
||
|
Cross sectional area (mm2) |
Structure |
Outer diameter (mm) |
||||||||
|
25 |
Compact round |
6.0 |
3.4 |
0.1 |
1.3 |
2.5 |
2.5 |
48.0 |
4175 |
3703 |
|
35 |
Compact round |
7.2 |
3.4 |
0.1 |
1.3 |
2.5 |
2.6 |
50.8 |
4733 |
4072 |
|
50 |
Compact round |
8.4 |
3.4 |
0.1 |
1.4 |
2.5 |
2.7 |
53.8 |
5491 |
4547 |
|
70 |
Compact round |
10.0 |
3.4 |
0.1 |
1.5 |
2.5 |
2.8 |
57.6 |
6446 |
5124 |
|
95 |
Compact round |
11.7 |
3.4 |
0.1 |
1.5 |
2.5 |
2.9 |
61.5 |
7530 |
5737 |
|
120 |
Compact round |
13.1 |
3.4 |
0.1 |
1.6 |
2.5 |
3.0 |
64.9 |
8628 |
6363 |
|
150 |
Compact round |
14.6 |
3.4 |
0.1 |
1.6 |
2.5 |
3.1 |
68.3 |
9794 |
6963 |
|
185 |
Compact round |
16.3 |
3.4 |
0.1 |
1.7 |
2.5 |
3.3 |
72.6 |
11326 |
7834 |
|
240 |
Compact round |
18.5 |
3.4 |
0.1 |
1.8 |
3.15 |
3.5 |
79.2 |
14268 |
9737 |
|
300 |
Compact round |
20.7 |
3.4 |
0.1 |
1.9 |
3.15 |
3.6 |
84.8 |
16641 |
10978 |
|
400 |
Compact round |
23.8 |
3.4 |
0.1 |
2.0 |
3.15 |
3.9 |
92.3 |
20362 |
12811 |
|
500 |
Compact round |
26.6 |
3.4 |
0.1 |
2.1 |
3.15 |
4.1 |
99.3 |
24203 |
14764 |
6/6(7.2),6/10(12)KV XLPE/PVC 3 cores(steel tape armored) YJV22,YJLV22
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
PVC bedding thickness (mm) |
Armored tape outer diameter (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core cable weight (kg/km) |
Aluminum core cable weight (kg/km) |
||
|
Cross sectional area (mm2) |
Structure |
Outer diameter (mm) |
||||||||
|
25 |
Compact round |
6.0 |
3.4 |
0.1 |
1.3 |
0.5 |
2.4 |
43.8 |
2805 |
2333 |
|
35 |
Compact round |
7.2 |
3.4 |
0.1 |
1.3 |
0.5 |
2.4 |
46.4 |
3251 |
2590 |
|
50 |
Compact round |
8.4 |
3.4 |
0.1 |
1.4 |
0.5 |
2.6 |
49.6 |
3902 |
2958 |
|
70 |
Compact round |
10.0 |
3.4 |
0.1 |
1.5 |
0.5 |
2.7 |
53.4 |
4739 |
3417 |
|
95 |
Compact round |
11.7 |
3.4 |
0.1 |
1.5 |
0.5 |
2.8 |
57.3 |
5706 |
3913 |
|
120 |
Compact round |
13.1 |
3.4 |
0.1 |
1.6 |
0.5 |
2.9 |
60.7 |
6681 |
4415 |
|
150 |
Compact round |
14.6 |
3.4 |
0.1 |
1.6 |
0.5 |
3.0 |
64.1 |
7764 |
4932 |
|
185 |
Compact round |
16.3 |
3.4 |
0.1 |
1.7 |
0.5 |
3.1 |
68.2 |
9108 |
5615 |
|
240 |
Compact round |
18.5 |
3.4 |
0.1 |
1.8 |
0.5 |
3.3 |
73.5 |
11046 |
6515 |
|
300 |
Compact round |
20.7 |
3.4 |
0.1 |
1.9 |
0.5 |
3.5 |
79.3 |
13198 |
7534 |
|
400 |
Compact round |
23.8 |
3.4 |
0.1 |
2.0 |
0.8 |
3.7 |
87.8 |
17420 |
9869 |
|
500 |
Compact round |
26.6 |
3.4 |
0.1 |
2.1 |
0.8 |
3.9 |
94.8 |
20958 |
11520 |
8.7/10 (12), 8.7/15 (17.5) KV XLPE/PVC 3 cores (non-armored) YJV, YJLV
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core cableweight (kg/km) |
Aluminum core cable weight (kg/km) |
||
|
Cross sectional area (mm2) |
Structure |
Outer diameter (mm) |
||||||
|
25 |
Compact round |
6.0 |
4.5 |
0.12 |
2.4 |
43.9 |
2008 |
1536 |
|
35 |
Compact round |
7.2 |
4.5 |
0.12 |
2.5 |
46.7 |
2411 |
1750 |
|
50 |
Compact round |
8.4 |
4.5 |
0.12 |
2.6 |
49.5 |
2953 |
2009 |
|
70 |
Compact round |
10.0 |
4.5 |
0.12 |
2.7 |
53.2 |
3672 |
2351 |
|
95 |
Compact round |
11.7 |
4.5 |
0.12 |
2.8 |
57.1 |
4544 |
2751 |
|
120 |
Compact round |
13.1 |
4.5 |
0.12 |
2.9 |
60.3 |
5387 |
3122 |
|
150 |
Compact round |
14.6 |
4.5 |
0.12 |
3.0 |
63.7 |
6378 |
3546 |
|
185 |
Compact round |
16.3 |
4.5 |
0.12 |
3.1 |
67.6 |
7531 |
4038 |
|
240 |
Compact round |
18.5 |
4.5 |
0.12 |
3.3 |
72.7 |
9297 |
4767 |
|
300 |
Compact round |
20.7 |
4.5 |
0.12 |
3.5 |
78.2 |
11249 |
5586 |
|
400 |
Compact round |
23.8 |
4.5 |
0.12 |
3.7 |
85.3 |
14376 |
6825 |
|
500 |
Compact round |
26.6 |
4.5 |
0.12 |
3.9 |
93.0 |
17592 |
8153 |
8.7/10 (12),8.7/15(17.5)KV XLPE/PVC 3 cores (steel wire armored) YJV32,YJLV32
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
PVC bedding thickness (mm) |
Armored wire outer diameter (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core cable weight (kg/km) |
Aluminum core cable weight (kg/km) |
||
|
Cross sectional area (mm2) |
Structure |
Outer diameter (mm) |
||||||||
|
25 |
Compact round |
6.0 |
4.5 |
0.1 |
1.4 |
2.5 |
2.7 |
53.3 |
4803 |
4331 |
|
35 |
Compact round |
7.2 |
4.5 |
0.1 |
1.4 |
2.5 |
2.8 |
56.1 |
5379 |
4719 |
|
50 |
Compact round |
8.4 |
4.5 |
0.1 |
1.5 |
2.5 |
2.9 |
59.1 |
6091 |
5147 |
|
70 |
Compact round |
10.0 |
4.5 |
0.1 |
1.5 |
2.5 |
3.0 |
62.8 |
7088 |
5766 |
|
95 |
Compact round |
11.7 |
4.5 |
0.1 |
1.6 |
2.5 |
3.1 |
66.8 |
8239 |
6446 |
|
120 |
Compact round |
13.1 |
4.5 |
0.1 |
1.7 |
2.5 |
3.2 |
70.2 |
9346 |
7080 |
|
150 |
Compact round |
14.6 |
4.5 |
0.1 |
1.7 |
3.15 |
3.4 |
75.2 |
11431 |
8599 |
|
185 |
Compact round |
16.3 |
4.5 |
0.1 |
1.8 |
3.15 |
3.5 |
79.2 |
12953 |
9461 |
|
240 |
Compact round |
18.5 |
4.5 |
0.1 |
1.9 |
3.15 |
3.7 |
84.6 |
15139 |
10608 |
|
300 |
Compact round |
20.7 |
4.5 |
0.1 |
2.0 |
3.15 |
3.8 |
90.1 |
17591 |
11928 |
|
400 |
Compact round |
23.8 |
4.5 |
0.1 |
2.1 |
3.15 |
4.1 |
97.6 |
21504 |
13953 |
|
500 |
Compact round |
26.6 |
4.5 |
0.1 |
2.2 |
3.15 |
4.3 |
105.5 |
25364 |
15925 |
8.7/10(12),8.7/15(17.5)KV XLPE/PVC 3 cores (steel tape armored) YJV22,YJLV22
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
PVC bedding thickness (mm) |
Armored tape outer diameter (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core cable weight (kg/km) |
Aluminum core cable weight (kg/km) |
||
|
Cross sectional area (mm2) |
Structure |
Outer diameter (mm) |
||||||||
|
25 |
Compact round |
6.0 |
4.5 |
0.1 |
1.4 |
0.5 |
2.5 |
48.9 |
3227 |
2755 |
|
35 |
Compact round |
7.2 |
4.5 |
0.1 |
1.4 |
0.5 |
2.6 |
51.7 |
3711 |
3050 |
|
50 |
Compact round |
8.4 |
4.5 |
0.1 |
1.5 |
0.5 |
2.7 |
54.7 |
4372 |
3428 |
|
70 |
Compact round |
10.0 |
4.5 |
0.1 |
1.5 |
0.5 |
2.8 |
58.4 |
5208 |
3886 |
|
95 |
Compact round |
11.7 |
4.5 |
0.1 |
1.6 |
0.5 |
3.0 |
62.6 |
6271 |
4477 |
|
120 |
Compact round |
13.1 |
4.5 |
0.1 |
1.7 |
0.5 |
3.1 |
66.0 |
7254 |
4989 |
|
150 |
Compact round |
14.6 |
4.5 |
0.1 |
1.7 |
0.5 |
3.2 |
69.5 |
8420 |
5588 |
|
185 |
Compact round |
16.3 |
4.5 |
0.1 |
1.8 |
0.5 |
3.3 |
73.5 |
9731 |
6239 |
|
240 |
Compact round |
18.5 |
4.5 |
0.1 |
1.9 |
0.5 |
3.5 |
78.9 |
11715 |
7184 |
|
300 |
Compact round |
20.7 |
4.5 |
0.1 |
2.0 |
0.8 |
3.7 |
85.8 |
14774 |
9111 |
|
400 |
Compact round |
23.8 |
4.5 |
0.1 |
2.1 |
0.8 |
3.9 |
93.1 |
18350 |
10798 |
|
500 |
Compact round |
26.6 |
4.5 |
0.1 |
2.2 |
0.8 |
4.1 |
101.0 |
21990 |
12551 |
12/20 (24) XLPE/PVC single core (non-armored) YJV, YJLV
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core cableweight (kg/km) |
Aluminum core cable weight (kg/km) |
||
|
Cross sectional area (mm2) |
Structure |
Outer diameter (mm) |
||||||
|
35 |
Compact round |
7.2 |
5.5 |
0.12 |
1.8 |
25.2 |
896 |
677 |
|
50 |
Compact round |
8.4 |
5.5 |
0.12 |
1.8 |
26.4 |
1071 |
759 |
|
70 |
Compact round |
10.0 |
5.5 |
0.12 |
1.9 |
28.2 |
1320 |
882 |
|
95 |
Compact round |
11.7 |
5.5 |
0.12 |
1.9 |
29.9 |
1604 |
1009 |
|
120 |
Compact round |
13.1 |
5.5 |
0.12 |
2.0 |
31.5 |
1892 |
1141 |
|
150 |
Compact round |
14.6 |
5.5 |
0.12 |
2.0 |
33.0 |
2215 |
1275 |
|
185 |
Compact round |
16.3 |
5.5 |
0.12 |
2.1 |
34.9 |
2605 |
1447 |
|
240 |
Compact round |
18.5 |
5.5 |
0.12 |
2.2 |
37.3 |
3196 |
1693 |
|
300 |
Compact round |
20.7 |
5.5 |
0.12 |
2.2 |
39.7 |
3833 |
1953 |
|
400 |
Compact round |
23.8 |
5.5 |
0.12 |
2.3 |
43.0 |
4867 |
2360 |
|
500 |
Compact round |
26.6 |
5.5 |
0.12 |
2.4 |
46.6 |
5902 |
2769 |
|
630 |
Compact round |
30.1 |
5.5 |
0.12 |
2.5 |
50.3 |
7250 |
3302 |
|
800 |
Compact round |
35.0 |
5.5 |
0.12 |
2.7 |
55.8 |
9040 |
4026 |
|
1000 |
Milliken conductor |
39.5 |
5.5 |
0.12 |
2.8 |
60.7 |
11096 |
4810 |
12/20 (24) XLPE/PVC 3 cores (non-armored) YJV, YJLV
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core cableweight (kg/km) |
Aluminum core cable weight (kg/km) |
||
|
Cross sectional area (mm2) |
Structure |
Outer diameter (mm) |
||||||
|
35 |
Compact round |
7.2 |
5.5 |
0.12 |
2.6 |
51.3 |
2708 |
2047 |
|
50 |
Compact round |
8.4 |
5.5 |
0.12 |
2.7 |
54.1 |
3264 |
2320 |
|
70 |
Compact round |
10.0 |
5.5 |
0.12 |
2.8 |
57.8 |
4004 |
2682 |
|
95 |
Compact round |
11.7 |
5.5 |
0.12 |
3.0 |
61.7 |
4897 |
3103 |
|
120 |
Compact round |
13.1 |
5.5 |
0.12 |
3.1 |
64.9 |
5757 |
3492 |
|
150 |
Compact round |
14.6 |
5.5 |
0.12 |
3.2 |
68.3 |
6767 |
3935 |
|
185 |
Compact round |
16.3 |
5.5 |
0.12 |
3.3 |
72.2 |
7941 |
4448 |
|
240 |
Compact round |
18.5 |
5.5 |
0.12 |
3.5 |
77.3 |
9735 |
5204 |
|
300 |
Compact round |
20.7 |
5.5 |
0.12 |
3.6 |
82.8 |
11716 |
6053 |
|
400 |
Compact round |
23.8 |
5.5 |
0.12 |
3.8 |
89.9 |
14882 |
7331 |
|
500 |
Compact round |
26.6 |
5.5 |
0.12 |
4.0 |
97.6 |
18140 |
8701 |
12/20 (24) XLPE/PVC 3 cores(steel wire armored) YJV32, YJLV32
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
PVC bedding thickness (mm) |
Armored tape outer diameter (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core cable weight (kg/km) |
Aluminum core cable weight (kg/km) |
||
|
Cross sectional area (mm2) |
Structure |
Outer diameter (mm) |
||||||||
|
35 |
Compact round |
7.2 |
5.5 |
0.1 |
1.5 |
2.5 |
2.9 |
60.8 |
5934 |
5273 |
|
50 |
Compact round |
8.4 |
5.5 |
0.1 |
1.6 |
2.5 |
3.0 |
63.8 |
6706 |
5763 |
|
70 |
Compact round |
10.0 |
5.5 |
0.1 |
1.6 |
2.5 |
3.1 |
67.5 |
7699 |
6378 |
|
95 |
Compact round |
11.7 |
5.5 |
0.1 |
1.7 |
2.5 |
3.3 |
71.7 |
8932 |
7139 |
|
120 |
Compact round |
13.1 |
5.5 |
0.1 |
1.8 |
3.15 |
3.4 |
76.4 |
10907 |
8641 |
|
150 |
Compact round |
14.6 |
5.5 |
0.1 |
1.8 |
3.15 |
3.5 |
79.9 |
12187 |
9355 |
|
185 |
Compact round |
16.3 |
5.5 |
0.1 |
1.9 |
3.15 |
3.6 |
83.9 |
13742 |
10250 |
|
240 |
Compact round |
18.5 |
5.5 |
0.1 |
2.0 |
3.15 |
3.8 |
89.3 |
16001 |
11471 |
|
300 |
Compact round |
20.7 |
5.5 |
0.1 |
2.1 |
3.15 |
4.0 |
95.0 |
18538 |
12875 |
|
400 |
Compact round |
23.8 |
5.5 |
0.1 |
2.2 |
3.15 |
4.2 |
102.3 |
22314 |
14762 |
|
500 |
Compact round |
26.6 |
5.5 |
0.1 |
2.3 |
3.15 |
4.4 |
110.2 |
26392 |
16953 |
12/20(24)XLPE/PVC 3 cores(steel tape armored)YJV22,YJLV22
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
PVC bedding thickness (mm) |
Armored tape outer diameter (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core cable weight (kg/km) |
Aluminum core cable weight (kg/km) |
||
|
Cross sectional area (mm2) |
Structure |
Outer diameter (mm) |
||||||||
|
35 |
Compact round |
7.2 |
5.5 |
0.1 |
1.5 |
0.5 |
2.8 |
56.6 |
4182 |
3521 |
|
50 |
Compact round |
8.4 |
5.5 |
0.1 |
1.6 |
0.5 |
2.9 |
59.6 |
4866 |
3922 |
|
70 |
Compact round |
10.0 |
5.5 |
0.1 |
1.6 |
0.5 |
3.0 |
63.3 |
5738 |
4417 |
|
95 |
Compact round |
11.7 |
5.5 |
0.1 |
1.7 |
0.5 |
3.1 |
67.3 |
6783 |
4990 |
|
120 |
Compact round |
13.1 |
5.5 |
0.1 |
1.8 |
0.5 |
3.2 |
70.7 |
7847 |
5582 |
|
150 |
Compact round |
14.6 |
5.5 |
0.1 |
1.8 |
0.5 |
3.3 |
74.2 |
8972 |
6141 |
|
185 |
Compact round |
16.3 |
5.5 |
0.1 |
1.9 |
0.5 |
3.5 |
78.4 |
10352 |
6859 |
|
240 |
Compact round |
18.5 |
5.5 |
0.1 |
2.0 |
0.8 |
3.7 |
85.0 |
13229 |
8698 |
|
300 |
Compact round |
20.7 |
5.5 |
0.1 |
2.1 |
0.8 |
3.8 |
90.5 |
15523 |
9860 |
|
400 |
Compact round |
23.8 |
5.5 |
0.1 |
2.2 |
0.8 |
4.1 |
98.0 |
19110 |
11559 |
|
500 |
Compact round |
26.6 |
5.5 |
0.1 |
2.3 |
0.8 |
4.3 |
105.9 |
22909 |
13470 |
18/30 (36) XLPE/PVC single core (non-armored) YJV, YJLV
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core cableweight (kg/km) |
Aluminum core cable weight (kg/km) |
||
|
Cross sectional area (mm2) |
Structure |
Outer diameter (mm) |
||||||
|
50 |
Compact round |
8.4 |
8.0 |
0.12 |
2.0 |
31.8 |
1354 |
1042 |
|
70 |
Compact round |
10.0 |
8.0 |
0.12 |
2.0 |
33.4 |
1604 |
1166 |
|
95 |
Compact round |
11.7 |
8.0 |
0.12 |
2.1 |
35.3 |
1918 |
1323 |
|
120 |
Compact round |
13.1 |
8.0 |
0.12 |
2.1 |
36.7 |
2204 |
1453 |
|
150 |
Compact round |
14.6 |
8.0 |
0.12 |
2.2 |
38.4 |
2557 |
1617 |
|
185 |
Compact round |
16.3 |
8.0 |
0.12 |
2.2 |
40.1 |
2946 |
1788 |
|
240 |
Compact round |
18.5 |
8.0 |
0.12 |
2.3 |
42.5 |
3557 |
2055 |
|
300 |
Compact round |
20.7 |
8.0 |
0.12 |
2.4 |
45.1 |
4236 |
2355 |
|
400 |
Compact round |
23.8 |
8.0 |
0.12 |
2.5 |
48.4 |
5299 |
2792 |
|
500 |
Compact round |
26.6 |
8.0 |
0.12 |
2.6 |
52.0 |
6354 |
3220 |
|
630 |
Compact round |
30.1 |
8.0 |
0.12 |
2.7 |
55.7 |
7748 |
3799 |
|
800 |
Compact round |
35.0 |
8.0 |
0.12 |
2.8 |
61.0 |
9560 |
4546 |
|
1000 |
Milliken conductor |
39.5 |
8.0 |
0.12 |
3.0 |
66.1 |
11687 |
5401 |
18/30 (36) XLPE/PVC 3 cores (non-armored) YJV, YJLV
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core cableweight (kg/km) |
Aluminum core cable weight (kg/km) |
||
|
Cross sectional area (mm2) |
Structure |
Outer diameter (mm) |
||||||
|
50 |
Compact round |
8.4 |
8.0 |
0.12 |
3.1 |
65.6 |
4154 |
3210 |
|
70 |
Compact round |
10.0 |
8.0 |
0.12 |
3.2 |
69.3 |
4942 |
3621 |
|
95 |
Compact round |
11.7 |
8.0 |
0.12 |
3.3 |
73.2 |
5889 |
4095 |
|
120 |
Compact round |
13.1 |
8.0 |
0.12 |
3.5 |
76.4 |
6793 |
4527 |
|
150 |
Compact round |
14.6 |
8.0 |
0.12 |
3.6 |
79.9 |
7849 |
5018 |
|
185 |
Compact round |
16.3 |
8.0 |
0.12 |
3.7 |
83.8 |
9075 |
5583 |
|
240 |
Compact round |
18.5 |
8.0 |
0.12 |
3.8 |
88.8 |
10939 |
6408 |
|
300 |
Compact round |
20.7 |
8.0 |
0.12 |
4.0 |
94.3 |
12994 |
7330 |
|
400 |
Compact round |
23.8 |
8.0 |
0.12 |
4.2 |
101.4 |
16257 |
8706 |
|
500 |
Compact round |
26.6 |
8.0 |
0.12 |
4.4 |
109.2 |
19619 |
10180 |
18/30 (36) XLPE/PVC 3 cores (steel wire armored) YJV32, YJLV32
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
PVC bedding thickness (mm) |
Armored tape outer diameter (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core cable weight (kg/km) |
Aluminum core cable weight (kg/km) |
||
|
Cross sectional area (mm2) |
Structure |
Outer diameter (mm) |
||||||||
|
50 |
Compact round |
8.4 |
8.0 |
0.1 |
1.8 |
3.15 |
3.5 |
77.3 |
9333 |
8390 |
|
70 |
Compact round |
10.0 |
8.0 |
0.1 |
1.8 |
3.15 |
3.6 |
80.9 |
10396 |
9075 |
|
95 |
Compact round |
11.7 |
8.0 |
0.1 |
1.9 |
3.15 |
3.7 |
85.0 |
11723 |
9930 |
|
120 |
Compact round |
13.1 |
8.0 |
0.1 |
2.0 |
3.15 |
3.8 |
88.4 |
12986 |
10720 |
|
150 |
Compact round |
14.6 |
8.0 |
0.1 |
2.0 |
3.15 |
3.9 |
91.8 |
14220 |
11388 |
|
185 |
Compact round |
16.3 |
8.0 |
0.1 |
2.1 |
3.15 |
4.0 |
95.9 |
15887 |
12395 |
|
240 |
Compact round |
18.5 |
8.0 |
0.1 |
2.2 |
3.15 |
4.2 |
101.2 |
18144 |
13613 |
|
300 |
Compact round |
20.7 |
8.0 |
0.1 |
2.3 |
3.15 |
4.4 |
107.0 |
20761 |
15097 |
|
400 |
Compact round |
23.8 |
8.0 |
0.1 |
2.4 |
3.15 |
4.6 |
114.3 |
24824 |
17273 |
|
500 |
Compact round |
26.6 |
8.0 |
0.1 |
2.5 |
3.15 |
4.8 |
122.2 |
29019 |
19580 |
18/30(36)XLPE/PVC 3 cores(steel tape armored)YJV22,YJLV22
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
PVC bedding thickness (mm) |
Armored tape outer diameter (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core cable weight (kg/km) |
Aluminum core cable weight (kg/km) |
||
|
Cross sectional area (mm2) |
Structure |
Outer diameter (mm) |
||||||||
|
50 |
Compact round |
8.4 |
8.0 |
0.1 |
1.8 |
0.5 |
3.3 |
71.6 |
6279 |
5335 |
|
70 |
Compact round |
10.0 |
8.0 |
0.1 |
1.8 |
0.5 |
3.4 |
75.2 |
7189 |
5868 |
|
95 |
Compact round |
11.7 |
8.0 |
0.1 |
1.9 |
0.5 |
3.5 |
79.3 |
8305 |
6511 |
|
120 |
Compact round |
13.1 |
8.0 |
0.1 |
2.0 |
0.8 |
3.7 |
84.1 |
10257 |
7992 |
|
150 |
Compact round |
14.6 |
8.0 |
0.1 |
2.0 |
0.8 |
3.8 |
87.5 |
11435 |
8603 |
|
185 |
Compact round |
16.3 |
8.0 |
0.1 |
2.1 |
0.8 |
3.9 |
91.6 |
12933 |
9441 |
|
240 |
Compact round |
18.5 |
8.0 |
0.1 |
2.2 |
0.8 |
4.1 |
96.9 |
15043 |
10512 |
|
300 |
Compact round |
20.7 |
8.0 |
0.1 |
2.3 |
0.8 |
4.2 |
102.5 |
17412 |
11749 |
|
400 |
Compact round |
23.8 |
8.0 |
0.1 |
2.4 |
0.8 |
4.5 |
110.0 |
21229 |
13678 |
|
500 |
Compact round |
26.6 |
8.0 |
0.1 |
2.5 |
0.8 |
4.7 |
117.9 |
25145 |
15706 |
21/35 (40.5) XLPE/PVC single core (non-armored) YJV, YJLV
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core cableweight (kg/km) |
Aluminum core cable weight (kg/km) |
||
|
Cross sectional area (mm2) |
Structure |
Outer diameter (mm) |
||||||
|
50 |
Compact round |
8.4 |
9.3 |
0.12 |
2.1 |
34.8 |
1533 |
1221 |
|
70 |
Compact round |
10.0 |
9.3 |
0.12 |
2.1 |
36.4 |
1791 |
1353 |
|
95 |
Compact round |
11.7 |
9.3 |
0.12 |
2.2 |
38.3 |
2115 |
1520 |
|
120 |
Compact round |
13.1 |
9.3 |
0.12 |
2.2 |
39.7 |
2408 |
1656 |
|
150 |
Compact round |
14.6 |
9.3 |
0.12 |
2.3 |
41.4 |
2769 |
1830 |
|
185 |
Compact round |
16.3 |
9.3 |
0.12 |
2.3 |
43.1 |
3167 |
2009 |
|
240 |
Compact round |
18.5 |
9.3 |
0.12 |
2.4 |
45.5 |
3790 |
2287 |
|
300 |
Compact round |
20.7 |
9.3 |
0.12 |
2.5 |
48.1 |
4481 |
2601 |
|
400 |
Compact round |
23.8 |
9.3 |
0.12 |
2.6 |
51.4 |
5561 |
3054 |
|
500 |
Compact round |
26.6 |
9.3 |
0.12 |
2.7 |
57.1 |
6894 |
3760 |
|
630 |
Compact round |
30.1 |
9.3 |
0.12 |
2.8 |
60.8 |
8263 |
4314 |
|
800 |
Compact round |
35.0 |
9.3 |
0.12 |
3.0 |
66.3 |
10257 |
5243 |
|
1000 |
Milliken conductor |
39.5 |
9.3 |
0.12 |
3.1 |
71.2 |
12369 |
6083 |
21/35 (40.5) XLPE/PVC 3 cores (non-armored) YJV, YJLV
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core cableweight (kg/km) |
Aluminum core cable weight (kg/km) |
||
|
Cross sectional area (mm2) |
Structure |
Outer diameter (mm) |
||||||
|
50 |
Compact round |
8.4 |
9.3 |
0.12 |
3.3 |
72.1 |
4719 |
3776 |
|
70 |
Compact round |
10.0 |
9.3 |
0.12 |
3.4 |
75.7 |
5536 |
4214 |
|
95 |
Compact round |
11.7 |
9.3 |
0.12 |
3.5 |
79.6 |
6512 |
4718 |
|
120 |
Compact round |
13.1 |
9.3 |
0.12 |
3.7 |
82.8 |
7441 |
5175 |
|
150 |
Compact round |
14.6 |
9.3 |
0.12 |
3.8 |
86.3 |
8523 |
5692 |
|
185 |
Compact round |
16.3 |
9.3 |
0.12 |
3.9 |
90.2 |
9779 |
6286 |
|
240 |
Compact round |
18.5 |
9.3 |
0.12 |
4.0 |
95.2 |
11681 |
7150 |
|
300 |
Compact round |
20.7 |
9.3 |
0.12 |
4.2 |
100.7 |
13777 |
8114 |
|
400 |
Compact round |
23.8 |
9.3 |
0.12 |
4.4 |
107.9 |
17095 |
9544 |
21/35 (40.5) XLPE/PVC 3 cores (steel wire armored) YJV32,YJLV32
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
PVC bedding thickness (mm) |
Armored tape outer diameter (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core cable weight (kg/km) |
Aluminum core cable weight (kg/km) |
||
|
Cross sectional area (mm2) |
Structure |
Outer diameter (mm) |
||||||||
|
50 |
Compact round |
8.4 |
9.3 |
0.1 |
1.9 |
3.15 |
3.7 |
83.9 |
10380 |
9436 |
|
70 |
Compact round |
10.0 |
9.3 |
0.1 |
2.0 |
3.15 |
3.8 |
87.8 |
11519 |
10197 |
|
95 |
Compact round |
11.7 |
9.3 |
0.1 |
2.0 |
3.15 |
3.9 |
91.6 |
12821 |
11028 |
|
120 |
Compact round |
13.1 |
9.3 |
0.1 |
2.1 |
3.15 |
4.0 |
95.0 |
14037 |
11772 |
|
150 |
Compact round |
14.6 |
9.3 |
0.1 |
2.2 |
3.15 |
4.1 |
98.7 |
15552 |
12720 |
|
185 |
Compact round |
16.3 |
9.3 |
0.1 |
2.2 |
3.15 |
4.2 |
102.5 |
17139 |
13646 |
|
240 |
Compact round |
18.5 |
9.3 |
0.1 |
2.3 |
3.15 |
4.4 |
107.9 |
19442 |
14912 |
|
300 |
Compact round |
20.7 |
9.3 |
0.1 |
2.4 |
3.15 |
4.6 |
113.6 |
22224 |
16561 |
|
400 |
Compact round |
23.8 |
9.3 |
0.1 |
2.5 |
3.15 |
4.8 |
120.9 |
26222 |
18671 |
21/35 (40.5) XLPE/PVC 3 cores (steel tape armored) YJV22,YJLV22
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
PVC bedding thickness (mm) |
Armored tape outer diameter (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core cable weight (kg/km) |
Aluminum core cable weight (kg/km) |
||
|
Cross sectional area (mm2) |
Structure |
Outer diameter (mm) |
||||||||
|
50 |
Compact round |
8.4 |
9.3 |
0.1 |
1.9 |
0.5 |
3.5 |
78.2 |
7076 |
6132 |
|
70 |
Compact round |
10.0 |
9.3 |
0.1 |
2.0 |
0.8 |
3.6 |
83.3 |
8864 |
7543 |
|
95 |
Compact round |
11.7 |
9.3 |
0.1 |
2.0 |
0.8 |
3.8 |
87.3 |
10094 |
8301 |
|
120 |
Compact round |
13.1 |
9.3 |
0.1 |
2.1 |
0.8 |
3.9 |
90.7 |
11190 |
8925 |
|
150 |
Compact round |
14.6 |
9.3 |
0.1 |
2.2 |
0.8 |
4.0 |
94.4 |
12527 |
9695 |
|
185 |
Compact round |
16.3 |
9.3 |
0.1 |
2.2 |
0.8 |
4.1 |
98.2 |
14003 |
10511 |
|
240 |
Compact round |
18.5 |
9.3 |
0.1 |
2.3 |
0.8 |
4.3 |
103.6 |
16160 |
11629 |
|
300 |
Compact round |
20.7 |
9.3 |
0.1 |
2.4 |
0.8 |
4.4 |
109.1 |
18691 |
13028 |
|
400 |
Compact round |
23.8 |
9.3 |
0.1 |
2.5 |
0.8 |
4.7 |
116.6 |
22446 |
14895 |
26/35 (40.5) XLPE/PVC single core (non-armored) YJV, YJLV
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core cableweight (kg/km) |
Aluminum core cable weight (kg/km) |
||
|
Cross sectional area (mm2) |
Structure |
Outer diameter (mm) |
||||||
|
50 |
Compact round |
8.4 |
10.5 |
0.12 |
2.2 |
37.6 |
1715 |
1402 |
|
70 |
Compact round |
10.0 |
10.5 |
0.12 |
2.2 |
39.2 |
1980 |
1541 |
|
95 |
Compact round |
11.7 |
10.5 |
0.12 |
2.3 |
41.1 |
2313 |
1718 |
|
120 |
Compact round |
13.1 |
10.5 |
0.12 |
2.3 |
42.5 |
2612 |
1860 |
|
150 |
Compact round |
14.6 |
10.5 |
0.12 |
2.4 |
44.2 |
2981 |
2042 |
|
185 |
Compact round |
16.3 |
10.5 |
0.12 |
2.4 |
45.9 |
3387 |
2229 |
|
240 |
Compact round |
18.5 |
10.5 |
0.12 |
2.5 |
48.3 |
4021 |
2519 |
|
300 |
Compact round |
20.7 |
10.5 |
0.12 |
2.6 |
50.9 |
4725 |
2845 |
|
400 |
Compact round |
23.8 |
10.5 |
0.12 |
2.7 |
54.2 |
5820 |
3313 |
|
500 |
Compact round |
26.6 |
10.5 |
0.12 |
2.8 |
59.7 |
7142 |
4009 |
|
630 |
Compact round |
30.1 |
10.5 |
0.12 |
2.9 |
63.4 |
8528 |
4579 |
|
800 |
Compact round |
35.0 |
10.5 |
0.12 |
3.1 |
68.7 |
10521 |
5507 |
|
1000 |
Milliken conductor |
39.5 |
10.5 |
0.12 |
3.2 |
73.6 |
12652 |
6366 |
26/35 (40.5) XLPE/PVC 3 cores (non-armored) YJV, YJLV
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core cableweight (kg/km) |
Aluminum core cable weight (kg/km) |
||
|
Cross sectional area (mm2) |
Structure |
Outer diameter (mm) |
||||||
|
50 |
Compact round |
8.4 |
10.5 |
0.1 |
3.5 |
78.0 |
5289 |
4345 |
|
70 |
Compact round |
10.0 |
10.5 |
0.1 |
3.6 |
81.7 |
6131 |
4809 |
|
95 |
Compact round |
11.7 |
10.5 |
0.1 |
3.7 |
85.6 |
7134 |
5341 |
|
120 |
Compact round |
13.1 |
10.5 |
0.1 |
3.8 |
88.8 |
8086 |
5821 |
|
150 |
Compact round |
14.6 |
10.5 |
0.1 |
3.9 |
92.3 |
9193 |
6361 |
|
185 |
Compact round |
16.3 |
10.5 |
0.1 |
4.1 |
96.1 |
10476 |
6983 |
|
240 |
Compact round |
18.5 |
10.5 |
0.1 |
4.2 |
101.2 |
12414 |
7883 |
|
300 |
Compact round |
20.7 |
10.5 |
0.1 |
4.4 |
106.7 |
14548 |
8885 |
|
400 |
Compact round |
23.8 |
10.5 |
0.1 |
4.6 |
113.8 |
17917 |
10365 |
26/35 (40.5) XLPE/PVC 3 cores (steel wire armored) YJV32,YJLV32
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
PVC bedding thickness (mm) |
Armored tape outer diameter (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core cable weight (kg/km) |
Aluminum core cable weight (kg/km) |
||
|
Cross sectional area (mm2) |
Structure |
Outer diameter (mm) |
||||||||
|
50 |
Compact round |
8.4 |
10.5 |
0.1 |
2.0 |
3.15 |
3.9 |
90.1 |
11529 |
10585 |
|
70 |
Compact round |
10.0 |
10.5 |
0.1 |
2.1 |
3.15 |
4.0 |
94.0 |
12665 |
11343 |
|
95 |
Compact round |
11.7 |
10.5 |
0.1 |
2.1 |
3.15 |
4.1 |
97.8 |
13996 |
12203 |
|
120 |
Compact round |
13.1 |
10.5 |
0.1 |
2.2 |
3.15 |
4.2 |
101.2 |
15279 |
13013 |
|
150 |
Compact round |
14.6 |
10.5 |
0.1 |
2.3 |
3.15 |
4.3 |
104.9 |
16711 |
13879 |
|
185 |
Compact round |
16.3 |
10.5 |
0.1 |
2.3 |
3.15 |
4.4 |
108.7 |
18411 |
14919 |
|
240 |
Compact round |
18.5 |
10.5 |
0.1 |
2.4 |
3.15 |
4.6 |
114.1 |
20854 |
16323 |
|
300 |
Compact round |
20.7 |
10.5 |
0.1 |
2.5 |
3.15 |
4.8 |
119.8 |
23557 |
17893 |
|
400 |
Compact round |
23.8 |
10.5 |
0.1 |
2.6 |
3.15 |
5.0 |
127.1 |
27594 |
20042 |
26/35 (40.5) XLPE/PVC 3 cores (steel tape armored) YJV22, YJLV22
|
Conductor |
Insulation thickness (mm) |
Copper tape screen (approximate) (mm) |
PVC bedding thickness (mm) |
Armored tape outer diameter (mm) |
Sheath thickness (mm) |
Outer diameter (approximate) (mm) |
Copper core cable weight (kg/km) |
Aluminum core cable weight (kg/km) |
||
|
Cross sectional area (mm2) |
Structure |
Outer diameter (mm) |
||||||||
|
50 |
Compact round |
8.4 |
10.5 |
0.1 |
1.9 |
0.8 |
3.7 |
85.6 |
8793 |
7849 |
|
70 |
Compact round |
10.0 |
10.5 |
0.1 |
2.0 |
0.8 |
3.8 |
89.5 |
9817 |
8495 |
|
95 |
Compact round |
11.7 |
10.5 |
0.1 |
2.0 |
0.8 |
3.9 |
93.3 |
11036 |
9243 |
|
120 |
Compact round |
13.1 |
10.5 |
0.1 |
2.1 |
0.8 |
4.1 |
96.9 |
12241 |
9976 |
|
150 |
Compact round |
14.6 |
10.5 |
0.1 |
2.2 |
0.8 |
4.2 |
100.6 |
13558 |
10726 |
|
185 |
Compact round |
16.3 |
10.5 |
0.1 |
2.2 |
0.8 |
4.3 |
104.4 |
15085 |
11592 |
|
240 |
Compact round |
18.5 |
10.5 |
0.1 |
2.3 |
0.8 |
4.5 |
109.8 |
17381 |
12850 |
|
300 |
Compact round |
20.7 |
10.5 |
0.1 |
2.4 |
0.8 |
4.6 |
115.3 |
19830 |
14167 |
|
400 |
Compact round |
23.8 |
10.5 |
0.1 |
2.5 |
0.8 |
4.9 |
122.8 |
23689 |
16138 |
|
500 |
Compact round |
26.6 |
10.5 |
0.1 |
2.9 |
0.8 |
5.2 |
131.6 |
26584 |
17145 |
