AACSR Conductor French standard


AACSR is a concentrically stranded conductor composed of one or more layers of Aluminium -Magnesium -Silicon Alloy wire stranded around a high strength coated steel core.
aluminum conductors for transmission lines
aluminum conductor in china


AACSR Conductor French standard

Henan Qingzhou cable group is a professional aluminum cable manufacturer from China, Meet your kinds of requirement aluminum wire cable With over 26 years production experience and 10 years export experience, factory price without any third party.

AACSR Conductor French standard

Application

The AACSR with high strength are used in river crossing conductors, transmission of power through over head ground wires on long span installations against any given resistance of conductor. It can be used as large span conductor, heavy ice wire or overhead communications wire, ground wire. Temperature for continuous use can be up to 90 ℃. Temperature of heat-resistant AACSR can be up to 150 ℃ and above. It has high current carrying capacity.

Structure

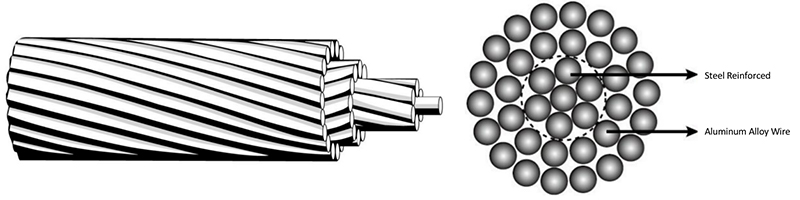

AACSR wire is a concentrically stranded conductor composed of one or more layers of 6201 -T81 aluminum alloy wire stranded with a high-strength coated steel core. The core may be single wire or stranded depending on the size.

FRENCH CONDUCTOR SIZES

Equal steel and Aluminum wire diameter

Code

Name

Total Area







Mm2

Al

Alloy Area

Steel

Wire Area

No.

Of Al

Alloy

Wires

No.

Of St

Wires

Dia of

Wire

Overall

Dia of

Conductor

Tens

Str of

Al

Alloy

Tens

Str of

Steel

Rated

Str of

Conductor

Max

DC Resist

at 20 °C

Linear

Weight

Elasticity

Mod

*

Coefficient

Of Linear

Expansion

*

Mm2

mm2

mm

mm

hbar

hbar

daN

?/km

Kg/km

hbar

/ °C

PHLOX

37.7

28.27

9.42

9

3

2.00

8.3

32.4

156.8

2360

1.17

155

9300

17.0 x 10-1

PHLOX

59.7

37.70

21.99

12

7

2.00

10.0

32.4

156.8

4560

0.880

276

10800

15.3 x 106

PHLOX

75.5

47.71

27.83

12

7

2.25

11.25

32.4

156.8

5770

0.695

348

10800

15.3 X 10-6

PHLOX

116.2



56.55



59.69

18

19

2.00

14.0

32.4

156.8

10815

0.580

636

12400

14.2 x 10-6

PHLOX

147.1

71.57

75.54

18

19

2.25

15.75

32.4

156.8

13685

0.466

802

12400

14.2 X 10-6

PASTEL

147.1

119.28

27.83

30

7

2.25

15.75

32.4

156.8

8185

0.279

547

8400

18.1 x 10-6

PHLOX

181.6

88.36

93.27

18

19

2.50

17.5

32.4

156.8

16895

0-378

990

12400

14.2 x 10 6

PASTEL

181.6

147.26

34.36

30

7

2.50

17.5

32.4

156.8

10120

0.227

675

8400

18-1 x 10-1

PHLOX

228

110.83

116.99

18

19

2.80

19.6

32.4

156.8

21200

0.300

1244

12400

14.2 x 10-1

PASTEL

228

184.72

43.10

30

7

2.80

19.6

32.4

156.8

12680

0.180

848

8400

18.1 x 101

PHLOX

288

140.28

148.07

18

19

3.15

22.05

32.4

156.8

26800

0.237

1570

12400

14.2 x 101

PASTEL

288

233.80

54.55

30

7

3.15

22.05

32.4

156.8

16050

0.142

1074

8400

18.0 x 101

PASTEL

299

205.17

93.27

42

19

2.50

22.5

32.4

156.8

20875

0.162

1320

9650

16.3 x 10-1

PHLOX

376

147.78

227.83

24

37

2.80

25.2

32.4

156.8

38960

0.225

2211

13000

13.5 x 10-1





FRENCH CONDUCTOR SIZES

Non-equal steel and aluminum wire diameter

Code Name

Totall area

Mm2

AI

Alloy

Area

mm²

Stell

Area

mm²

No.&Dia

Of Ai Alloy

wires

No.& Dia

Of Ai Stell

wires

Overal

Dia of

Conductor

mm

Tens

Str  of

Al

Alloy

hbar

Tens

Str of

Steel

hbar

Rated

Str of

Conductor

daN

Max DC

Resist

at 20  0C

? /km

Linear

Weight

Kg/km

Elast

Mod   *

hbar

Coefficient

Of Linear

Expansion

*/ oC

PHLOX

94.1

51.95

42.12

15x 2.10

19x 1.68

12.8

32.4

156.8

8035

0.642

481

11200

14.7 x 10 1

PASTEL

412

325.72

85.95

32x 3.60

19x 2.40

26.4

32.4

156.8

23830

0.103

1593

8200

17.8 x 10-1

PETUNIA

612

507.80

104.79

66x 3.13

19x 2.65

32.1

32.4

156.8

32830

0.0657

2241

7750

18.6 x 10-1

PETUNIA

865

717.33

148.06

66x 3.725

19x 3.10

38.1

32.4

156.8

46000

0.0465

3174

7750

18.5 x 10-1



POLYGONM



1185



956.66



227.82

54x 2.80

66x 3.47



37x 2.80



44.7



32.4



156.8



66385



0.0349



4475



7750



18.1 x 10-1

If you need other AACSR standard, we can manufacture them according to your request.
