PVC INSULATED ELECTRICAL POWER CABLE

PVC Insulated Power Cables are suitable for installation in indoors and outdoors, in cable ducts, under ground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage.

LEAVE MESSAGE

SEND E-MAIL

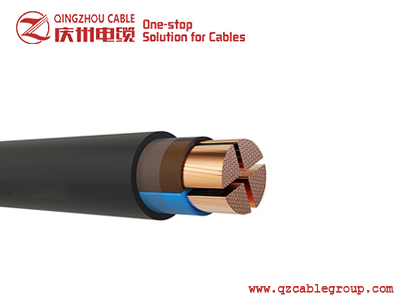

CU/AL PVC Insulated Power Cable

Applications

These cables are used for electricity supply in low voltage installation system, They are suitable for installation in indoors and outdoors, in cable ducts, under ground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage.

Construction

Conductors

The conductors shall be either of Class 1 or Class 2 of plain or metal-coated annealed copper or of plain aluminium or aluminium alloy, or of Class 5 of plain or metal-coated copper in accordance with IEC 60228.

Insulation

PVC Insulation material and thickness shall be as per IEC 60502-1, PVC material shall be Type A as per IEC 60502-1.

CU/AL PVC Insulated Power Cable

Name	Conductor		Insulation	Armor				Outer Sheath
Name	Aluminum	Copper	PVC	SW	ST	DST	AW	PVC	PE
Cu/PVC/PVC		P	P	—	—	—	—	P
Cu/PVC/PE		P	P	—	—	—	—		P
Al/PVC/PVC	P		P	—	—	—	—	P
Al/PVC/PE	P		P	—	—	—	—		P
Cu/PVC/STA/PVC		P	P	—	P	—	—	P
Cu/PVC/STA/PE		P	P	—	P	—	—		P
Al/PVC/STA/PVC	P		P	—	P	—	—	P
Al/PVC/STA/PE	P		P	—	P	—	—		P
Cu/PVC/DSTA/PVC		P	P	—	—	P	—	P
Cu/PVC/DSTA/PE		P	P	—	—	P	—		P
Al/PVC/DSTA/PVC	P		P	—	—	P	—	P
Al/PVC/DSTA/PE	P		P	—	—	P	—		P
Cu/PVC/SWA/PVC		P	P	P	—	—	—	P
Cu/PVC/SWA/PE		P	P	P	—	—	—		P
Al/PVC/SWA/PVC	P		P	P	—	—	—	P
Al/PVC/SWA/PE	P		P	P	—	—	—		P
Cu/PVC/AWA/PVC		P	P	—	—	—	P	P
Cu/PVC/AWA/PE		P	P	—	—	—	P		P
Al/PVC/AWA/PVC	P		P	—	—	—	P	P
Al/PVC/AWA/PE	P		P	—	—	—	P		P
Armor material : SW=steel wire, ST=steel tape, DST=double steel tape, AW=aluminum wire

Colour Code

Colour Code (1)

1 Core	Red or Black
2 Cores	Red, Black
3 Cores	Red, Yellow, Blue
4 Cores	Red, Yellow, Blue, Black
5 Cores	Red, Yellow, Blue, Black, Green
Above 5 Cores	Black Cores with White numerals

Colour Code (2)

1 Core	Brown or Blue
2 Cores	Brown, Blue
3 Cores	Brown, Black, Grey
4 Cores	Blue, Brown, Black, Grey
5 Cores	Green/Yellow, Blue, Brown, Black, Grey
Above 5 Cores	Black Cores with White numerals

Other colours can be manufactured upon request.

CU/PVC/PVC Single core(unarmoured)

Nominal Cross Section	Diameter of Conductor (Approx.)	Nominal Insulation Thickness	Nominal Sheath Thickness	Overall Diameter (Approx.)
mm^2	mm	mm	mm	mm
1×4	2.3	1	1.4	7.1
1×6	2.8	1	1.4	7.6
1×10	3.6	1	1.4	8.4
1×16	4.5	1	1.4	9.3
1×25	5.6	1.2	1.4	10.8
1×35	6.7	1.2	1.4	11.9
1×50	8	1.4	1.4	13.6
1×70	9.4	1.4	1.4	15.1
1×95	11	1.6	1.5	17.2
1×120	12.4	1.6	1.5	18.7
1×150	13.8	1.8	1.6	20.6
1×185	15.3	2	1.7	22.7
1×240	17.5	2.2	1.8	25.4
1×300	19.5	2.4	1.9	28.0
1×400	22.6	2.6	2.0	31.7
1×500	25.2	2.8	2.1	35.0
1×630	28.3	2.8	2.2	38.3

Nominal Cross Section	Diameter of Conductor (Approx.)	Nominal Insulation Thickness	Nominal Sheath Thickness	Overall Diameter (Approx.)
mm^2	mm	mm	mm	mm
2×1.5	1.4	0.8	1.8	9.6
2×2.5	1.8	0.8	1.8	10.4
2×4	2.3	1	1.8	12.2
2×6	2.8	1	1.8	13.2
2×10	3.6	1	1.8	14.8
2×16	4.5	1	1.8	16.6
2×25	5.6	1.2	1.8	19.6
2×35	6.7	1.2	1.8	21.8
2×50	8	1.4	1.8	25.2
2×70	9.4	1.4	1.9	28.1
2×95	11	1.6	2.0	32.4
2×120	12.4	1.6	2.1	35.4
2×150	13.8	1.8	2.2	39.2
2×185	15.3	2	2.4	43.3
2×240	17.5	2.2	2.5	48.9
2×300	19.5	2.4	2.7	54.0
2×400	22.6	2.6	2.9	61.5

Nominal Cross Section	Diameter of Conductor (Approx.)	Nominal Insulation Thickness	Nominal Sheath Thickness	Overall Diameter (Approx.)
mm^2	mm	mm	mm	mm
3×1.5	1.4	0.8	1.8	10.1
3×2.5	1.8	0.8	1.8	10.9
3×4	2.3	1	1.8	12.9
3×6	2.8	1	1.8	13.9
3×10	3.6	1	1.8	15.7
3×16	4.5	1	1.8	17.6
3×25	5.6	1.2	1.8	20.8
3×35	6.7	1.2	1.8	23.2
3×50	8	1.4	1.8	26.9
3×70	9.4	1.4	1.9	30.1
3×95	11	1.6	2.1	34.7
3×120	12.4	1.6	2.2	38.0
3×150	13.8	1.8	2.3	42.1
3×185	15.3	2	2.5	46.5
3×240	17.5	2.2	2.7	52.5
3×300	19.5	2.4	2.8	58.0
3×400	22.6	2.6	3.1	66.1

Nominal Cross Section	Diameter of Conductor (Approx.)		Nominal Insulation Thickness		Nominal Sheath Thickness	Overall Diameter (Approx.)
mm^2	(3)mm	(1)mm	(3)mm	(1)mm	mm	mm
3x 16/10	4.5	3.6	1	1	1.8	19.0
3x 25/16	5.6	4.5	1.2	1	1.8	22.6
3x 35/16	6.7	4.5	1.2	1	1.8	25.3
3x 50/25	8.0	5.6	1.4	1.2	1.9	29.6
3x 70/35	9.4	6.7	1.4	1.2	2.0	33.2
3x 95/50	11.0	8.0	1.6	1.4	2.2	38.4
3×120/70	12.4	9.4	1.6	1.4	2.3	42.0
3×150/70	13.8	9.4	1.8	1.4	2.5	46.6
3×185/95	15.3	11.0	2	1.6	2.6	51.6
3×240/120	17.5	12.4	2.2	1.6	2.9	58.3
3×300/150	19.5	13.8	2.4	1.8	3.1	64.5
3×400/185	22.6	15.3	2.6	2	3.3	73.5

Nominal Cross Section	Diameter of Conductor (Approx.)	Nominal Insulation Thickness	Nominal Sheath Thickness	Overall Diameter (Approx.)
mm^2	mm	mm	mm	mm
4×1.5	1.4	0.8	1.8	10.8
4×2.5	1.8	0.8	1.8	11.8
4×4	2.3	1	1.8	14.0
4×6	2.8	1	1.8	15.2
4×10	3.6	1	1.8	17.1
4×16	4.5	1	1.8	19.3
4×25	5.6	1.2	1.8	22.9
4×35	6.7	1.2	1.8	25.6
4×50	8	1.4	1.9	29.9
4×70	9.4	1.4	2.0	33.5
4×95	11	1.6	2.2	38.7
4×120	12.4	1.6	2.3	42.3
4×150	13.8	1.8	2.5	46.9
4×185	15.3	2	2.6	51.9
4×240	17.5	2.2	2.9	58.6
4×300	19.5	2.4	3.1	64.8
4×400	22.6	2.6	3.3	73.8

Nominal Cross Section	Diameter of Conductor (Approx.)	Nominal Insulation Thickness	Nominal Sheath Thickness	Overall Diameter (Approx.)
mm^2	mm	mm	mm	mm
5×1.5	1.4	0.8	1.8	11.7
7×1.5	1.4	0.8	1.8	12.6
10×1.5	1.4	0.8	1.8	15.6
12×1.5	1.4	0.8	1.8	16.1
14×1.5	1.4	0.8	1.8	16.8
19×1.5	1.4	0.8	1.8	18.6
21×1.5	1.4	0.8	1.8	19.5
24×1.5	1.4	0.8	1.8	21.6
30×1.5	1.4	0.8	1.8	22.8
40×1.5	1.4	0.8	1.8	27.7
48×1.5	1.4	0.8	1.9	28.2
61×1.5	1.4	0.8	1.9	30.9
5×2.5	1.8	0.8	1.8	12.8
7×2.5	1.8	0.8	1.8	13.8
10×2.5	1.8	0.8	1.8	17.2
12×2.5	1.8	0.8	1.8	17.7
14×2.5	1.8	0.8	1.8	18.6
19×2.5	1.8	0.8	1.8	20.6
21×2.5	1.8	0.8	1.8	21.6
24×2.5	1.8	0.8	1.8	24.0
30×2.5	1.8	0.8	1.8	25.4
40×2.5	1.8	0.8	2.0	31.1
48×2.5	1.8	0.8	2.0	31.7
61×2.5	1.8	0.8	2.1	34.7

Nominal Cross Section	Diameter of Conductor (Approx.)	Nominal Insulation thickness	Nominal Inner Covering thickness	Nominal Steel Wire dia.	Nominal Sheath thickness	Overall Diameter (Approx.)
mm^2	mm	mm	mm	mm	mm	mm
1×4	2.3	1	1.0	0.8	1.8	11.5
1×6	2.8	1	1.0	0.8	1.8	12.0
1×10	3.6	1	1.0	0.8	1.8	12.8
1×16	4.5	1	1.0	0.8	1.8	13.7
1×25	5.6	1.2	1.0	0.8	1.8	15.2
1×35	6.7	1.2	1.0	1.25	1.8	17.2
1×50	8.0	1.4	1.0	1.25	1.8	18.9
1×70	9.4	1.4	1.0	1.25	1.8	20.3
1×95	11.0	1.6	1.0	1.6	1.8	23.0
1×120	12.4	1.6	1.0	1.6	1.8	24.4
1×150	13.8	1.8	1.0	1.6	1.8	26.2
1×185	15.3	2	1.0	1.6	1.9	28.2
1×240	17.5	2.2	1.0	1.6	1.9	31.0
1×300	19.5	2.4	1.0	2.0	2.1	34.4
1×400	22.6	2.6	1.2	2.0	2.2	38.6
1×500	25.2	2.8	1.2	2.0	2.3	41.8
1×630	28.3	2.8	1.2	2.5	2.4	46.2

Nominal Cross Section	Diameter of Conductor (Approx.)	Nominal Insulation thickness	Nominal Inner Covering thickness	Nominal Steel Wire dia.	Nominal Sheath thickness	Overall Diameter (Approx.)
mm^2	mm	mm	mm	mm	mm	mm
2×2.5	1.8	0.8	1.0	0.8	1.8	14.0
2×4	2.3	1	1.0	1.25	1.8	16.7
2×6	2.8	1	1.0	1.25	1.8	17.7
2×10	3.6	1	1.0	1.25	1.8	19.3
2×16	4.5	1	1.0	1.25	1.8	21.1
2×25	5.6	1.2	1.0	1.6	1.8	24.8
2×35	6.7	1.2	1.0	1.6	1.8	27.0
2×50	8	1.4	1.0	1.6	1.9	30.7
2×70	9.4	1.4	1.0	2.0	2.1	34.5
2×95	11	1.6	1.2	2.0	2.2	39.2
2×120	12.4	1.6	1.2	2.0	2.3	42.2
2×150	13.8	1.8	1.2	2.5	2.5	47.2
2×185	15.3	2	1.4	2.5	2.6	51.6
2×240	17.5	2.2	1.4	2.5	2.8	57.2
2×300	19.5	2.4	1.6	2.5	3.0	62.8
2×400	22.6	2.6	1.6	2.5	3.2	70.3

Nominal Cross Section	Diameter of Conductor (Approx.)	Nominal Insulation thickness	Nominal Inner Covering thickness	Nominal Steel Wire dia.	Nominal Sheath thickness	Overall Diameter (Approx.)
mm^2	mm	mm	mm	mm	mm	mm
3×2.5	1.8	0.8	1.0	0.8	1.8	14.5
3×4	2.3	1	1.0	1.25	1.8	17.4
3×6	2.8	1	1.0	1.25	1.8	18.4
3×10	3.6	1	1.0	1.25	1.8	20.2
3×16	4.5	1	1.0	1.6	1.8	22.8
3×25	5.6	1.2	1.0	1.6	1.8	26.0
3×35	6.7	1.2	1.0	1.6	1.9	28.5
3×50	8.0	1.4	1.0	2	2.0	33.3
3×70	9.4	1.4	1.2	2	2.1	37.0
3×95	11.0	1.6	1.2	2	2.3	41.6
3×120	12.4	1.6	1.2	2.5	2.4	45.9
3×150	13.8	1.8	1.4	2.5	2.6	50.4
3×185	15.3	2	1.4	2.5	2.7	54.8
3×240	17.5	2.2	1.5	2.5	2.9	61.2
3×300	19.5	2.4	1.6	2.5	3.1	66.8
3×400	22.6	2.8	1.6	3.15	3.4	76.7
3×500	25.2	2.8	1.8	3.15	3.7	83.6

Nominal Cross Section	Diameter of Conductor (Approx.)		Nominal Insulation thickness		Nominal Inner Covering thickness	Nominal Steel Wire dia.	Nominal Sheath thickness	Overall Diameter (Approx.)
mm^2	mm	mm	mm	mm	mm	mm	mm	mm
3×10/6	3.6	2.8	1	1	1	1.25	1.8	21.9
3×16/10	4.5	3.6	1	1	1	1.6	1.8	24.2
3×25/16	5.6	4.5	1.2	1	1	1.6	1.8	27.9
3×35/16	6.7	4.5	1.2	1	1	1.6	1.9	30.8
3×50/25	8.0	5.6	1.4	1.2	1	2.0	2.0	36.4
3×70/35	9.4	6.7	1.4	1.2	1.2	2.0	2.1	40.1
3×95/50	11.0	8.0	1.6	1.4	1.2	2.5	2.3	46.3
3×120/70	12.4	9.4	1.6	1.4	1.4	2.5	2.4	50.3
3×150/70	13.8	9.4	1.8	1.4	1.4	2.5	2.6	55.0
3×185/95	15.3	11.0	2	1.6	1.4	2.5	2.7	60.3
3×240/120	17.5	12.4	2.2	1.6	1.6	2.5	2.9	67.0
3×300/150	19.5	13.8	2.4	1.8	1.6	3.15	3.1	74.6
3×400/185	22.6	15.3	2.6	2	1.8	3.15	3.4	84.1
3×500/240	25.2	17.5	2.8	2.2	2	3.15	3.7	91.8

Nominal Cross Section	Diameter of Conductor (Approx.)	Nominal Insulation thickness	Nominal Inner Covering thickness	Nominal Steel Wire dia.	Nominal Sheath thickness	Overall Diameter (Approx.)
mm^2	mm	mm	mm	mm	mm	mm
4×4	2.3	1	1	1.25	1.8	18.5
4×6	2.8	1	1	1.25	1.8	19.7
4×10	3.6	1	1	1.25	1.8	22.3
4×16	4.5	1	1	1.6	1.8	24.5
4×25	5.6	1.2	1	1.6	1.9	28.2
4×35	6.7	1.2	1	1.6	2.0	31.1
4×50	8.0	1.4	1	2.0	2.1	36.7
4×70	9.4	1.4	1.2	2.0	2.3	40.4
4×95	11.0	1.6	1.2	2.5	2.5	46.6
4×120	12.4	1.6	1.4	2.5	2.6	50.6
4×150	13.8	1.8	1.4	2.5	2.7	55.3
4×185	15.3	2	1.4	2.5	2.9	60.6
4×240	17.5	2.2	1.6	2.5	3.1	67.3
4×300	19.5	2.4	1.6	3.15	3.4	74.9
4×400	22.6	2.6	1.8	3.15	3.7	84.4
4×500	25.2	2.8	2	3.15	3.9	92.1

Nominal cross-sectional area	Number/ wire	Nominal insulation thickness	Nominal bedding thickness	Nominal wire armor dia.	Nominal sheath thickness	Approx. overall diameter		Approx. cable weight
Nominal cross-sectional area	Number/ wire	Nominal insulation thickness	Nominal bedding thickness	Nominal wire armor dia.	Nominal sheath thickness	extruded bedding	taped bedding	Approx. cable weight
mm²	No./mm	mm	mm	mm	mm	mm	mm	kg/mm
5×1.5	7/0.53	0.6	0.8	0.9	1.4	14.3	–	430
5×2.5	7/0.67	0.7	0.8	0.9	1.5	16.3	–	545
5×4	7/0.85	0.8	0.8	1.25	1.5	19.0	–	790
5×6	7/1.04	0.8	0.8	1.25	1.6	20.9	–	880
5×10	7/1.35	1.0	1.0	1.6	1.7	25.8	–	1150
5×16	7/1.70	1.0	1.0	1.6	1.7	28.4	28.0	1670
5×25	7/2.14	1.2	1.0	1.6	1.9	33.5	33.1	2250
5×35	19/1.53	1.2	1.0	1.6	1.9	36.6	36.2	2670
5×50	19/1.78	1.4	1.2	2.0	2.1	43.0	42.2	3590
5×70	19/2.14	1.4	1.2	2.0	2.2	48.1	47.3	4610

No. of Cores	Nominal cross-sectional area	Number/ wire	Nominal insulation thickness	Nominal bedding thickness	Nominal alum wire armor dia.	Nominal sheath thickness	Approx. overall diameter	Approx. cable weight
No. of Cores	mm²	No./mm	mm	mm	mm	mm	mm	kg/mm
7	1.5	7/0.53	0.6	0.8	0.9	1.4	15.2	500
10	1.5	7/0.53	0.6	0.8	1.25	1.5	18.6	780
12	1.5	7/0.53	0.6	0.8	1.25	1.5	19.4	830
19	1.5	7/0.53	0.6	0.8	1.25	1.6	22.2	1090
27	1.5	7/0.53	0.6	1.0	1.6	1.7	26.7	1600
37	1.5	7/0.53	0.6	1.0	1.6	1.8	29.2	1940
48	1.5	7/0.53	0.6	1.0	1.6	1.9	32.9	2360
7	2.5	7/0.67	0.7	0.8	1.25	1.5	18.0	750
10	2.5	7/0.67	0.7	0.8	1.25	1.6	21.8	1000
12	2.5	7/0.67	0.7	0.8	1.25	1.6	22.4	1080
19	2.5	7/0.67	0.7	1.0	1.6	1.7	26.6	1640
27	2.5	7/0.67	0.7	1.0	1.6	1.8	30.7	2110
37	2.5	7/0.67	0.7	1.0	1.6	1.9	34.0	2600
48	2.5	7/0.67	0.7	1.2	2.0	2.1	39.5	3520
7	4	7/0.85	0.8	0.8	1.25	1.6	20.5	970
10	4	7/0.85	0.8	1.0	1.6	1.7	26.1	1500
12	4	7/0.85	0.8	1.0	1.6	1.7	26.8	1630
19	4	7/0.85	0.8	1.0	1.6	1.8	30.5	2170
27	4	7/0.85	0.8	1.2	2.0	2.0	37.1	3170
37	4	7/0.85	0.8	1.2	2.0	2.1	40.8	3910
48	4	7/0.85	0.8	1.2	2.0	2.2	46.0	4790
